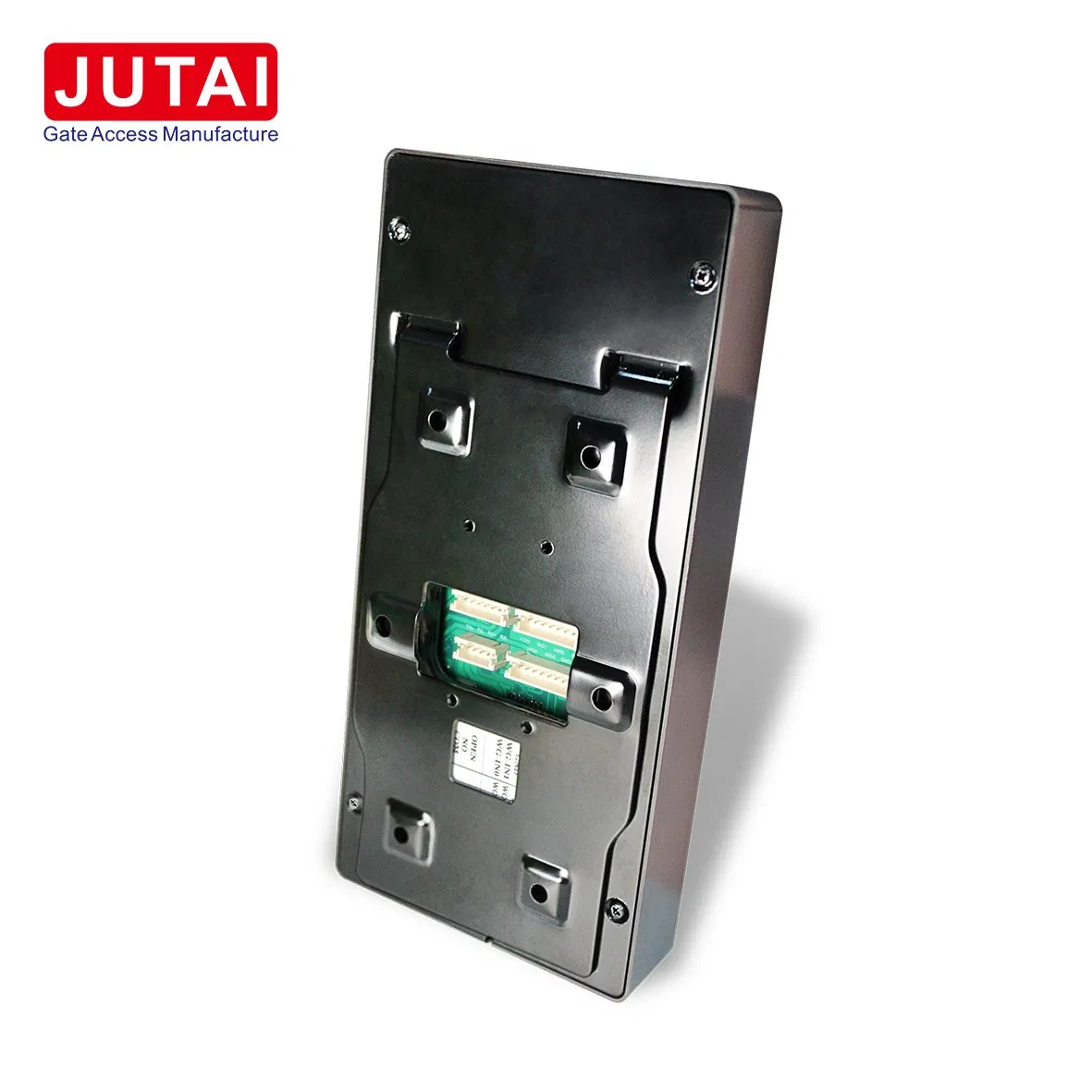

Biometrics Security System Facial Recognition and Fingerprint Reader

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
FR-8100T
Clock
With Clock
Voice Service
With Voice Service
Facial Capacity
1200
Communication
TCP/IP (WiFi Optional)
User Capacity
5000 Faces, Cards, Passwords
Main Purpose
Access Control, Time Attendance
Algorithm Support
Mask & Live Recognition
Power Supply
DC12V (DC9~14V)
Operating System
Linux System
Storage Capacity
512m DDR3, 8GB Emmc
Specification
18.8*8.8*2.9cm
Packaging & Delivery
Package Size
20.00cm * 9.00cm * 3.00cm
Gross Weight
0.300kg
Lead Time
7 days (1 - 100 Pieces)
Detailed Photos

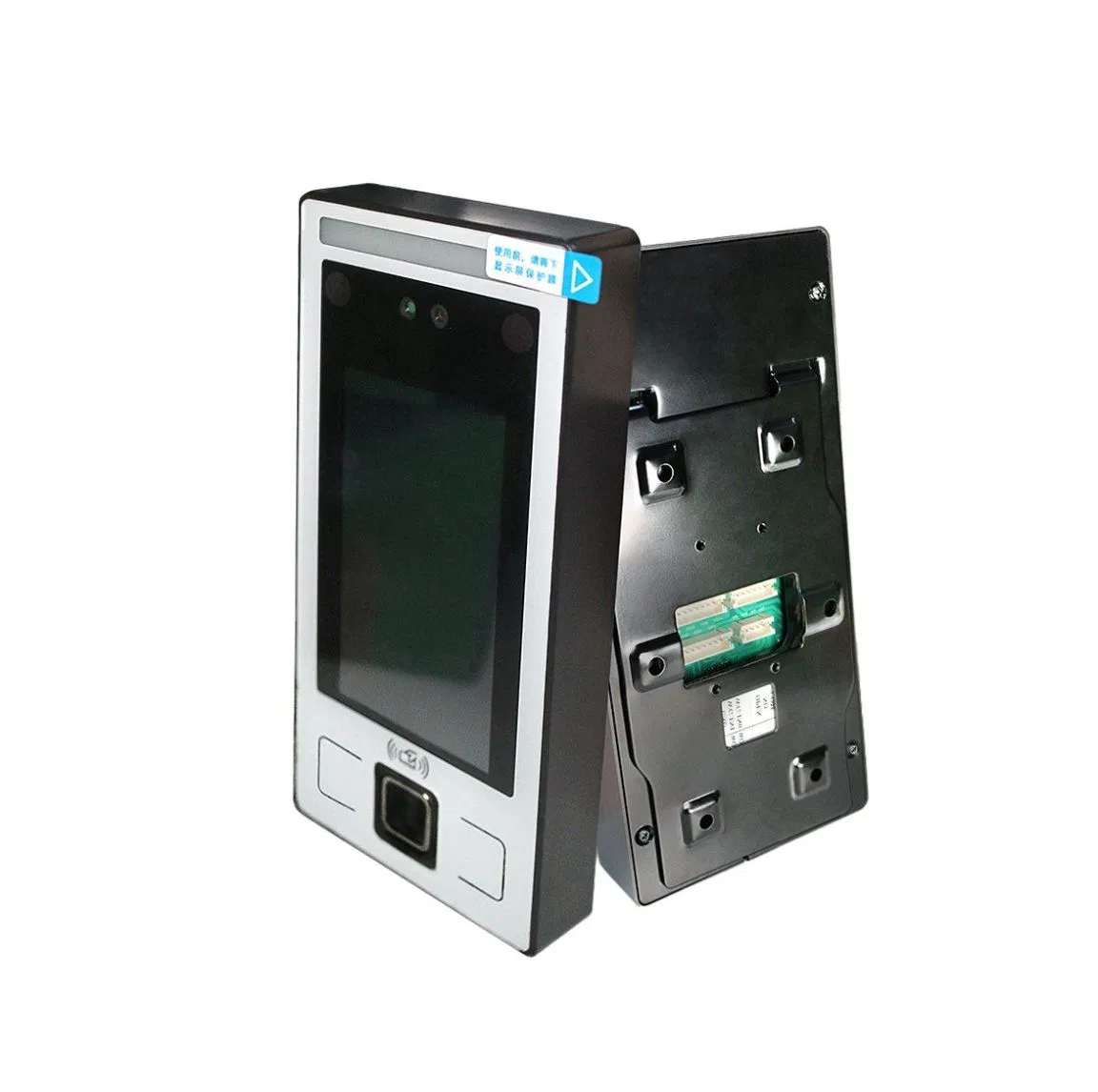

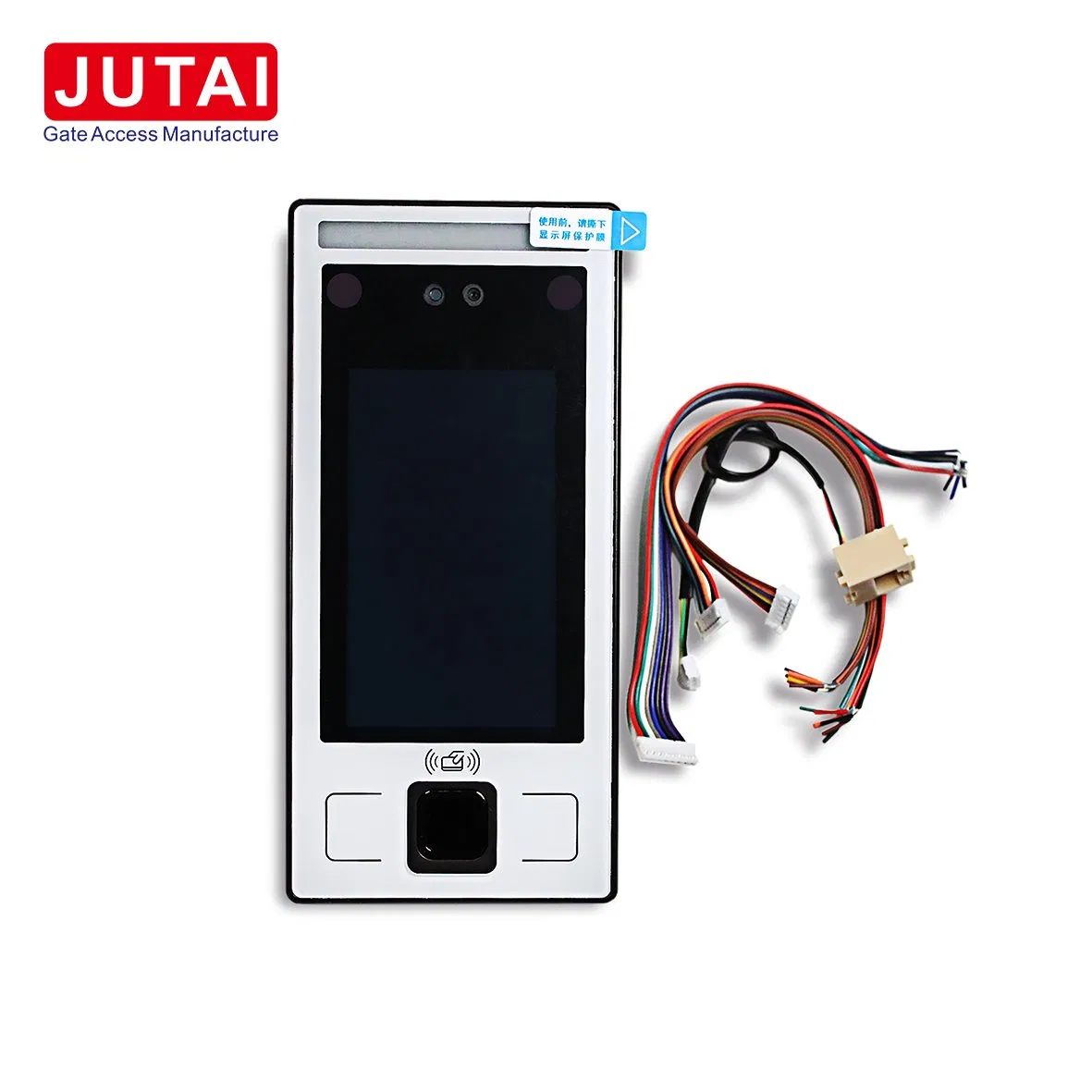

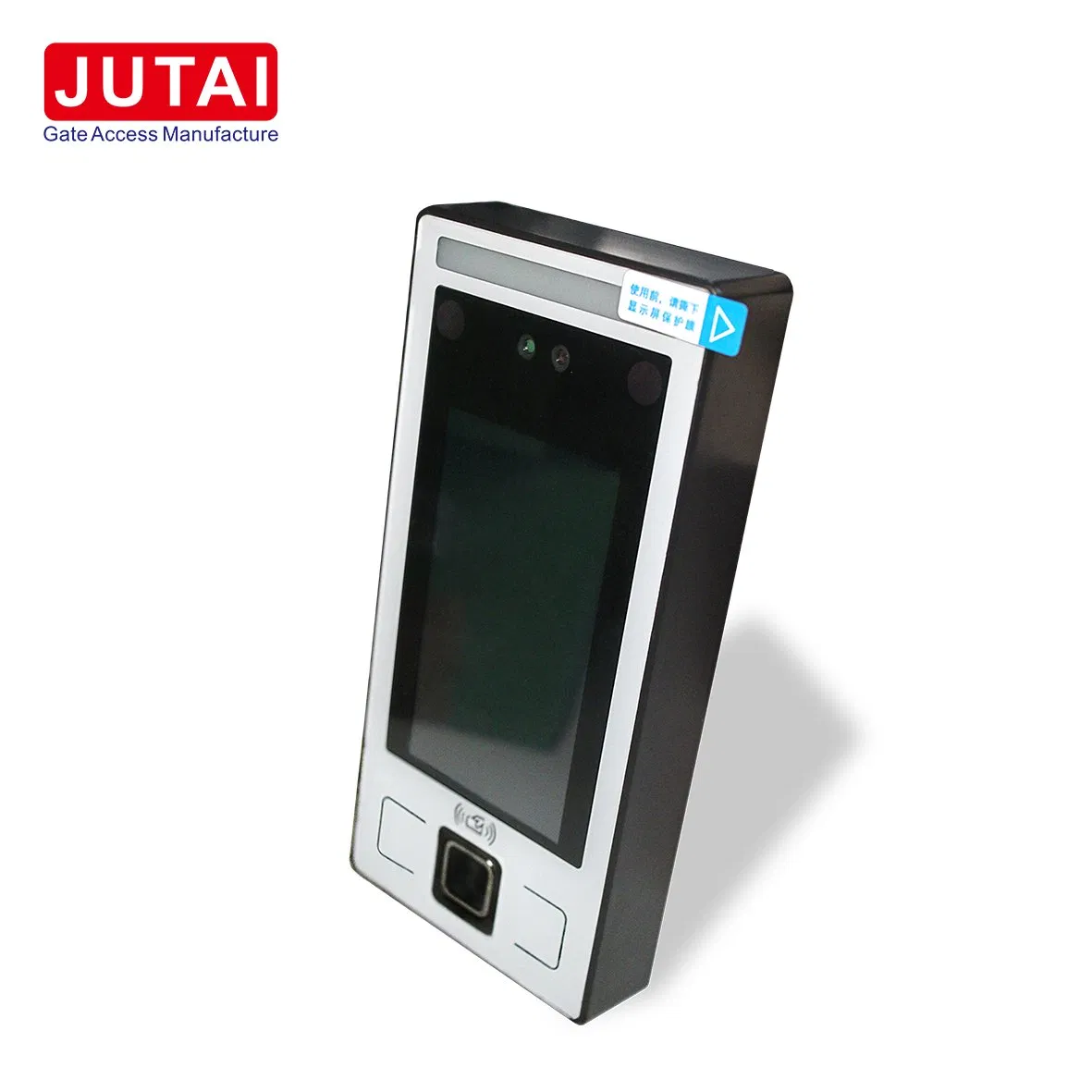

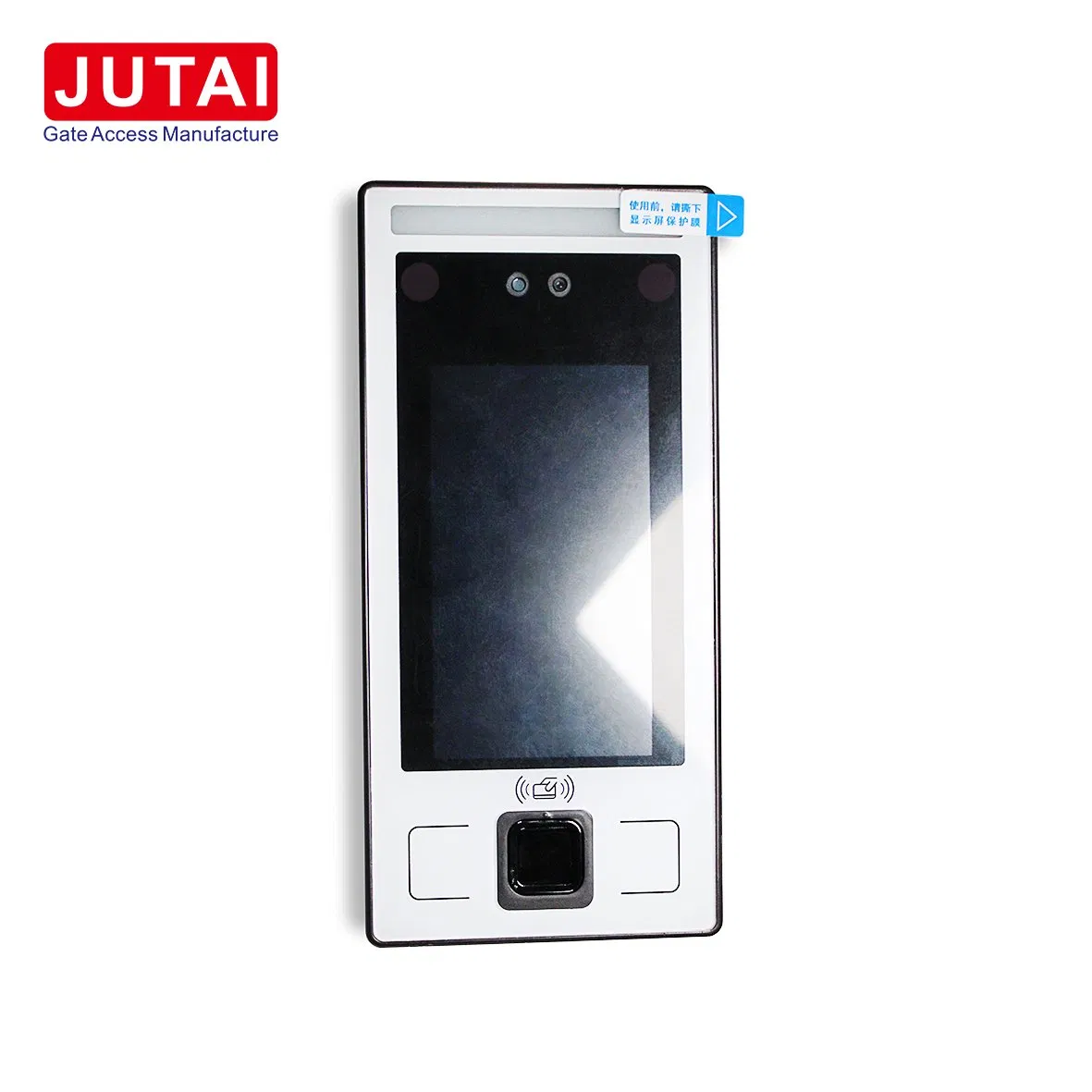

Biometrics Security System Facial Recognition

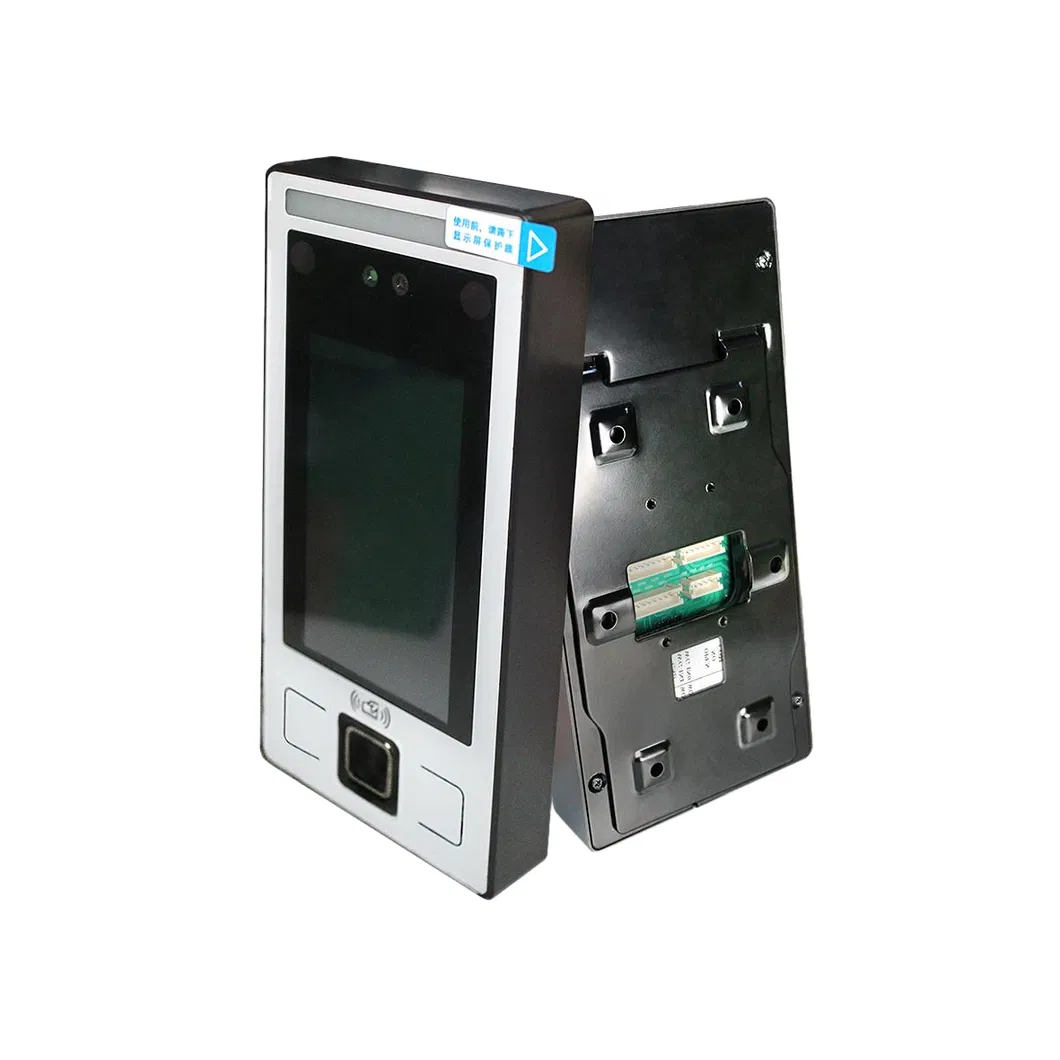

Fingerprint Reader
Working Type Can working as standalone or working with access control software
Gate Open Type Finger / Face / Pincode all supporting
Language Chinese and English

FR-8100T Dynamic Face Fingerprint Standalone Device

FR-8100T is a wide dynamic face recognition terminal product developed based on deep learning dynamic face access control machine, combined with CPU, GPU computing power, and ISP image acceleration function of the camera. The product supports live detection, which can prevent cheating attacks such as photos and video streams.

An imported lens is preferred for the whole machine. IPS full view high-definition LCD screen and its body are made of all metal electroplating, waterproof, dust-proof, and salt fog proof, which can realize normal use in outdoor and strong light environments. The identification distance is 0.3-2m, Support photo distribution registration.

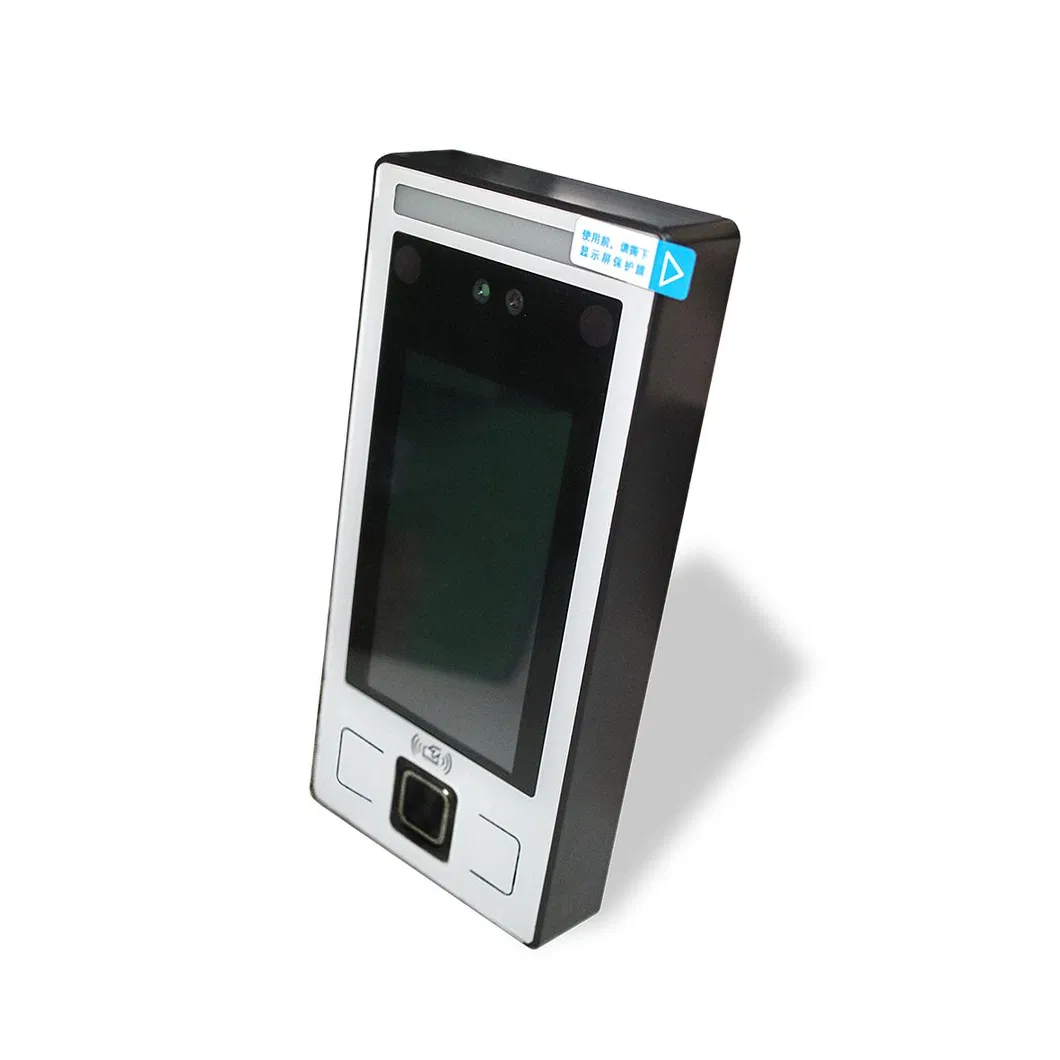

Feature 1

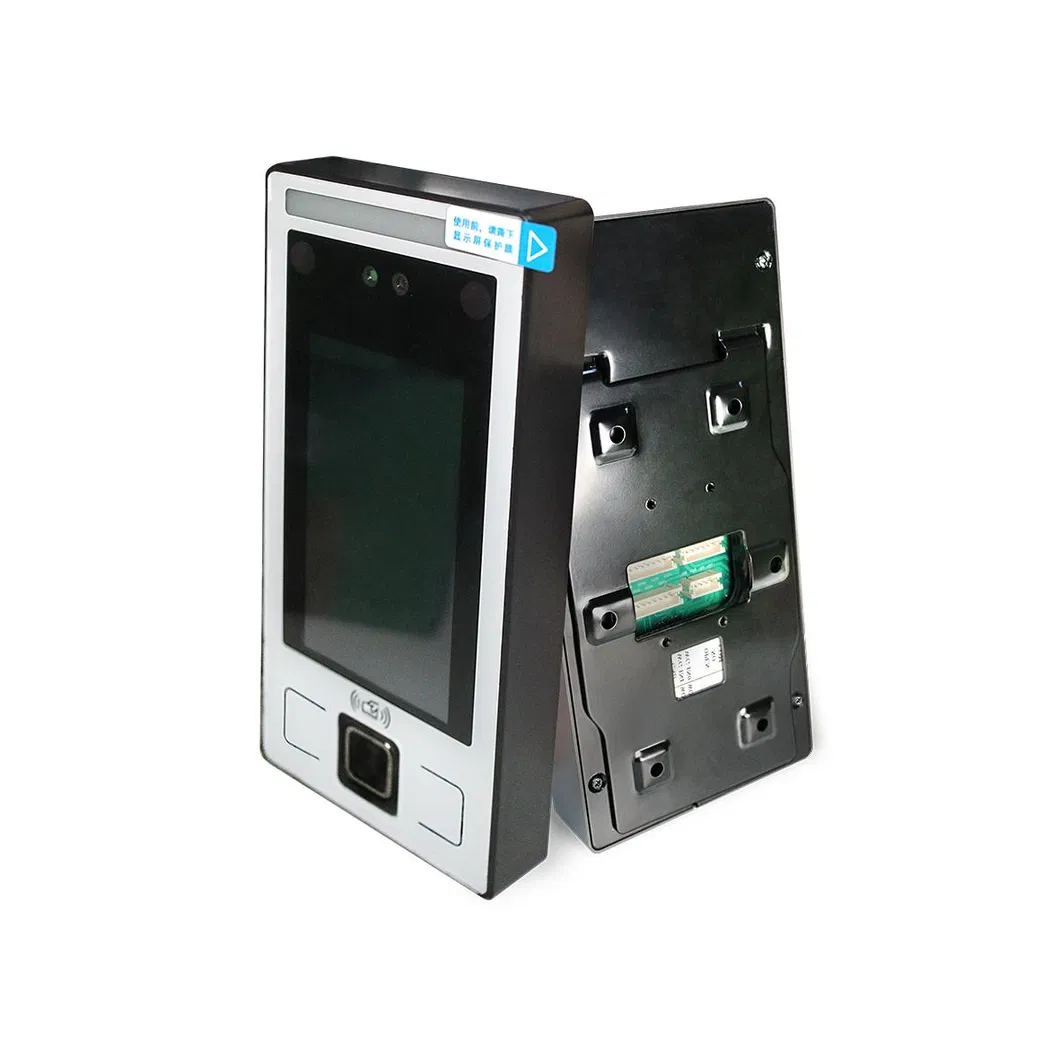

Feature 2

FR8100T inbuild one way TCP network communication; One way WIFI communication; Two USB communication, one is connected to the mouse or USB flash disk, and the other is connected to the ID card module; One WG input; One WG output; One way access control or gate signal control.

Support regular ringing and blacklist alarm functions; Support screen sleep, screen saver and timed restart functions to reduce power consumption during non-use time.

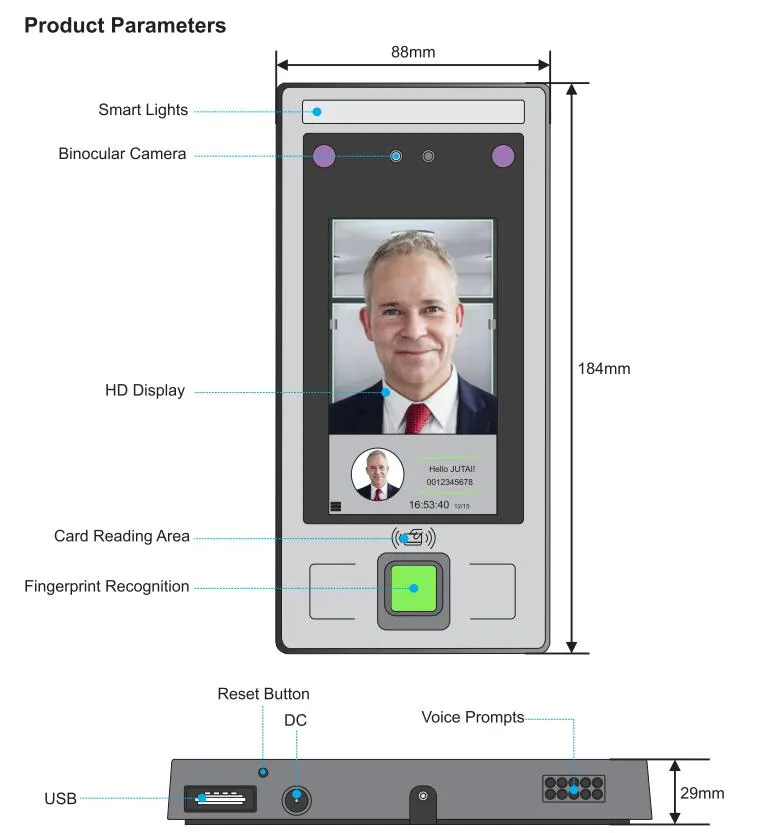

Application 1

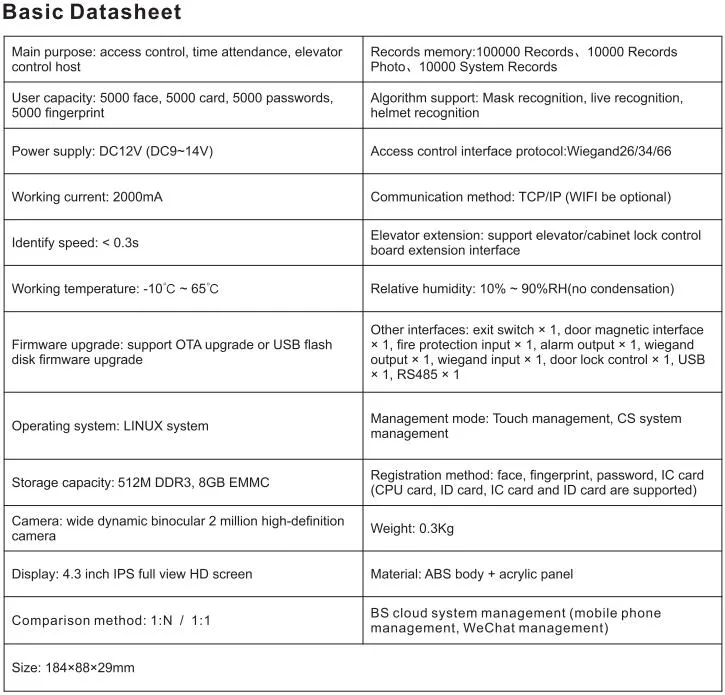

Application 2
Basic Functions
  • Dynamic face recognition with live detection support.
  • Identification distance starting from 30cm up to 2m.
  • Support for outdoor strong light recognition environments.
  • Supports registration fee and certificate verification functions.
  • Secondary development support: WebSocket (BS architecture) and Socket (CS architecture).
  • Versatile use: construction sites, residential areas, office buildings, etc.
Functional Image 1

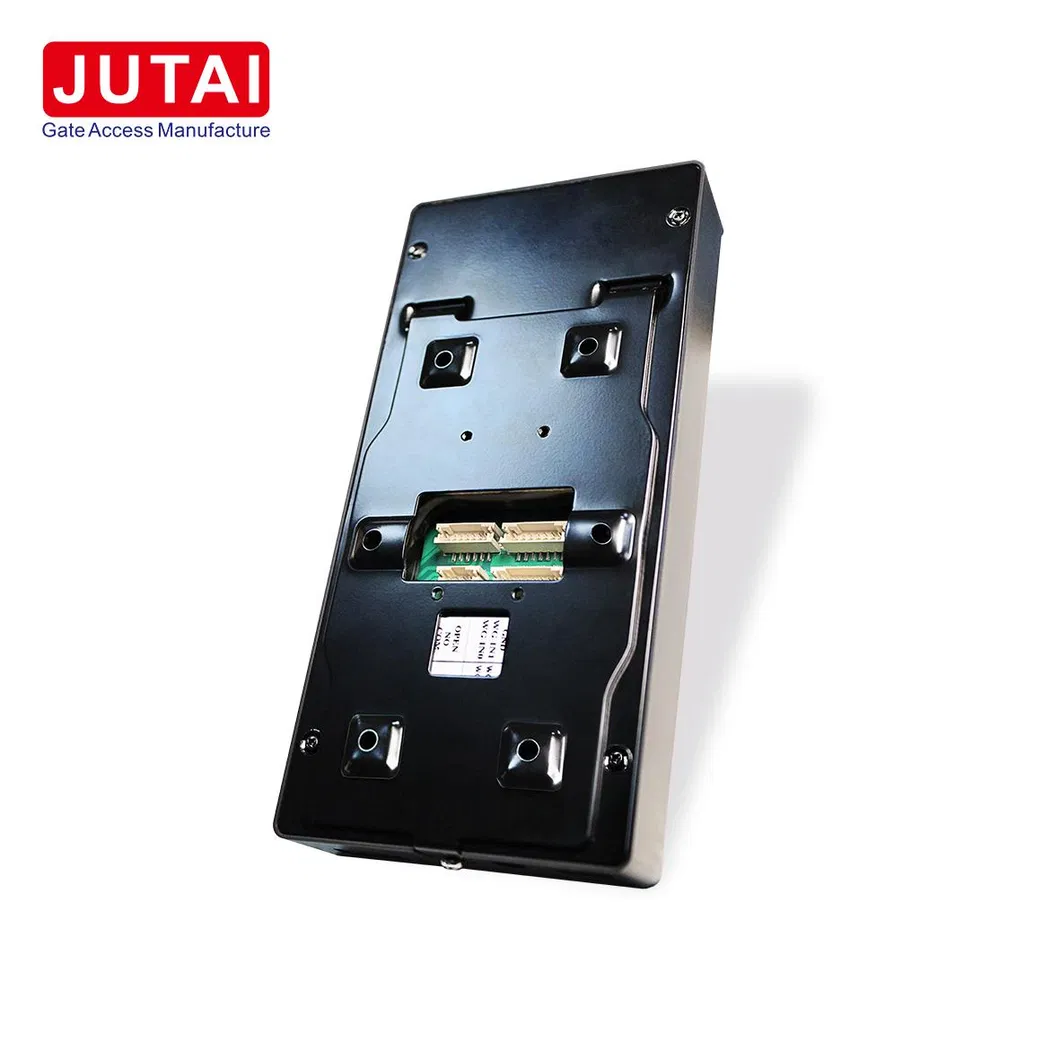

Functional Image 2
Packing & Shipping
Shipping Details
Quality Assurance
Production Environment
Frequently Asked Questions
1. What is the recognition distance for the FR-8100T?
The device supports a wide dynamic identification distance ranging from 0.3 meters to 2 meters.
2. Can the device detect fake faces from photos or videos?
Yes, it supports live detection (liveness detection), which effectively prevents cheating attacks using photos, video streams, or masks.
3. Is it suitable for outdoor installation?
Absolutely. The body is made of all-metal electroplating and is waterproof, dust-proof, and salt fog proof, designed to work in outdoor and strong light environments.
4. How many users can the system store?
The FR-8100T supports a high capacity of up to 5000 faces, 5000 cards, and 5000 passwords, with a record memory of 100,000 logs.
5. What communication methods are available?
The device comes with standard TCP/IP communication and has an optional WiFi module for wireless connectivity.
6. Does it support integration with other systems?
Yes, it supports secondary development via WebSocket (for BS architecture) and Socket (for CS architecture), making it easy to integrate with various management platforms.
