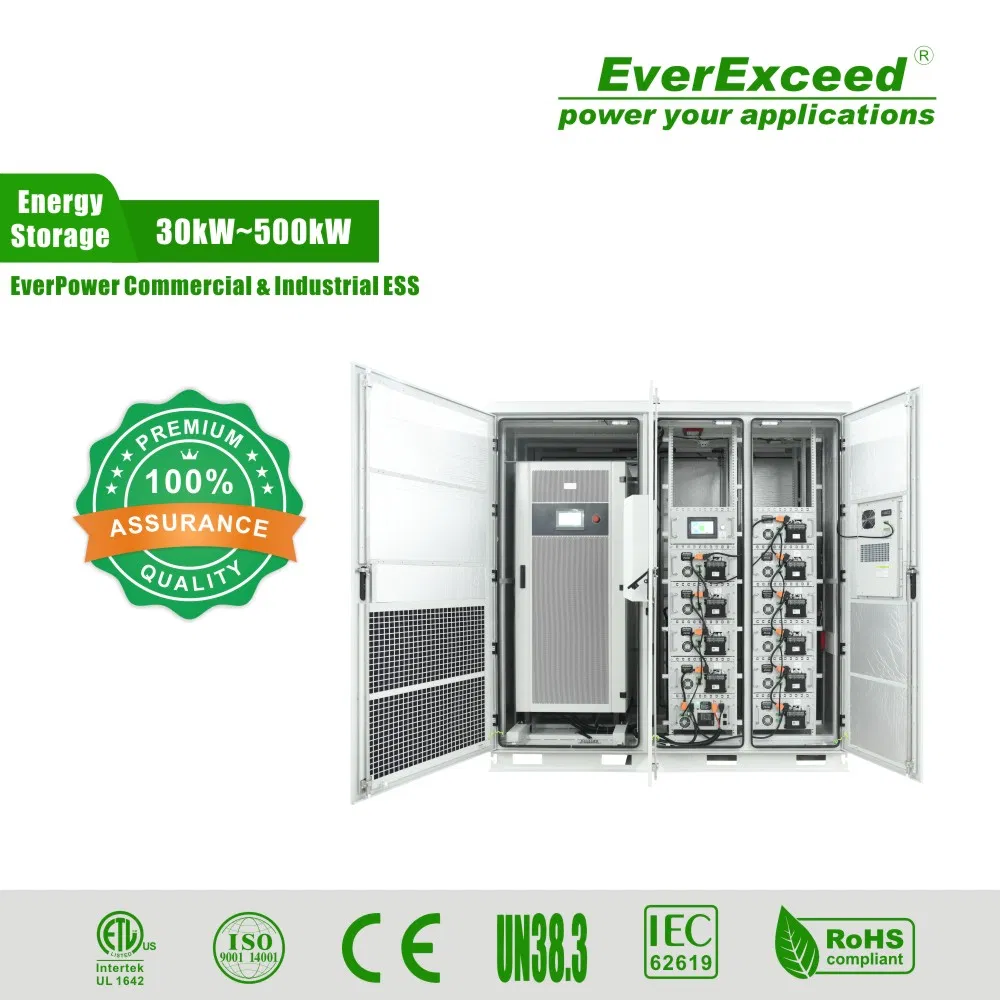

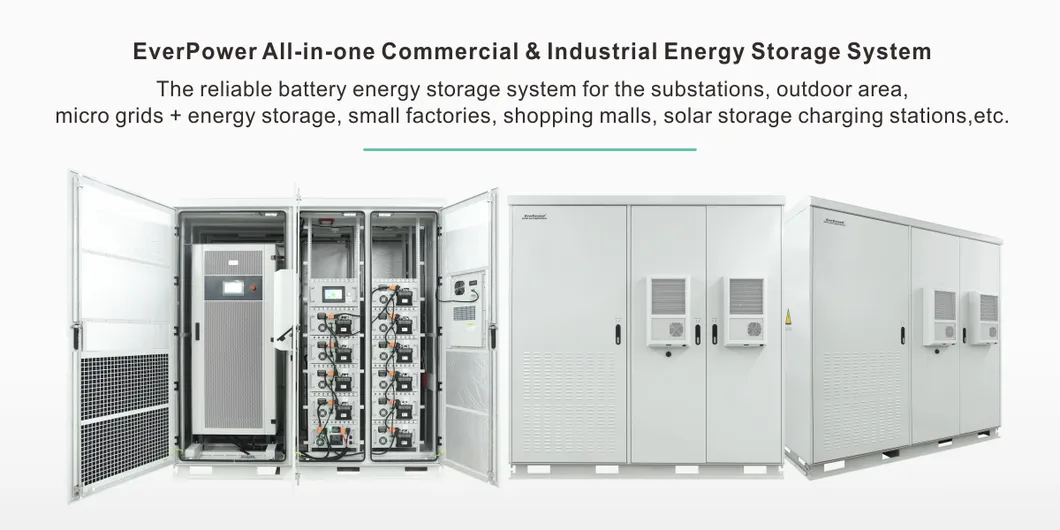

This commercial battery backup energy storage system is a high-power backup power supply solution. Available in 50KW, 100KW, 150KW and 250KW power inverters, it features a high-capacity LiFePO4 battery bank designed to provide long backup time for critical loads.
Compatible with lead acid & lithium-ion batteries. Wide battery voltage range for diverse environments.
Off-grid cold start function with support for multi-machine parallel operation.
Overcharge, Over discharge, Overload, Short-circuit, High/Low temp protection.
AC and DC dual power backup ensures the control system remains powered.
Maximum efficiency reaches 97.5% with high power density design.
Flexible communication via RS485 and CAN; accepts BMS commands in real time.
| Model | CO30K-50E | CO30K-100E | CO50K-100E | CO100K-200E | CO150K-300E | CO250K-500E |
|---|---|---|---|---|---|---|
| PCS Performance | ||||||
| Rated AC Output Power | 30KW | 30KW | 50KW | 100KW | 150KW | 250KW |
| Max. Efficiency | 96.30% | 96.30% | 96.50% | 97.10% | 97.10% | 97.30% |
| AC Voltage Range | 320~460V | |||||
| Battery Information | ||||||
| Battery Voltage | 512V | 512V | 512V | 512V | 716.8V | 512V |
| Battery Capacity | 105Ah | 210Ah | 210Ah | 420Ah | 420Ah | 1050Ah |
| Battery Energy | 53.76kWh | 107.52kWh | 107.52kWh | 215.04kWh | 301.06kWh | 537.60kWh |
| Cycle Life | ≥6000 at 80%DOD | |||||
| Model | CO30K-50E-PV | CO30K-100E-PV | CO50K-100E-PV | CO100K-200E-PV | CO150K-300E-PV |
|---|---|---|---|---|---|
| PV Input Data | |||||
| Max. PV Voltage | 1000V | ||||
| MPPT Voltage Range | 250-850V | ||||
| Max. PV Input Power | 60/120KW | 60/120KW | 60/120KW | 120/180/240KW | 120/180/240KW |
| General Specs | |||||
| Display | LCD touch-screen | ||||
| Protection Degree | IP55 | ||||
| Cooling | Forced air / Air conditioner system | ||||
