| CT9 PRO | |
| 10cm-15m | |
| Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym | |

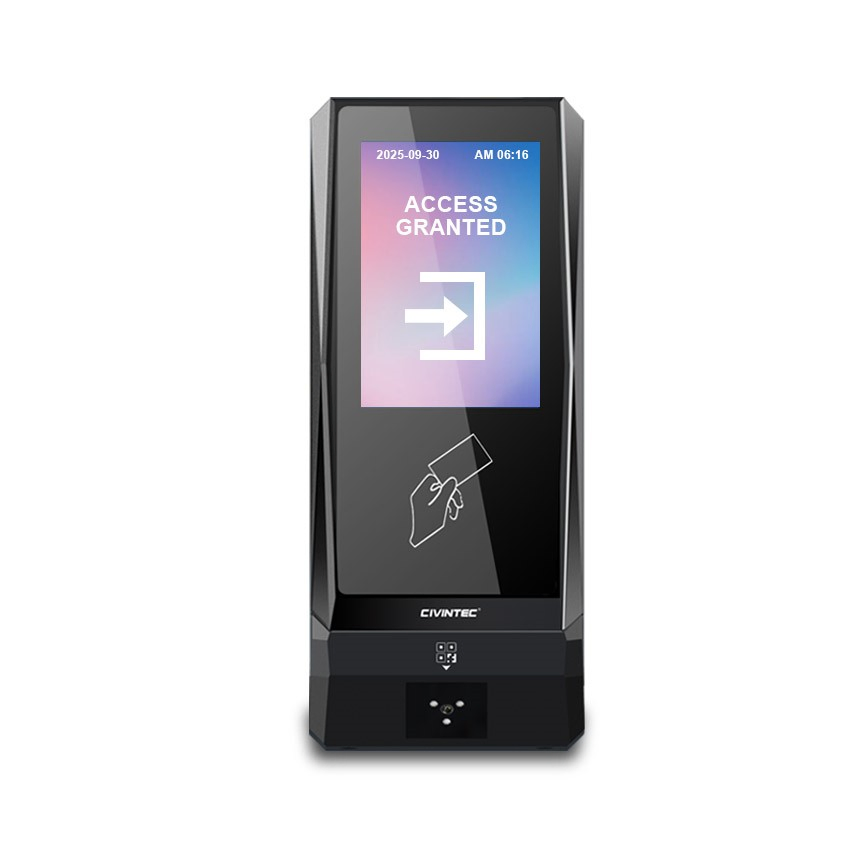

| Access Control Terminal with Reader | |
| Linux OS | |
| 3.5" Touch Screen Display | |
| RFID, NFC, BLE, Pin Code, Optional QR Code | |
| 13.56MHz, 125kHz | |
| NFC, BLE | |
| 12-24V DC; PoE IEEE 802.3af | |
| IP65 Waterproof, UV Resistance | |
| CE, FCC |
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39 and mainstream 1D/2D barcodes |

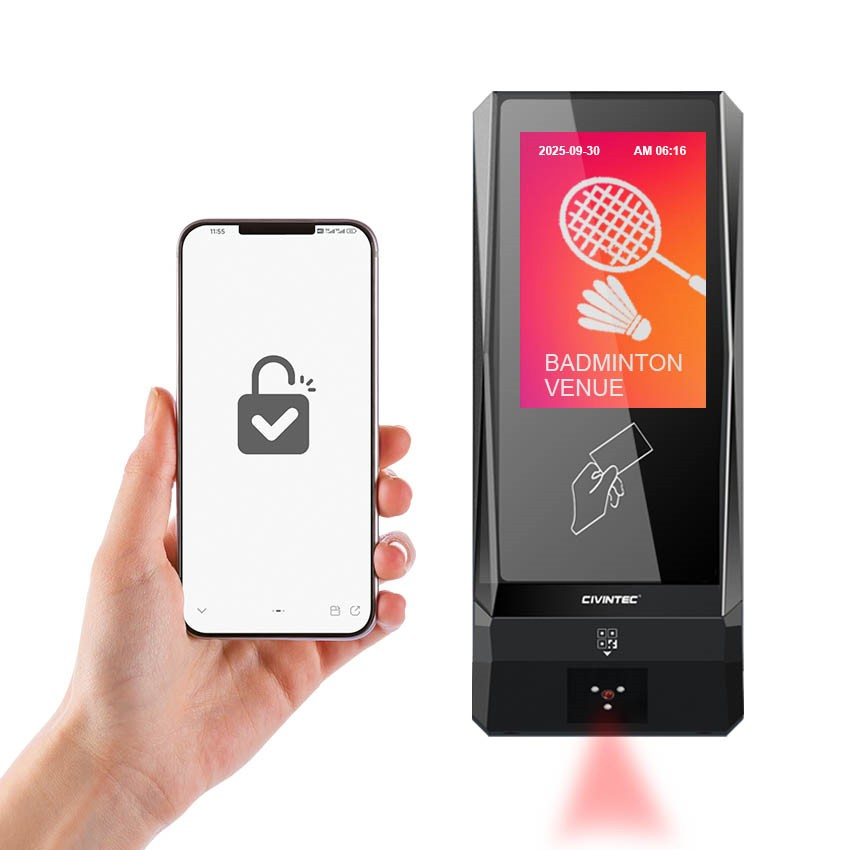

| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1/EV2/EV3, NFC tags, iCLASS Seos |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper switch, door contact, exit button, Buzzer control |
| Offline Capacity | 10,000 users / 50,000 logs |
| Weather Proof | IP65 outdoor/indoor use, UV-resistance |

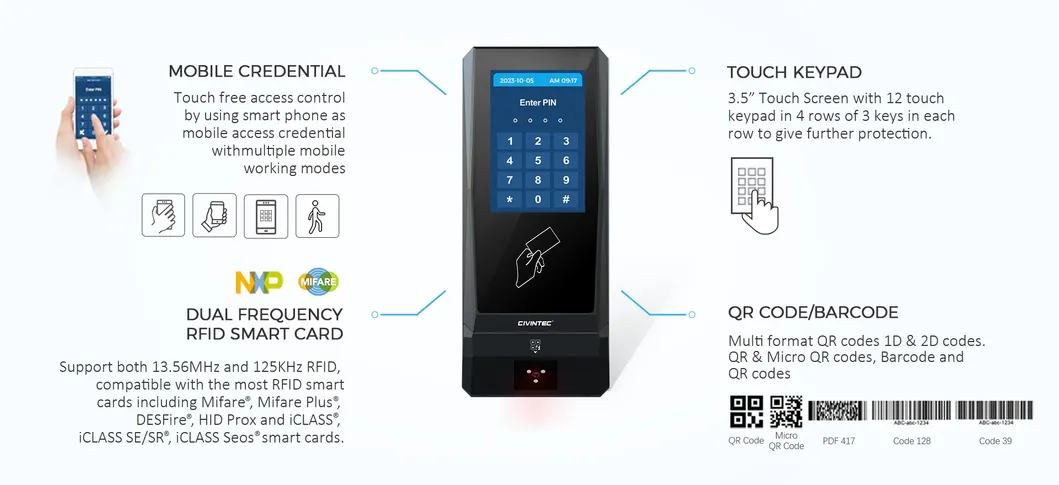

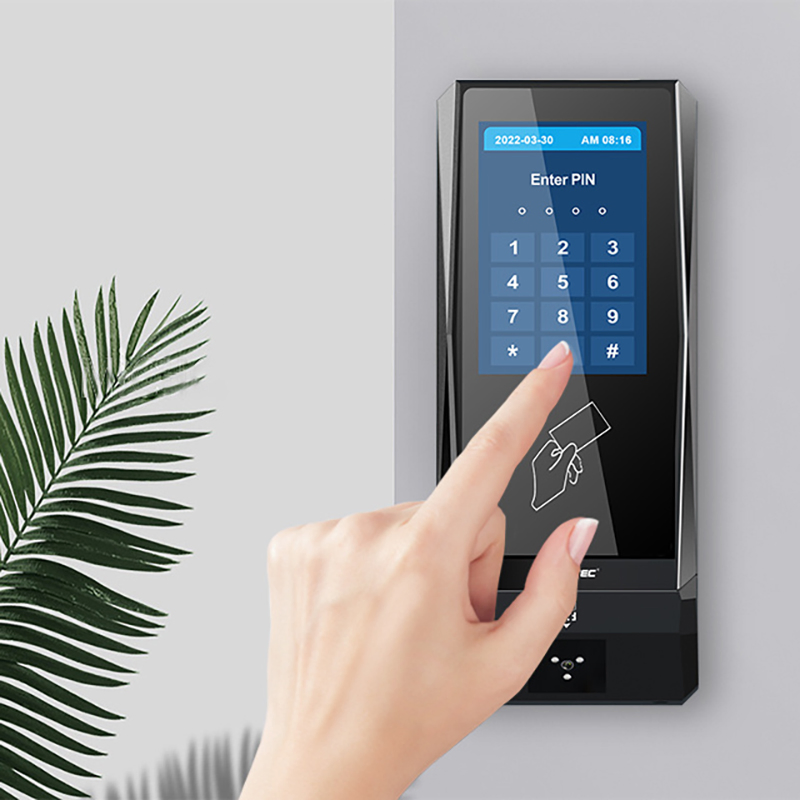

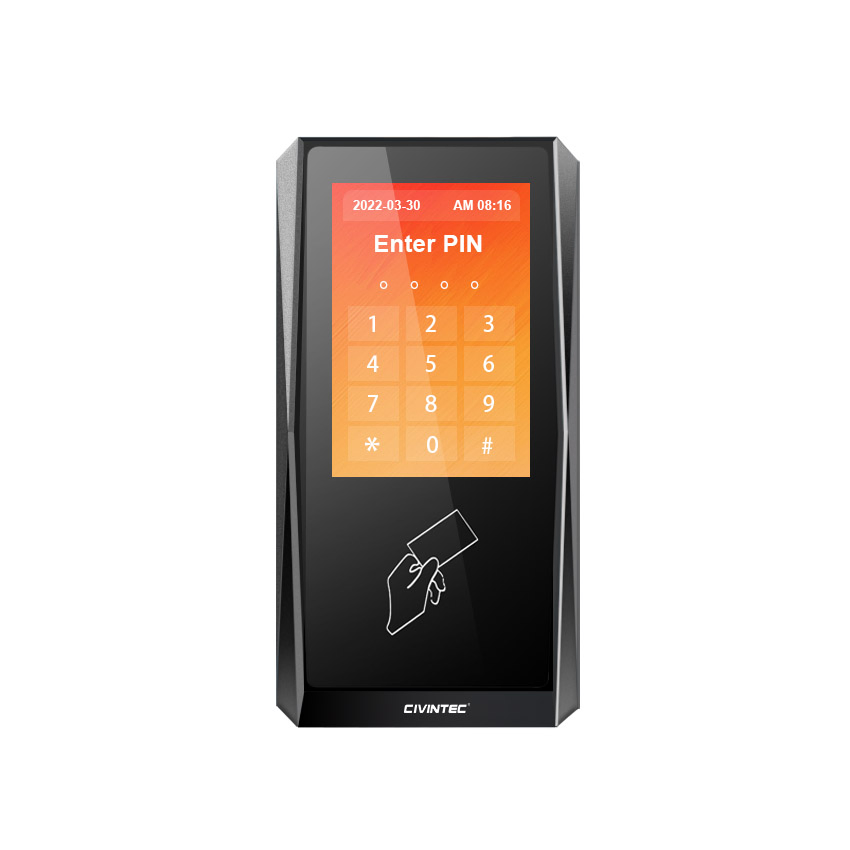

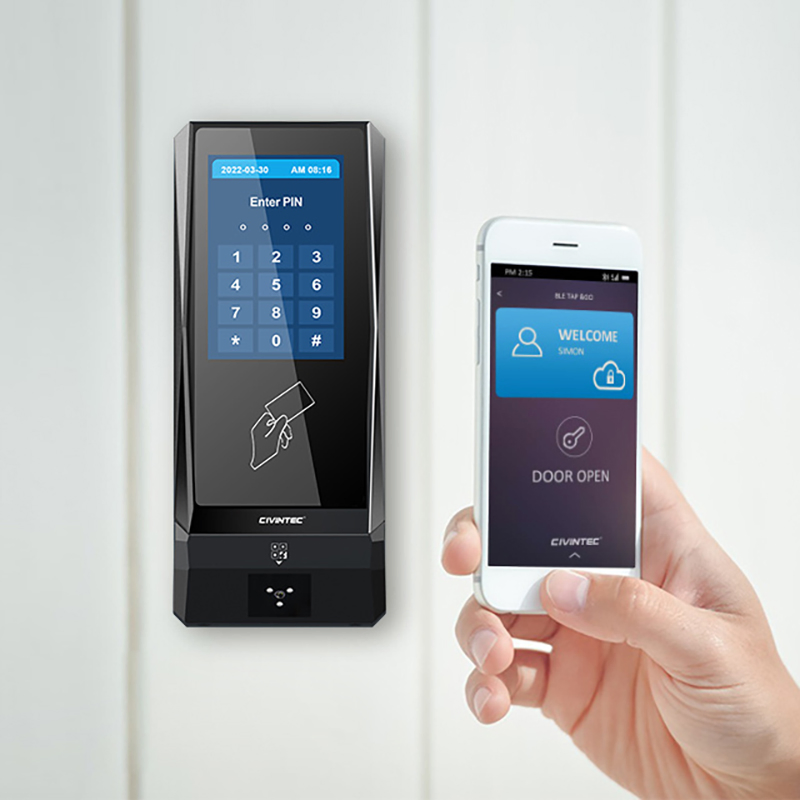

CT9 Pro incorporates 5-in-1 technology: touch keypad, RFID dual-frequency cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.
Bi-direction communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.
CT9 is an IP access control reader remotely controlled by web-based software in real-time. It features an embedded relay output to manage access permission and control IoT facilities.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
Customization services are available for hardware, reader housing, firmware, and software design. Users can program and display their own logo on the 3.5" touch screen.
