Product Description

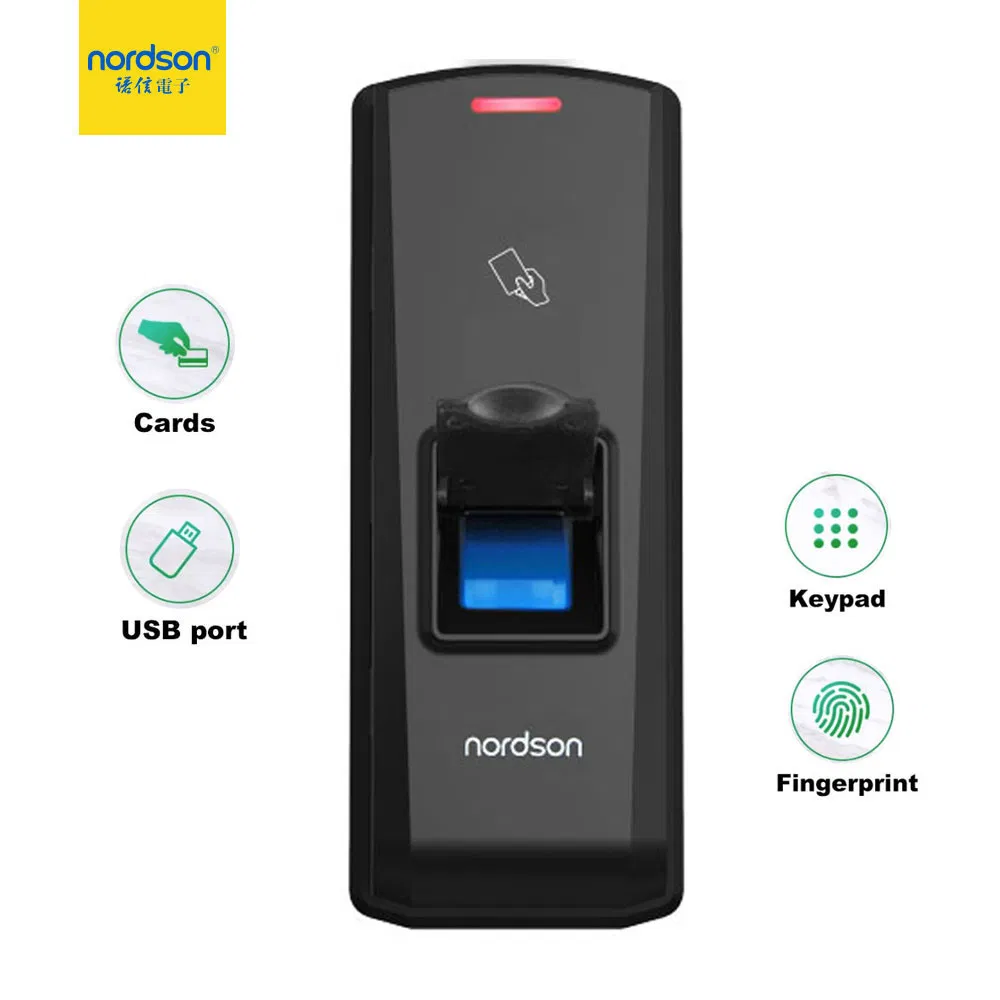

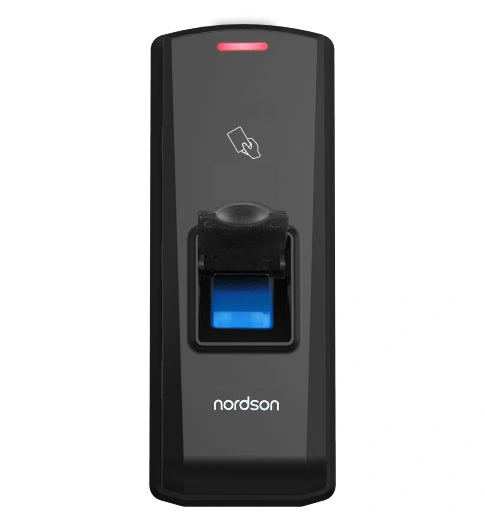

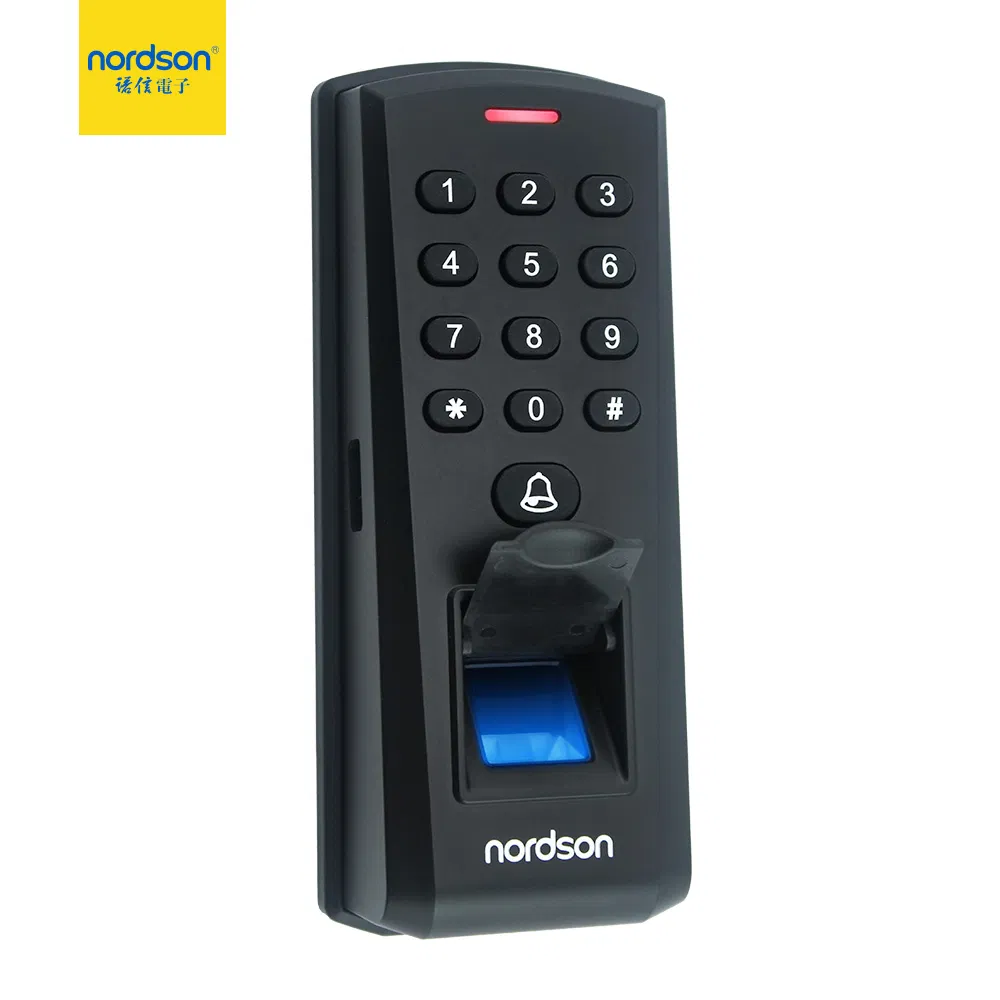

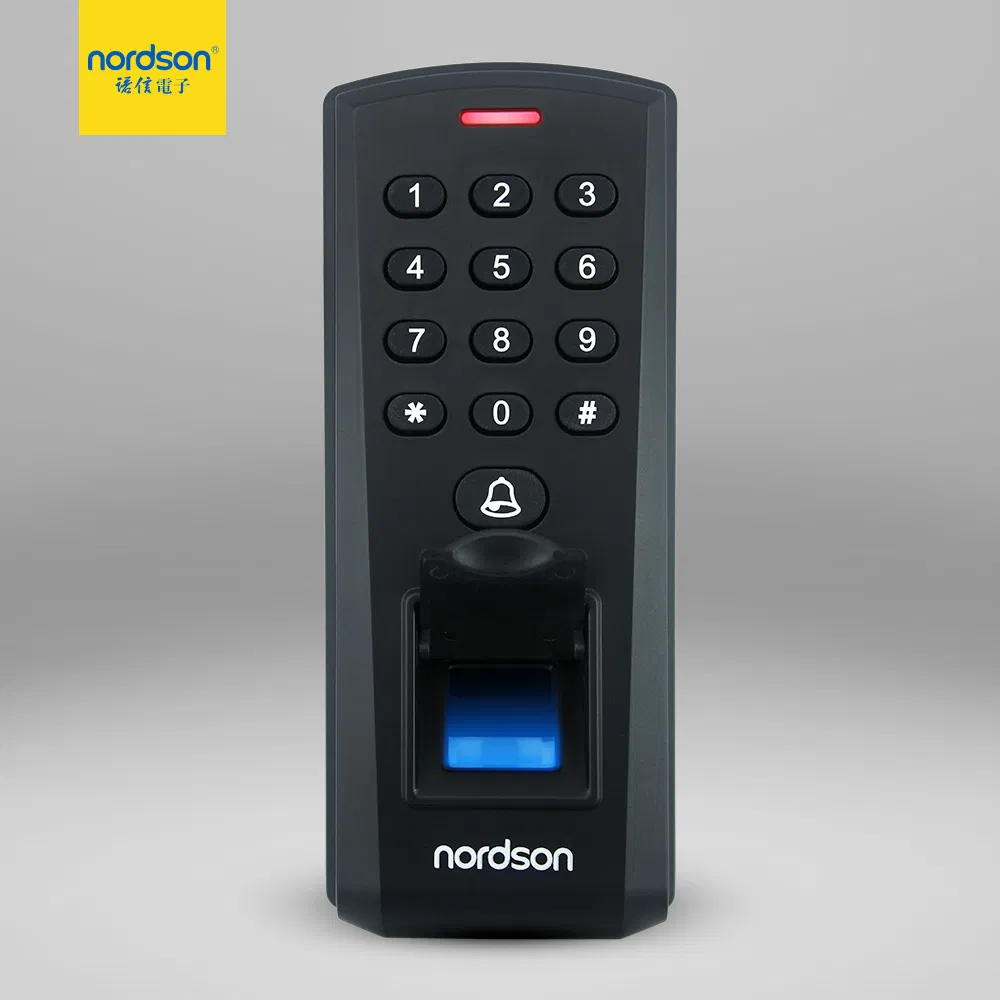

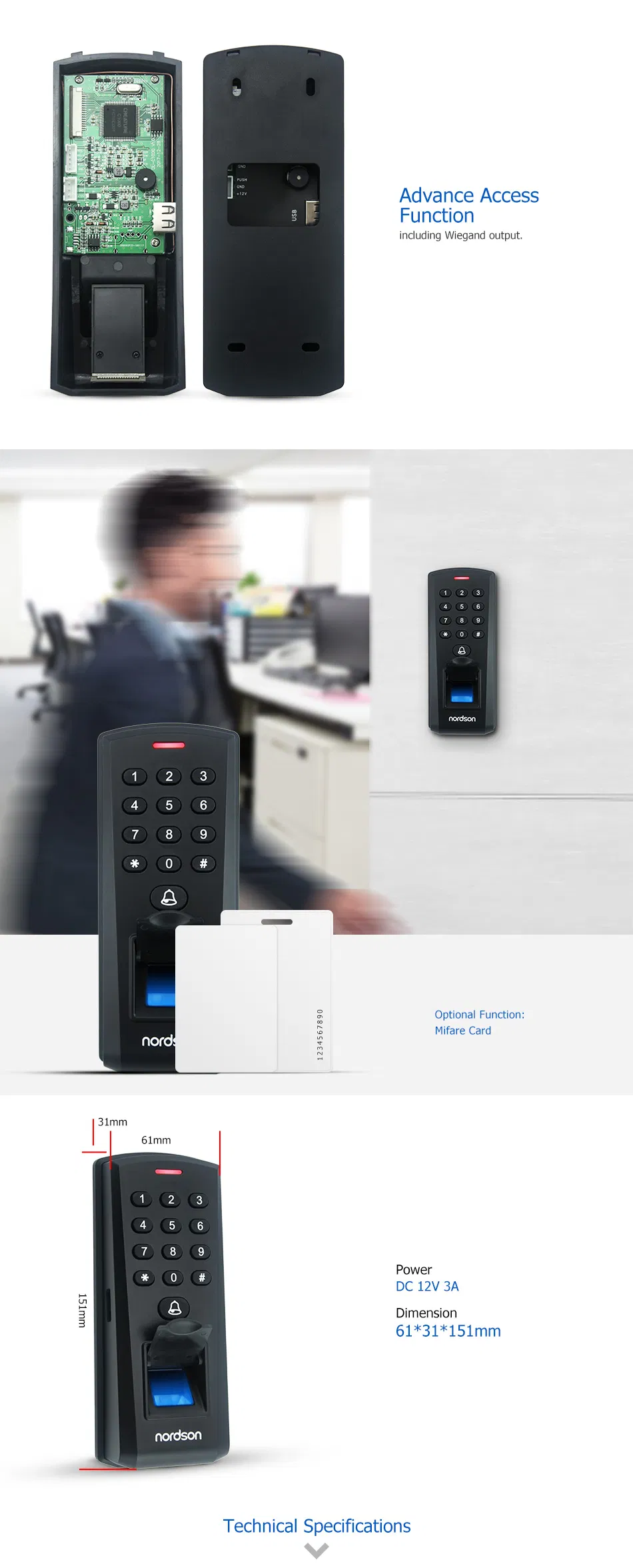

Digital capacitive password waterproof outdoor safe android biometric fingerprint scanner reader access controller
💡
Overview:
FR-T1 fingerprint access controller is one of the most competitively priced products in the market. Offering perfect performance for access control systems, fingerprint and ID card authentication methods help you operate easily. It can operate on standalone mode with interfaces for third-party electric locks, alarms, exit buttons, and doorbells. U-Disk support allows for easy uploading and downloading of user data.

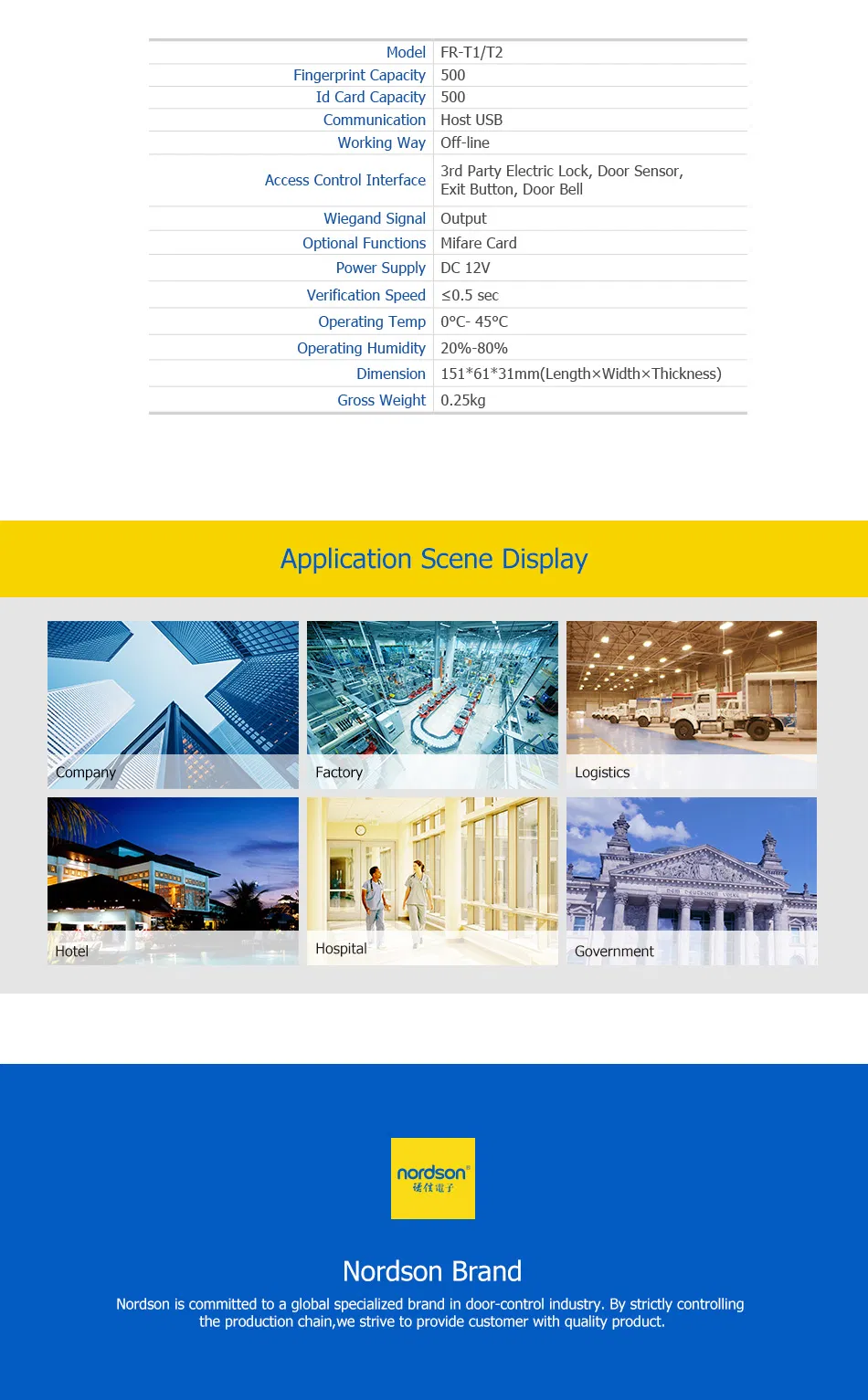

Technical Specification
| Fingerprint Capacity | 500 |
| ID Card Capacity | 500 |
| Communication | Hot USB |
| Working Way | Off-line |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Door Bell |
| Wiegand Signal | Output |
| Optional Functions | Mifare Card |
| Power Supply | DC 12V |
| Verification Speed | <0.5 sec |
| Operating Temp | 0°C~45°C |
| Operating Humidity | 20%~80% |
⚙️

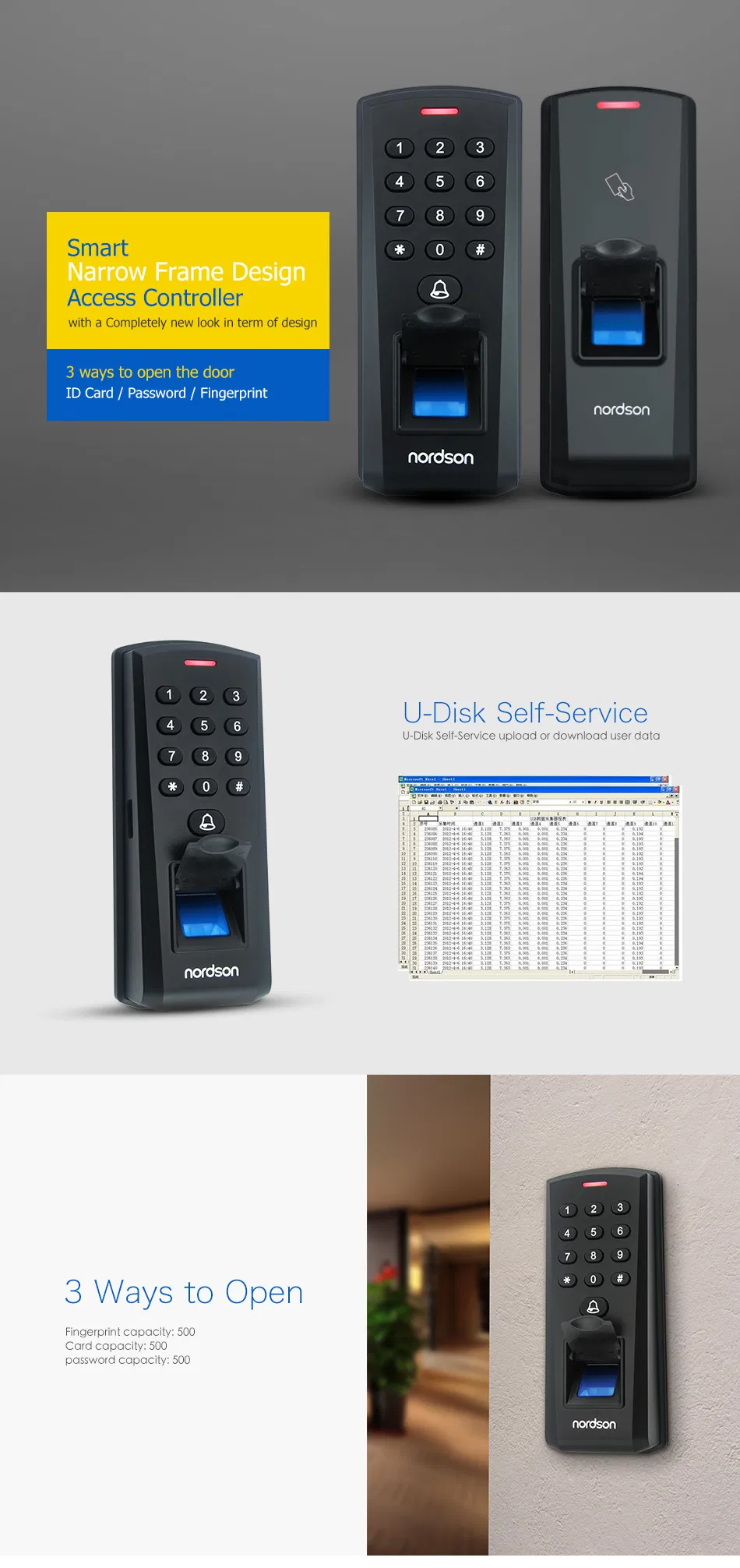

Key Functions:
- Verification Methods: Fingerprint, ID card, and Password
- User capacity: 1,500 total; Fingerprint: 500; ID card: 500; Password: 500
- Access control interface for 3rd party electric lock, exit button, and alarm
- Multi-function device supporting Wiegand 26/34 output
- U-Disk Self-Service for user data management
Frequently Asked Questions
How many users can this access controller support?
The system supports up to 500 fingerprint users, 500 ID card users, and 500 password users, with a total user capacity of 1,500.
What is the required power supply for this device?
The device operates on a DC 12V power supply.
Can I transfer user data to another device?
Yes, the device supports U-Disk Self-Service, allowing you to easily upload or download user data via a USB connection.
What is the verification speed of the fingerprint scanner?
The biometric scanner is highly efficient with a verification speed of less than 0.5 seconds.
Does this controller work with external door hardware?
Yes, it features an access control interface for 3rd party electric locks, door sensors, exit buttons, and doorbells. It also supports Wiegand 26/34 output.
What are the environmental operating conditions?
The device is designed to work in temperatures ranging from 0°C to 45°C and a humidity range of 20% to 80%.
