CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream barcodes. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Mifare Plus, DESFire EV1, EV2, NFC tags, ISO14443B, HID Prox and iCLASS. |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit |
| Offline Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |

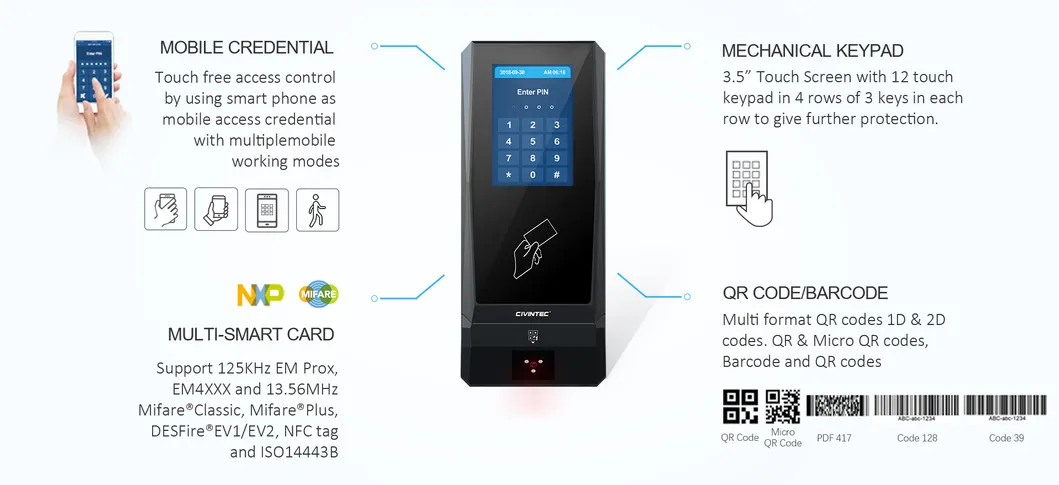

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, including touch keypad, dual-frequency RFID, BLE & NFC mobile access, and QR CODE/barcode scanning for flexible visitor management.
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facility management systems.
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
Offering ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
