2Product Overview

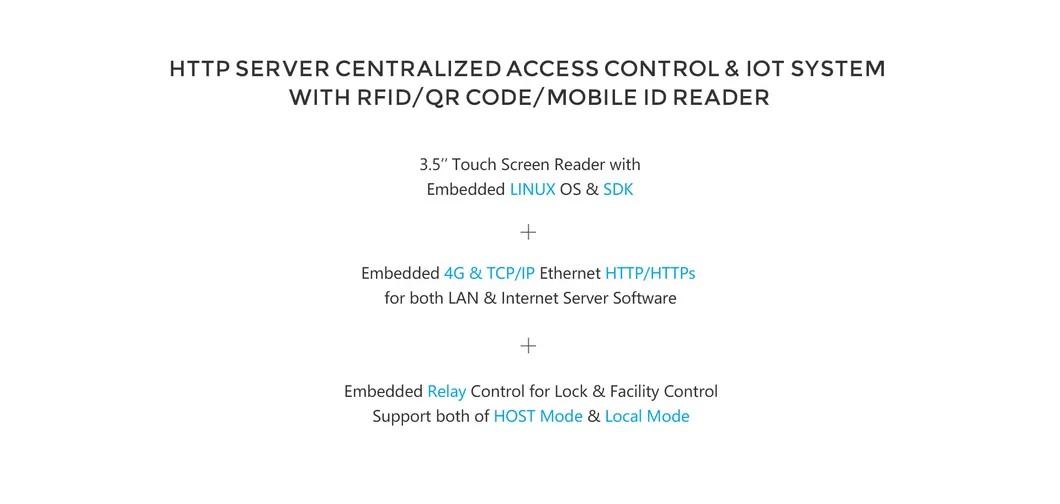

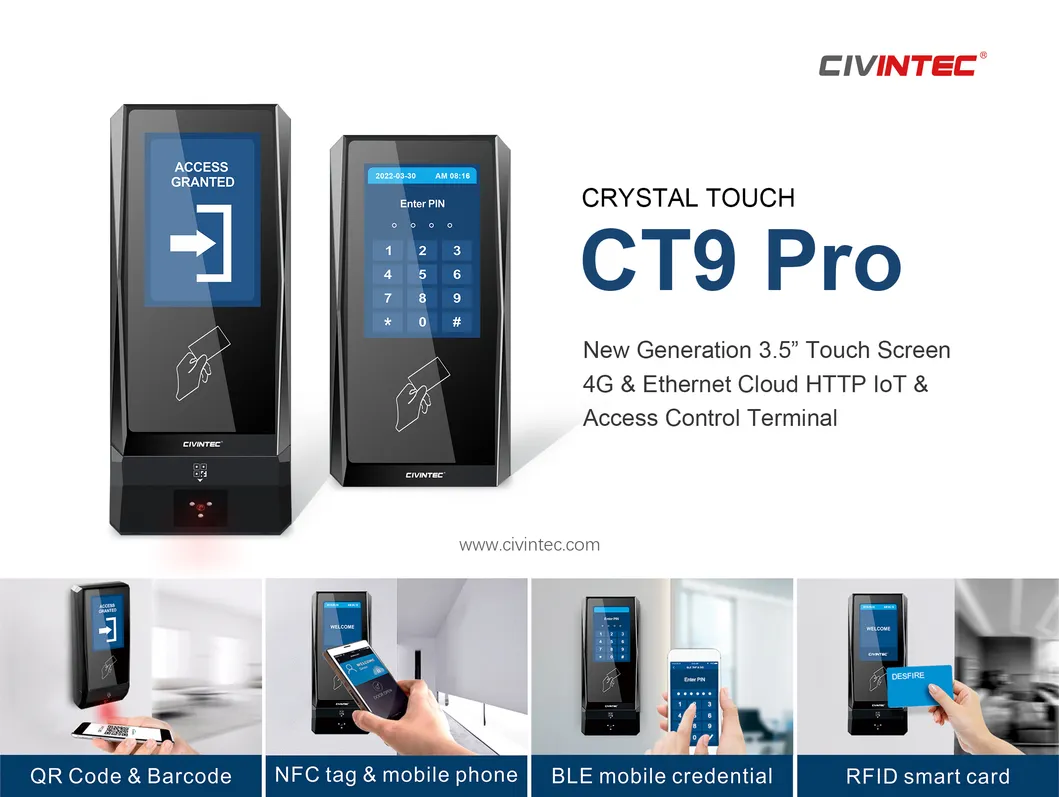

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning.
| Display | 3.5" capacitive touch screen |
| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39, 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID Card | EM 125KHz, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2, NFC tags, HID Prox, iCLASS. |
| Communication | 4G, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
3Key Features

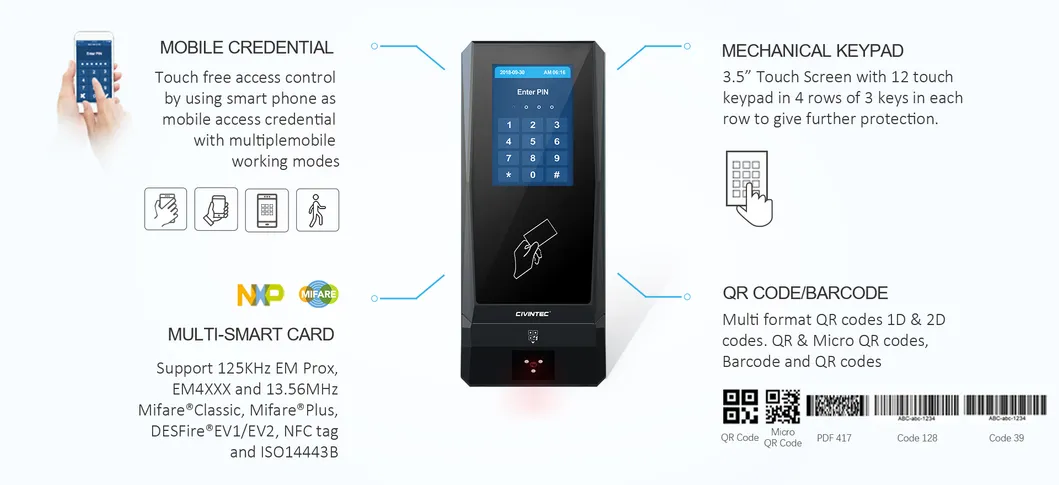

Multiple Access Credentials: Incorporates 5-in-1 technologies including touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR code scanning for visitor management.

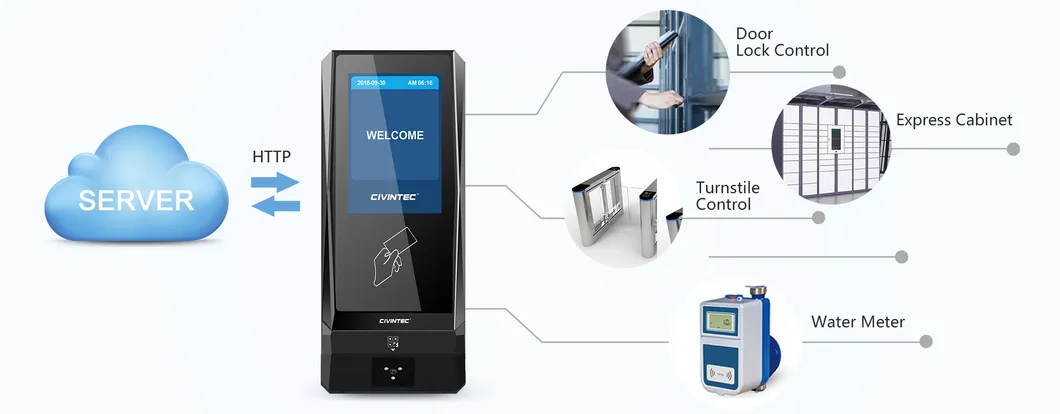

Cloud Server Remote Control: Bi-directional communication via standard HTTP & HTTPs between terminal and server to remotely control door locks and IoT facilities.

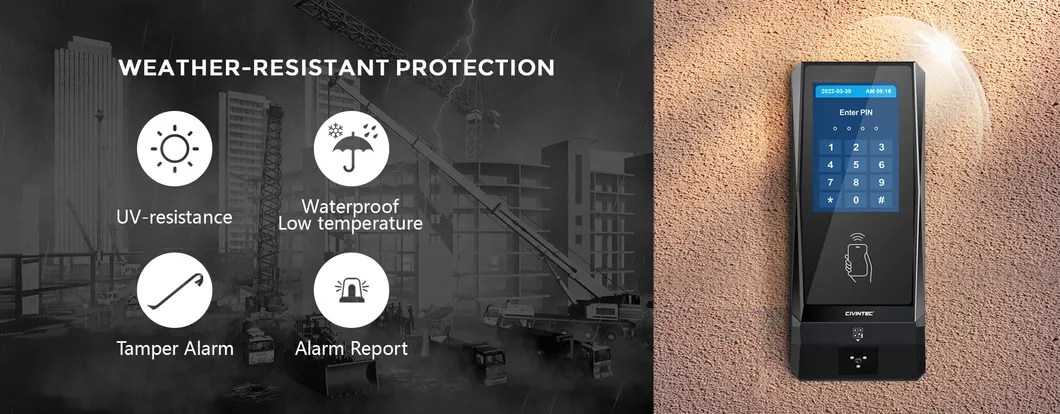

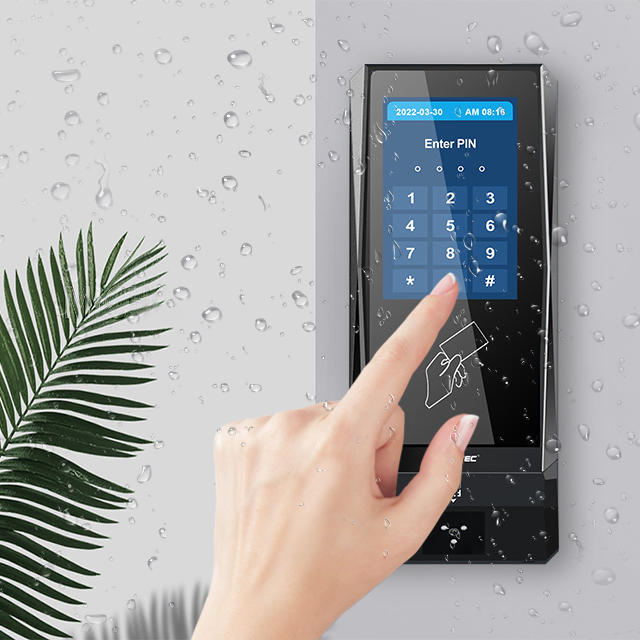

Weather-Resistant Protection: With an IP65 rating, the CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.

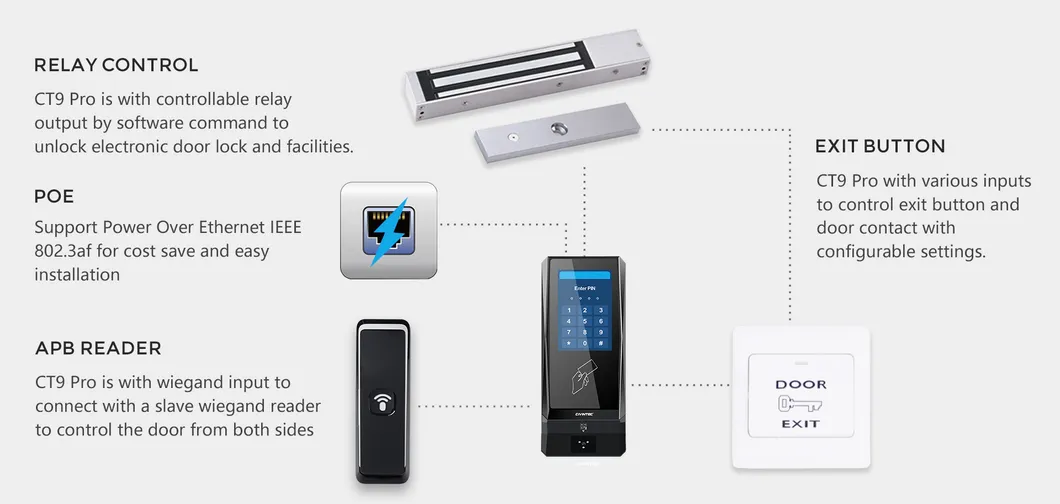

4System Configuration
5Customization Services
We offer hardware, firmware, and software design services. Users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
Frequently Asked Questions
1. What identification methods does the CT9 PRO support?

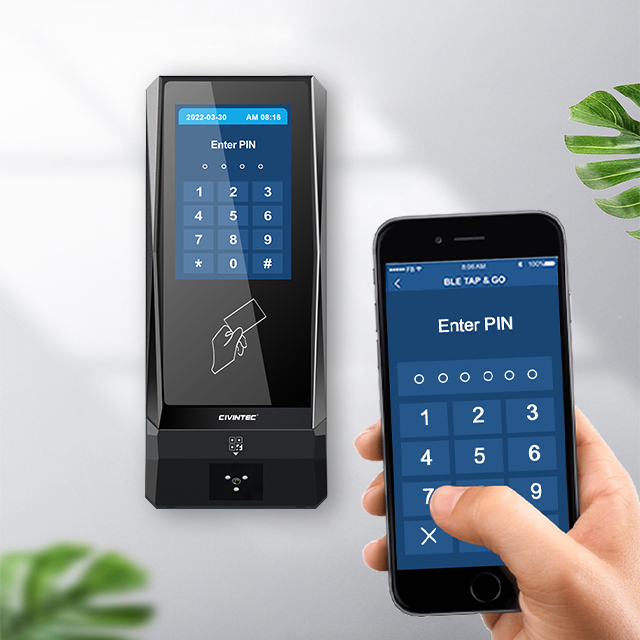

The CT9 PRO supports 5-in-1 access credentials: RFID (125KHz & 13.56MHz), Mobile NFC, BLE (Bluetooth Low Energy), QR Codes/Barcodes, and Touch PIN codes.
2. Is this device suitable for outdoor installation?
Yes, the device features an IP65 rating, making it waterproof and UV-resistant, suitable for outdoor use in various weather conditions.
3. How does the terminal communicate with the server?
It uses encrypted HTTP or HTTPS protocols for bi-directional communication via 4G wireless or TCP/IP Ethernet connections.
4. Can I customize the interface of the CT9 PRO?
Yes, the 3.5" touch screen allows users to program and display their own custom logo and interface elements.
5. What is the user and log capacity of the device?
The standard configuration supports up to 10,000 card users and 50,000 event logs, with options for more upon request.
6. What are the power options for this access terminal?
The device can be powered via a 12-30V DC power supply or through PoE (Power over Ethernet) IEEE 802.3af.
