Over Voltage, Current, Short Circuit etc. UPS 150kw Energy Storage Solution

1 / 2

Over Voltage, Current, Short Circuit etc. UPS 150kw Energy Storage Solution

Customization:	Available
Phase:	No
Type:	Hybrid

Send Inquiry

Product Description

Basic Specifications

Model NO.CO50K-100E

ProtectionOver Voltage, Over Current, Short Circuit etc.

ApplicationHousehold, Office etc.

ClassificationEnergy Storage Solution

Output Capacity220VAC

ColorWhite

Battery TypeLithium (LiFePO4)

Ingress ProtectionIP21

No. of MPPT2

Inverter Warranty2 Years

Battery Warranty5 Years

HS Code8504402000

Product Introduction

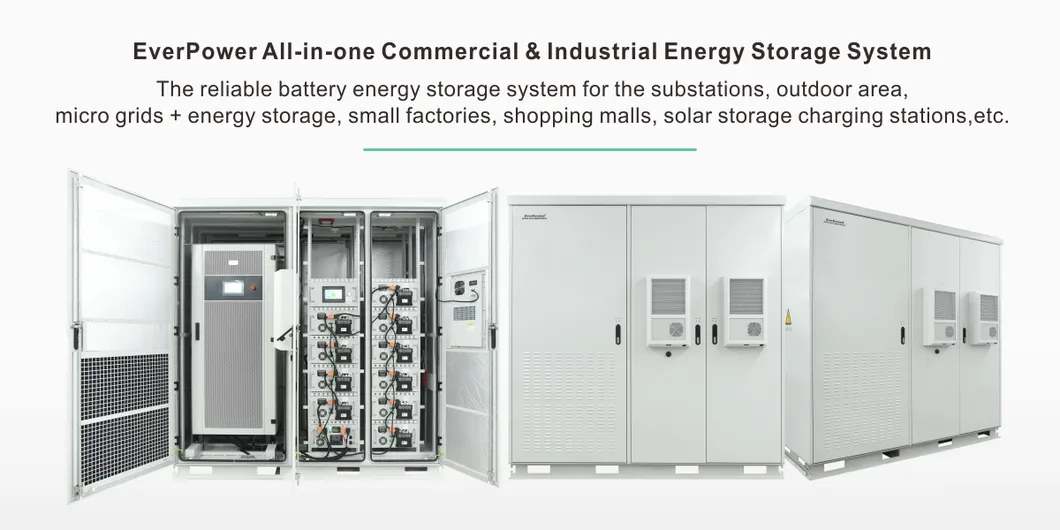

This commercial battery backup energy storage system is a high-power solution designed for reliability. Available in power configurations of 50KW, 100KW, 150KW, and 250KW, it features a robust LiFePO4 battery bank to provide extended backup time for critical loads.

Technical Features

⚙️ Wide Compatibility

Compatible with various operating environments and supports both lead-acid and lithium-ion batteries.

❄️ Cold Start Function

Supports off-grid cold start and multi-machine parallel operation for scalable power needs.

🛡️ Multiple Protection

Full protection against overcharge, over-discharge, short-circuit, and extreme temperatures.

⚡ High Efficiency

Industry-leading power density with a maximum efficiency rating of up to 97.5%.

📱 Smart Interface

Real-time BMS communication via RS485 and CAN interfaces for flexible monitoring.

📦 Compact Design

Small footprint for easy installation, transportation, and long-term maintenance.

Technical Specifications

Model	CO30K-50E	CO50K-100E	CO100K-200E	CO150K-300E	CO250K-500E
PCS Parameters
Rated AC Output	30KW	50KW	100KW	150KW	250KW
Max. AC Power	33KVA	55KVA	110KVA	165KVA	275KVA
Battery Voltage Range	250~850V	320~850V	420~850V	420~850V	420~850V
Max. Efficiency	96.30%	96.50%	97.10%	97.10%	97.30%
Battery Parameters
Battery Energy	53.76kWh	107.52kWh	215.04kWh	301.06kWh	537.60kWh
Battery Type	LiFePO4 battery
Cycle Life	≥6000 at 80%DOD
General Info
Ingress Protection	IP55
Display	LCD touch-screen

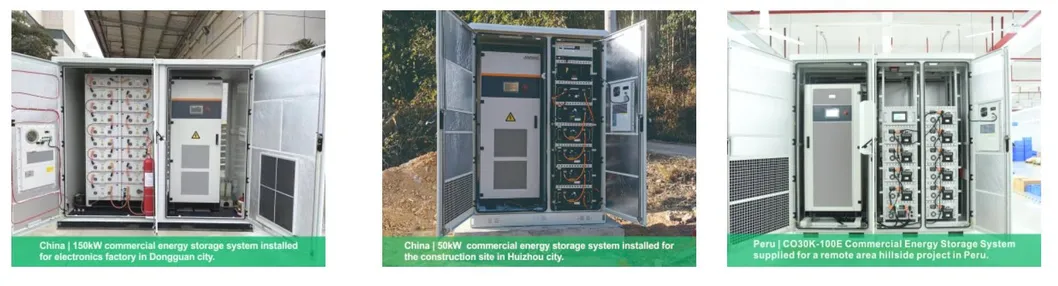

Successful Cases & Applications

Shipping & Payment

Payment Methods	T/T, L/C, Cash, Western Union (Flexible terms available)
Delivery Methods	Sea, Air, Train, or Truck transportation
Lead Time	Typically 4 weeks ex-factory (excluding shipping time)
Packaging	Heavy-duty carton boxes with wooden pallets

Frequently Asked Questions

Q1: What is the main battery technology used in this system? The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety, stability, and long cycle life.

Q2: Can the system handle power surges or short circuits? Yes, the system is equipped with multiple protection layers including Over Voltage, Over Current, Short Circuit, and Temperature protection.

Q3: Is the system suitable for outdoor installation? The general unit is rated IP21/IP55 (depending on configuration), making it suitable for protected environments. Please refer to specific model specs for outdoor readiness.

Q4: How many charge cycles can I expect from the battery? The batteries are designed for a cycle life of ≥6000 cycles at 80% Depth of Discharge (DOD).

Q5: Does the system support remote monitoring? Yes, the system complies with EMS remote monitoring standards and features RS485 and CAN communication interfaces.

Q6: What is the standard warranty period? We provide a 2-year warranty for the inverter and a 5-year warranty for the battery components.
