Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
1 / 5
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot

Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot

Customization: Available
Type: Access Control System
Card Type: CPU, HID, Mifare, EM, DESFire EV1/EV2/EV3, MIFARE Plus
Send Inquiry

Product Description

Basic Specifications

Model NO.
CT9 E
Reading Distance
10cm-15m
Operating System
Linux OS
Identification
RFID, NFC, BLE, Pin Code
Mobile Credential
NFC, BLE, QR Code
Interfaces
4G, WiFi, TCP/IP, RS485, Wiegand
Power Supply
12-24V DC; PoE IEEE 802.3af
IP Protection
IP65 Waterproof, UV Resistance

Product Overview

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions.
◈ 5-in-1 multiple access credential technologies.
◈ Supports Touch Keypad, RFID (125KHz & 13.56MHz), BLE & NFC mobile access.
◈ Integrated QR Code/barcode scanning via mobile phone.

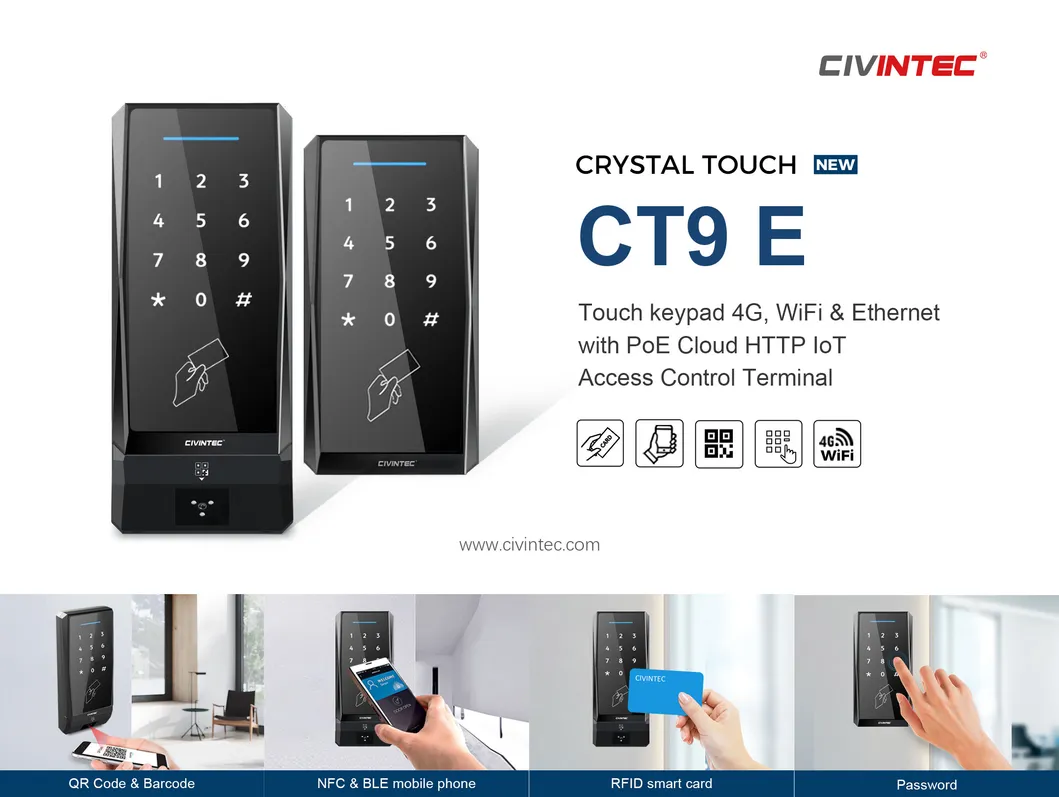

Access Control Terminal Overview

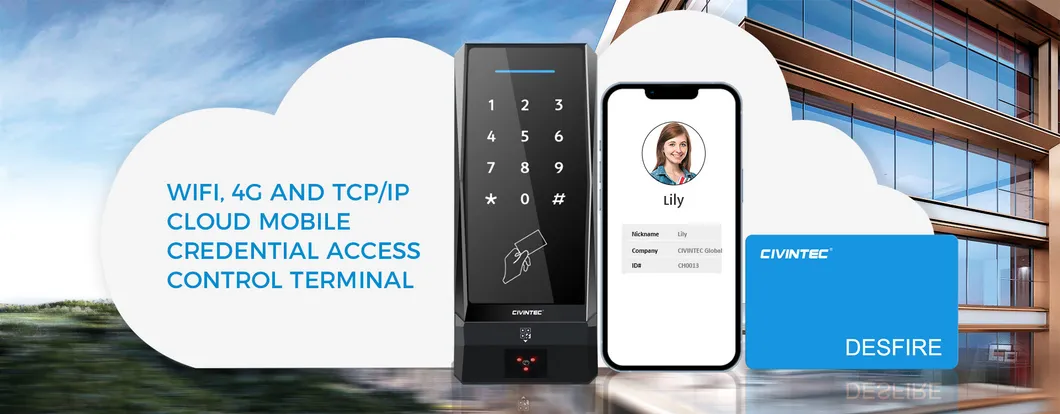

Terminal Connectivity

Technical Specifications

Category Feature Description
RFID Cards125KHz PROx, EM; 13.56MHz Mifare Classic, DESFire EV1/EV2/EV3, NFC
Mobile AccessBLE (2.4GHz), NFC
Barcode/QR1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39
CommunicationTCP/IP (RJ45), 4G, WiFi 802.11b/g/n, RS485, Wiegand
I/O PortsDoor contact, Exit button, Fire alarm, Tamper switch, 1-2 Relay outputs
User CapacityUnlimited (Online) / 10,000 users (Offline)
Logs50,000 event logs (Offline)

Key Features

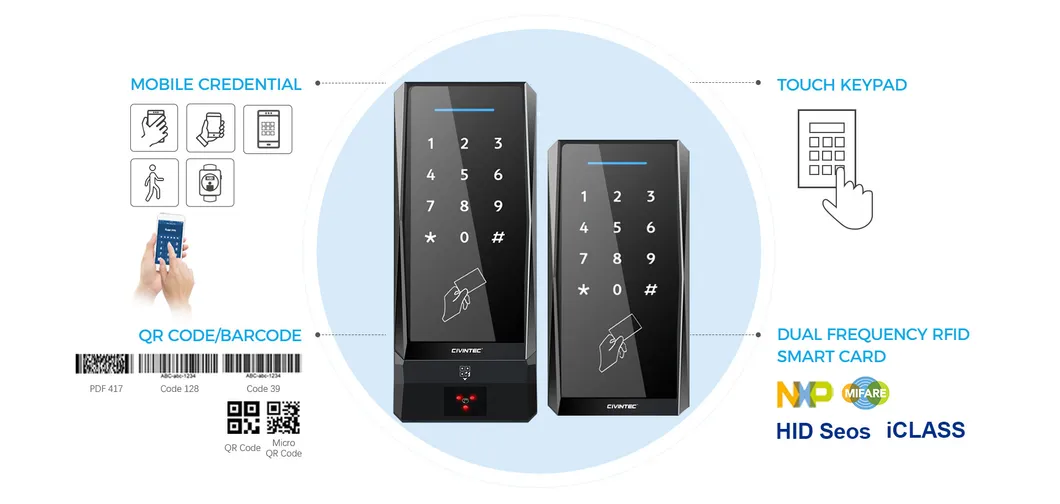

Multiple Credential Support

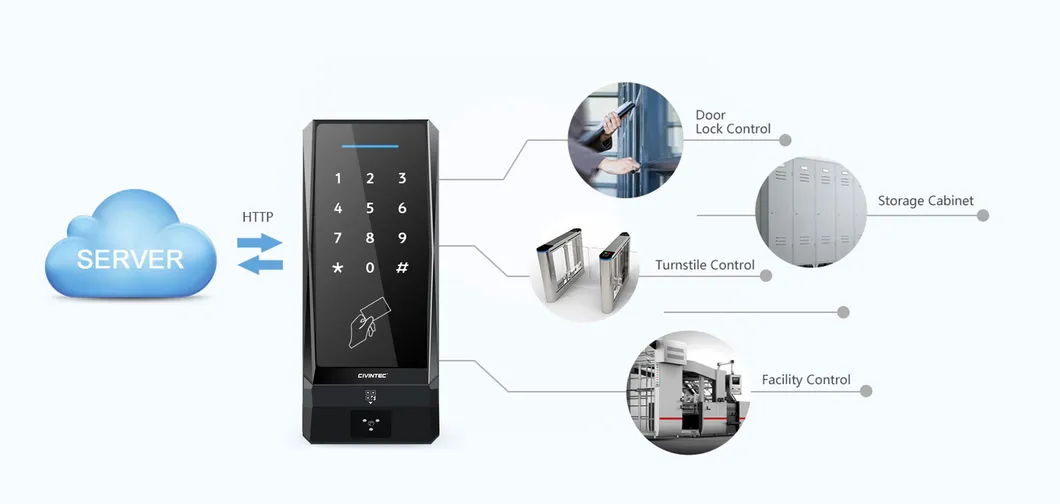

Cloud Remote Control
Weather-Resistant Protection: With an IP65 rating, the CT9 E is resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and thrives in rugged working environments and low temperatures.
IoT Solutions
Outdoor Protection

System Configuration & Customization

We offer hardware and firmware customization services. Users can program and display their own logos on the 3.5" touch screen. OEM logo printing is also available for the reader body.

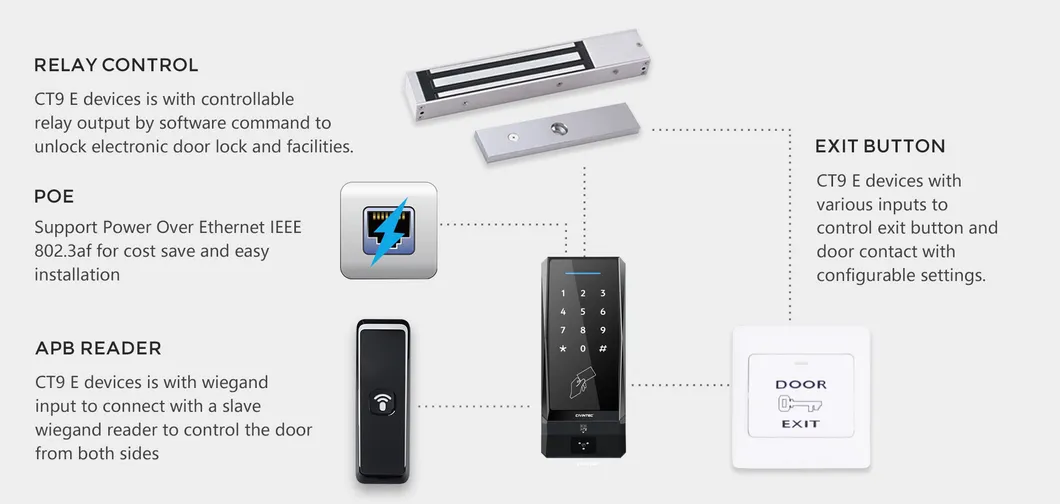

System Configuration
Customization Service

Related Product Gallery

Related Product 1
Related Product 2
Related Product 3
Product Layout 1
Product Layout 2
Technical Drawing

Frequently Asked Questions

What access methods does the CT9 E support?
The CT9 E supports 5-in-1 access technologies: RFID (125KHz & 13.56MHz), BLE, NFC, QR Code/Barcode, and a Touch PIN code.
Can this device be used outdoors in the rain?
Yes, it features an IP65 waterproof rating and UV resistance, making it ideal for outdoor installation and various rugged environments.
How does the terminal connect to the server?
It supports multiple communication interfaces including TCP/IP (Ethernet), wireless WiFi (2.4GHz), and 4G LTE for flexible networking.
Does the device support Power over Ethernet (PoE)?
Yes, the terminal is compatible with PoE IEEE 802.3af, allowing for both power and data transmission over a single cable.
What is the user capacity for offline mode?
In offline mode, the terminal can store up to 10,000 users and 50,000 event logs. Online mode capacity is virtually unlimited.
Is it possible to customize the interface?
Absolutely. The Linux-based system allows for UI customization, and you can display your own logo on the 3.5" touch screen.
