Product Description

🆔 Web based RFID Card Access Control System S600
Web Based RFID Card Access Control system S600
📊 Basic Information
Model NO.
S600
Kind
ID Card
Style
Slim
Communication
TCP/IP, RS232/485, USB Host, Wiegand in/out
Card Capacity
50,000
Log Capacity
100,000
Language
English, French, Spanish, Arabic, etc.
Capacity
5000 Sets/Month
✨ Key Features
  • Color screen RFID card access control system with high-speed matching algorithm.
  • Recognizes users within a second after one-touch verification.
  • Supports both standalone operation and network connection.
  • Real-time entry records transfer for easy management.
  • Capable of continuous 24-hour operation.
  • Standard 125kHz ID card recognition; wired doorbell support.
  • Optional integrated M1 card reader customization.

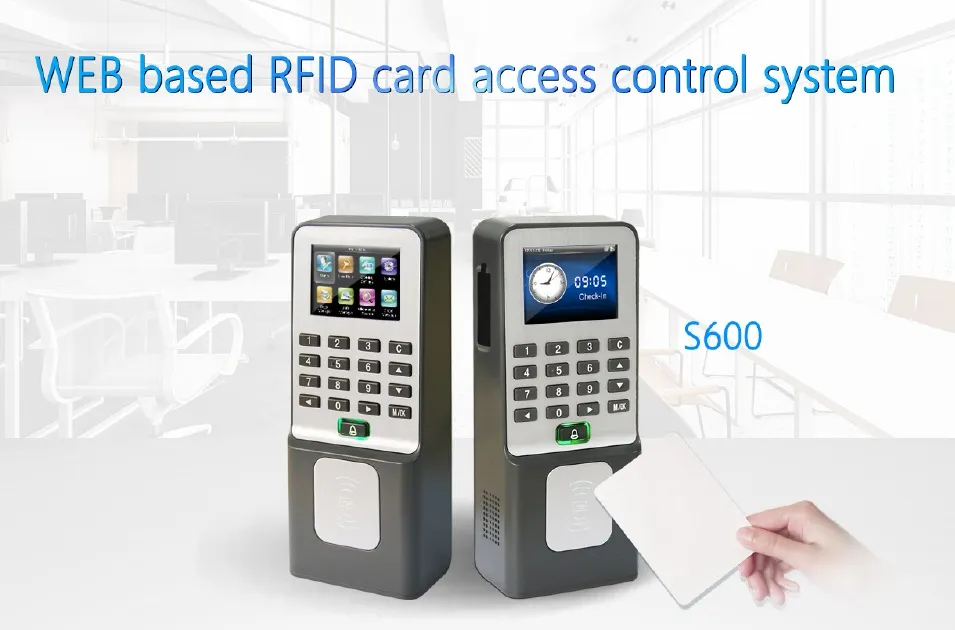

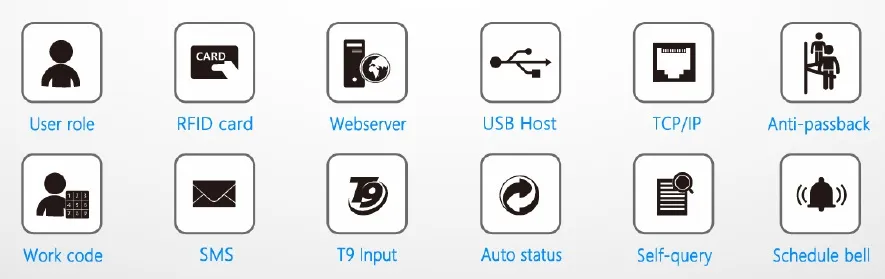

S600 Slim Design

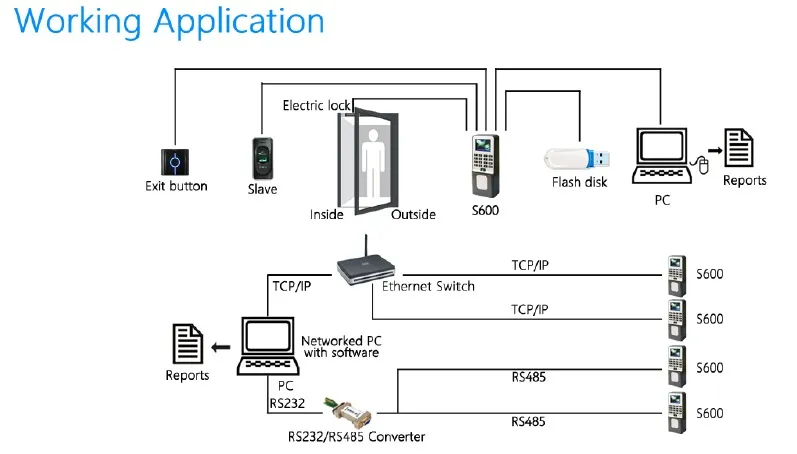

S600 Interface

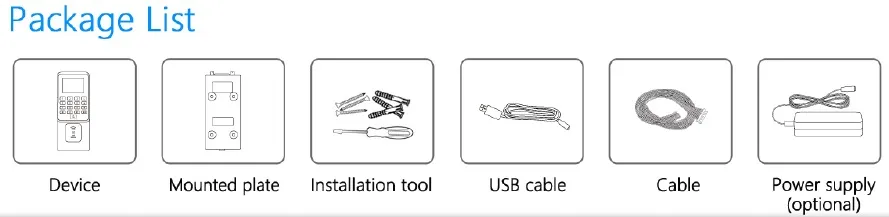

S600 Port Details
⚙️ Technical Specifications
Display & Audio
Display2.4" TFT color LCD screen
SpeakerVoice prompt (Multi-language)
Capacity & Speed
Card Capacity50,000
Log Capacity100,000
Verification Speed≤ 0.5s (1:1) / ≤ 1s (1:N)
Environment & Power
Power Supply110/220VAC~12VDC (3A optional)
Operation Temp0ºC ~ 45ºC
Operation Humidity20% ~ 80%
Machine Size185mm(L)×75mm(W)×40mm(H)
Advanced Functions
Standard FunctionsProfessional access control, Relay, 50 time zones, 5 groups, Multi-alarm, DST, Web server, Work code, Anti-pass back.
Customized OptionsM1 Reader, 3A Power Supply, Multi-verification.
🛒 Order Numbers
SC600
Multimedia ID card access control system
SC600+MF
Multimedia M1 card access control system
❓ Frequently Asked Questions
How many RFID cards can the S600 system manage?
The S600 supports a large capacity of up to 50,000 cards and can store 100,000 transaction logs.
Does the system support network integration?
Yes, it features multiple communication methods including TCP/IP, RS232/485, and USB Host for easy data management and networking.
What type of display does it use?
The device is equipped with a 2.4-inch TFT color LCD screen providing a clear user interface and voice prompts.
Can the system be used for both attendance and access control?
Absolutely. It is designed for both professional access control (with relays, time zones, and groups) and time attendance (check-in/check-out status).
Is the system available in multiple languages?
Yes, it supports English, French, Spanish, Arabic, and over 40 other selectable languages to suit different regions.
What are the power requirements for the S600?
It operates on a 110/220VAC to 12VDC power supply, and a 3A power supply is available as an optional customization.
