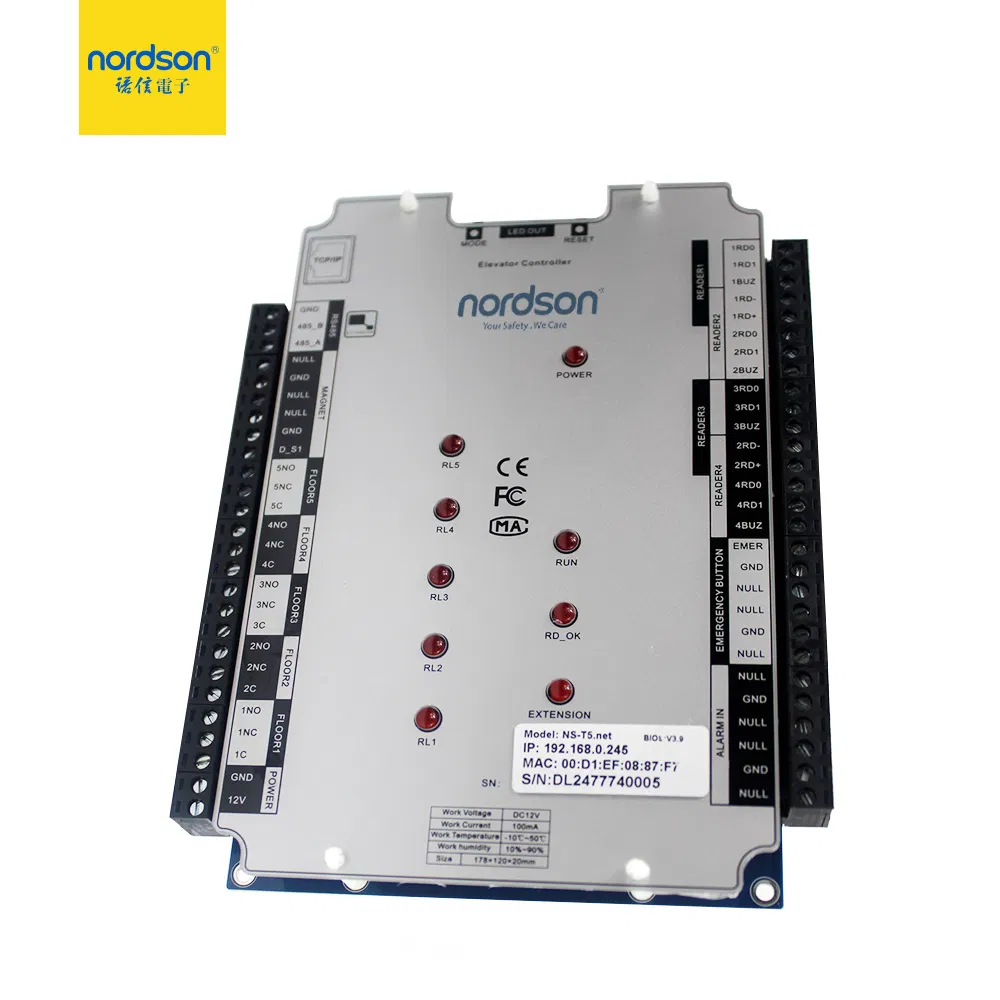

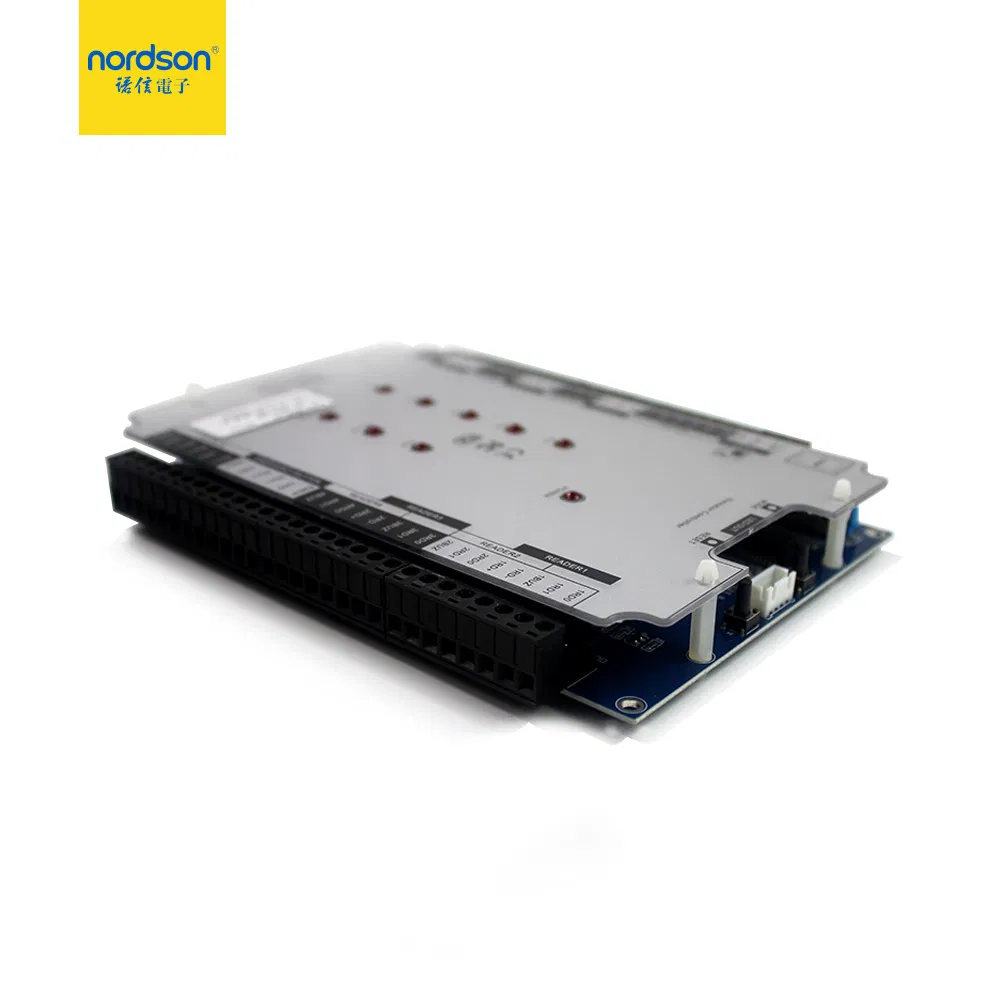

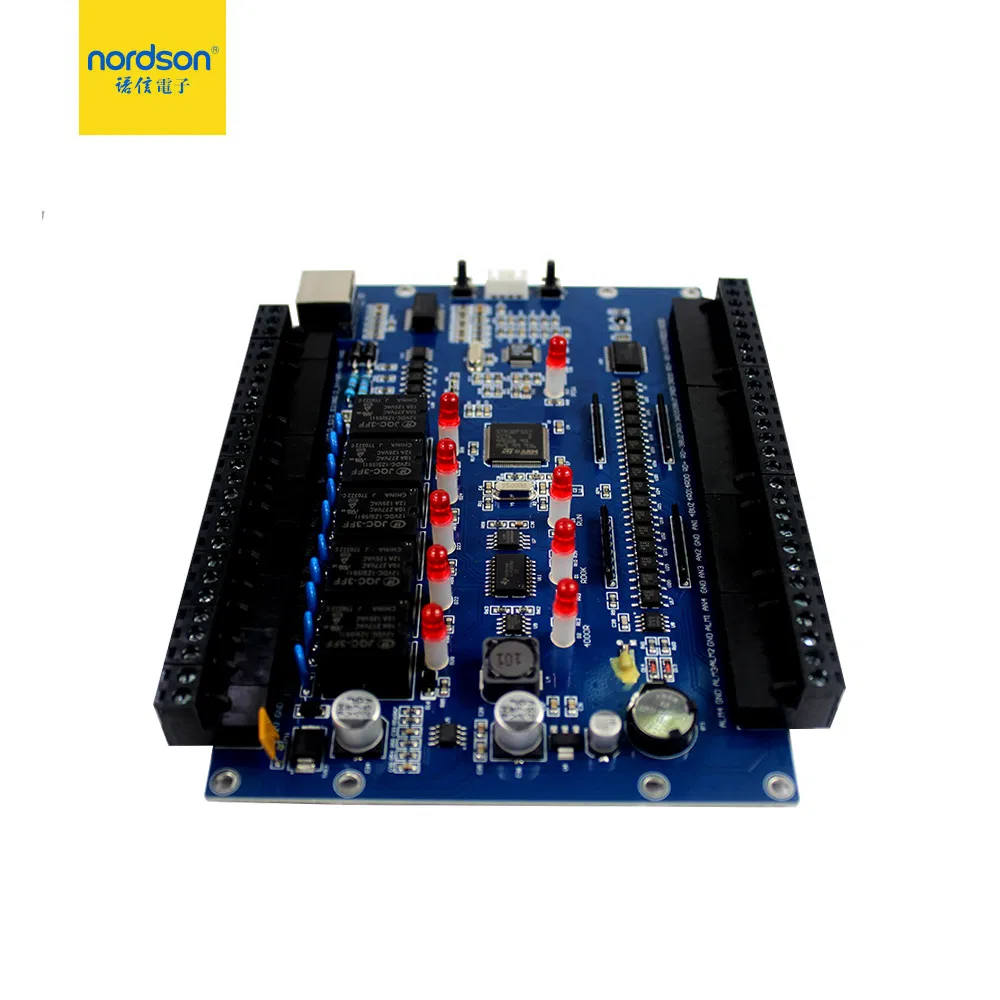

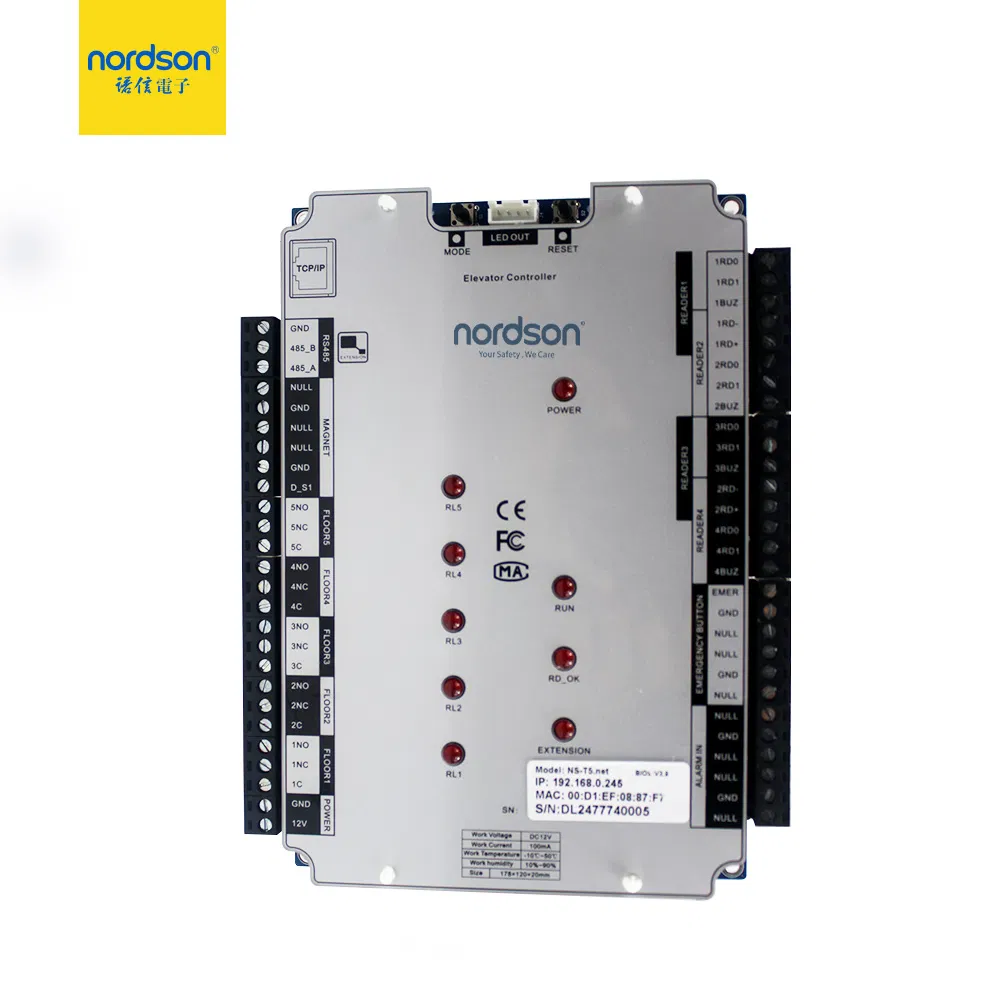

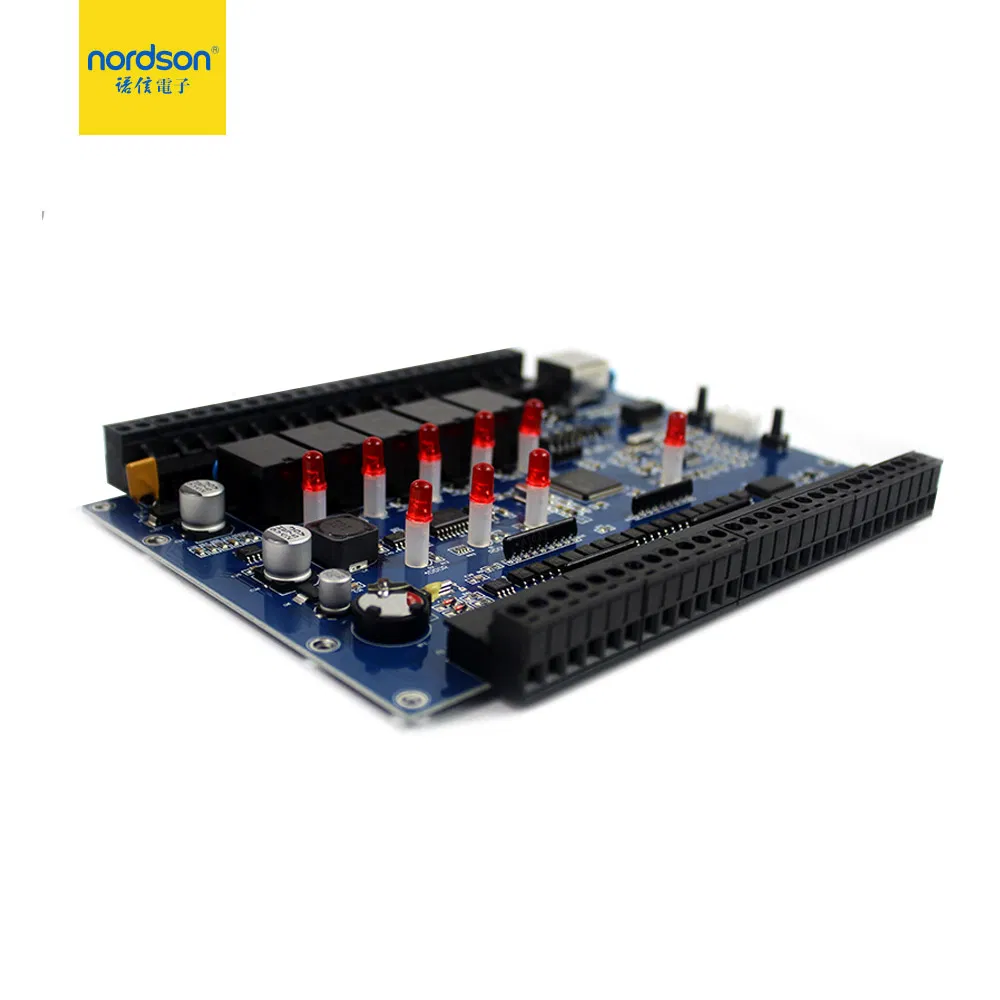

The T-Series Elevator Control Board is a sophisticated solution for managing access across multiple doors or floors using a single reader. The system includes the NS-T5.net Elevator Controller and the NS-T16 Expansion Board. By utilizing RFID cards, QR codes, or biometric recognition, the system ensures that users only access authorized floors, making it ideal for hotels, office buildings, and apartments.
| Feature | NS-T5.net (Main) | NS-T16 (Expansion) |
|---|---|---|
| Type | 5 Door Controller | 16 Door Expansion |
| PCB Size | 171mm * 141mm * 20mm | 198mm * 144mm * 20mm |
| Power Supply | 10~15VDC | 10~15VDC |
| Reader Port | 1x Wiegand 26/34 | N/A |
| Communication | TCP/IP / RS485 | RS485 |
| Max Connections | Standard 5 Doors | Up to 4 Expansions (69 Doors) |
| Output Port | 5 Relay, 1 Button, 1 Sensor | 16 Relay Outputs |
| Environment | -10°C to 50°C | 10-90% RH (Non-condensing) | |
