| Model NO. | ER012AT*4&ED004-1APID&BP001 |
| Color | Optional White/Black |
| Installation | Surface-Mounted |
| Certification | RoHS, CE, ISO9001 |
| Screen | 7", 1024*600, Touch Screen |
| System | Linux |
| Video Compression | H.265 (Default), H.264 |
| Camera Resolution | 2MP CMOS |
| Angle of View | 125 Degrees |
| RFID | Em Marine / MIFARE |
| Protection | IP66, Ik07 |
| Power Supply | DC24-36V, 8W |
| Production Capacity | 50,000 sets/Month |
| Package Size | 48.70cm * 34.00cm * 27.00cm |
| Package Gross Weight | 34.550kg |
- Embedded Linux System

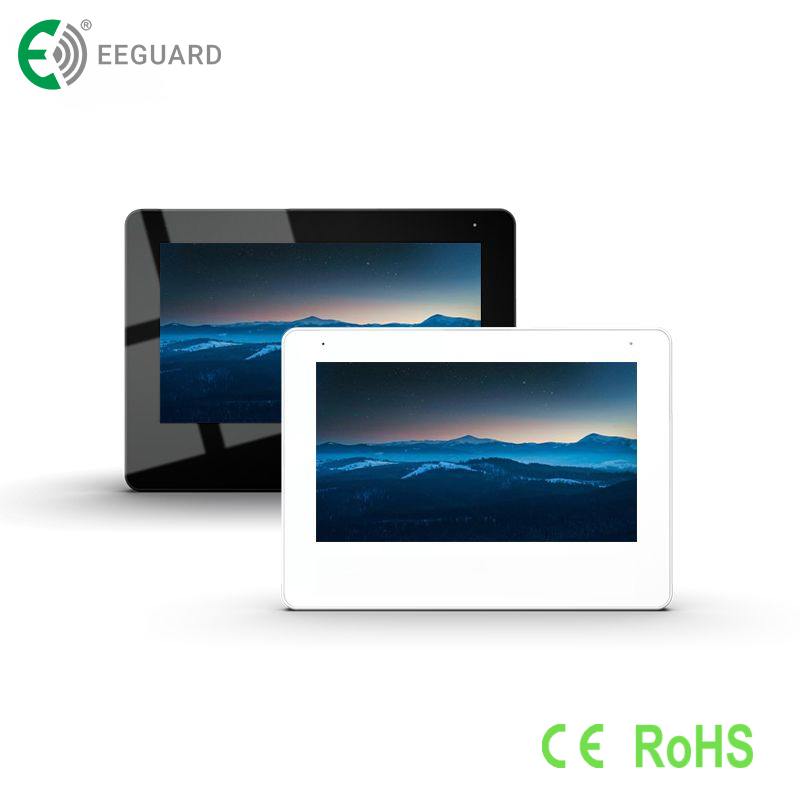

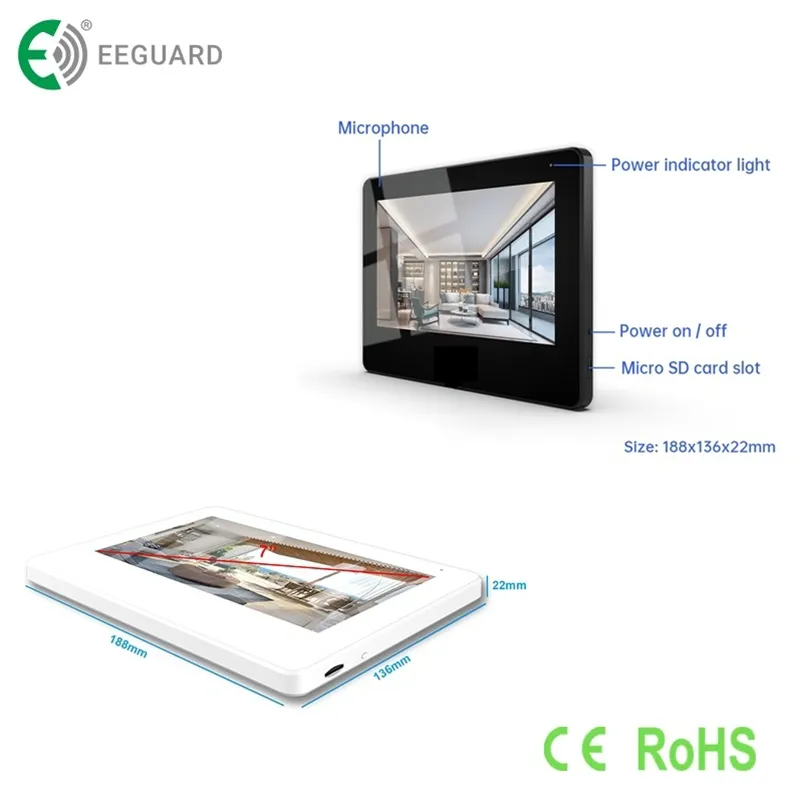

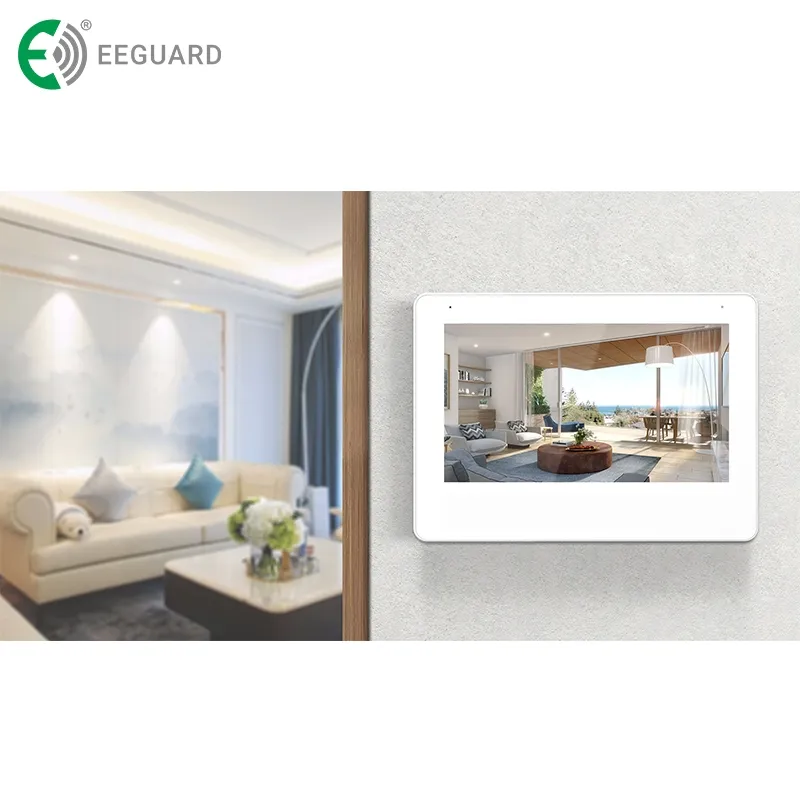

- Display: 7-inch touchscreen, 1024x600 resolution
- Audio: Full-duplex for clear two-way communication
- SIP 2.0 Video Intercom
- Wired: 10/100 Mbps Ethernet
- External: Micro SD card support up to 512GB
- Compression: H.265 (default) and H.264
- Power: DC24-36V

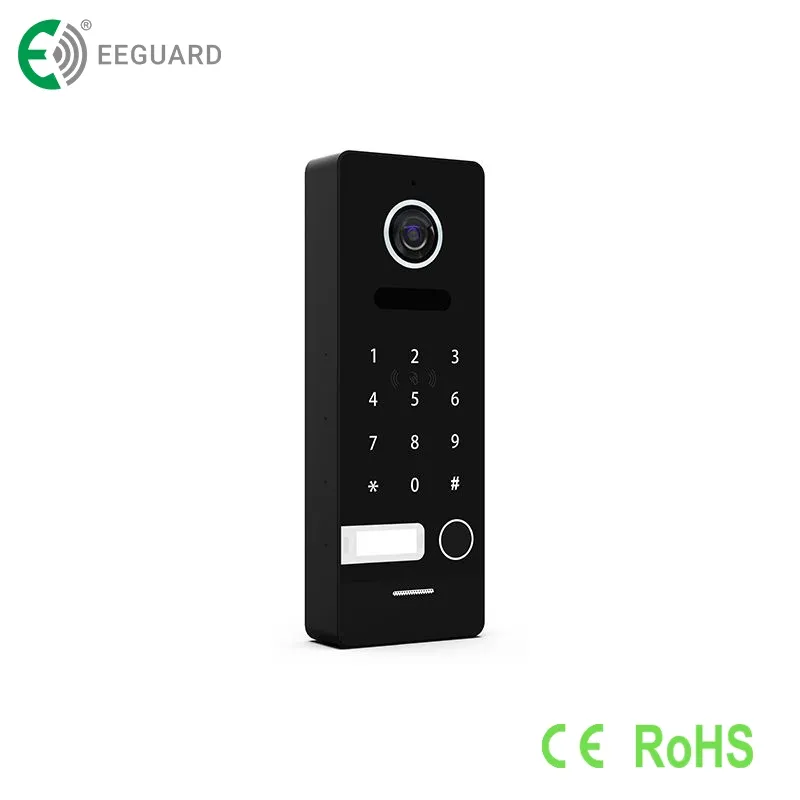

- 2MP HD IR Camera, 125° Wide Angle
- Web Configuration Supported

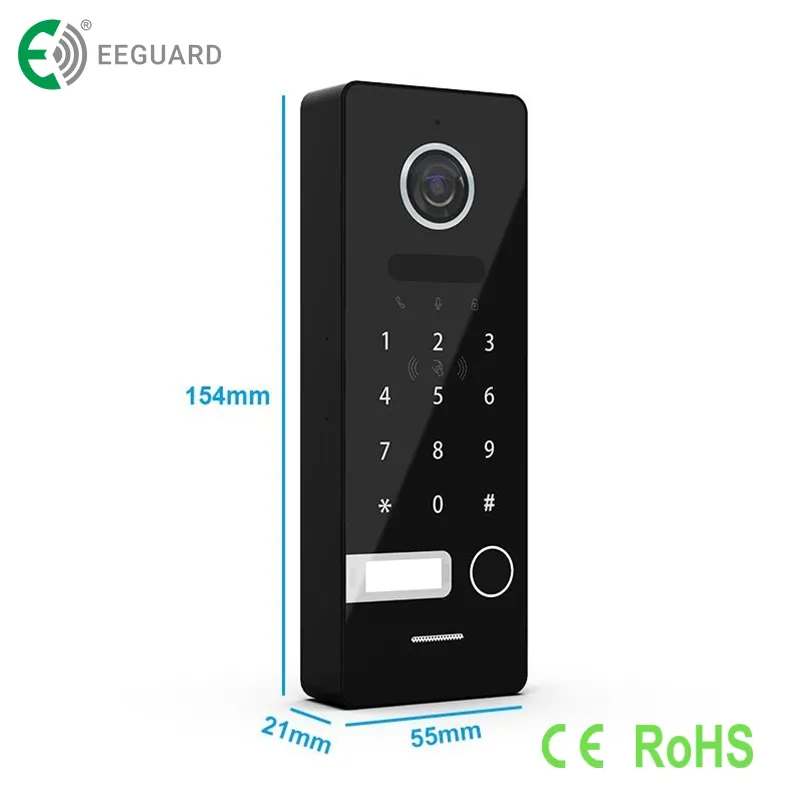

- Keypad & Code Unlock / RFID Unlock

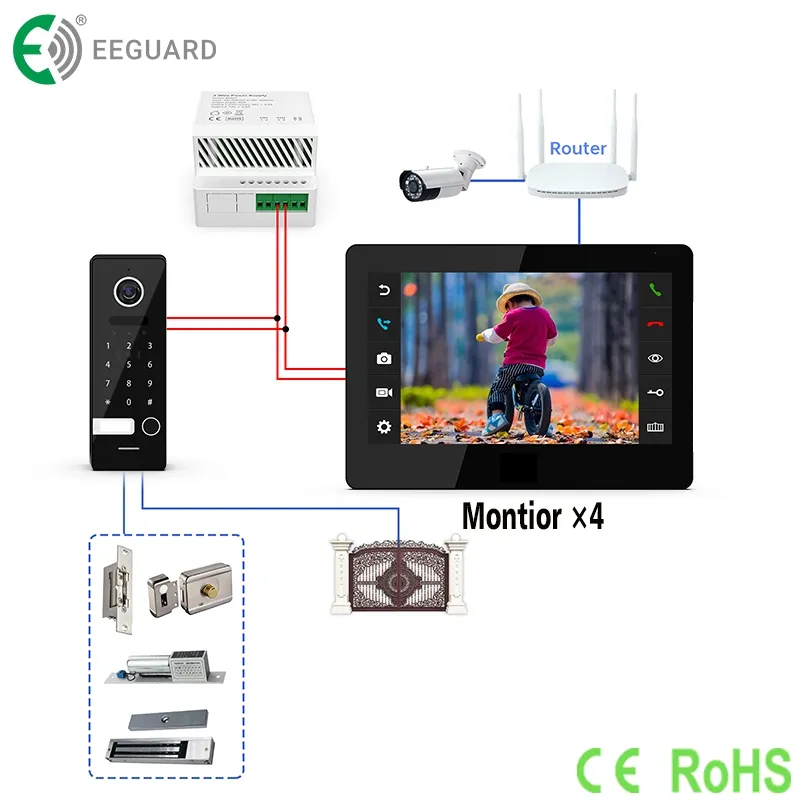

- Supports 2 Locks (Gate & Door)
- Tamper Alarm & Exit Button
- IP65 & IK07 Protection

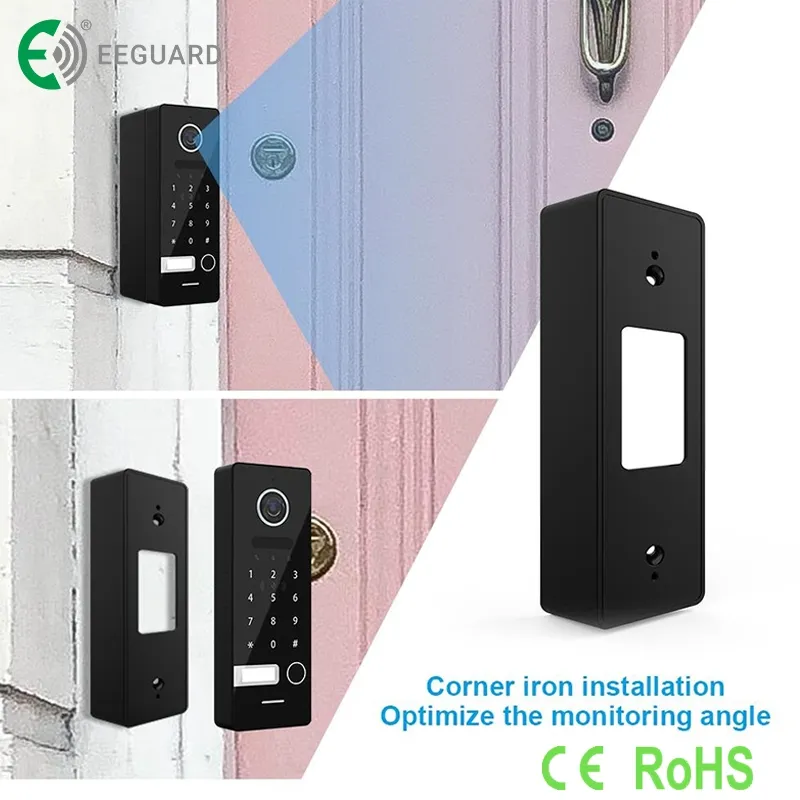

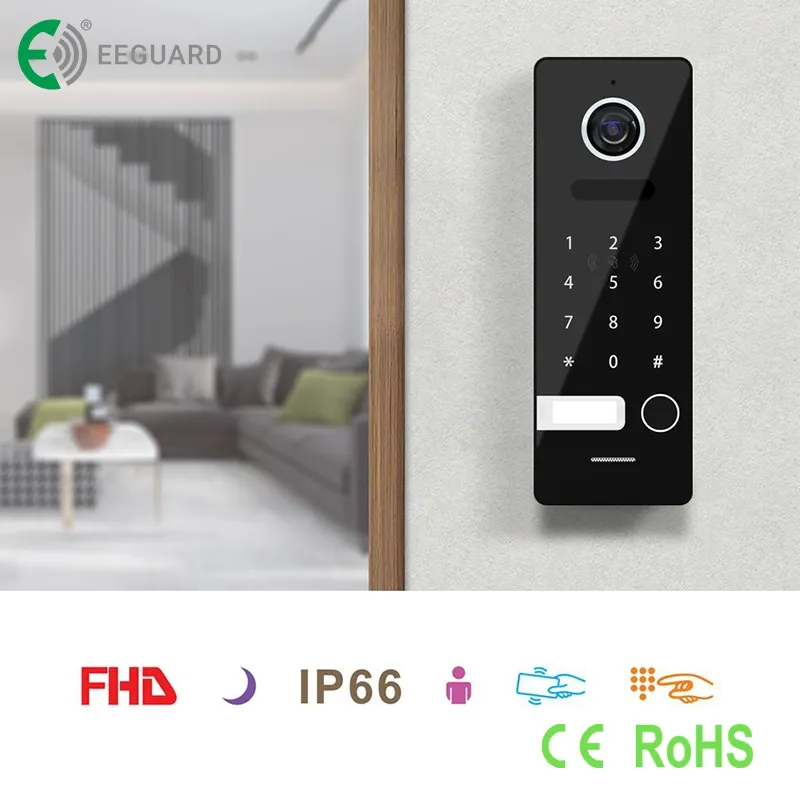

- Surface Mount Design

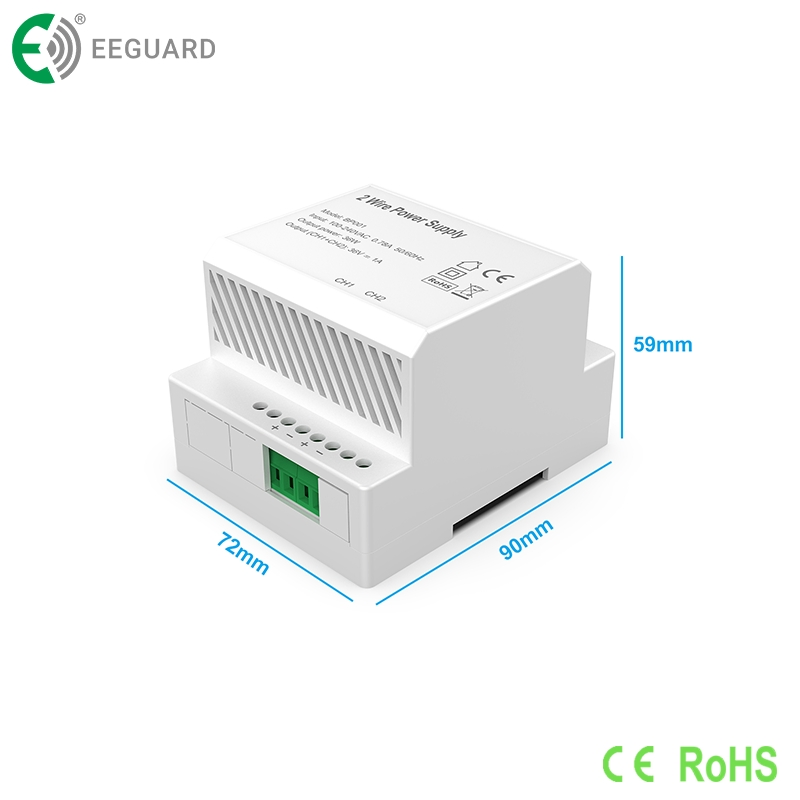

- Output: DC 36V, 1A
- Dimensions: 90 x 72 x 59 mm
All our models are in compliance with CE, RoHS, REACH. You are welcome to take samples to test our quality.
