⚙️ Basic Specifications
Model NO.
95732H+94221-B-IC
Installation
Surface-Mounted
Certification
RoHS, FCC, CE, Red
Connection
Wire, Cat 5, RJ45, WiFi/IP
Case
Metal Case with Vandal Proof
Power
DC15V / AC100-240V Optional

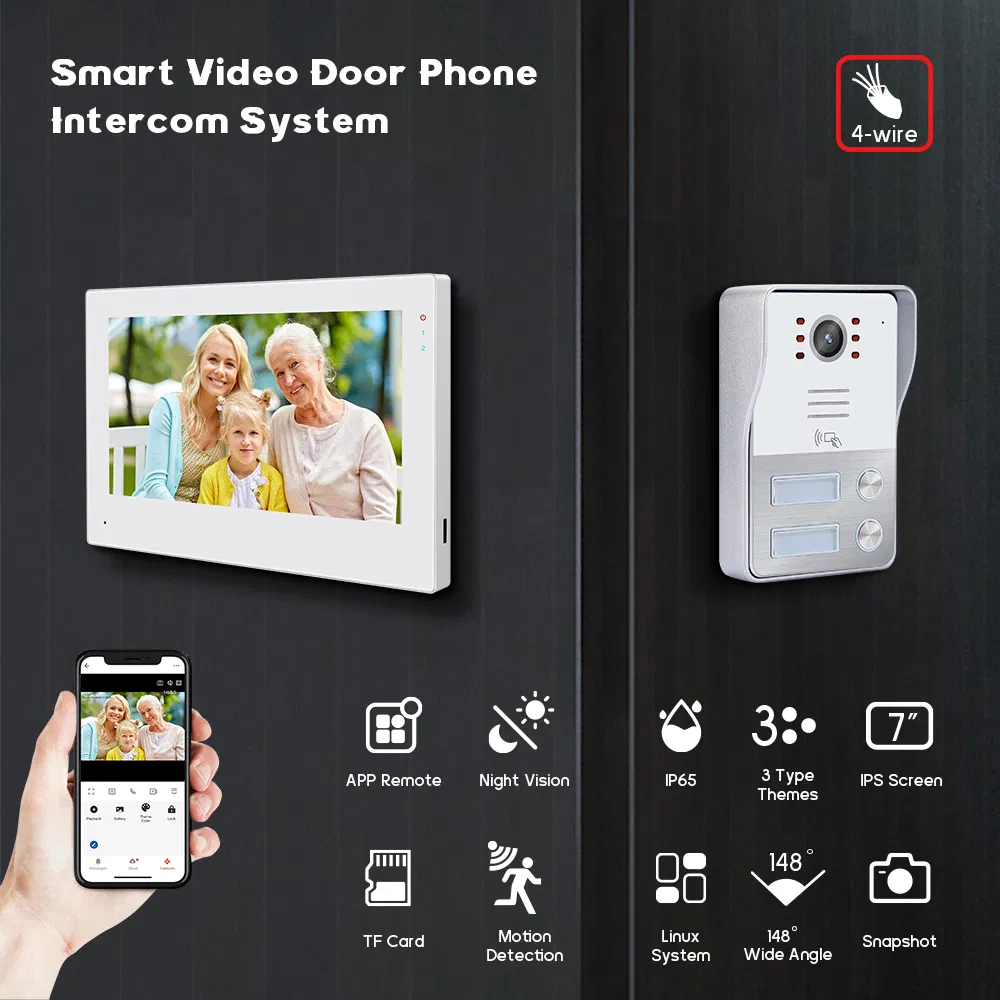

📱 High-end Smart Video Doorphone System

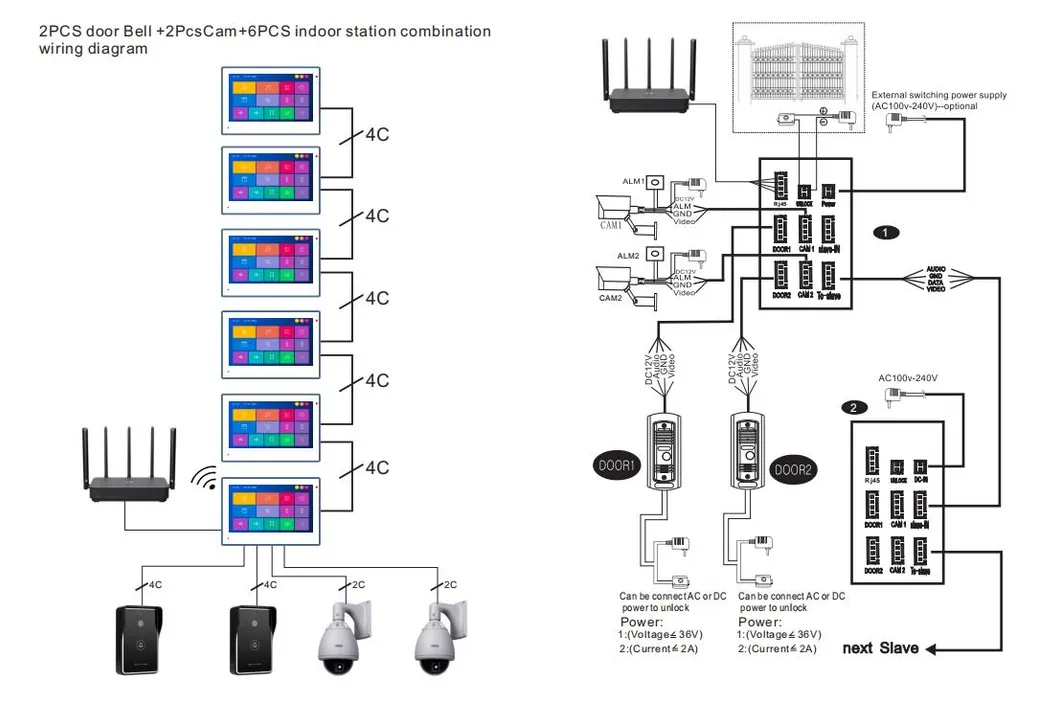

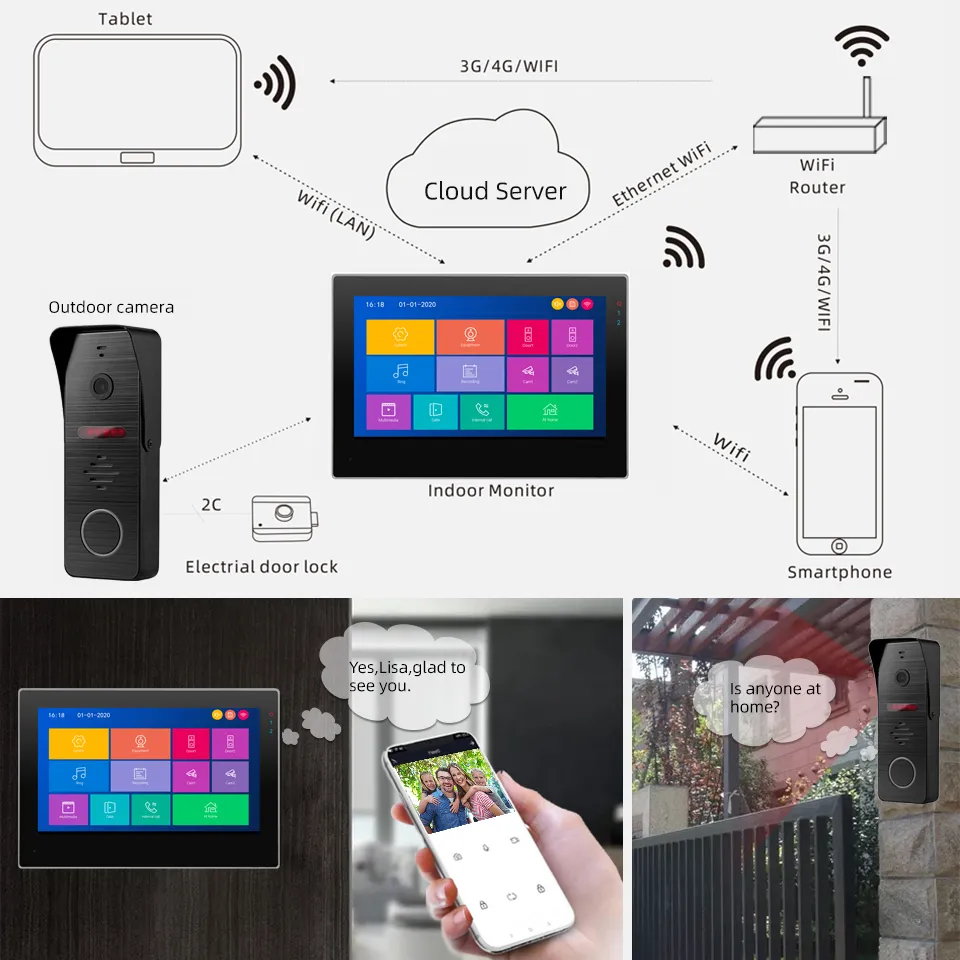

🔌 System Diagrams
🌟 Key Features & Functions
🏠 System Highlights
- 7" Touch Screen HD display 1024x600
- Support 800TVL / 720P / 1080P signals
- Multiple formats: CVBS / AHD / TVI / CVI
- TUYA APP control for remote access
- 10 polyphonic ring-tones available
- Easy DIY connection to WiFi

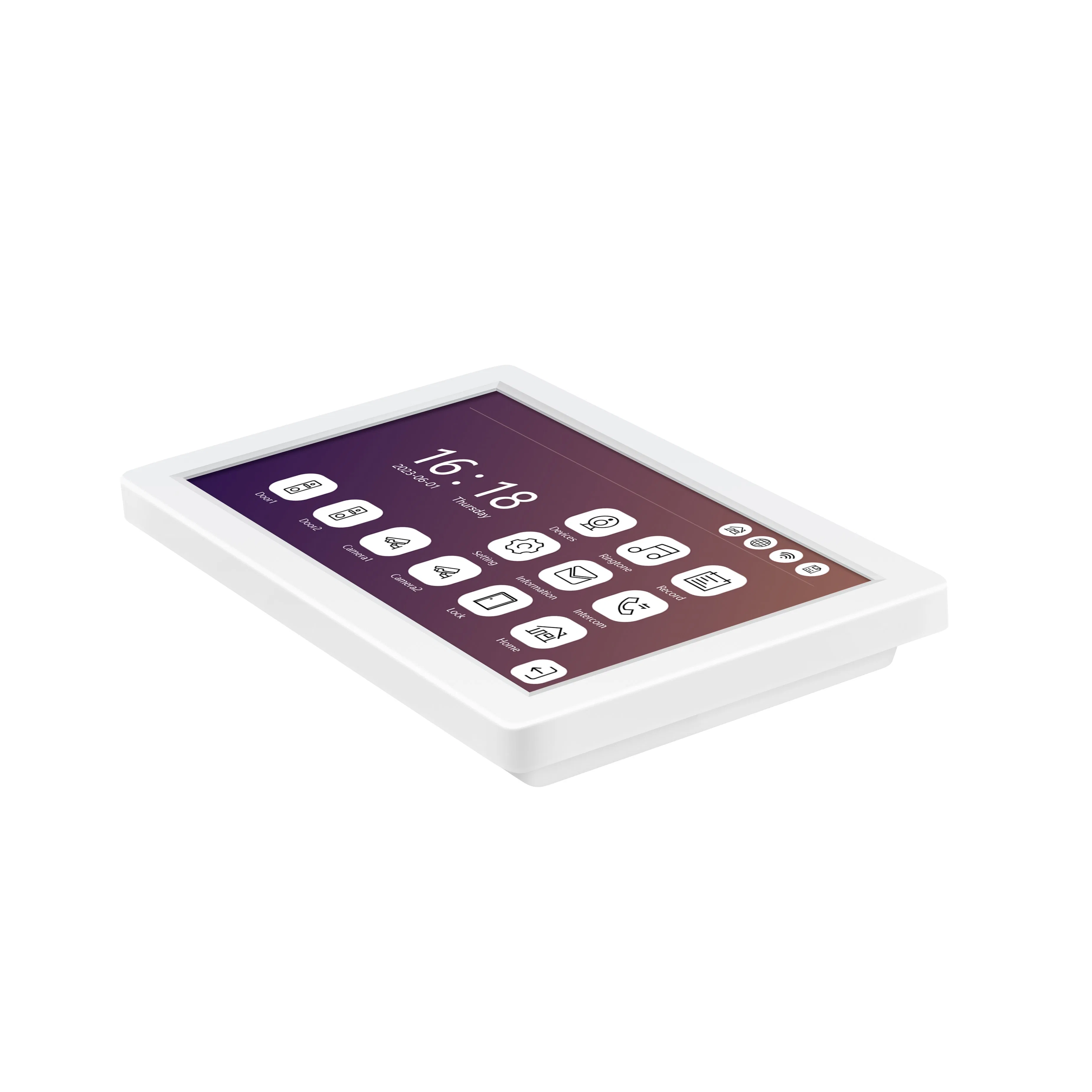

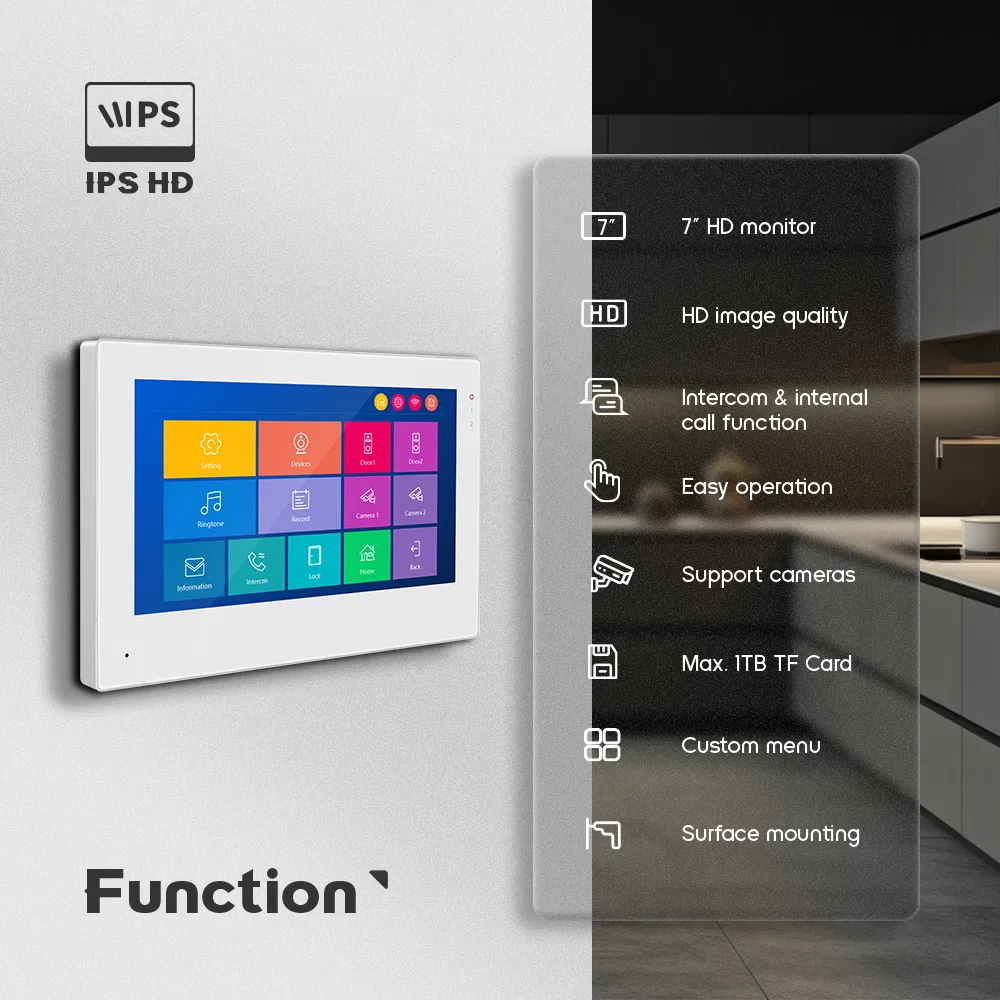

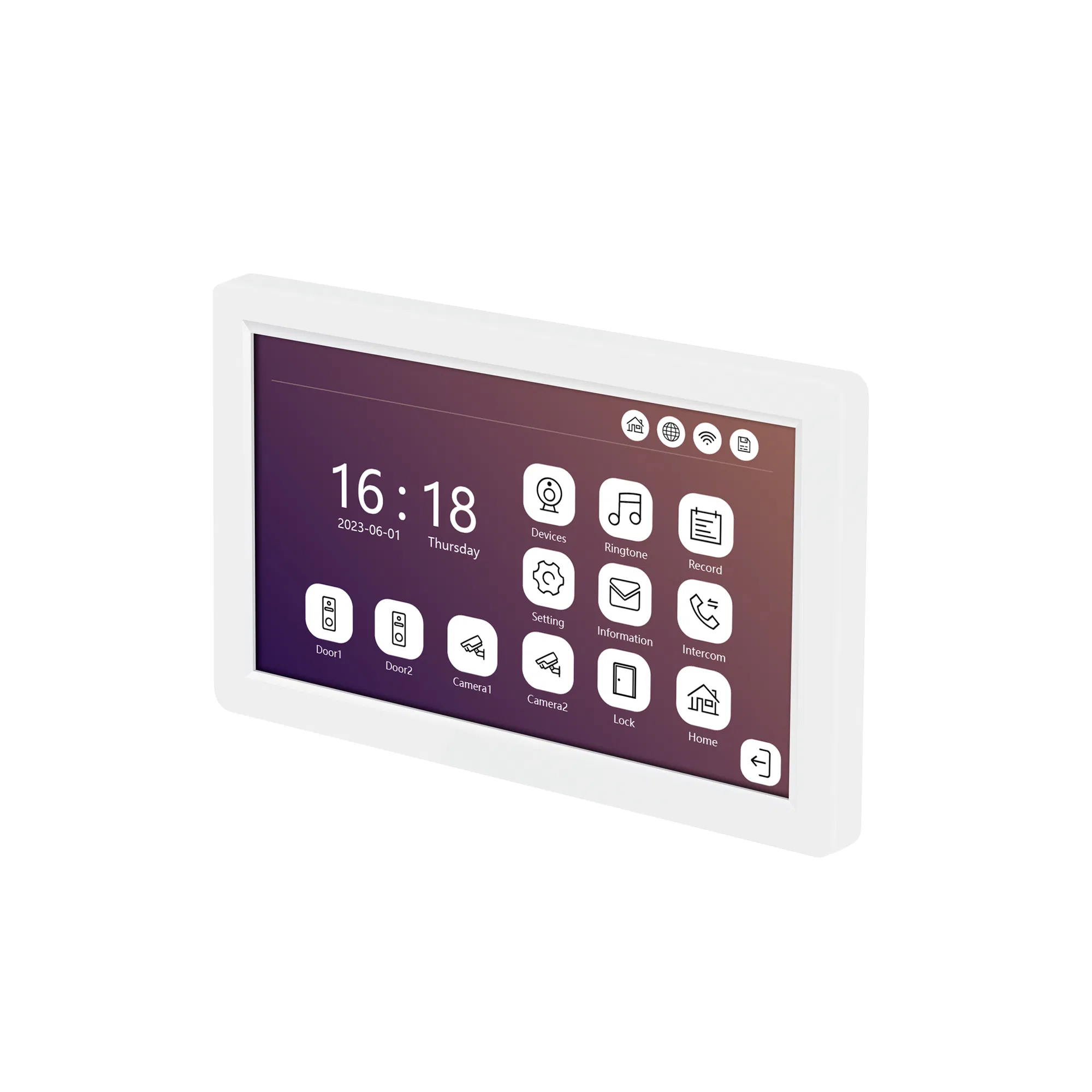

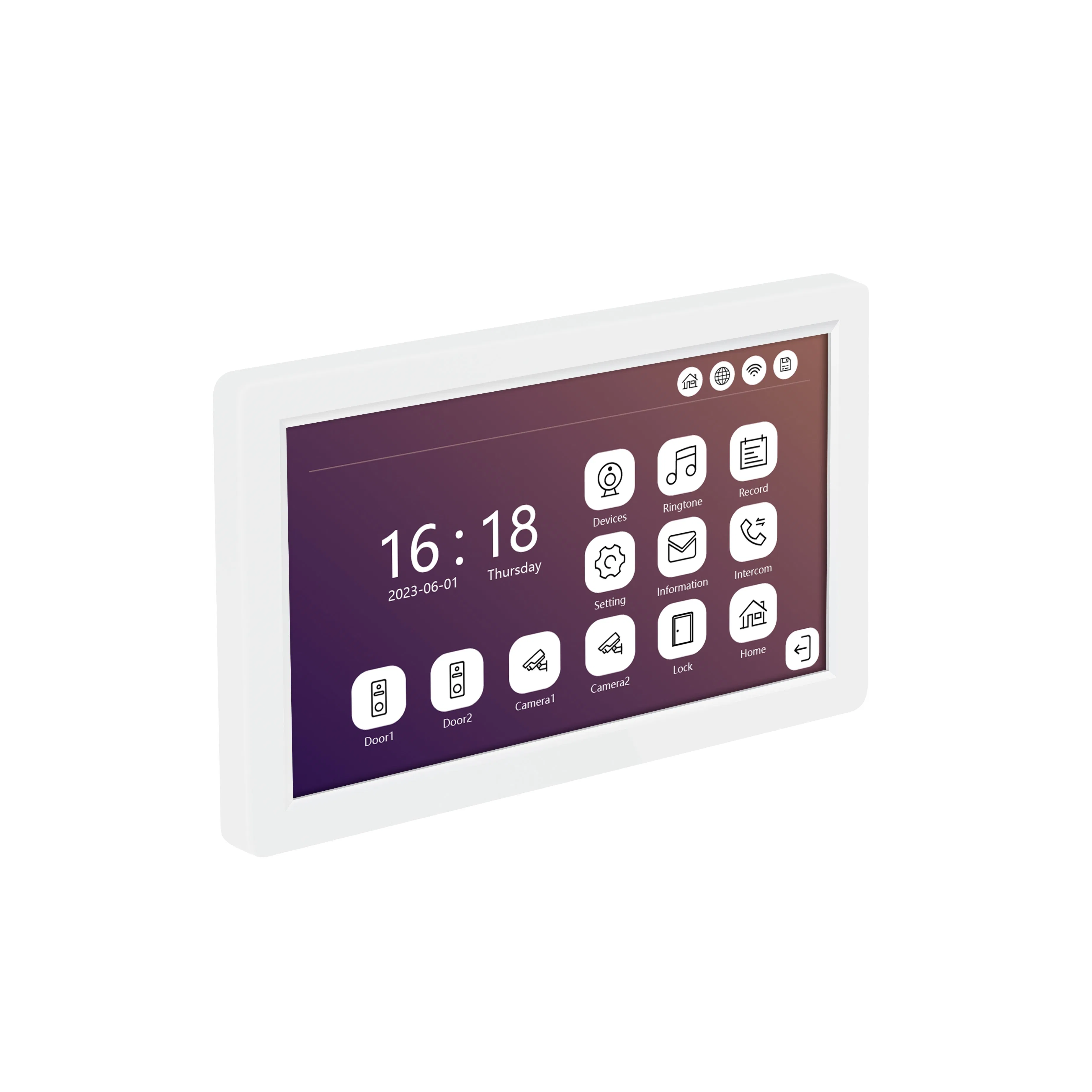

📺 Indoor Monitor Functions
- Hands free intercom & Lock control
- Simple DVR with motion detection
- Auto message leave function
- Supports 2 Doorbells + 2 CCTVs + 6 Monitors
- Multimedia: Photo Frame & Music Playing
- Monitor listening & Broadcast function

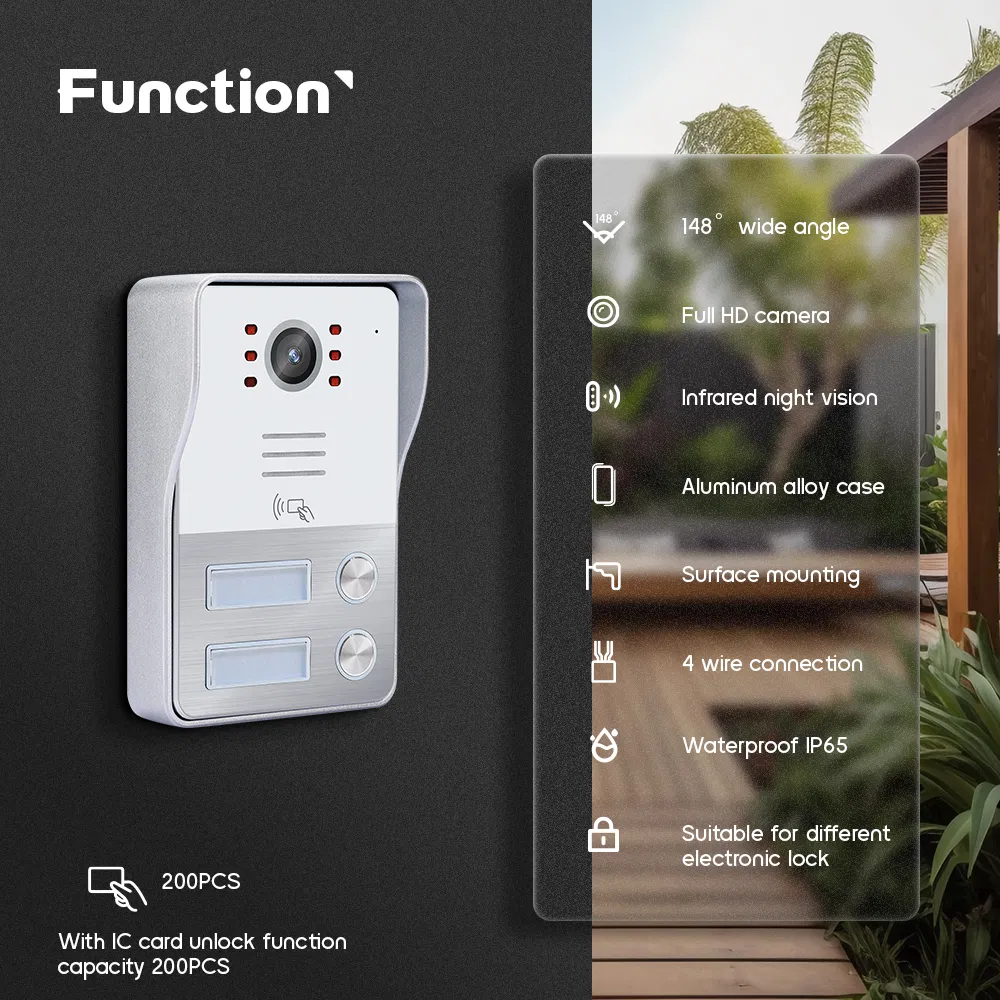

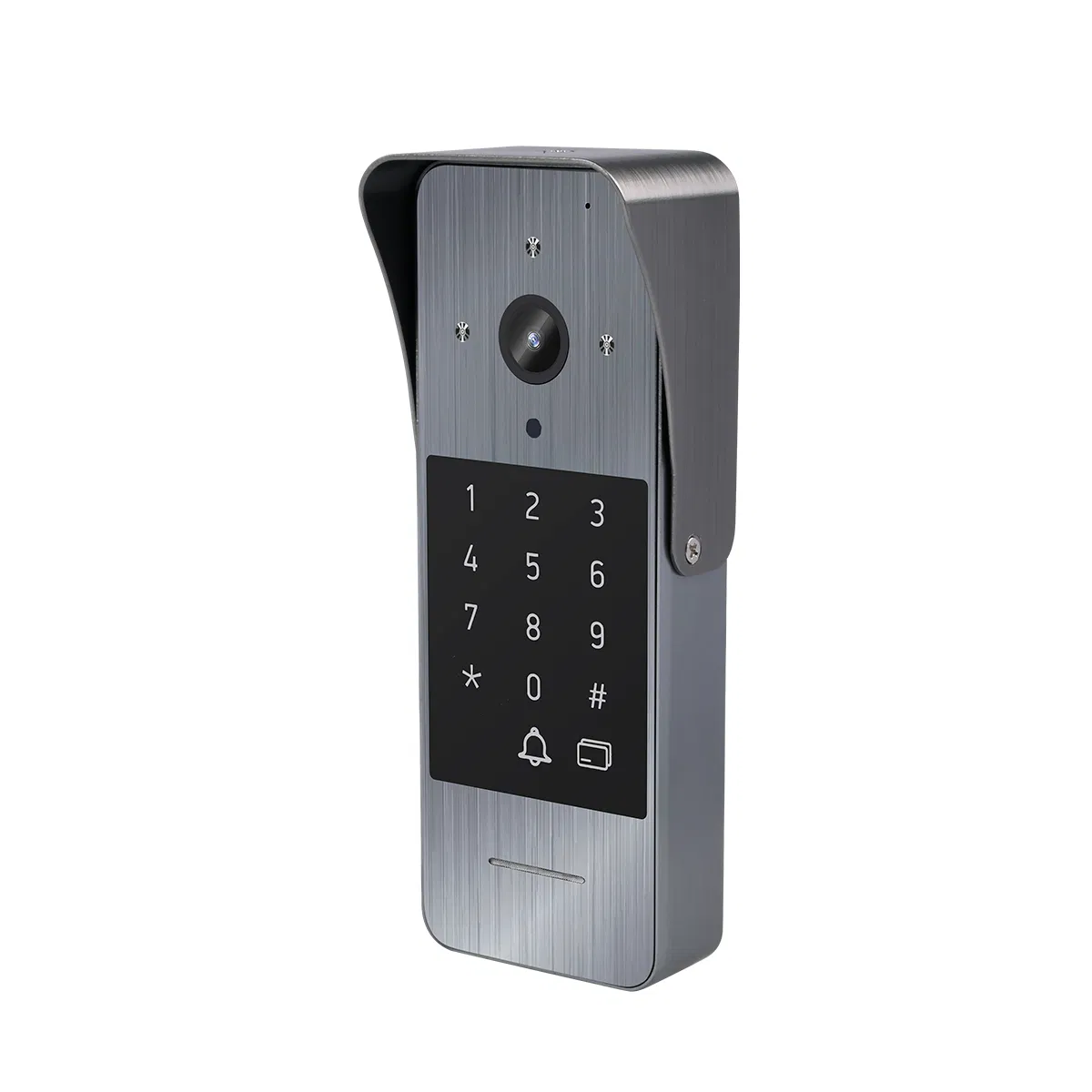

🛡️ Outdoor Doorbell Features
- Durable Zinc alloy housing
- IP65 Waterproof rating
- Wide viewing angle: 150 degrees
- Working temperature: -40ºC to +50ºC
- Anti-sabotage design with raincover
- High resolution up to 1080P
All products are passed CE, RoHS, FCC certificates with 2 years warranty. Quality testing samples are welcome.

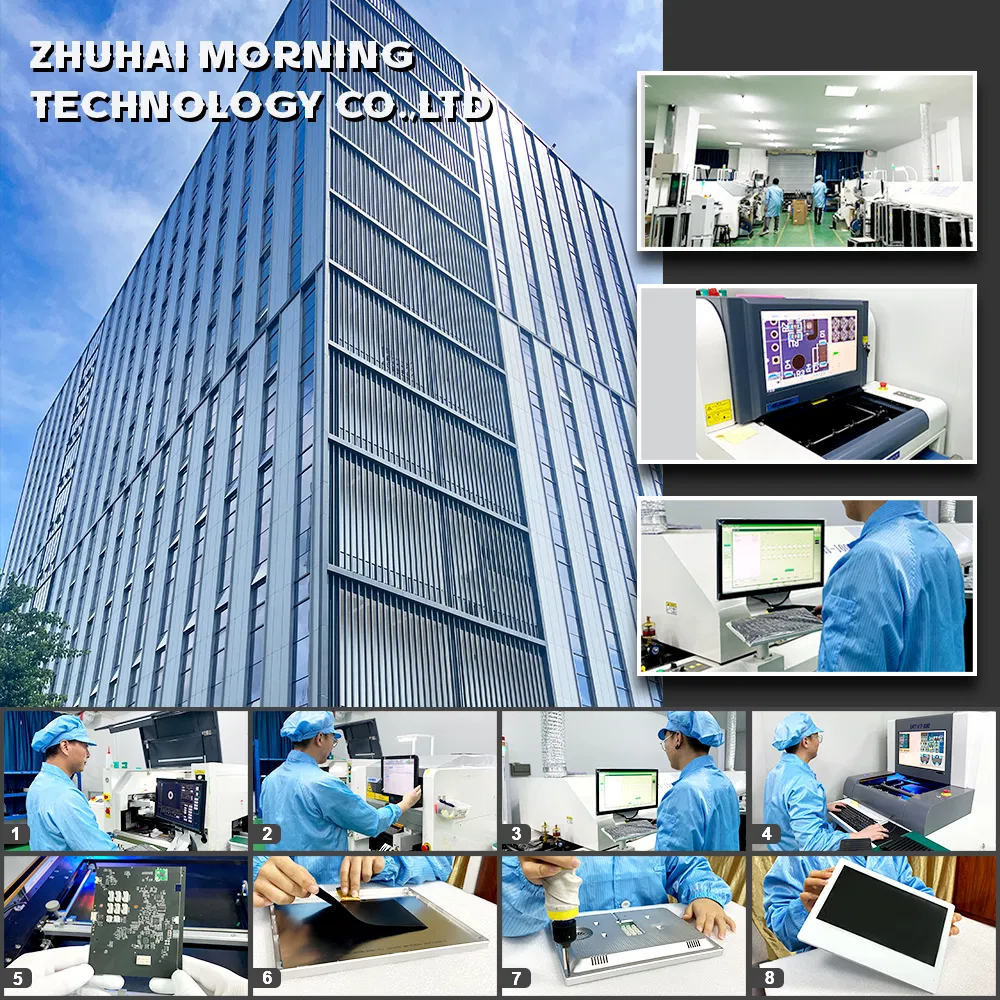

🏭 Production & Quality
❓ Frequently Asked Questions
Is it possible to support CVBS Video door phones?
Yes! The system is compatible with 1 AHD Call panel + 1 CVBS call panel + 1 AHD camera + 1 CVBS panel working together.
Does the system feature motion detection?
Yes! Motion detection is handled by the software, requiring no external PIR sensors. It can monitor 1 call panel or 2 cameras.
How can I play music or movies on the indoor monitor?
Simply download your media on a computer, copy it to an SD card, insert the card into the monitor, and use the multimedia player.
What is the "Voice Message" function?
When you are away, if a visitor presses the doorbell, the system will prompt them to leave a message after a set time. You can check the video and message when you return.
How does the transfer calling work?
The system supports up to 6 monitors. If one person answers a call but the visitor wants to speak to someone in another room, the call can be transferred to that specific monitor.
Why is the 7-inch monitor resolution 1024*600?
We provide a higher resolution (1024*600) compared to the standard market 800*480 to ensure superior image clarity and a competitive advantage for our users.
