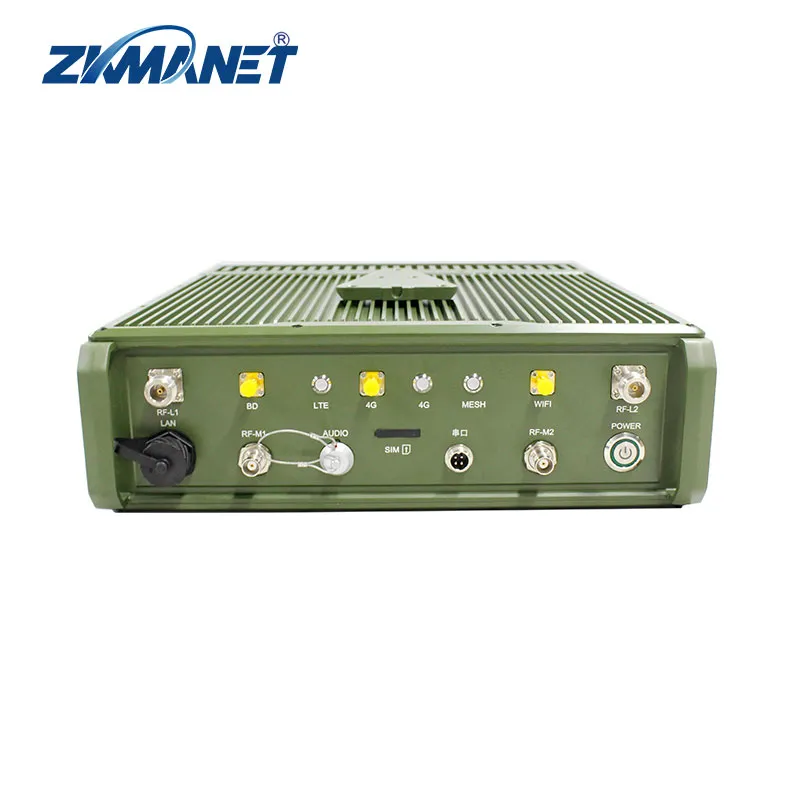

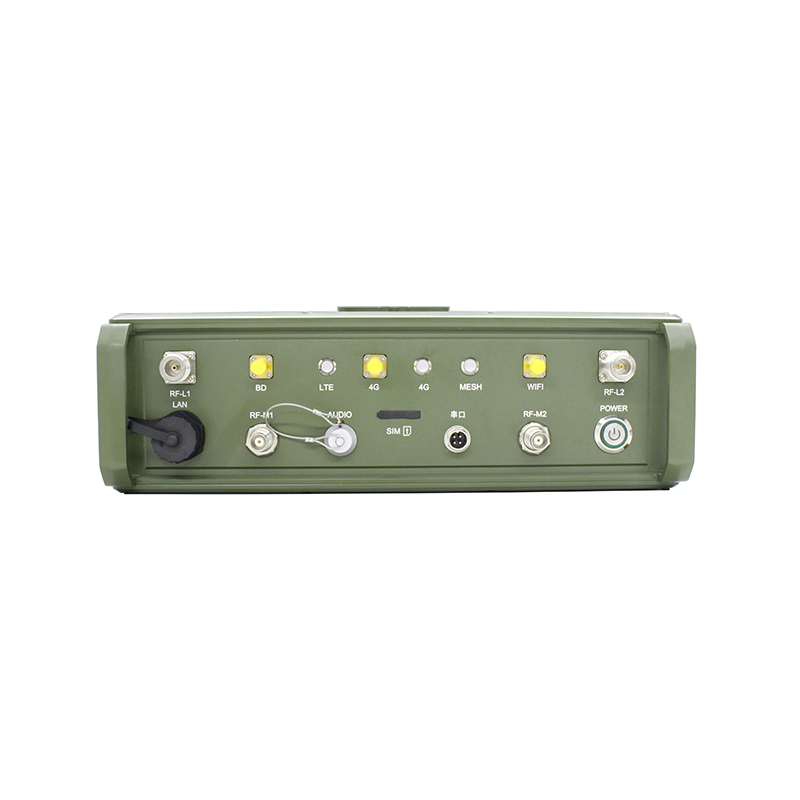

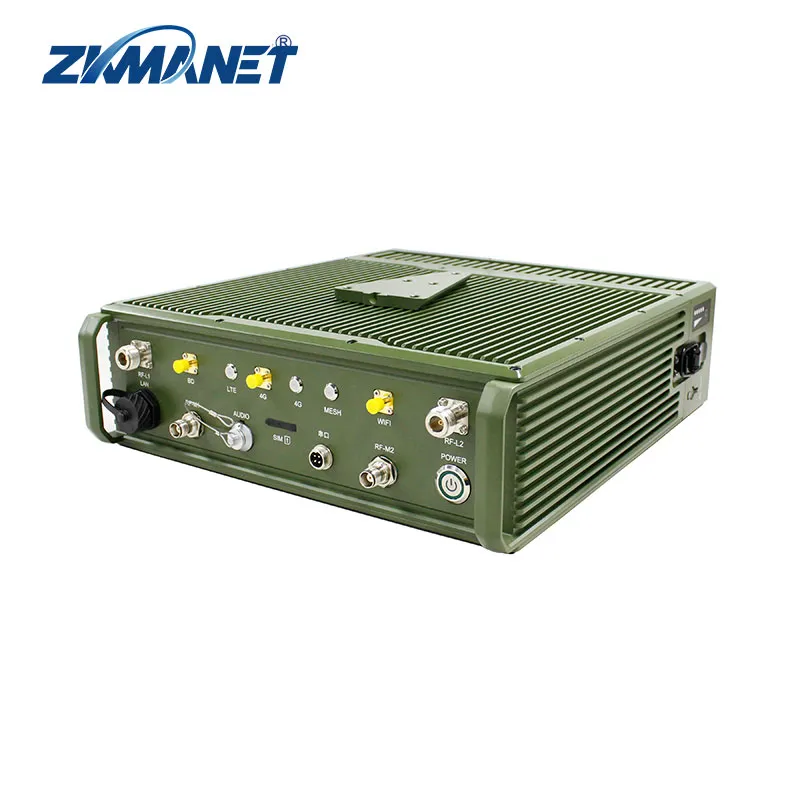

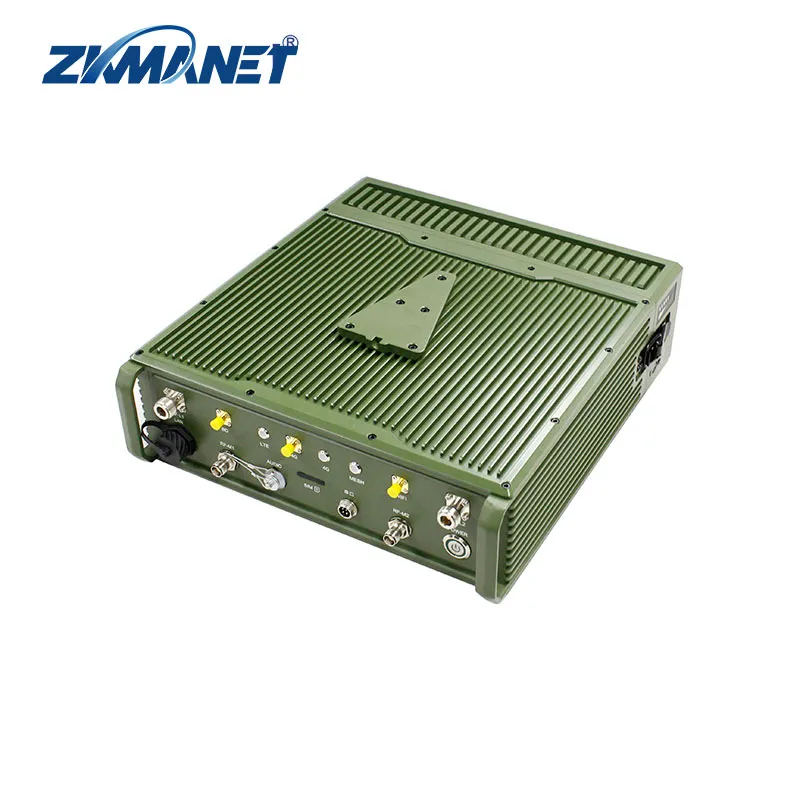

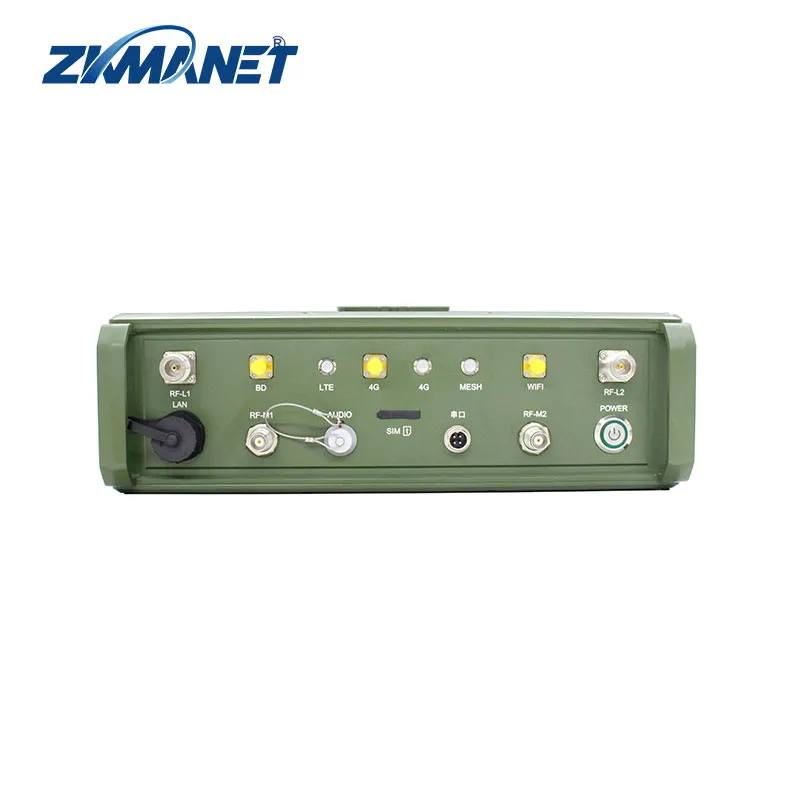

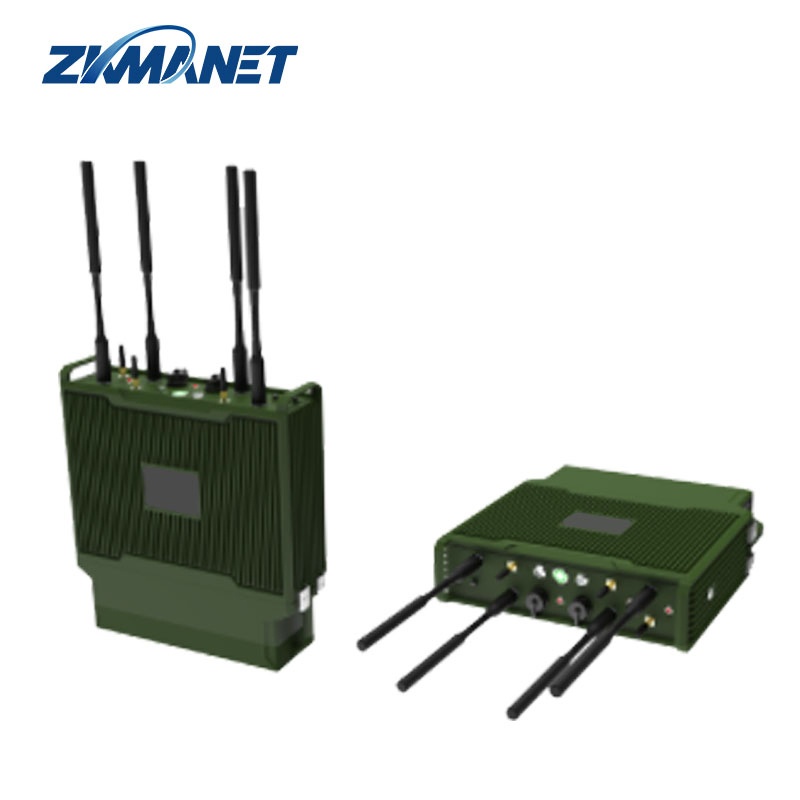

The ZKManet7761 is a high-performance all-in-one device developed specifically for emergency communication. It integrates mesh network, LTE private network, 4G/5G public network, Wi-Fi, wired network, and other communication methods into one system, enabling interconnection and interoperability. It also features BD positioning and comes with a lithium battery for power supply. Based on the unique functions and characteristics of each communication method, it can connect to different business terminals to meet various functional requirements.
| Mode | ZKManet7761 | |
| RF Parameters | Mode | Support Mesh/3GPP R9 protocol |
| Frequency | MESH: 580MHz; LTE: 1.4GHz (Customizable) | |
| Bandwidth | 2/5/10/20/40MHz | |
| RF Channel | 4T4R | |
| Output Power | 10W | |
| Network | Capacity | No less than 64 nodes and 9 hops |
| Data Rate | MESH up to 120Mbps; Downlink >20Mbps; Uplink >10Mbps | |
| WI-FI | 2.4/5.8GHz | |
| Range | Mesh > 5KM, LTE ≥ 2KM | |
| Physical | Dimensions | 330*320*100mm |
| Weight | 8kg (with battery) | |
| Working Temp | -40ºC ~ +65ºC | |
As a high-tech R&D enterprise, we hold multiple patents with independent intellectual property rights. Our quality systems comply with ISO9001 standards, and products are strictly manufactured according to national and international standards such as CCC, CE, and FCC. We have obtained specialized Radio Transmission Equipment certificates and passed Ministry of Public Security testing.

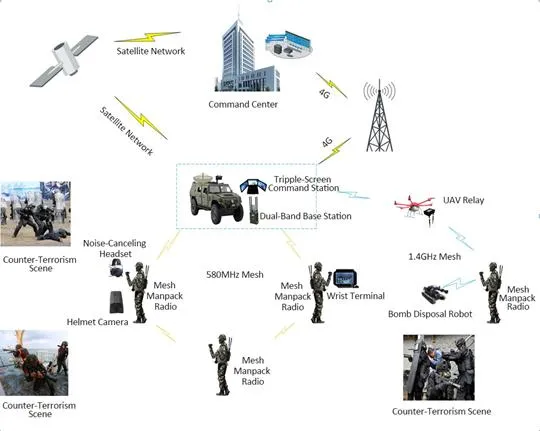

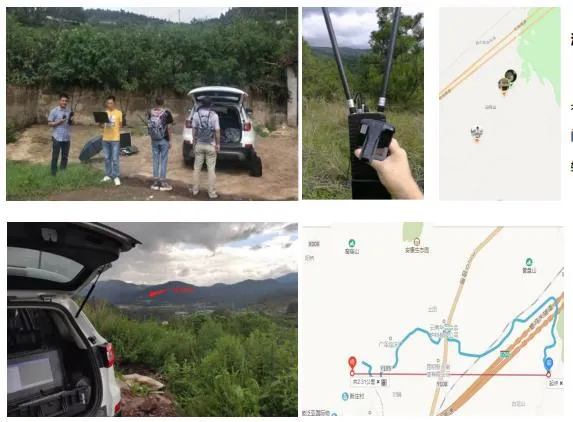

Our core technologies in Mesh and LTE form the backbone of underground emergency communication systems, urban emergency systems, and specialized robot communication, solving complex long-distance control and communication challenges.
