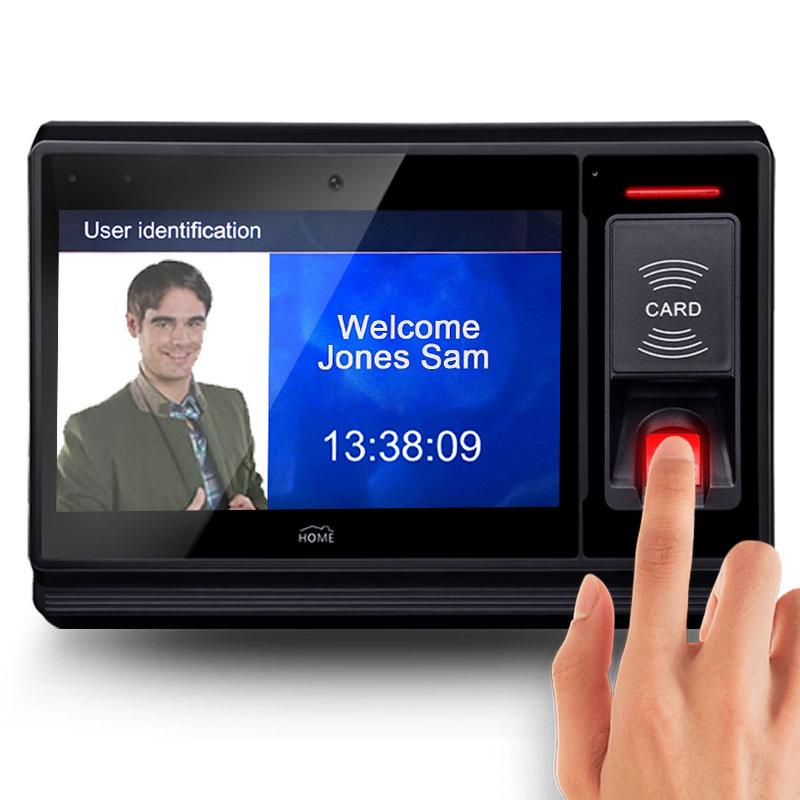

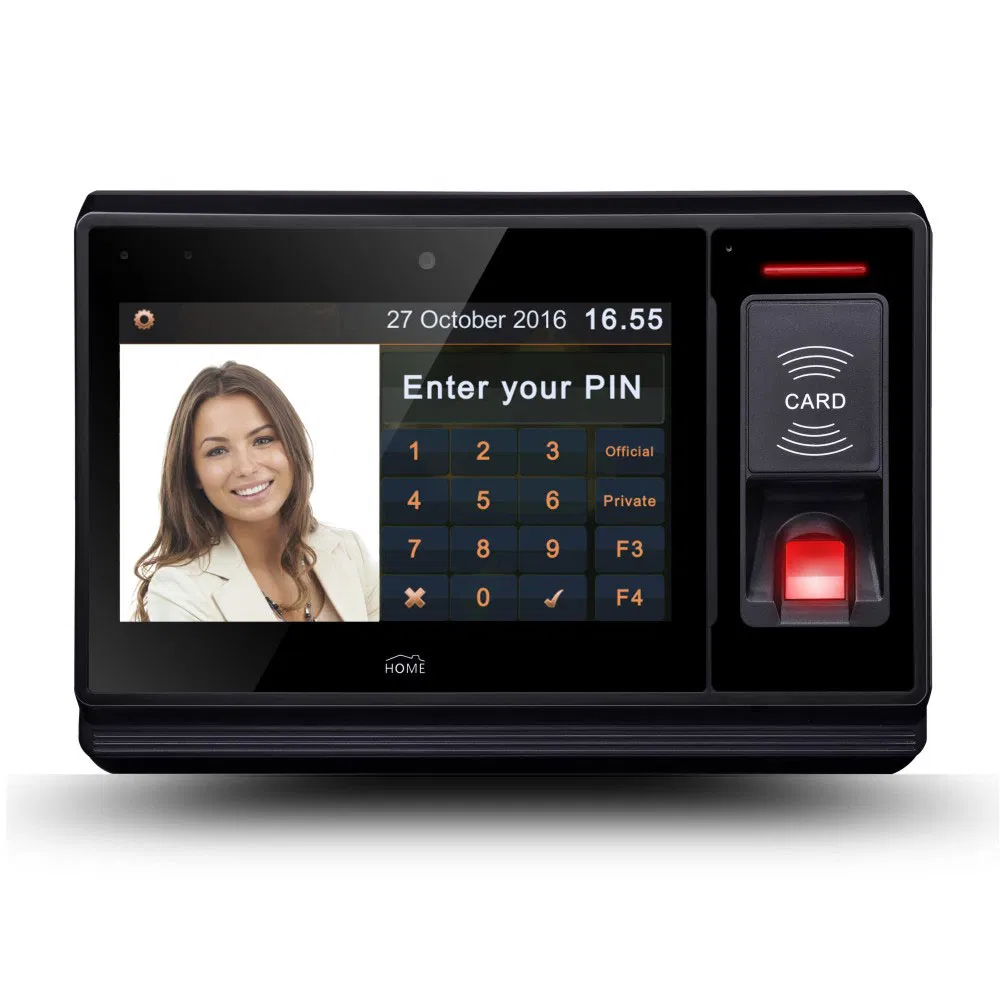

Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
1 / 5
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System
Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System

Biometric Fingerprint Reader Attendance Scan Finger Print Wireless Time Recorder WiFi Access Control System

Customization: Available
Card Type: CPU, EM
Interface: IEEE 1394, PCMICA, USB, Parallel Port, Serial Port
Send Inquiry

Product Description

Basic Information
Model NO.
uTouch-2
Application
Parking, Hospital, Library, Company, Bank, Store
Product
Access Controller
Dual OS
Android & Linux
Display
7" Touch Screen
Identification
Biometric Fingerprint, RFID, Mobile ID, Pincode
RFID Card
13.56MHz 125kHz
Sam
ISO7816 Sam Modules
Communication
4G, WiFi, TCP/IP, USB, RS232/RS485, Wiegand
Power
Battery, Poe, 9-24VDC
Camera
5.0 Megapixel Camera
Door Phone
Microphone, Speaker
Software
SDK
Certification
FCC, CE
Specification
H=160mm, W=230mm, D=45mm
Production Capacity
1000 Piece/Pieces Per Month
Product Description
Biometric Fingerprint Reader
Wireless Time Recorder
WiFi Access Control System
ModelCN890 SERIES

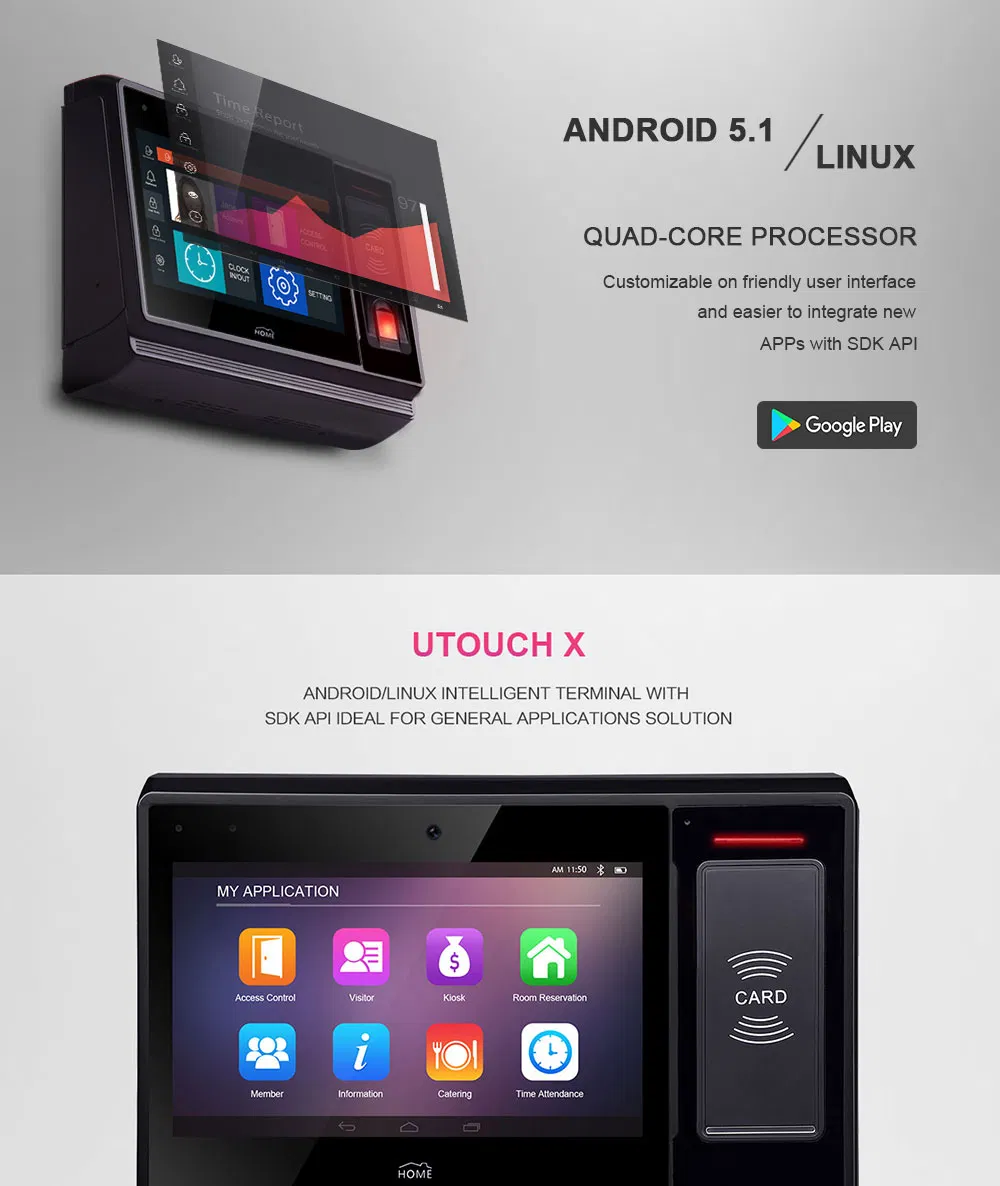

Operation SystemANDROID & LINUX
Display7.0" capacitive touch screen
Smart Card Interface
ISO-protocol125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC
Contact smart cardISO7816 (T=0,T=1) 1 SAM module
Biometric Fingerprint Reader
Fingerprint sensor500 dpi optical sensor
Template capacity1:1 (100,000); 1:N (25,000)
General Features

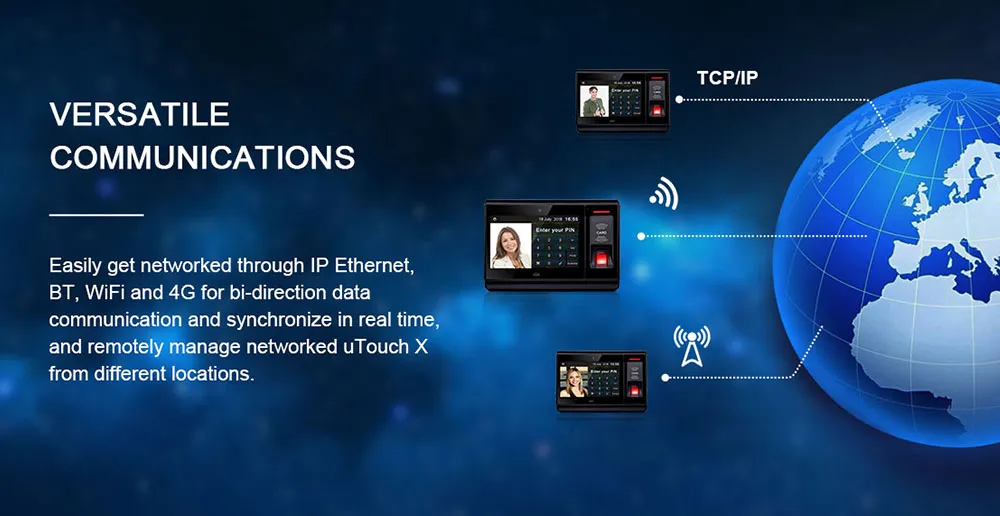

Communication interfaces4G, WiFI, BT4.0, TCP/IP, RS232, RS485/OSDP, wiegand, USB2.0 (OTG)
Power supply9-24V DC, Power over Ethernet, Battery
CameraAuto focus 5.0 megapixel digital camera
SD card1 SD card slot
Tamper alarm1 tamper alarm switch
CertificationCE, FCC
Access Control Detail
Interface View
Hardware Design
System Architecture
Installation Guide
Product Dimensions
Package Contents
Frequently Asked Questions
What identification methods does the uTouch-2 support?
The device supports multiple identification methods, including Biometric Fingerprint, RFID (13.56MHz and 125kHz), Mobile ID, and Pincode.
Which operating systems are compatible with this access controller?
The uTouch-2 features a Dual OS system, supporting both Android and Linux platforms for flexible software integration.
What communication interfaces are available for data transfer?
It offers comprehensive connectivity options, including 4G, WiFi, BT4.0, TCP/IP, RS232, RS485/OSDP, Wiegand, and USB 2.0 (OTG).
Does the device support Power over Ethernet (PoE)?
Yes, the system can be powered via PoE, a 9-24V DC power supply, or its internal battery.
What is the fingerprint template capacity of the scanner?
The biometric reader has a capacity of 100,000 templates for 1:1 matching and 25,000 templates for 1:N matching.
Is there a camera included for security logging?
Yes, the device is equipped with a 5.0 Megapixel auto-focus digital camera for facial capture or security monitoring.
