Product Description

Basic Specifications

Model NO.
2640
Type
CCTV Camera
Sensor
CMOS
HDMI Format
960P
Resolution
520tvl
Kind
Manual Focus Lens
Certification
CE, FCC, CCC, RoHS, ISO9001
Feature
Waterproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/3 inch
Sensor Model
Ov2640
Compatible with
Esp32

Product Overview

OV2640 160° Ultra-Wide-Angle Camera Module

Engineered for embedded vision applications, this high-performance camera module integrates the industry-proven OmniVision OV2640 CMOS image sensor with a custom 160-degree ultra-wide-angle lens. Designed for seamless compatibility with popular development platforms such as TTGO ESP32-CAM, Sipeed Maix series, and other ESP32-based boards.

Key Features

  • ✓
    High Resolution: Up to 2 Megapixels (1600 × 1200)
  • ✓
    Ultra-Wide View: 160° Field of View for maximum coverage
  • ✓
    Output Formats: Supports JPEG, YUV, RGB565/555, and GRB422
  • ✓
    DVP Interface: Standard 8-bit parallel camera interface
  • ✓
    Low Power: 3.3V supply, ideal for battery-operated IoT
  • ✓
    Wide Temp Range: Operates from -20°C to +70°C

Applications

Smart Doorbells FPV Drones Robotics Navigation Industrial Inspection AIoT Prototyping

Product Display

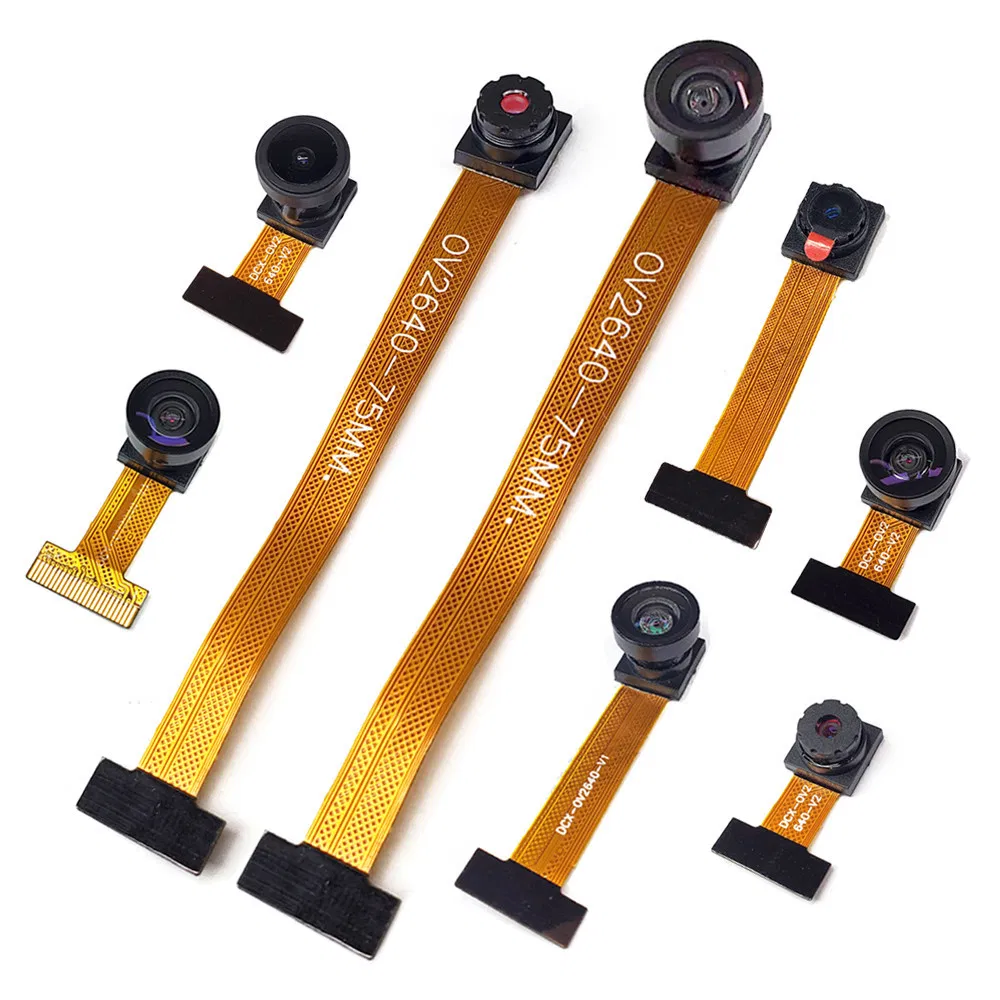

OV2640 Module

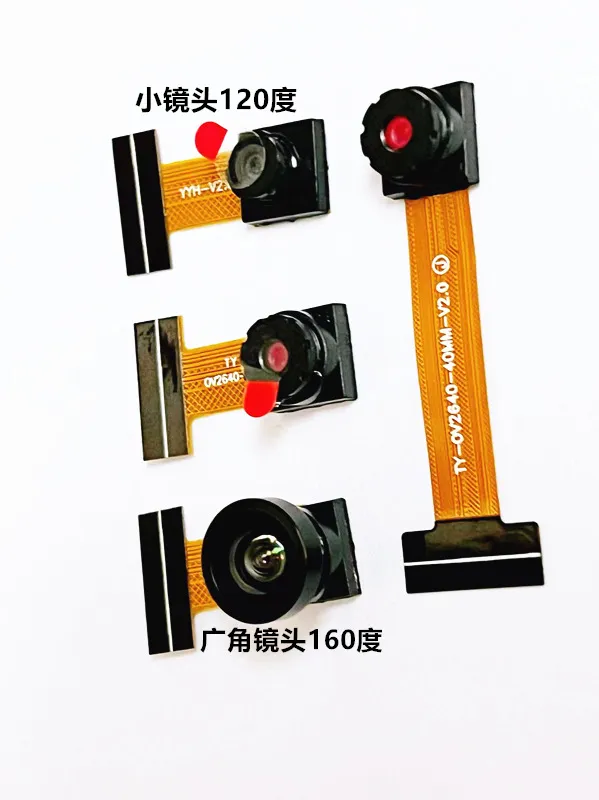

Camera Lens Detail
ESP32 Compatible

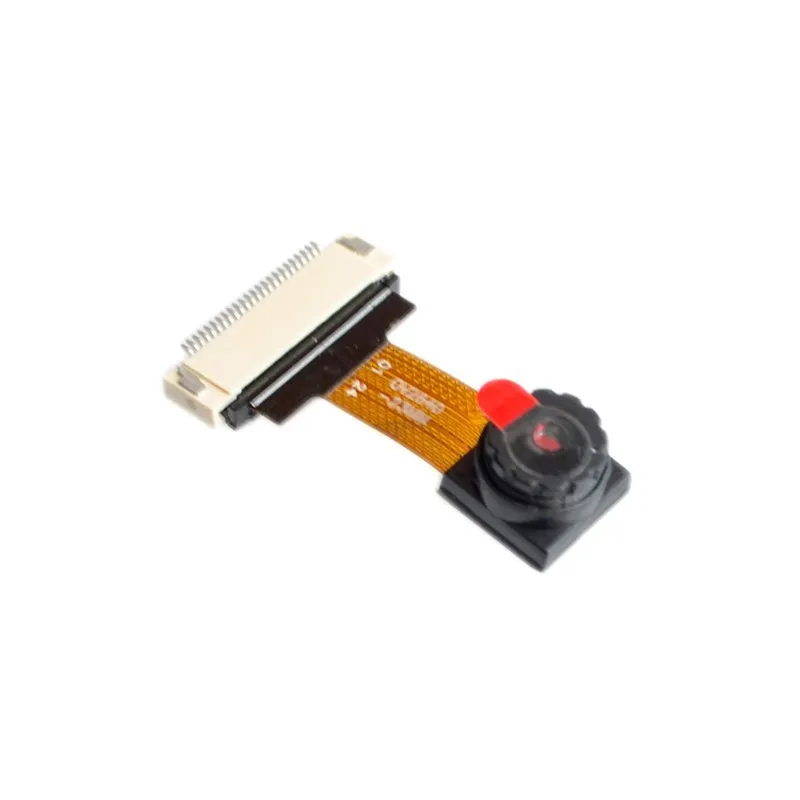

Wide Angle View

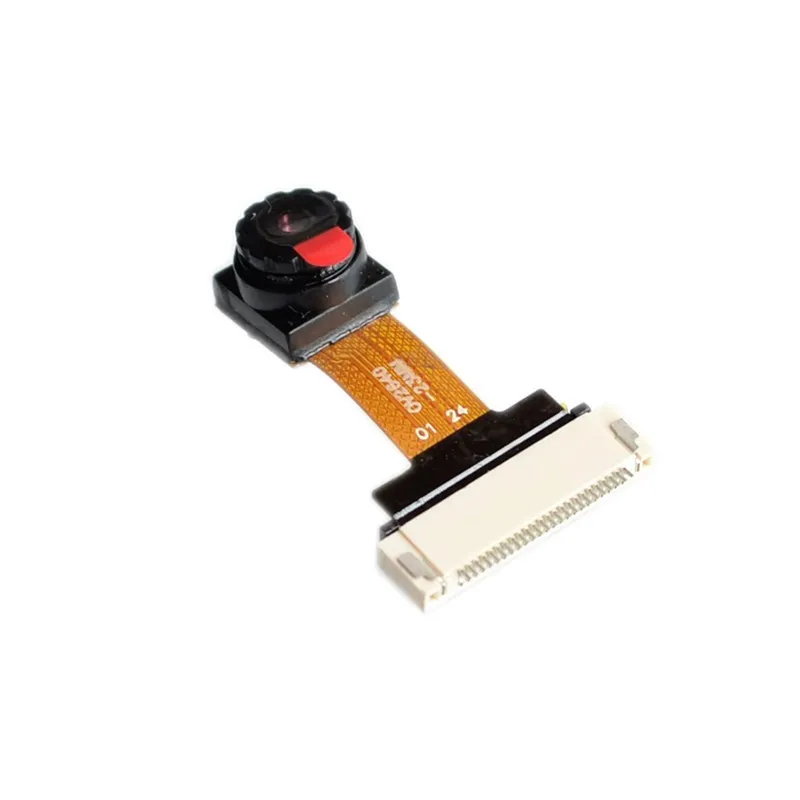

Module Pinout

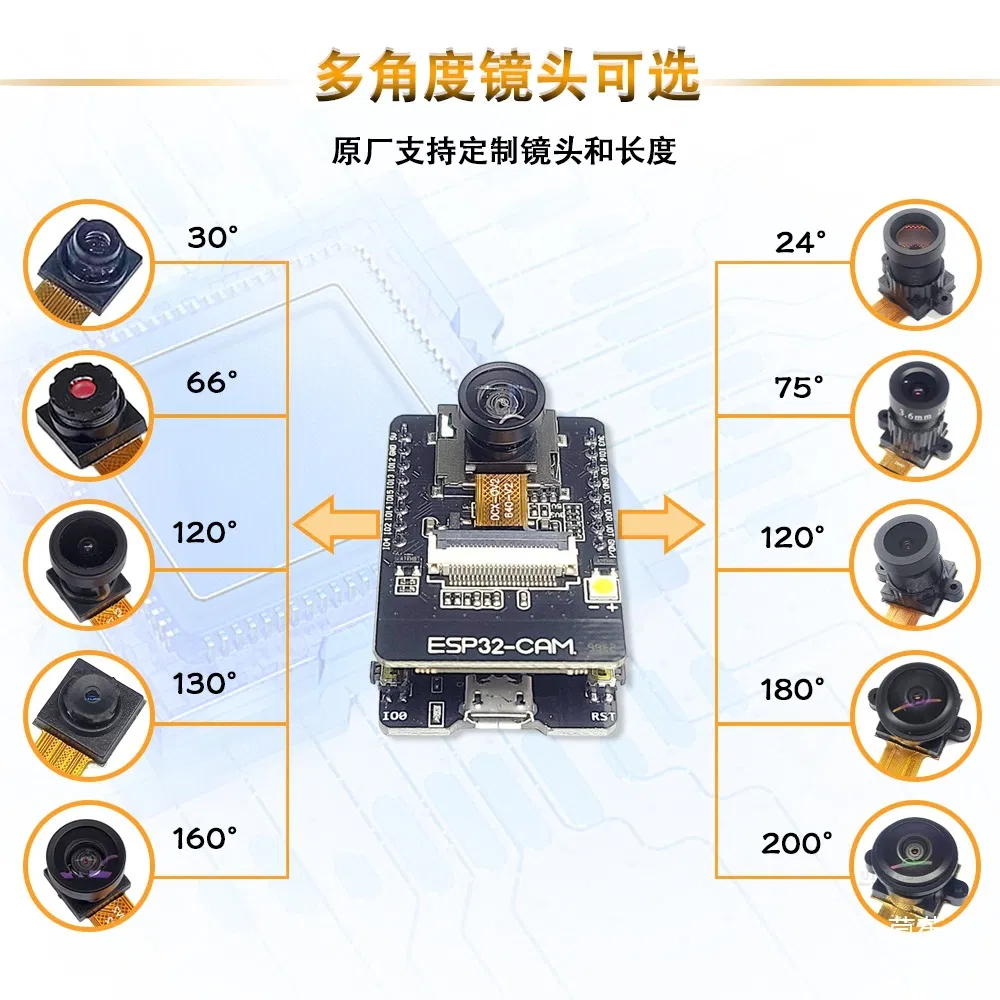

Sipeed Maix Support

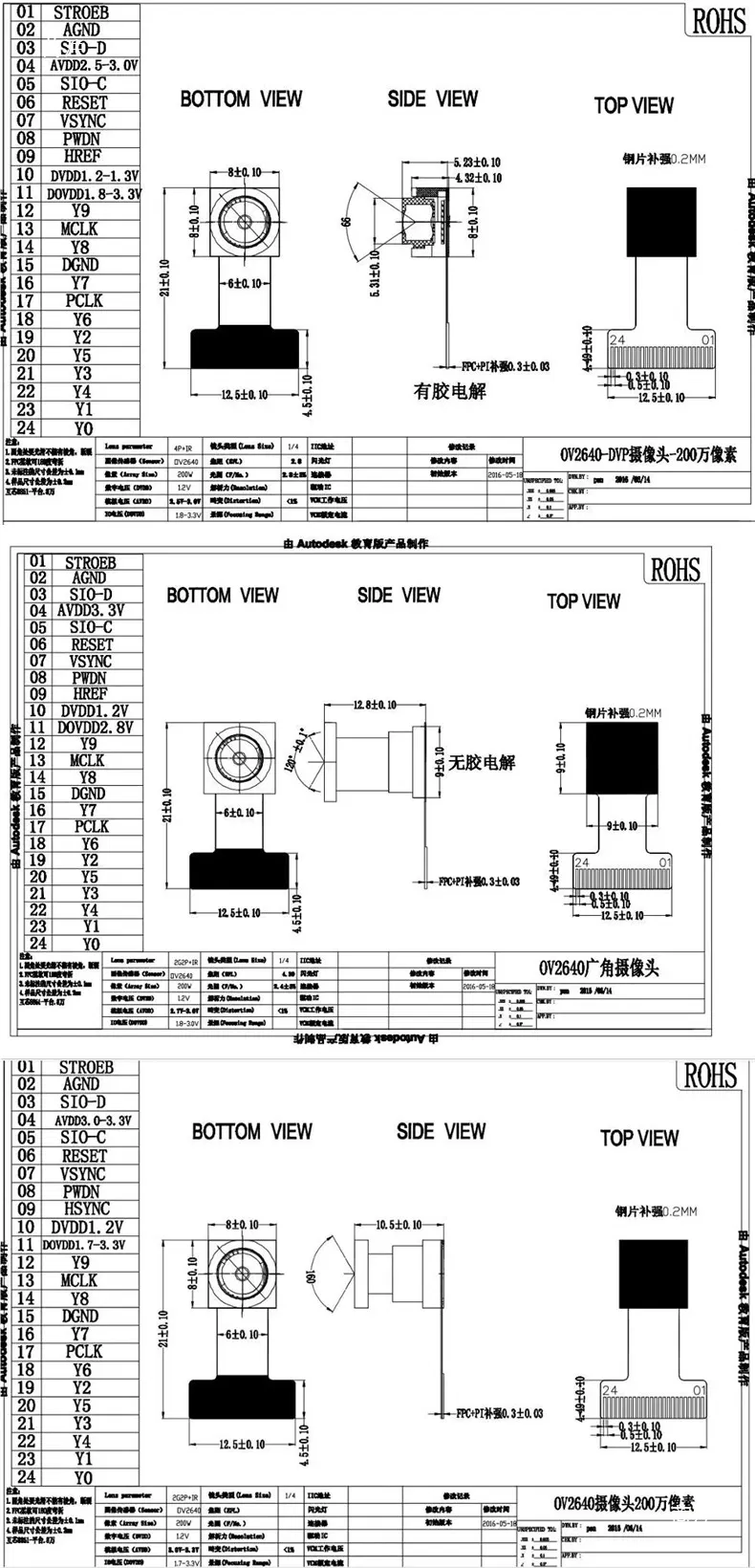

Dimension Info
Sensor Board
Back View
Module Connection
Application Scenario
Kit Components

Frequently Asked Questions

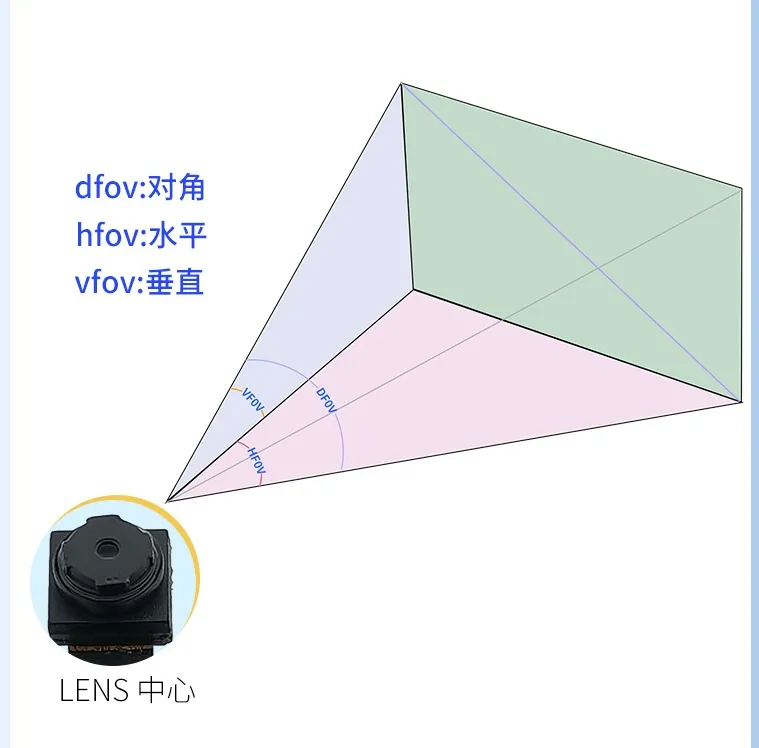

What is the specific field of view for this camera?
This module features a custom ultra-wide-angle lens with a 160-degree field of view (FoV), significantly wider than standard 120° modules.
Is it compatible with the ESP32-CAM AI-Thinker board?
Yes, it is fully compatible with the standard pinout of the ESP32-CAM (AI-Thinker version) and TTGO T-Journal boards.
What is the maximum output resolution?
The OV2640 sensor supports a maximum resolution of 2 Megapixels, which is 1600 x 1200 pixels.
Does the module support JPEG compression?
Yes, the hardware supports internal JPEG compression, which is ideal for streaming images over Wi-Fi with ESP32.
What voltage is required to power the module?
The module operates on a standard 3.3V power supply, making it suitable for low-power and battery-operated devices.
Can I use this for night vision?
This is a standard CMOS sensor. While it can work in low light, it is not a dedicated IR night vision camera unless used with external IR illumination.
