Basic Specifications
Horizontal Resolution
520tvl
Certification
CE, FCC, CCC, RoHS, ISO9001
Feature
Waterproof, High Definition, Mini Size
Product Overview
!

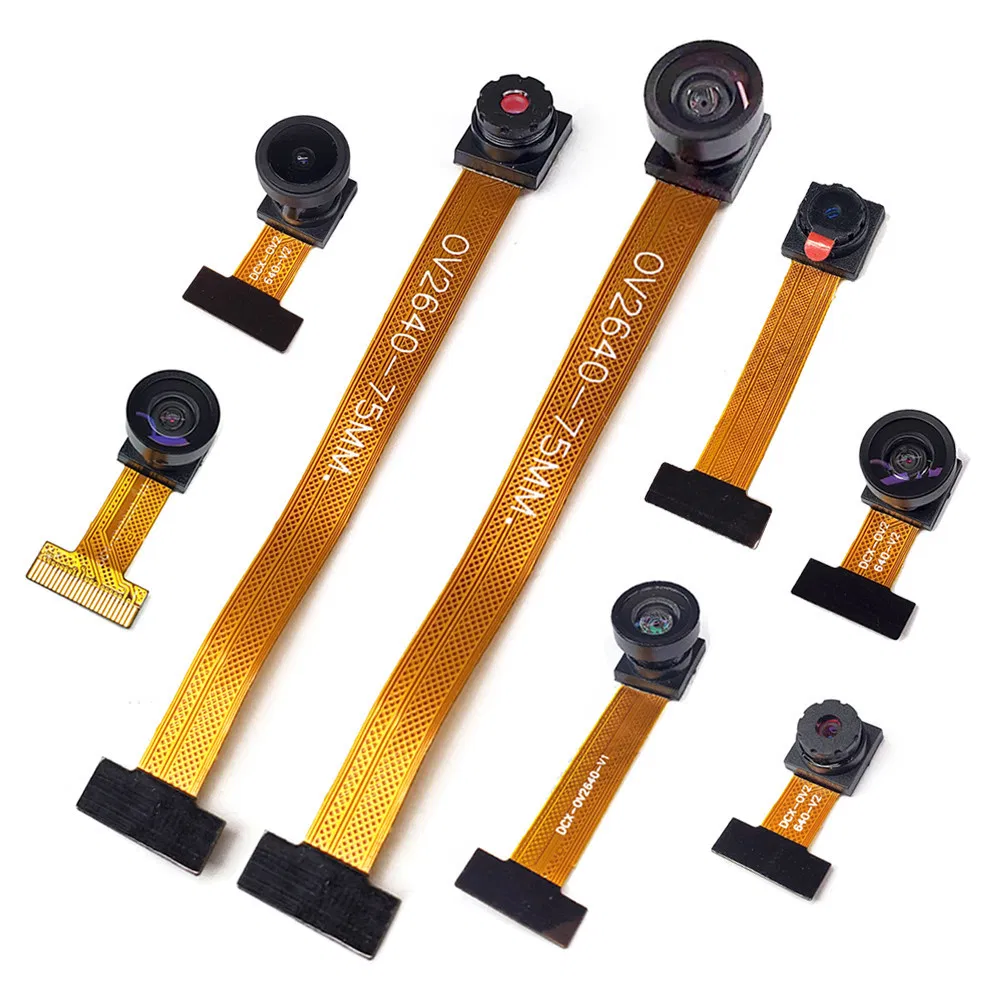

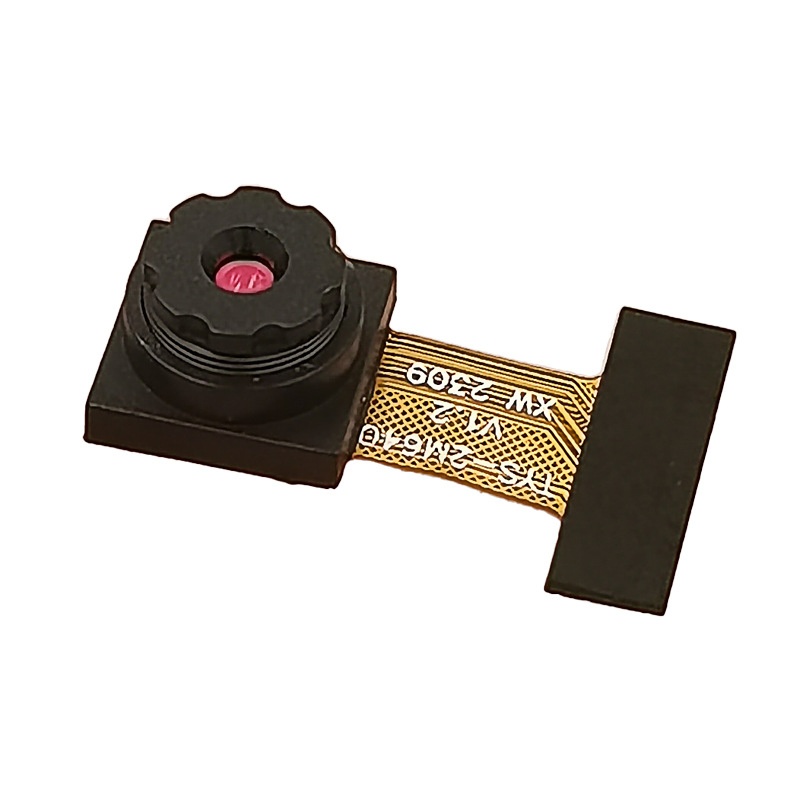

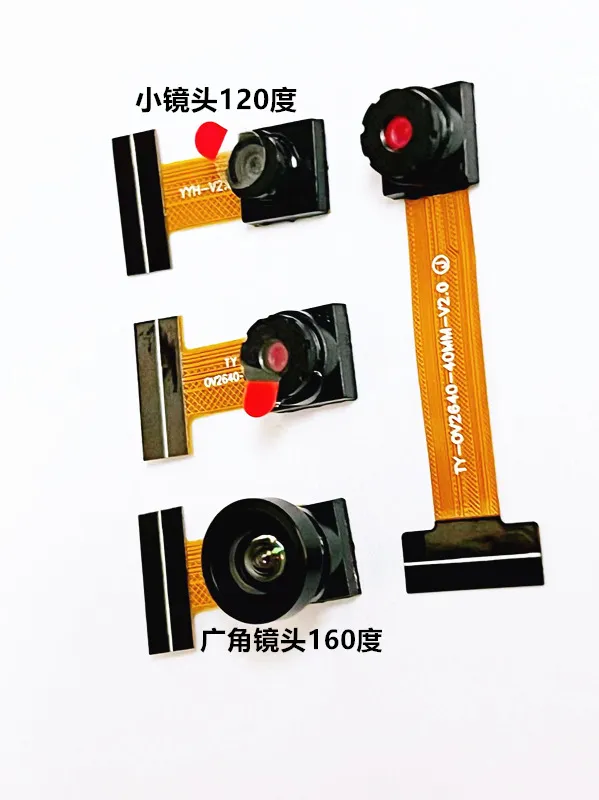

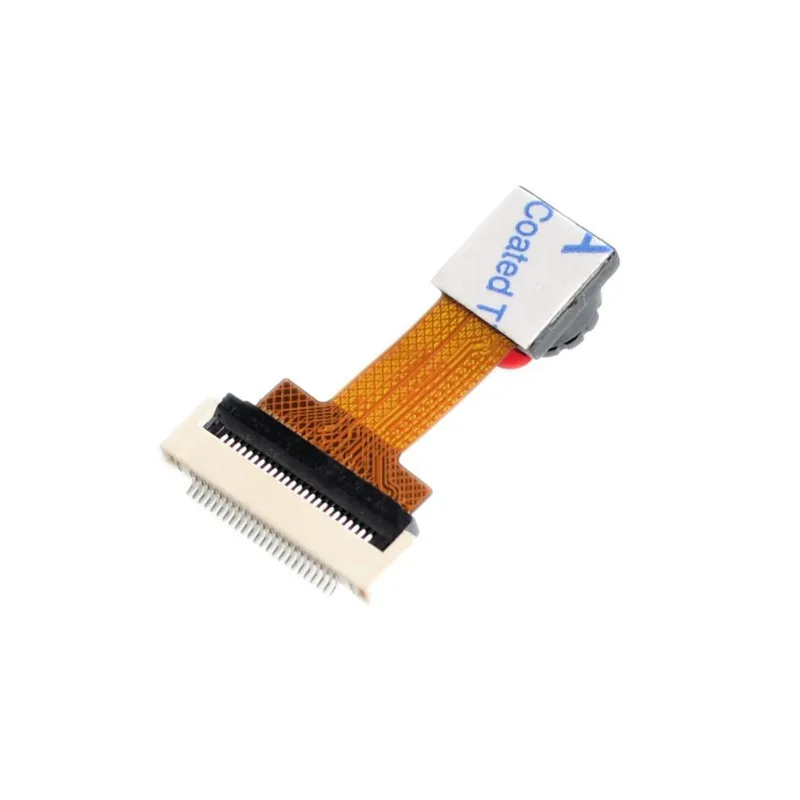

OV2640 160° Ultra-Wide-Angle Camera Module
Engineered for embedded vision applications, this high-performance camera module integrates the industry-proven OmniVision OV20640 CMOS image sensor with a custom 160-degree ultra-wide-angle lens.
Designed for seamless compatibility with popular development platforms such as TTGO ESP32-CAM, Sipeed Maix series, and other ESP32-based boards, it delivers exceptional field-of-view coverage in a compact form factor-ideal for IoT, robotics, surveillance, and smart home devices.
Key Features
- Sensor: OV2640 CMOS image sensor
- Resolution: Up to 2 Megapixels (1600 × 1200)

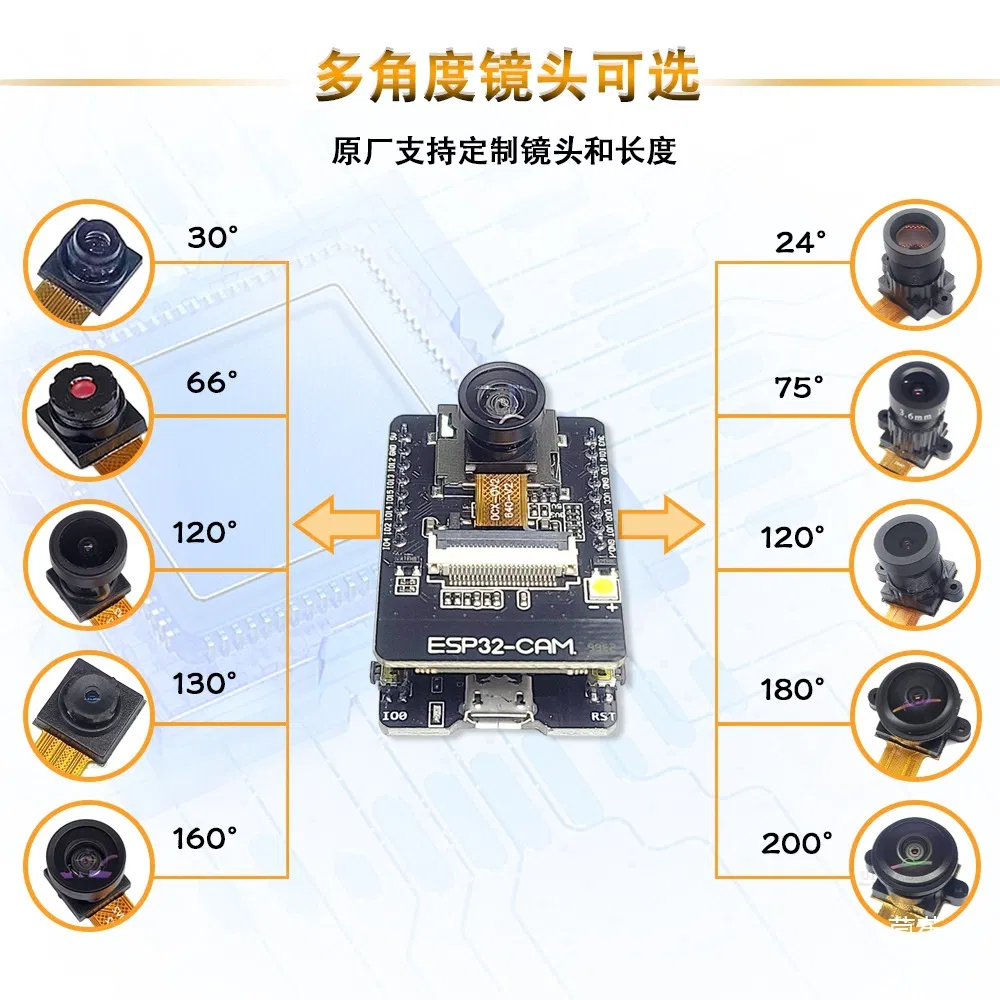

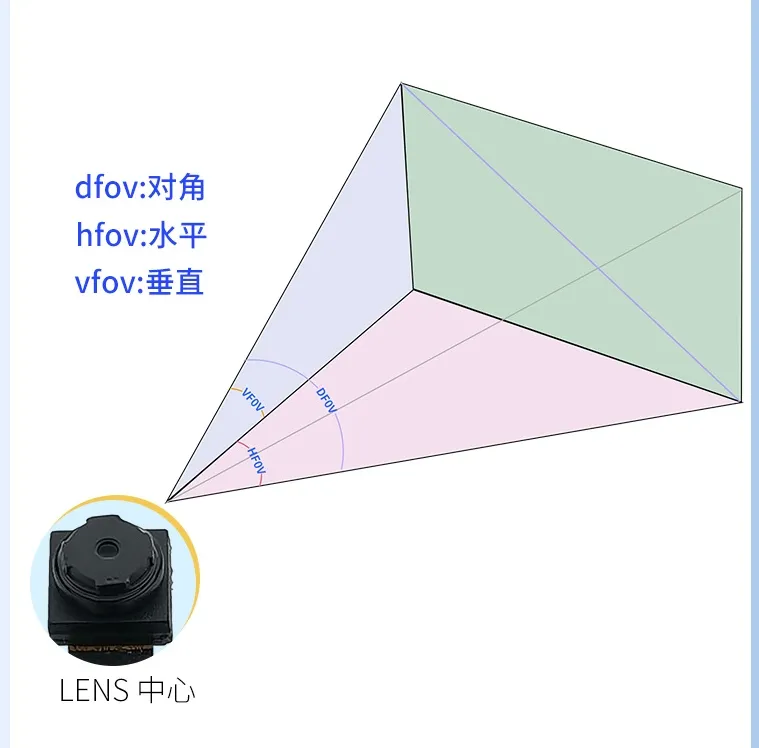

- Field of View (FoV): 160° ultra-wide angle
- Lens Specification: Fixed-focus glass lens, 20mm physical diameter
- Output Formats: Supports JPEG, YUV, RGB565/555, and GRB422

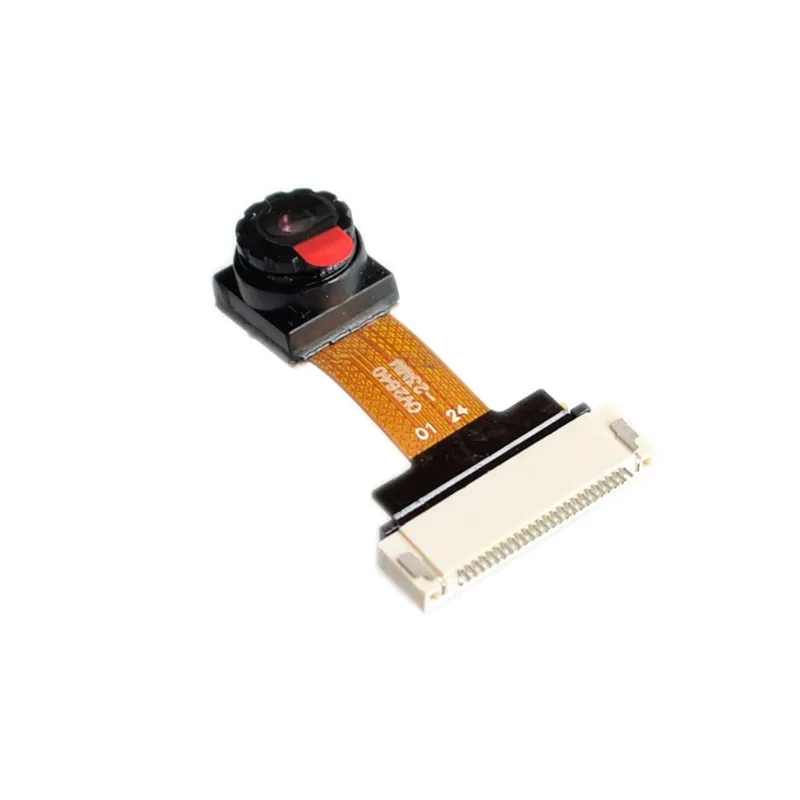

- Interface: Standard 8-bit parallel camera interface (DVP)
- Power Supply: 3.3V low power consumption
- Operating Temperature: -20°C to +70°C
Applications & Compatibility
★
Ideal Use Cases: Smart doorbells, FPV drones, robotics navigation, panoramic image capture, and industrial machine vision.
Fully compatible with:
- TTGO T-Journal ESP32 Camera Board
- ESP32-CAM (AI-Thinker version)
- Sipeed Maixduino / Maix Bit
- Any ESP32 development board with DVP interface support
Frequently Asked Questions
Q1: What is the maximum resolution supported by the OV2640 module?
A: The module supports a maximum resolution of 2 Megapixels, which corresponds to 1600 x 1200 pixels.
Q2: Is this camera module compatible with the ESP32-CAM board?
A: Yes, it is fully compatible with the AI-Thinker ESP32-CAM and TTGO T-Journal boards using the standard DVP interface.
Q3: Does the lens provide a fish-eye effect?
A: With a 160° ultra-wide-angle lens, there is a natural wide-angle perspective designed to capture more of the scene, ideal for surveillance and FPV.
Q4: What image formats can the module output?
A: It supports several formats including JPEG, YUV (422/420), RGB565, RGB555, and 8-bit compressed data.
Q5: What is the operating temperature range?
A: The module is designed to operate reliably between -20°C and +70°C.
Q6: Does it require a special driver?
A: It works with standard OV2640 driver stacks available in Arduino, MicroPython, and ESP-IDF environments.
