Basic Information
| Model NO. | CT9 E |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Product | Touch Keypad Access Control Terminal |
| Operating System | Linux OS |
| Identification | RFID, NFC, BLE, Pin Code |
| RFID Card | 13.56MHz 125kHz |
| Mobile Credential | NFC, BLE, Qr Code |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| Work Mode | Standalone & Network Mode |
| Power | 12-24V DC; Poe IEEE 802.3af |
| IP Protection | Waterproof Outdoor Use, UV Resistance |
| Certification | CE, FCC |
🔍

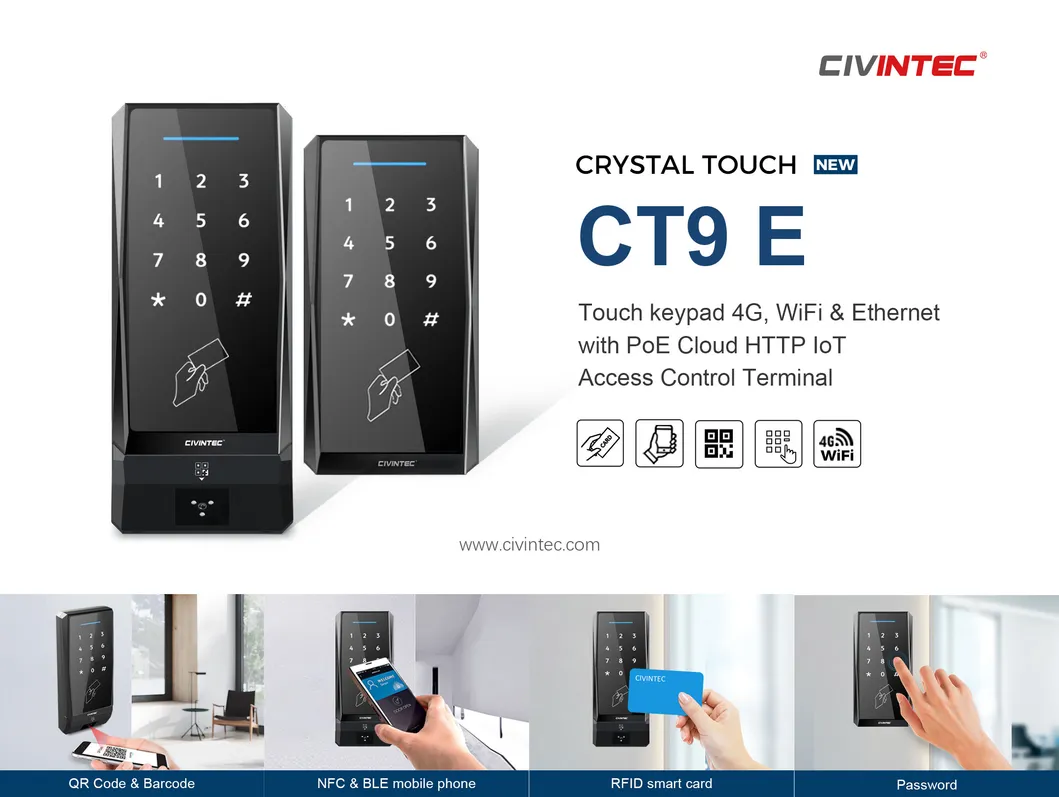

Product Overview

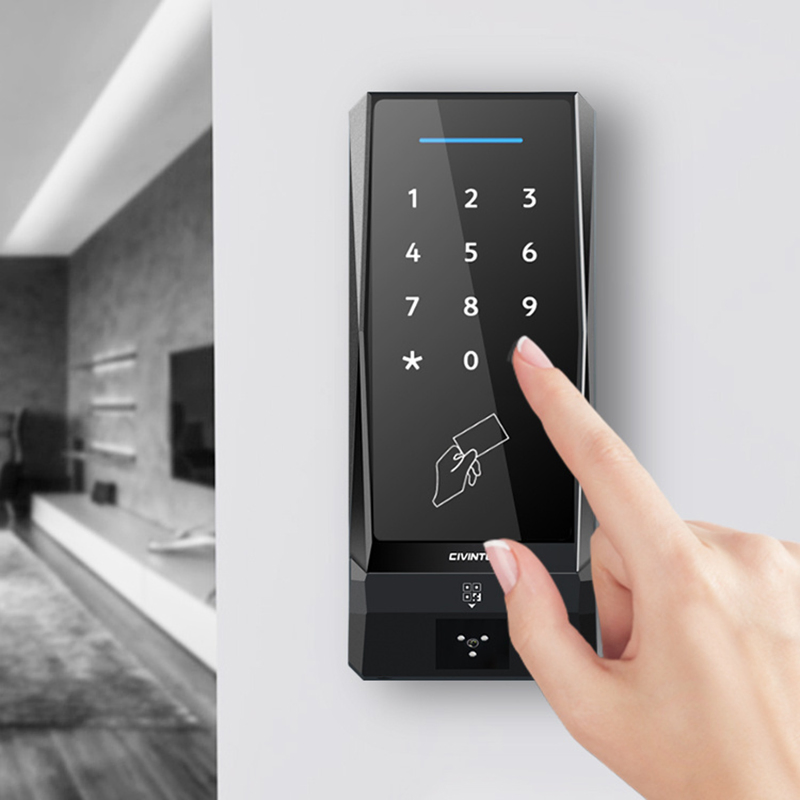

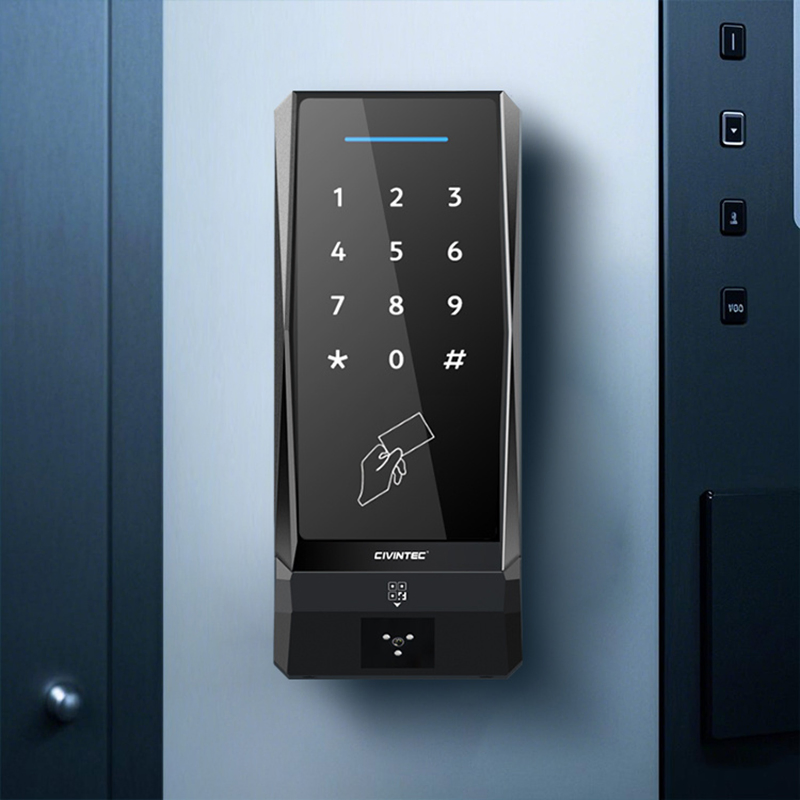

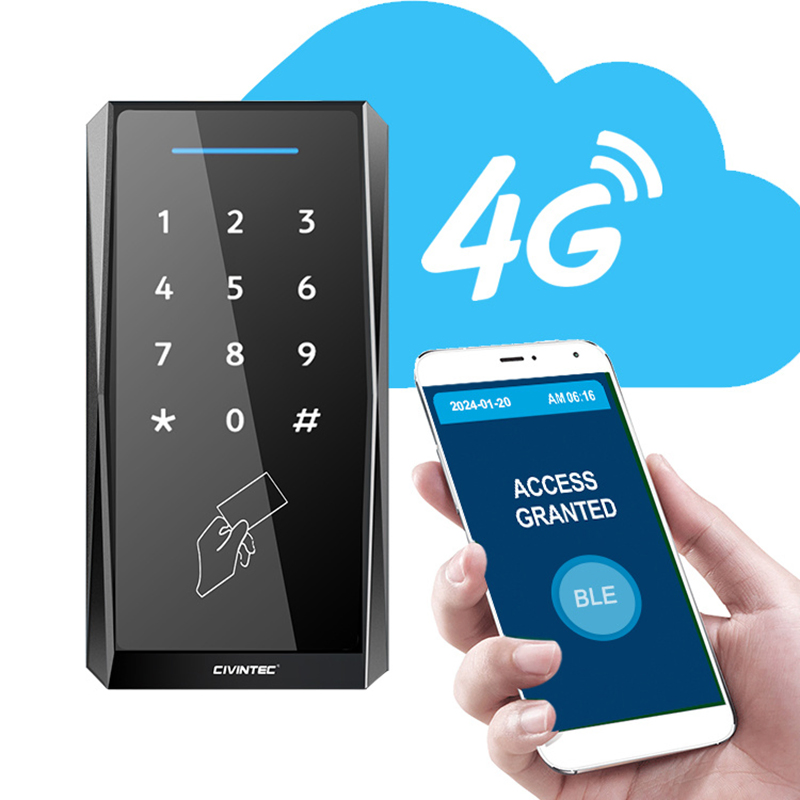

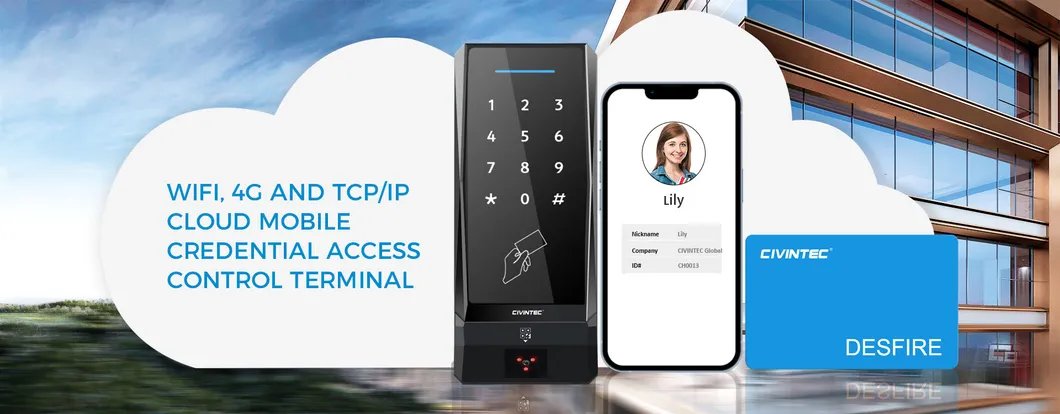

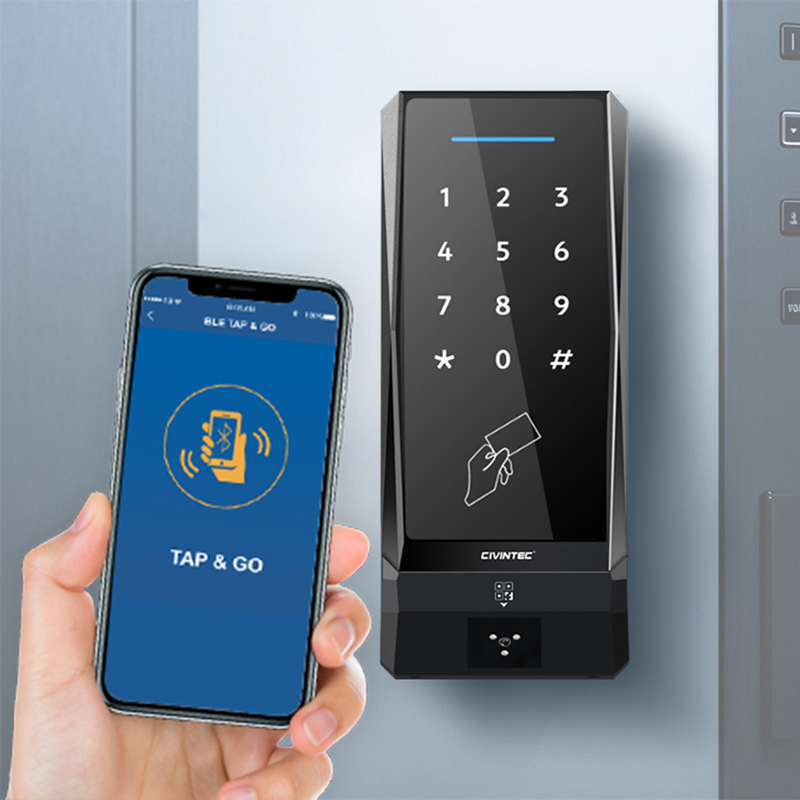

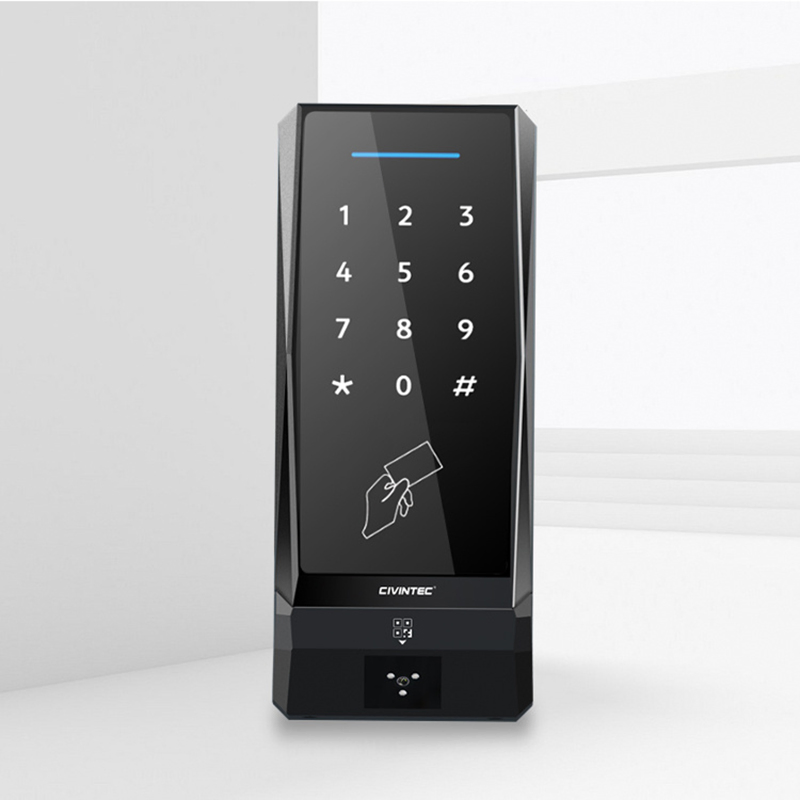

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
HTTP Server Centralized Access Control & IOT
Touch Keypad Reader with Embedded LINUX OS & SDK + WIFI, 4G & TCP/IP Ethernet HTTP/HTTPs
✨
Product Features

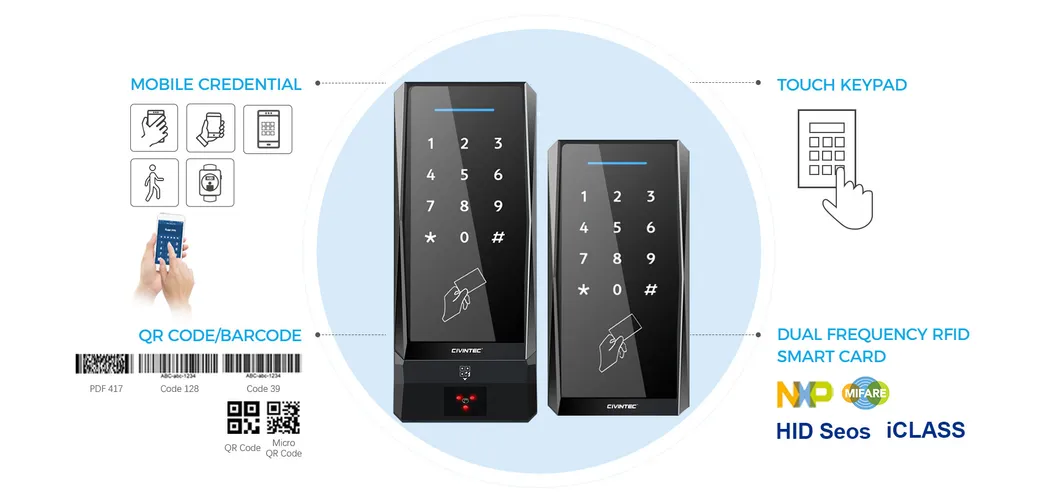

Multiple Access Credential
Incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor access control management.

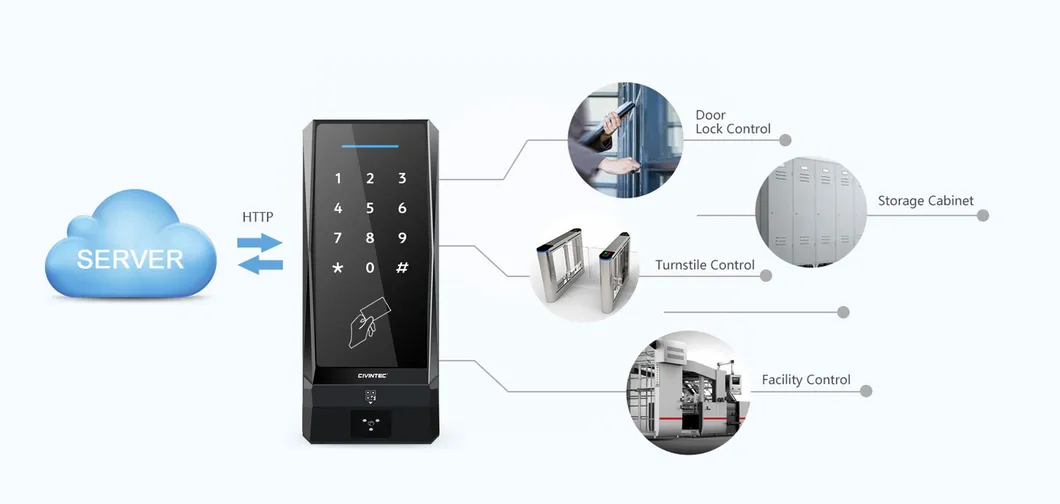

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs between the terminal and server allows for remote control of door locks and various IoT facility management systems.

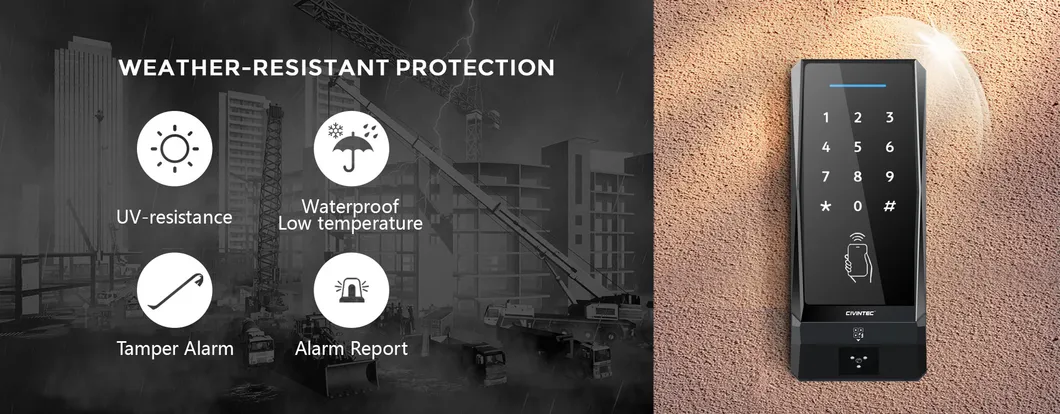

Weather-Resistant Protection
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and various rugged working environments.
⚙️
Technical Specifications
| Category |
Specifications |
| RFID Technologies | 125KHz PROx/EM, 13.56MHz Mifare® Classic, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Access | BLE (2.4Ghz), NFC |
| Barcode/QR | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |
| I/O Ports | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 relay outputs |
| OS & Keypad | LINUX OS, 12-digit Touch keypad with backlit |
| Capacity | Unlimited Online / 10,000 Offline users; 50,000 Logs |
| Power | 12~24V DC / PoE IEEE 802.3af |
🛠️

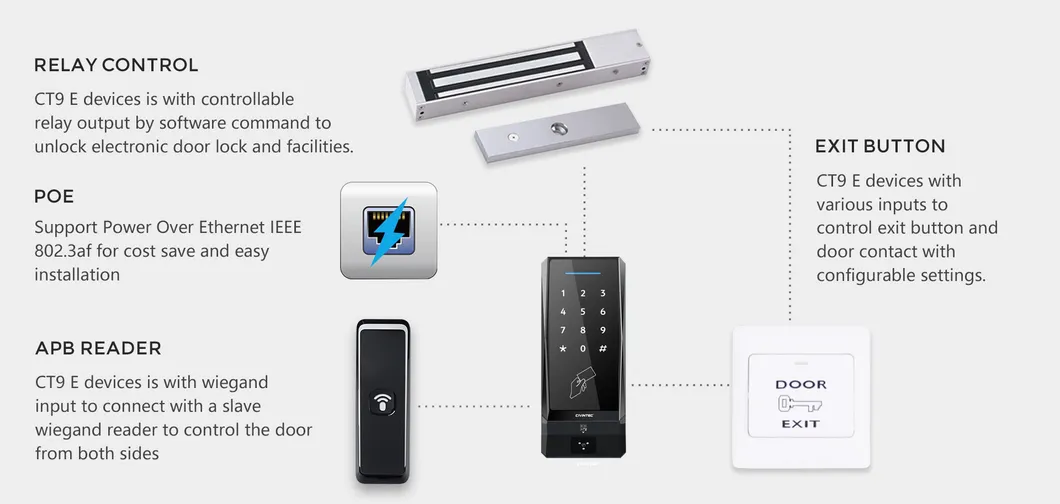

System Configuration & Services
Leading designer and manufacturer of access control devices, offering customization on hardware, reader housing, firmware, and software design services.
Frequently Asked Questions
Q1: What types of credentials does the CT9 E support?
A1: The CT9 E supports a 5-in-1 credential system including 125KHz & 13.56MHz RFID cards, mobile access via BLE and NFC, QR Code/barcodes, and a touch keypad for PIN codes.
Q2: Can this terminal be installed outdoors?
A2: Yes, the device features an IP65 protection rating, making it waterproof and resistant to UV rays, which is ideal for outdoor installations.
Q3: Does the device support Power over Ethernet (PoE)?
A3: Yes, it is compatible with PoE IEEE 802.3af, allowing for both power and data transmission over a single cable.
Q4: How many users can the CT9 E manage offline?
A4: In standalone/offline mode, the terminal can store up to 10,000 users and 50,000 event logs. Online capacity is virtually unlimited.
Q5: What are the primary communication options for cloud integration?
A5: The CT9 E offers versatile connectivity options including 4G, WiFi (2.4GHz), and TCP/IP Ethernet using HTTP/HTTPs protocols.
Q6: What operating system is the terminal based on?
A6: The terminal runs on an embedded Linux OS, providing a stable and secure environment for IoT and access control applications.
