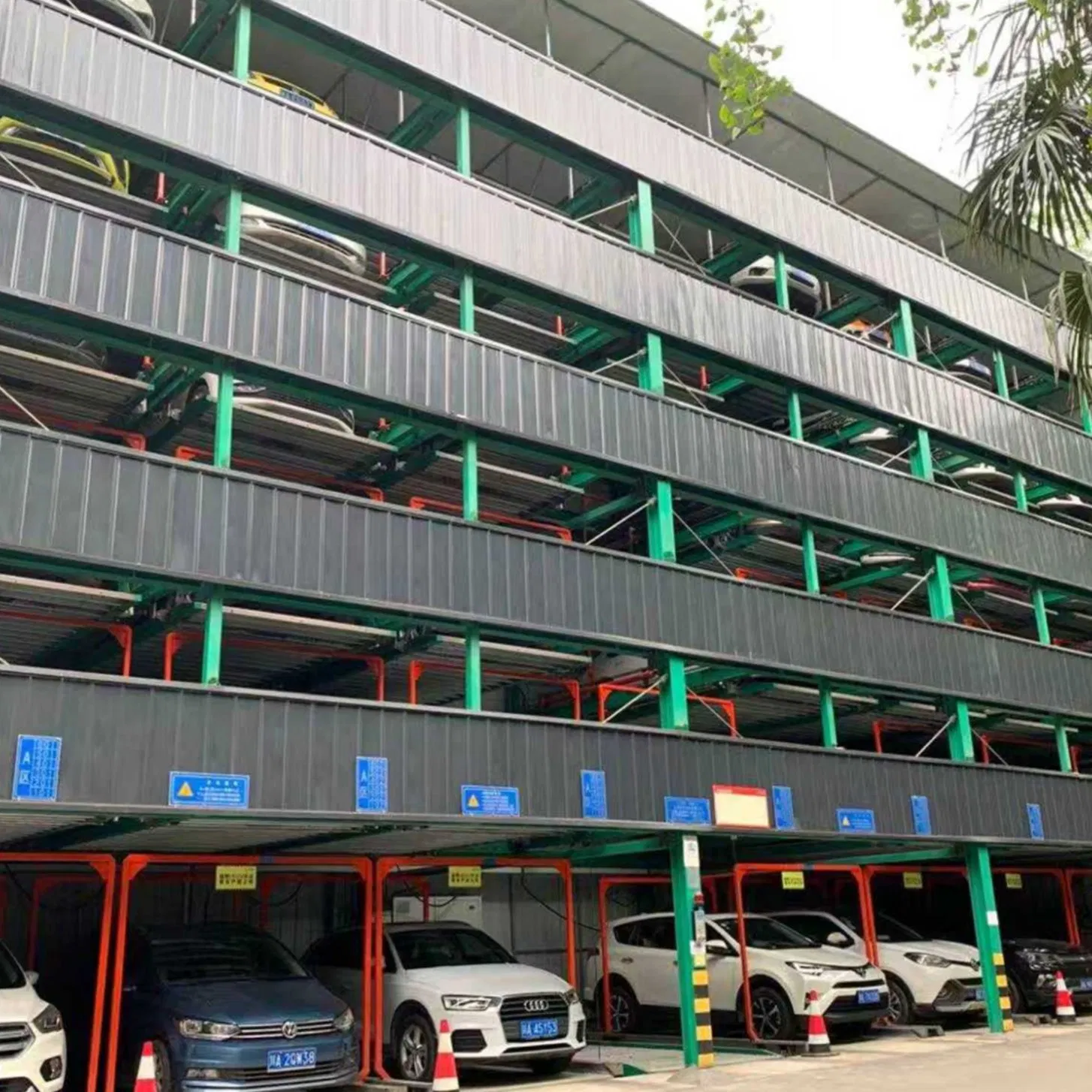

High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
1 / 5
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates
High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates

High Technology Three to Six Level Puzzle Parking System with Cloud Based Management and Real Time Parking Status Updates

Customization: Available
Level: 3-6levels
Parking Post: 9-24 Posts
Send Inquiry

Product Description

Technical Specifications
Model:
3-6 levels
Installation:
Multi-Level, Surface Mount, Underground
Material:
Steel
Operation:
Automatic
Power:
Electric, Solar
Lifting Speed:
8-12 M/Min
Lateral Speed:
7.5 M/Min
Access Time:
90s
Warranty:
2 years
Certification:
CE/ISO9001/SGS
Product Description
Puzzle Parking System Overview
Product NamePuzzle Parking System LayersCustomizable
Car ModelSUV, Sedan DimensionsSedan: 5300*1900*1550 | SUV: 5300*1900*2050
Load Capacity2350kg - 3000kg (Customizable) Drive TypeMotor/Hydraulic

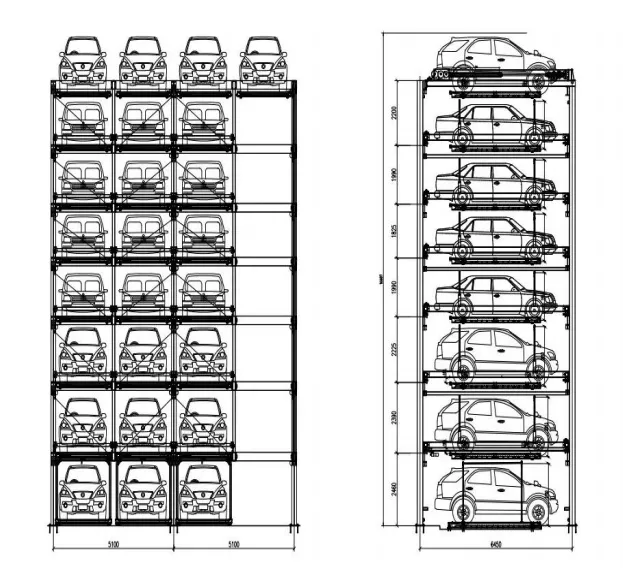

System Structure

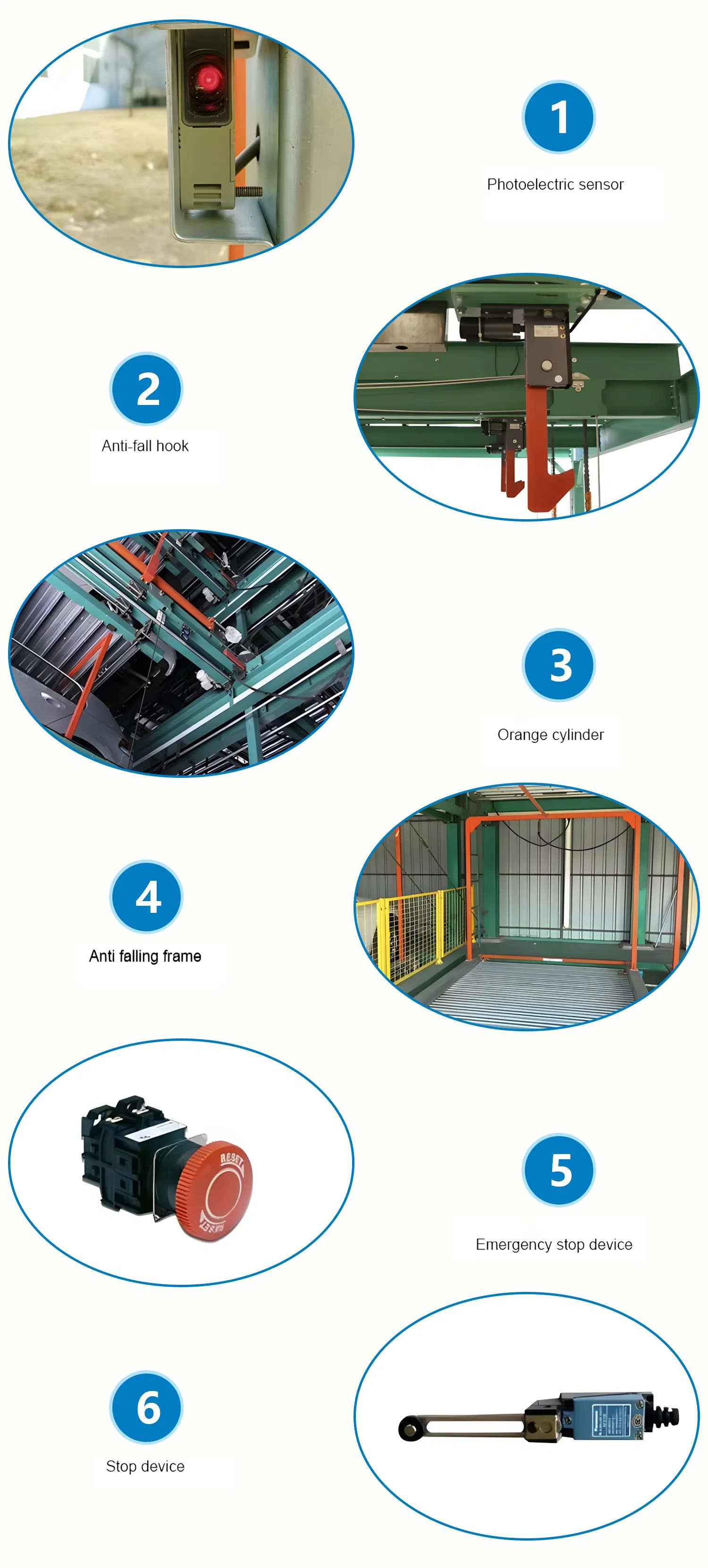

System Detail
🌟 Maximizing Land Utilization Efficiency

Traditional parking lots require 30-40 sqm per car. This lifting and translating system reduces it to 10-15 sqm, increasing land efficiency by 2-3 times through vertical stacking and compact arrangement.

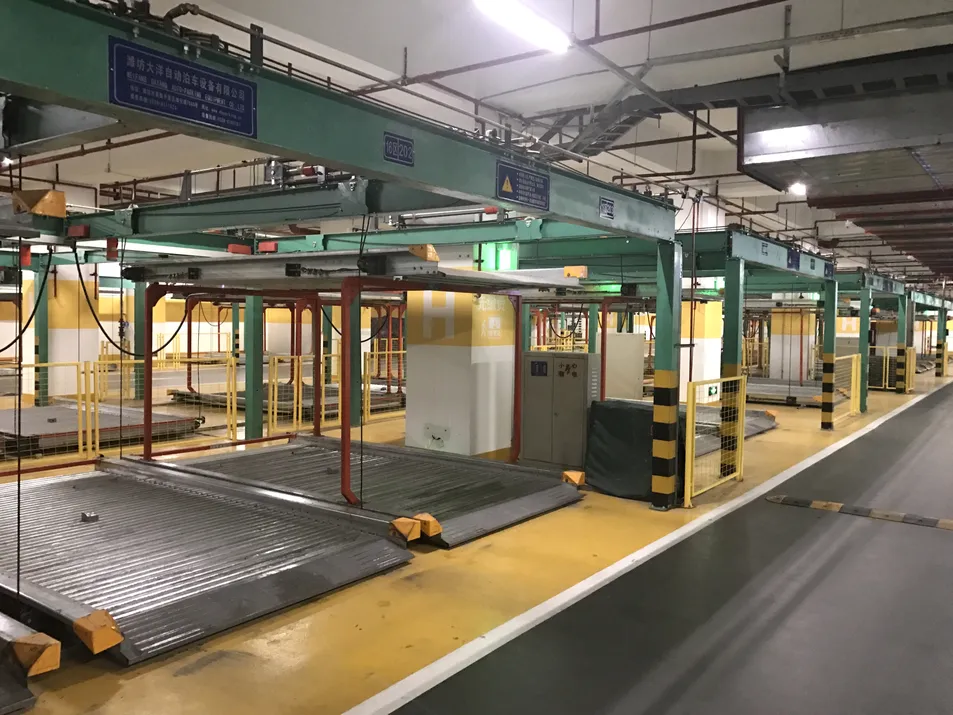

Parking Layout 1

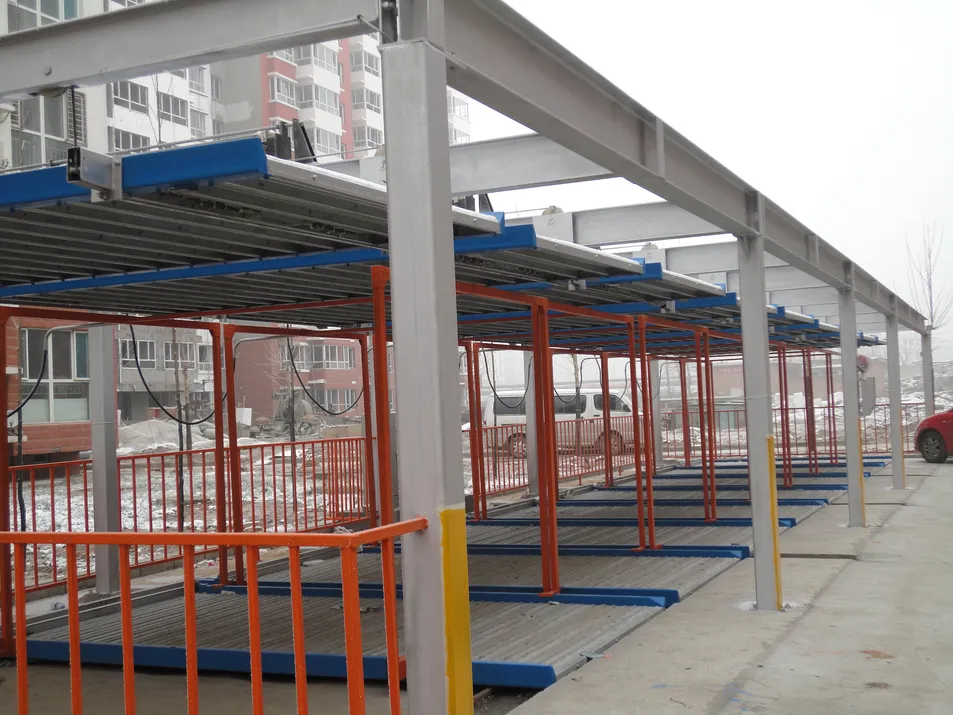

Parking Layout 2
🛠️ Simple and Reliable Structure

1. Low failure rate: Simple movement trajectory (lifting + translating) makes it easy to maintain.
2. Controllable costs: Core components like motors and chains have a design life of 8-10 years.
3. Site Adaptability: Can be designed for single-row, double-row, or irregular layouts with minimal ground reinforcement requirements.

Technical Drawing
Project Showcase

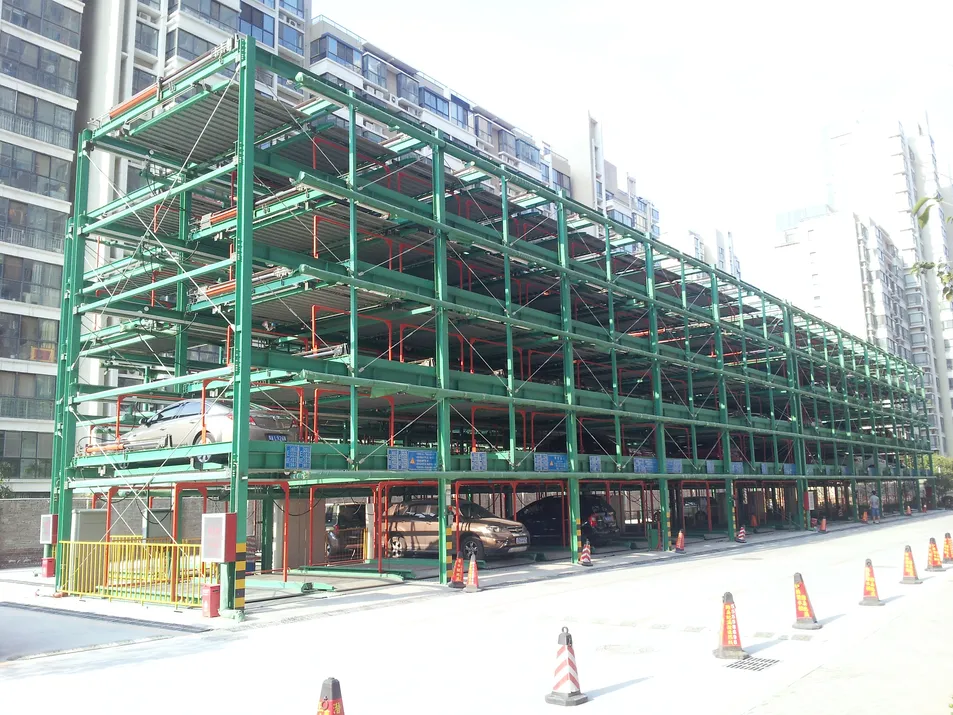

Project 1

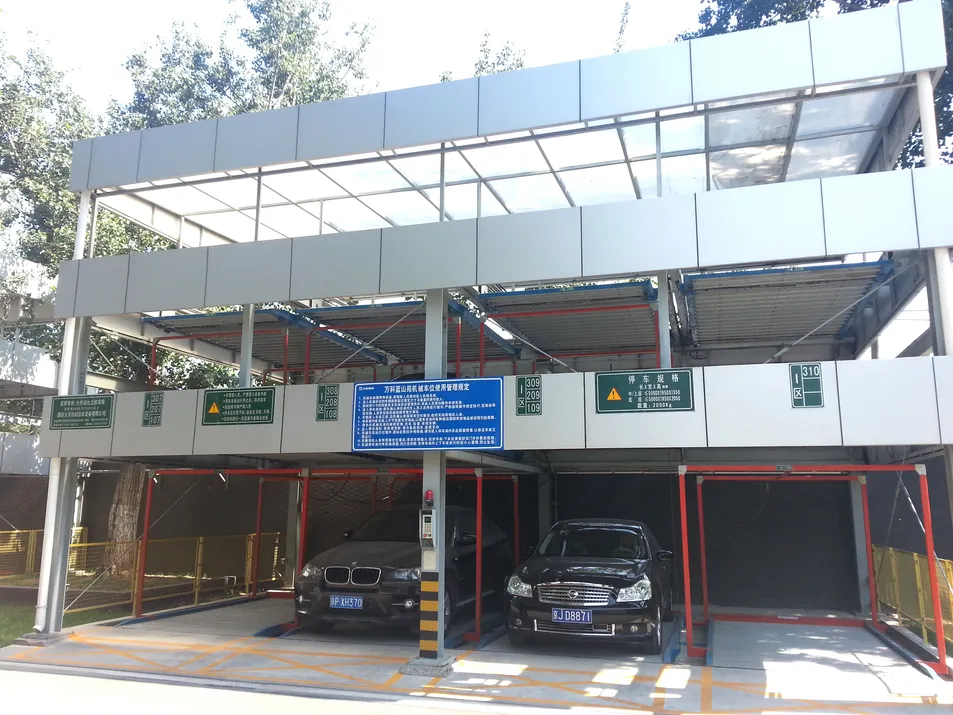

Project 2

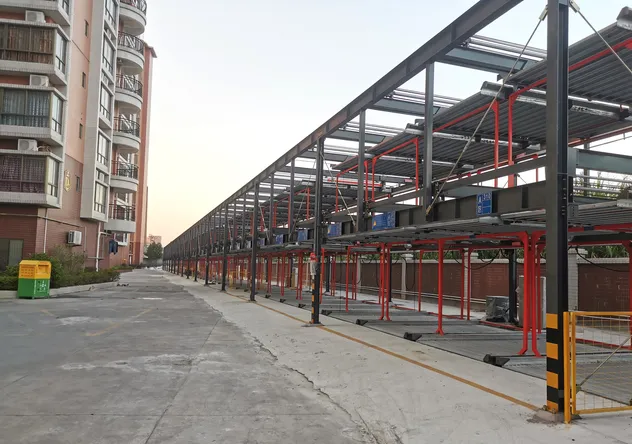

Project 3

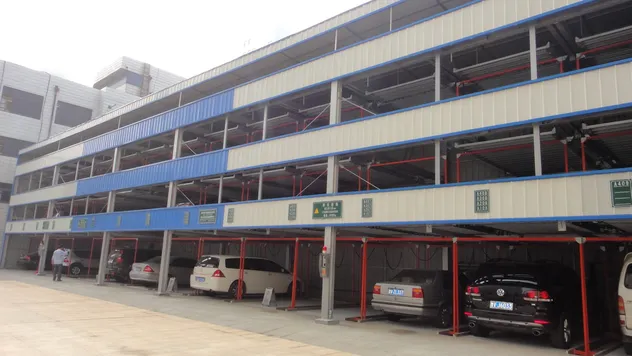

Project 4

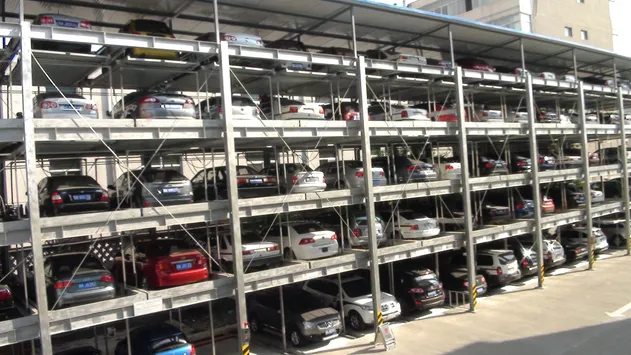

Project 5
Automotive Parking Project

Total Height: 35m | Floors: 12
Type: Intelligent Horizontal Moving
Spaces: 7,315 | Operation: RFID System

Manor Underground Project

Floors: 7
Type: Horizontal Moving (Underground)
Spaces: 702
Advantage: Drive-Through Entry, Real-Time App Tracking.

University Smart Parking

Floors: 11
Type: Smart Vertical Lift
Spaces: 199
Advantage: Independent 4 Entry/Exit Management.

Production Facility
The workshop covers an area of 50,000 square meters. The entire process from blanking, machining, painting, and assembly to logistics has achieved a scientific layout with an annual capacity of 200,000 vehicle units.

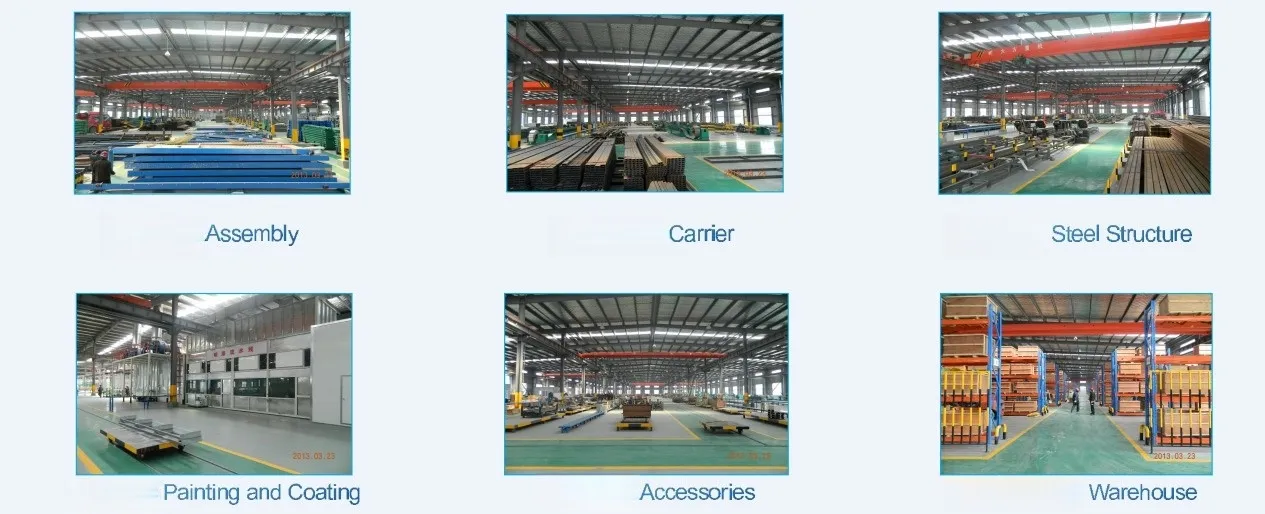

Workshop

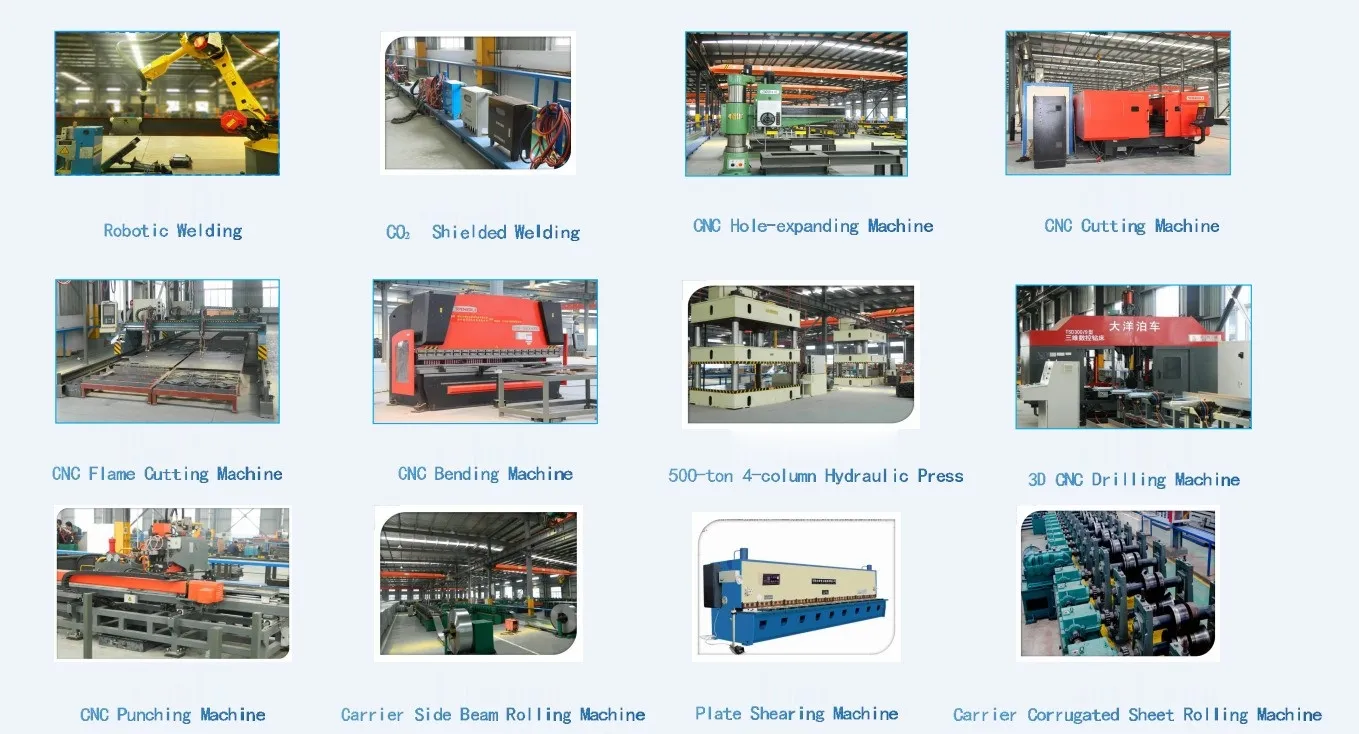

Facility
Packing & Delivery

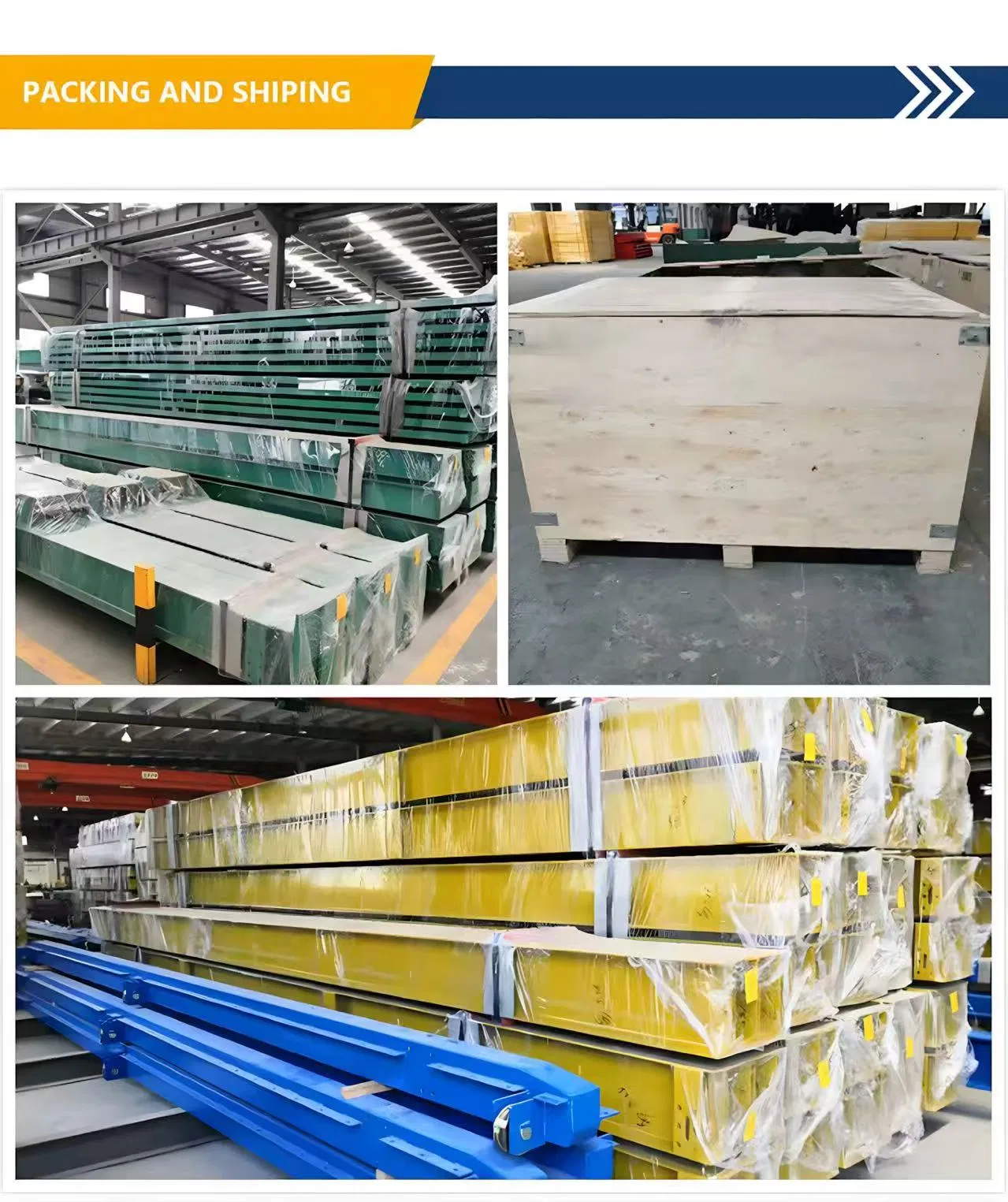

Packaging
Certifications & Exhibition
Certificates
Global Exhibition
Frequently Asked Questions
How to prevent equipment corrosion in high-humidity areas?
Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
How to deal with icing in cold regions?
Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Our low-temperature start-up technology can operate reliably in environments as low as -40 °C.
Can unmanned management be realized?
The system supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. The IoT system can monitor equipment status in real-time and automatically alert to abnormalities.
What is the construction cost of a multi-story parking garage?
Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per parking space. We provide full-cycle cost optimization solutions to reduce energy consumption by 20%.
Are there government subsidy policies?
Many regions provide subsidies (e.g., up to 20,000 yuan per space) for public multi-story parking garages. We can assist customers in applying for special funds and provide policy interpretation services.
What safety features are included?
The system includes anti-slip surfaces, emergency stop buttons, overload protection, safety railings, safety sensors, and anti-fall frames or hooks.
