| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional Qr Code |

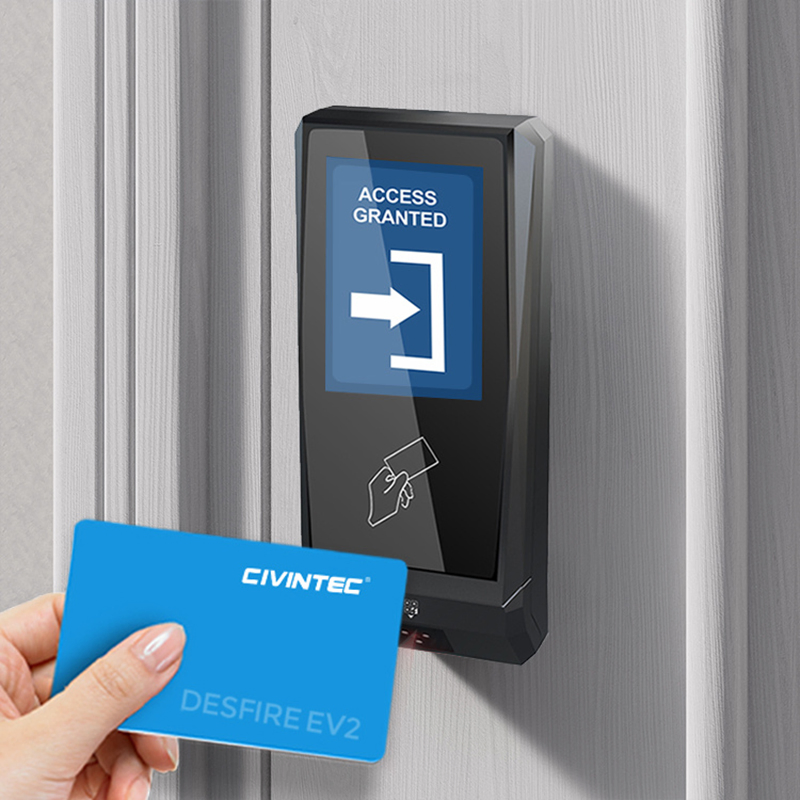

| RFID Support | MIFARE Plus, MIFARE, DESFire EV1/EV2/EV3, 125kHz |
| Mobile Credential | NFC, BLE |
| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |

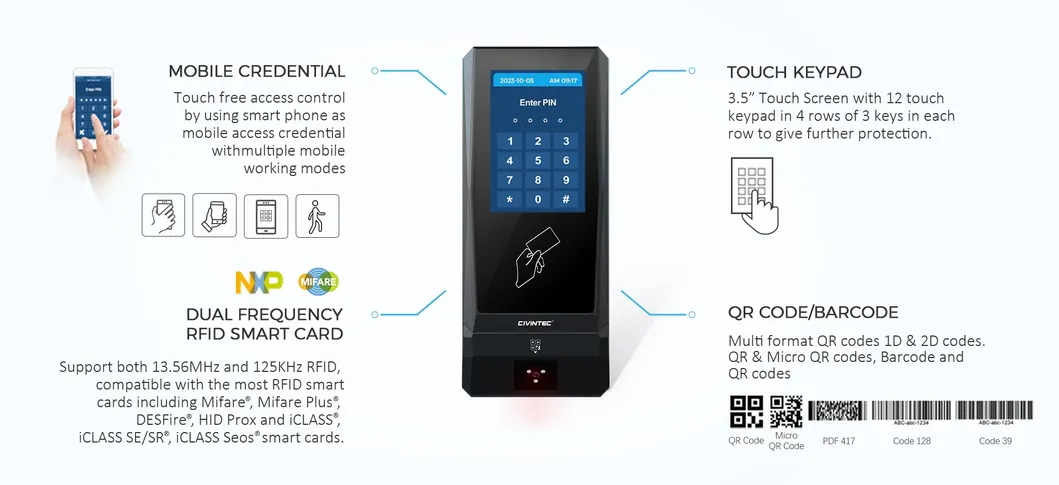

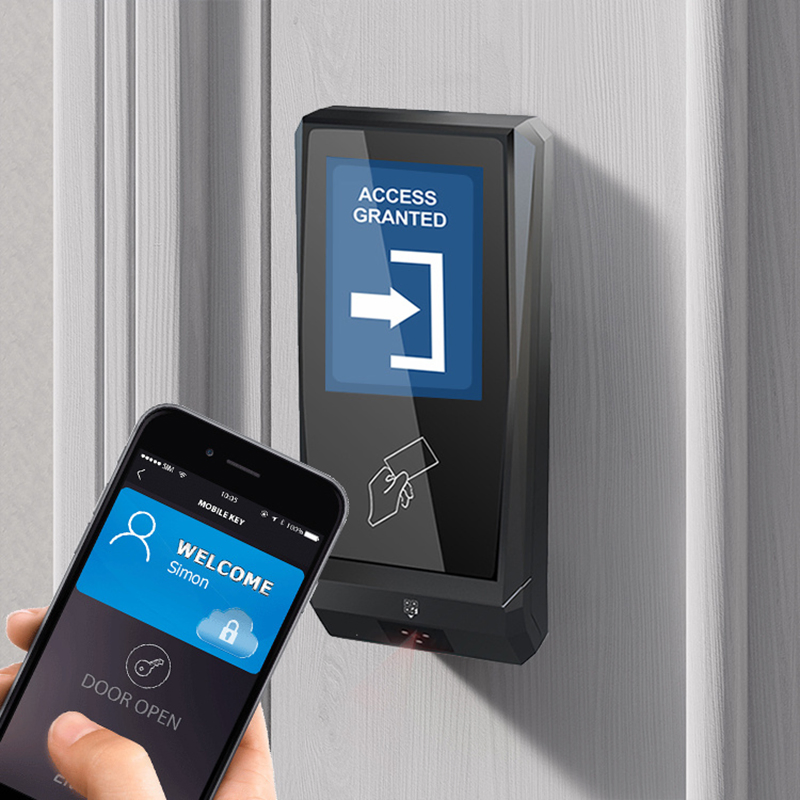

The CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is perfectly suited for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including a touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile devices.

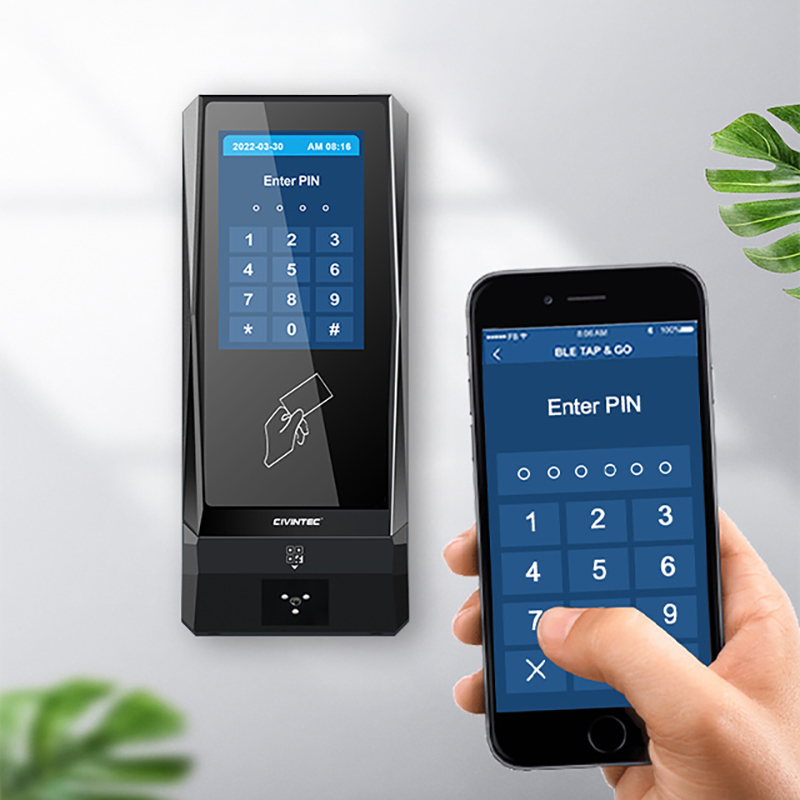

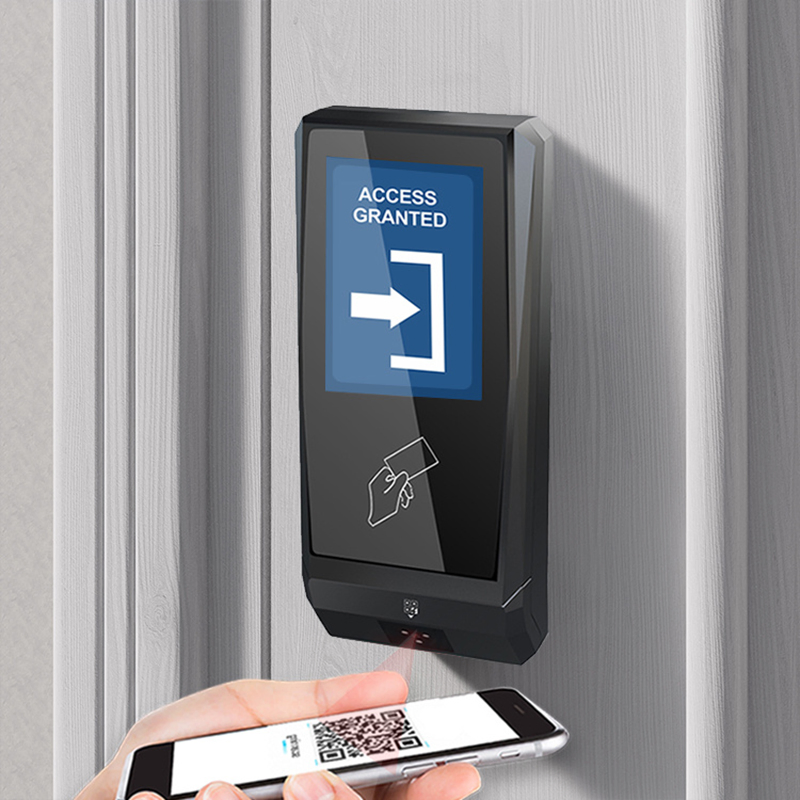

Integrates 5-in-1 technology: touch keypad, dual-frequency RFID, BLE & NFC mobile credentials, and QR code scanning for comprehensive visitor management.
Utilizes bi-directional communication via standard HTTP & HTTPS protocols for remote door locking and IoT facility management.
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer extensive customization options for hardware, firmware, and software. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
