| Model NO. | HX1011801 | Type | LCM |
| Display Technology | TFT | Size | 10.1 Inch |
| Resolution | 1280 x 800 | Luminance | 1000 Cd/M² |
| Response Time | 5ms | Viewing Angle | 85/85/85/85 |
| Operating Temp | -20℃ ~ 70℃ | Storage Temp | -30℃ ~ 80℃ |
| Interface Type | IIC(6 Pins) / USB | Support Systems | Windows / Android / Linux etc. |

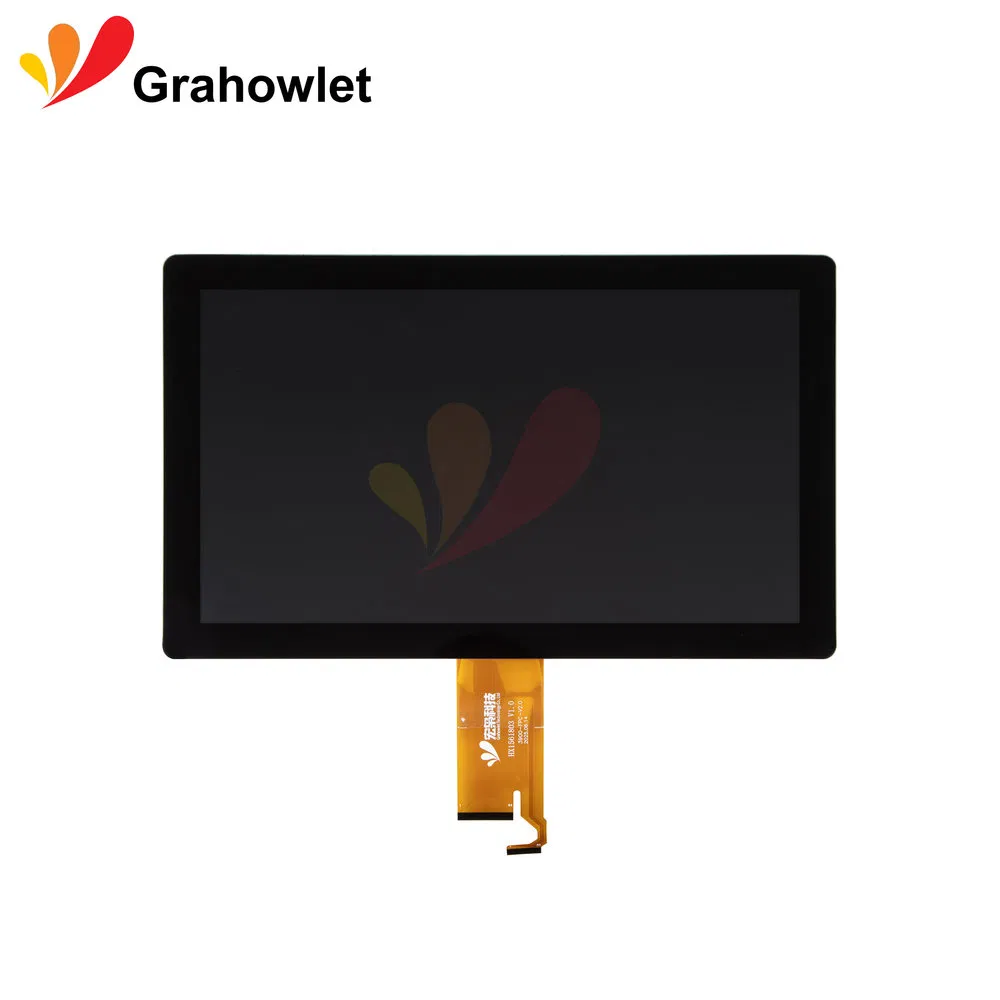

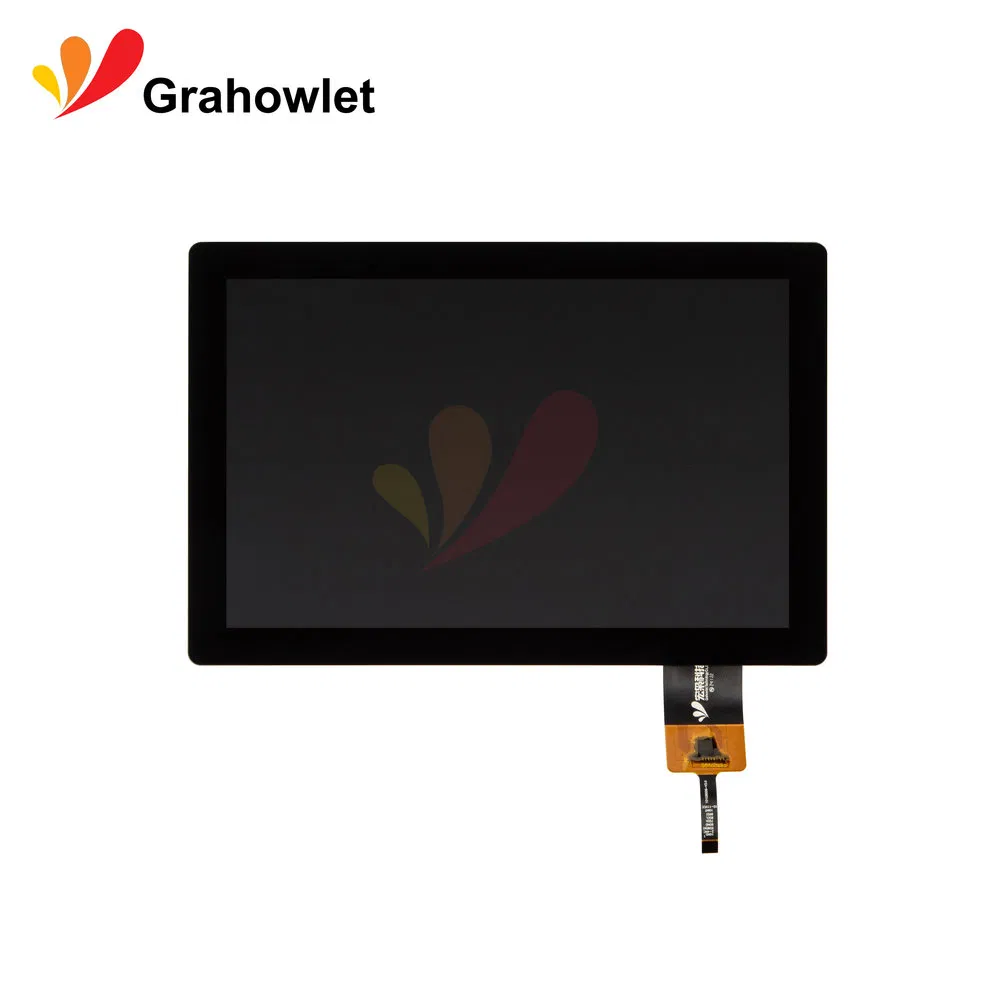

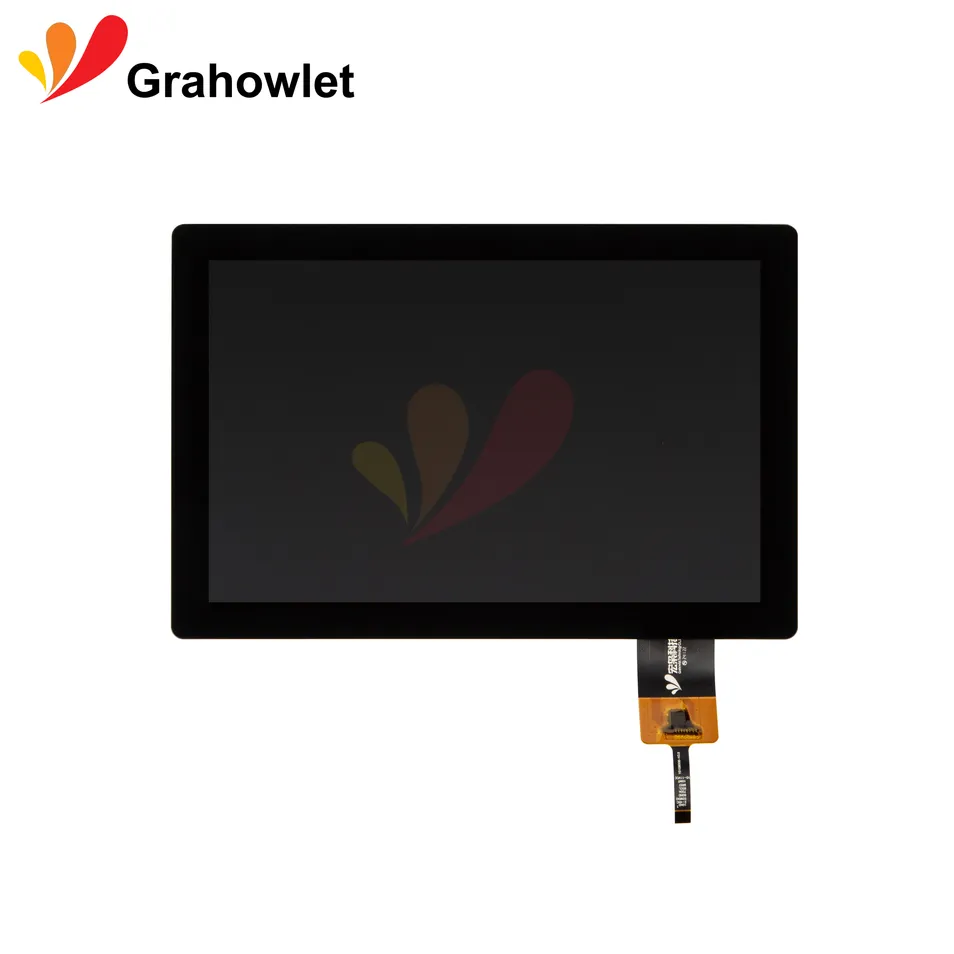

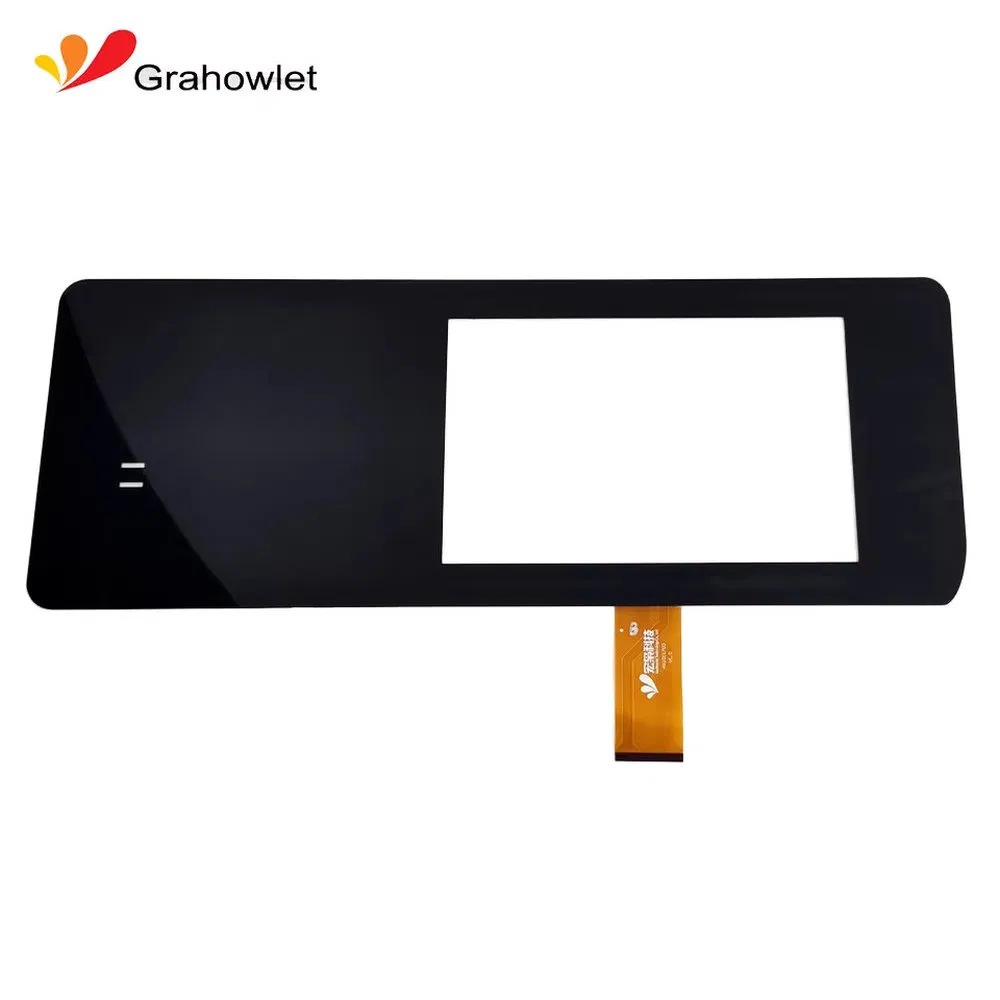

Capacitive Touch Display Module
Engineered for demanding environments, this high-performance capacitive touch display module delivers precise 10-point multi-touch response with exceptional durability.
Featuring advanced touch-through-glove capability, water and saltwater-resistant touch functionality, and explosion-proof cover glass up to 8mm thick, it's the ideal solution for industrial, marine, medical, and outdoor applications.
With ≥85% transparency and ≥6H surface hardness, this module integrates seamlessly with modern systems. Enhanced with AG, AR, and AF surface treatments for superior visibility.
Industrial Automation: Factory HMI panels, machinery control systems, and production line interfaces requiring glove operation.
Outdoor Kiosks & Signage: Public information terminals, ticketing machines, and wayfinding displays in all weather conditions.
Medical & Healthcare: Sanitary environments where gloved touch and easy-clean surfaces are essential.
| PCAP Number | HX1011801-CTP | Touch Points | 10 Points |
| Structure | Glass + Glass | Controller IC | Cypress |
| Bonding | Air / Optical Bonding | Supply Voltage | 2.8V - 3.3V / 5.0V |
| Active Area | 216.96(W) × 135.60(H)mm | Outline Dimension | 247.96(W) × 166.60(H) × 7.5(H)mm |

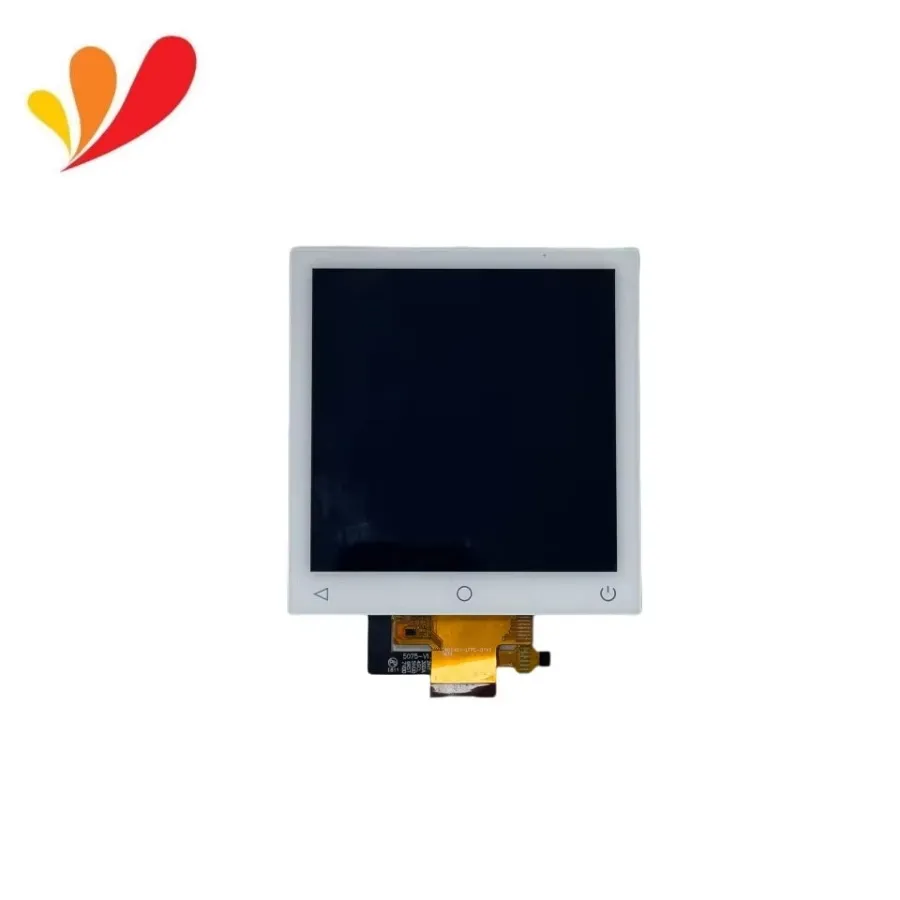

10-Point Multi-Touch Support

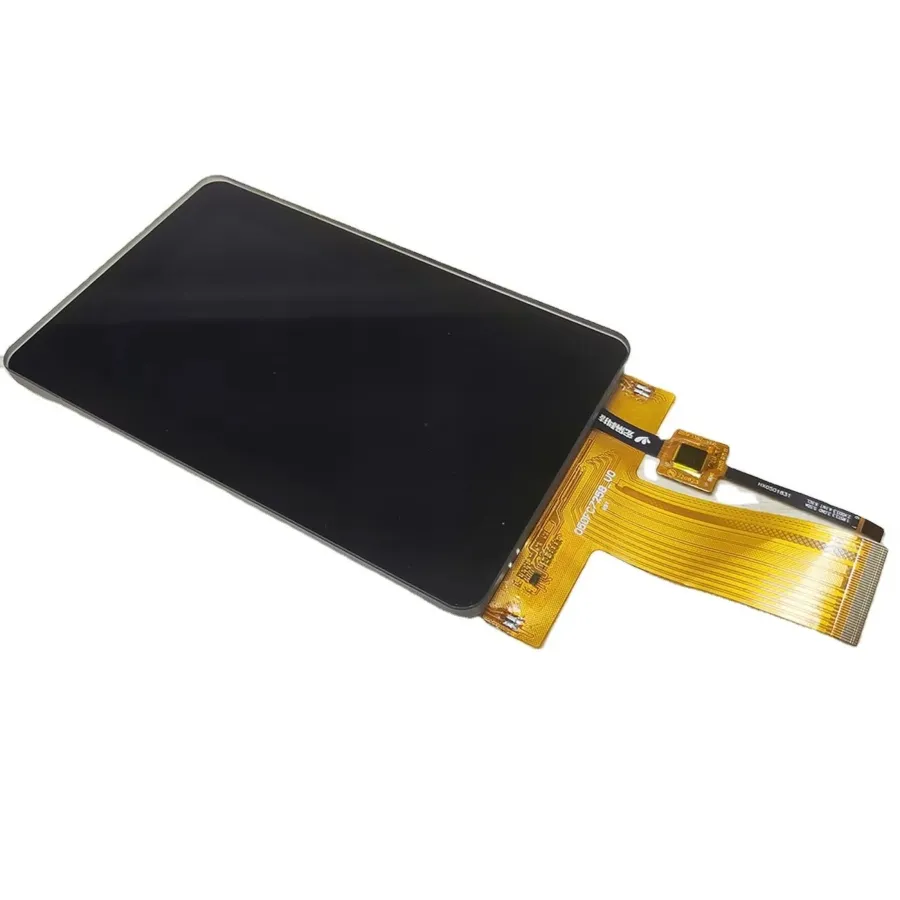

Glove-Friendly Technology

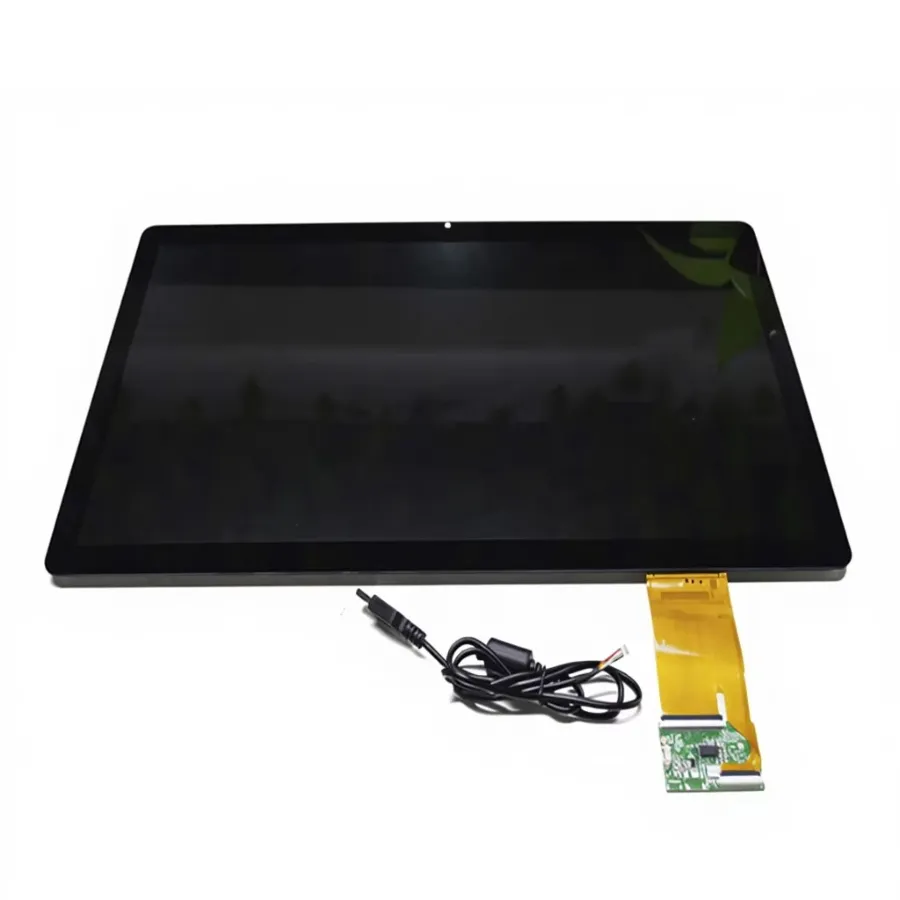

Water & Saltwater Resistant

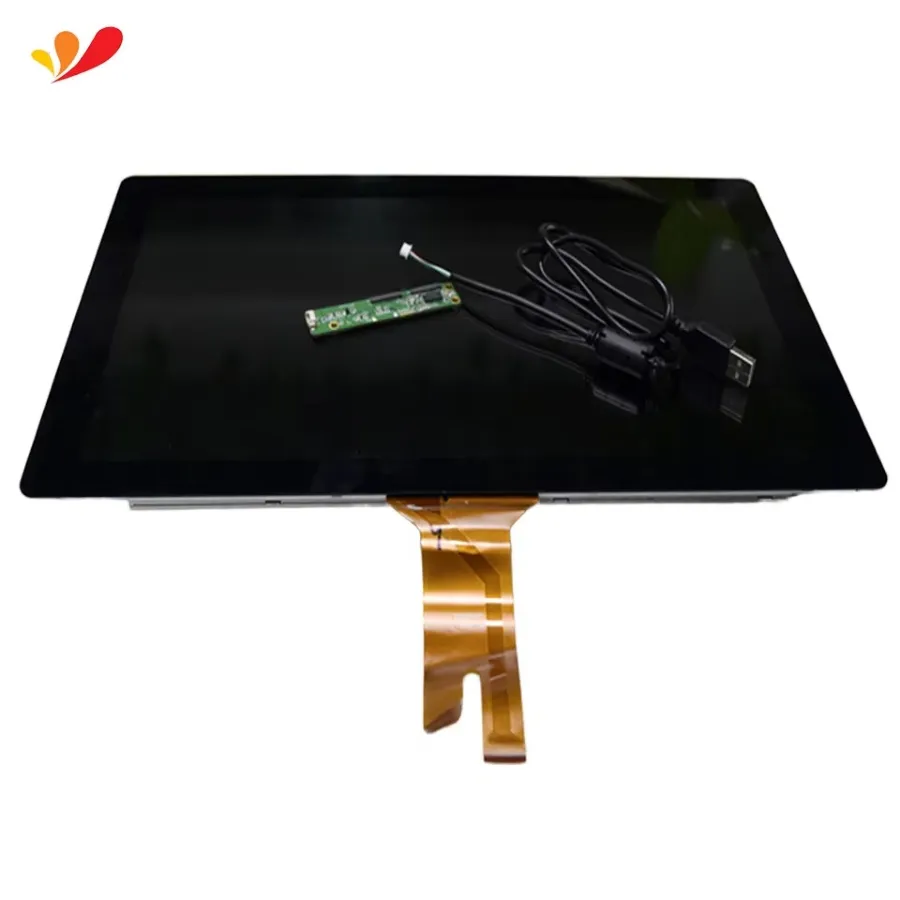

≥85% Optical Transparency
