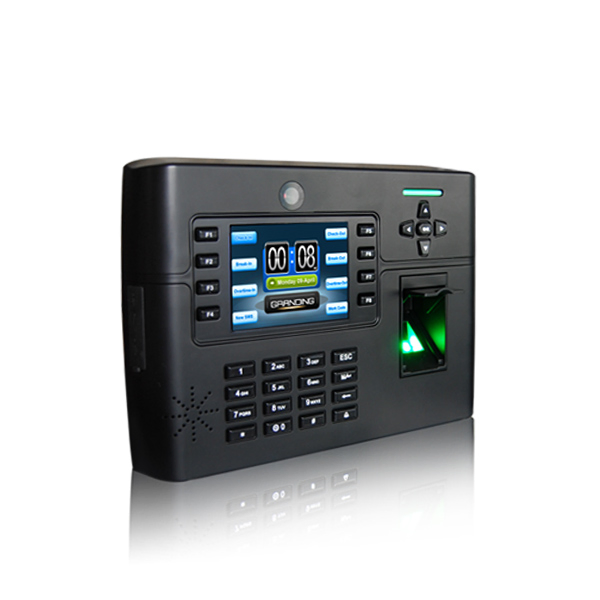

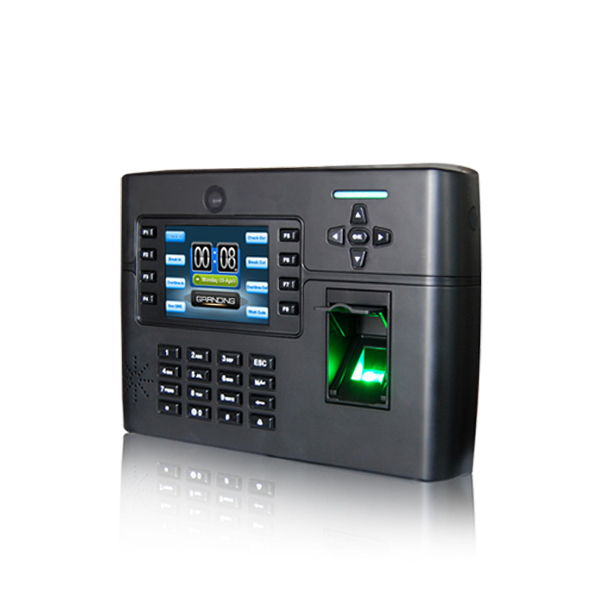

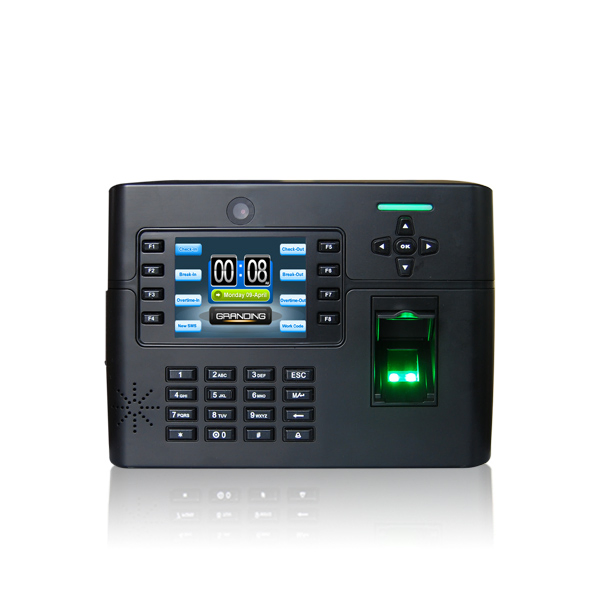

Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)
1 / 4
Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)
Fingerprint T&a and Access Control System with Camera (TFT900-H)

Fingerprint T&a and Access Control System with Camera (TFT900-H)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
TFT900-H
Color
Black
Screen
3.5" TFT Color Screen
Fingerprint Capacity
50,000
Logs Capacity
800,000
Communication
TCP/IP, USB Host/Client, RS232/485, Wiegand in/out
Power Supply
110/220VAC ~ 12VDC 3A
Identification Speed
FRR ≤0.01%; FAR ≤0.0001%
Origin
China
Warranty
2 Years
Product Description

TFT900-H Big Capacity Fingerprint Access Control Terminal Built In Li Battery With Photo-ID & Internal Camera.

TFT900-H is new version of intelligent big capacity fingerprint access control system, with friendly similar android operation interface and internal Li-battery which can supply about 4-5 hours. WIFI or GPRS communication is optional, large fingerprint template and stable performance are advantages of TFT900-H.

TFT900-H Terminal Overview
Key Features
  • Fingerprint expired date setting
  • Schedule bell setting & SMS for exact user
  • User role management
  • 8 function buttons for attendance choice
  • Internal camera for user registration/verification photos
  • Optical sensor with algorithm Ver. 10.0
  • Embedded LINUX system for easy integration
  • Saves data during power outage
  • Professional access control supporting real-time logs
  • Web-based application for monitoring
  • 24 hours continuous operation available
  • 65,000 real color Display with graphical UI
Specifications
Category Details
Display & Speaker 3.5" TFT high-definition graphical interface; Voice Prompt (Multi-language selectable)
Capacity Fingerprint: 50,000; Logs: 800,000
Verification Speed Verification (1:1) ≤0.5s; Identification (1:N) ≤1s
Environment Temp: 0°C ~ 45°C; Humidity: 20% ~ 80%
Standard Functions Internal Camera; built-in Lithium battery; Relay; Dismantlement alarm; DST; Scheduled bell; T9 input; Photo-ID; Anti-pass back
Customized Functions 9-PIN ID; Multi-verify; WIFI; GPRS; ID/MF reader; Printer output

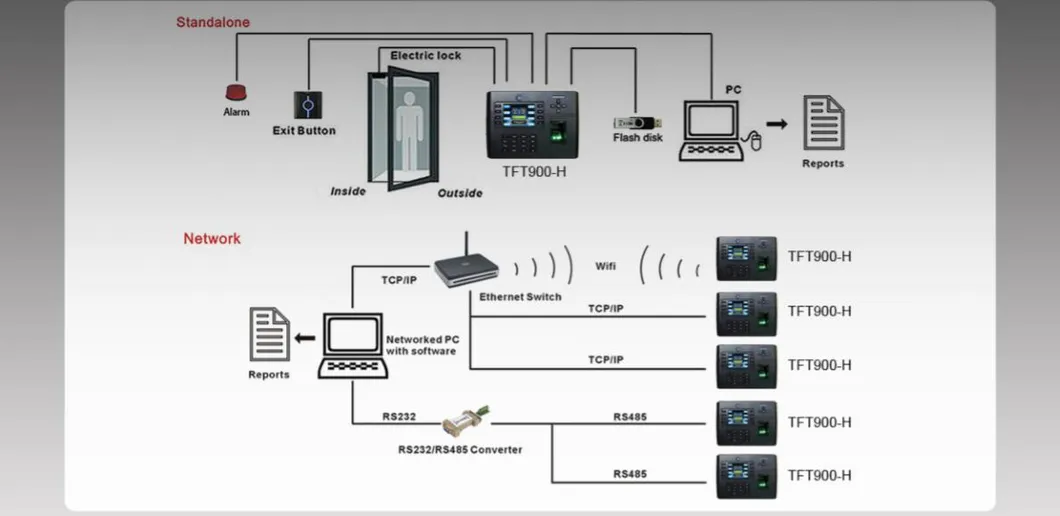

Connection Diagram
Connection Diagram
Detailed Images

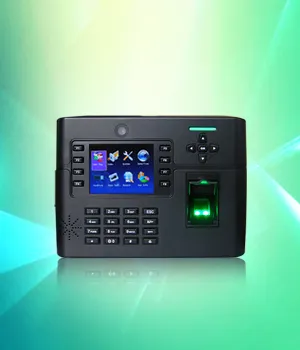

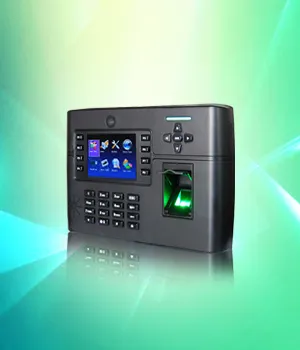

TFT900-H Front View TFT900-H Side View
Software & SDK

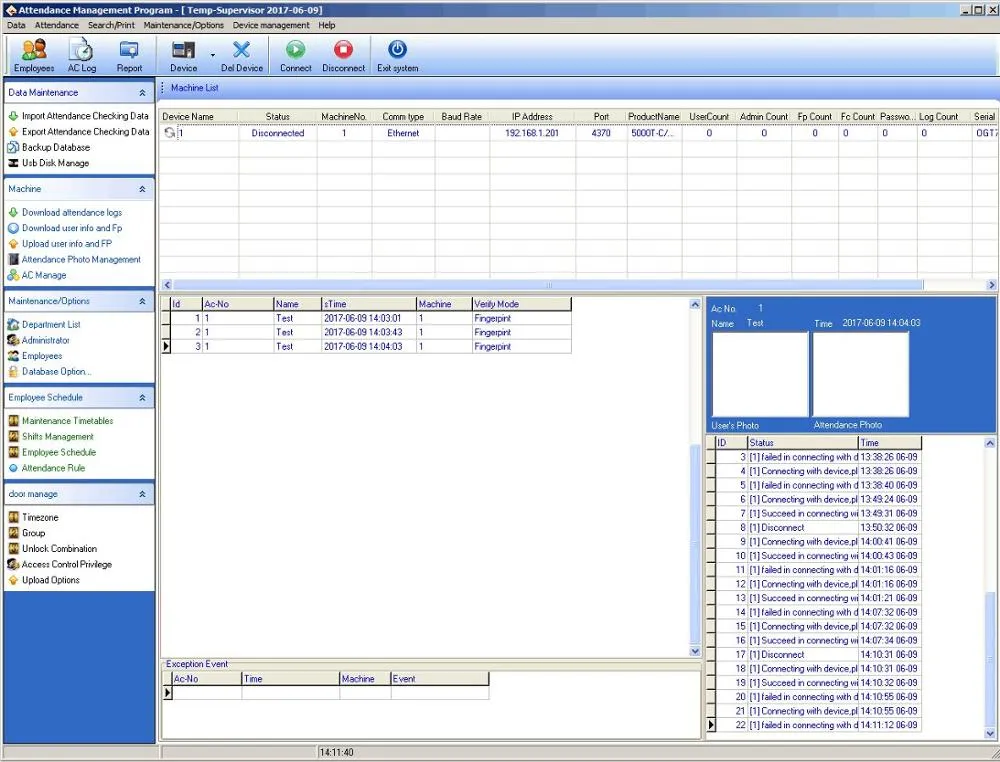

Software Interface
Payment & Shipment

Payment Terms: Paypal or West Union for sample order; T/T for regular order; L/C for large order.

Shipment Way: International Express TNT, UPS, Fedex, DHL, Aramex; International Air; or by Sea shipment.

Related Products
Related Security Products
Frequently Asked Questions
How long does the built-in battery last?

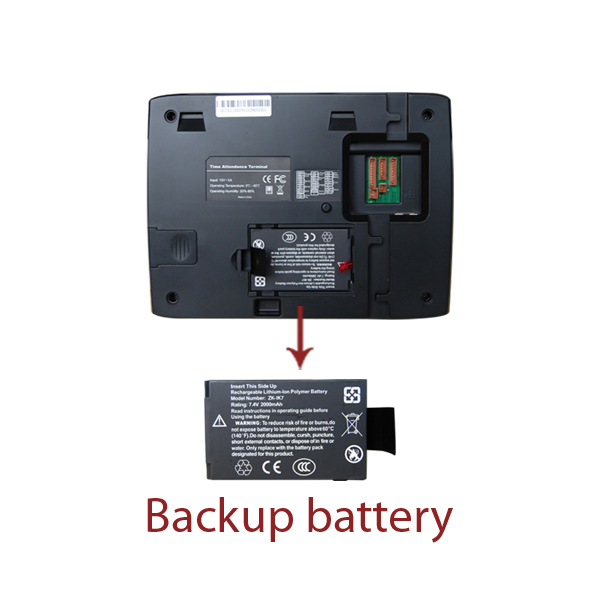

The internal Lithium battery provides approximately 4 to 5 hours of backup power in case of a power outage.
What is the maximum fingerprint and log capacity?
The TFT900-H supports up to 50,000 fingerprint templates and can store up to 800,000 transaction logs.
Does the device support wireless communication?
WIFI and GPRS communication are optional features that can be customized based on your networking requirements.
Can the device take photos of employees during check-in?
Yes, the device features an internal camera that can take photos when users register or verify their fingerprints for enhanced security (Photo-ID).
Is the software included with the terminal?
The system supports professional access control management and is compatible with web-based applications for easy monitoring. SDKs are also available for integration.
What languages are supported on the interface?
It supports over 40 languages, including English, Spanish, French, Arabic, and many others which can be selected in the settings.
