IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
1 / 5
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System
IP65 Rated Rugged Structure Fingerprint Access Control System

IP65 Rated Rugged Structure Fingerprint Access Control System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
FR1200
Color
Black
Screen
Without
Communication Interface
RS232 / RS485
Fingerprint Capacity
1500
CPU
324MHz
Standard Function
ID Card Module
Optional
IC Card Module
Working Voltage
12VDC
Protection Grade
IP65
Package Size
54.00cm * 36.00cm * 30.00cm
Gross Weight
9.750kg
★

Product Description

IP65 Rated Rugged Structure Fingerprint Access Control System

Fingerprint Access Control System 1
Fingerprint Access Control System 2

Detailed Overview:
The FR1200 is a specialized slave reader that captures fingerprint images and transfers them to a master terminal. It is designed specifically for compatibility with master controllers such as F8, F18, F2, and TF1700.

Key Performance Features:

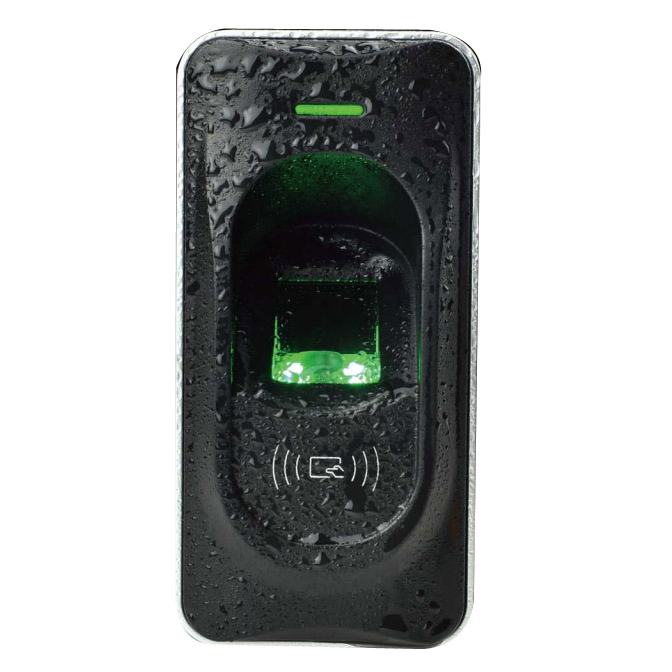

  • IP65 Waterproof Design: Offers extra durability in all weather conditions, making it suitable for outdoor environments.
  • Biometric Integration: Works seamlessly with biometric access controllers via RS485 communication.
  • Small Form Factor: Compact sensor design that supports efficient installation.
  • Roller Door Compatibility: Can be freely connected with access control system locks and roller door openers.

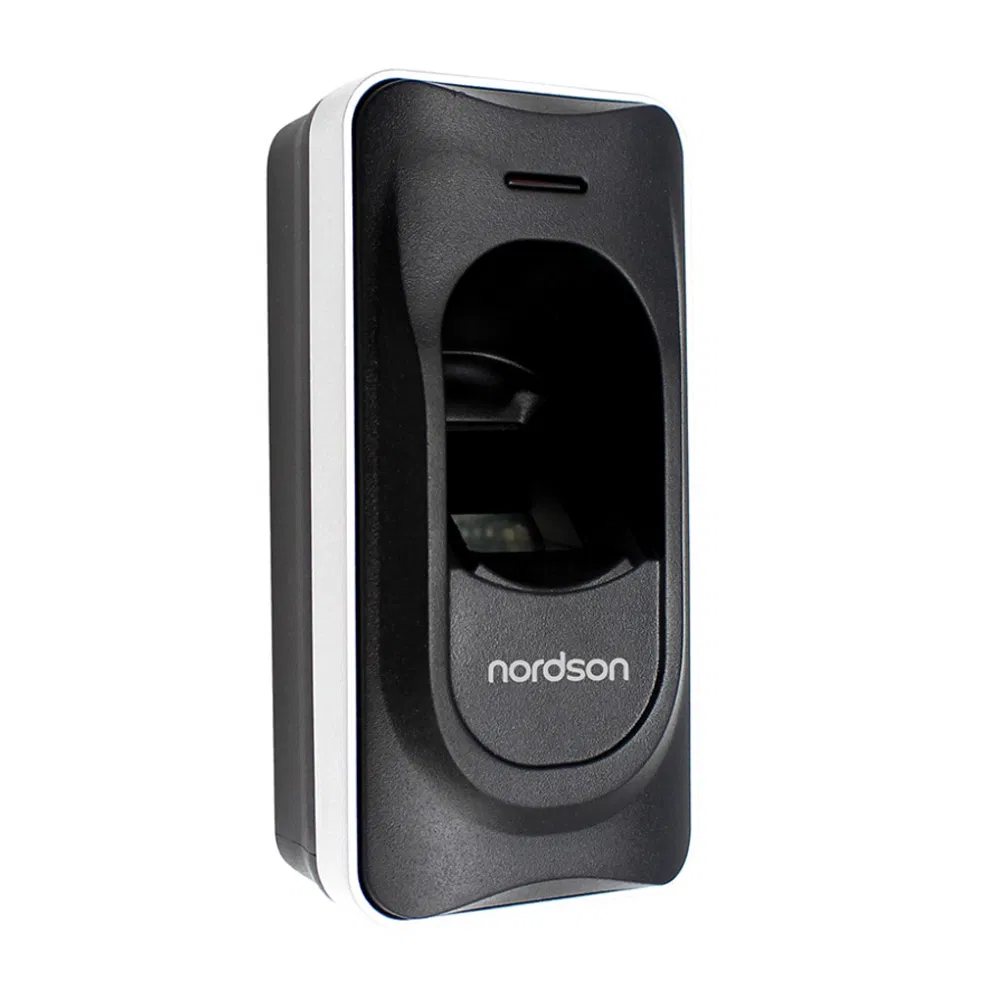

Technical Layout

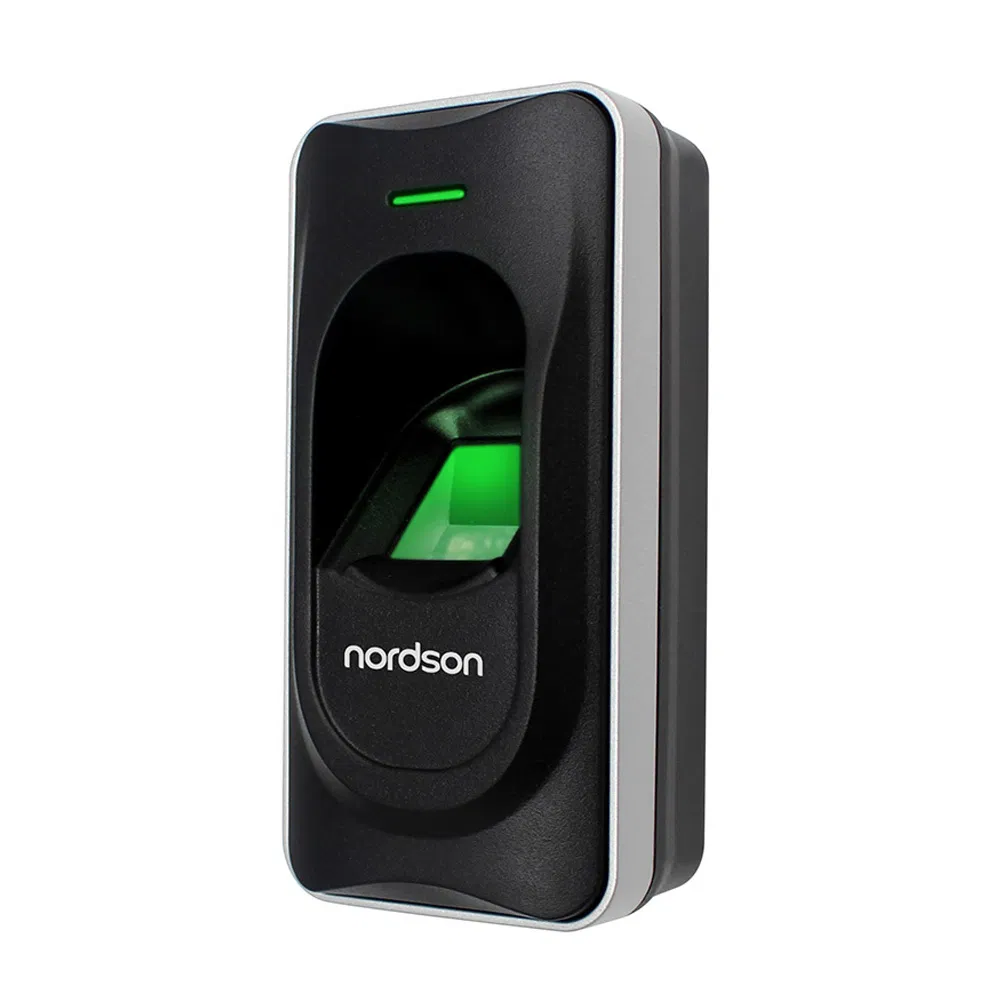

Product Detail View
⚙

Technical Specification

Display/Speaker 2 x 16 inch Character backlit LCD Display / Buzzer
Language English
Protection Grade IP65 Waterproof and Dustproof
Environment Temp: 0°C ~ 45°C | Humidity: 20% ~ 80%
Verification Speed 1:1 ≤1s | 1:N ≤2s
Reliability FRR: ≤0.1% | FAR: ≤0.0001%
Power Supply 12V DC
Machine Size 102(L) * 50(W) * 37(H) mm
Communication RS485 Interface
Access Status Check in, Check out, OT in, OT out
Standard Card 125kHz RFID proximity reader
?

Frequently Asked Questions

1. Is the FR1200 a standalone controller?
No, the FR1200 is a slave reader. It captures the fingerprint image and transfers it to a master terminal like the F8, F18, or TF1700 for verification.
2. Can this reader be installed outdoors?
Yes, the device features an IP65 rated rugged structure, which provides durability and waterproof protection for all weather conditions, including outdoor environments.
3. What is the maximum fingerprint capacity?
The reader supports a fingerprint capacity of up to 1,500 templates when used with compatible controllers.
4. How does the device communicate with the main controller?
The FR1200 uses an RS485 communication interface to capture and transfer fingerprint samples to the internal controller for matching.
5. Does it support proximity cards?
Yes, it includes a standard 125kHz RFID proximity card module. An IC card module is also available as an optional feature.
6. What is the verification speed?
The verification speed (1:1) is less than or equal to 1 second, and the identification speed (1:N) is less than or equal to 2 seconds.
