| Model NO. | FJC-MAT668 |
| Interface | IEEE 1394, PCMICA, USB, Parallel Port, Serial Port |
| Reading Distance | 1-5m |
| Application | Parking, Hospital, Library, Company, Bank, Store |
| Specification | 180*90*25 mm |
| Production Capacity | 200,000 pieces |
| Origin | China |

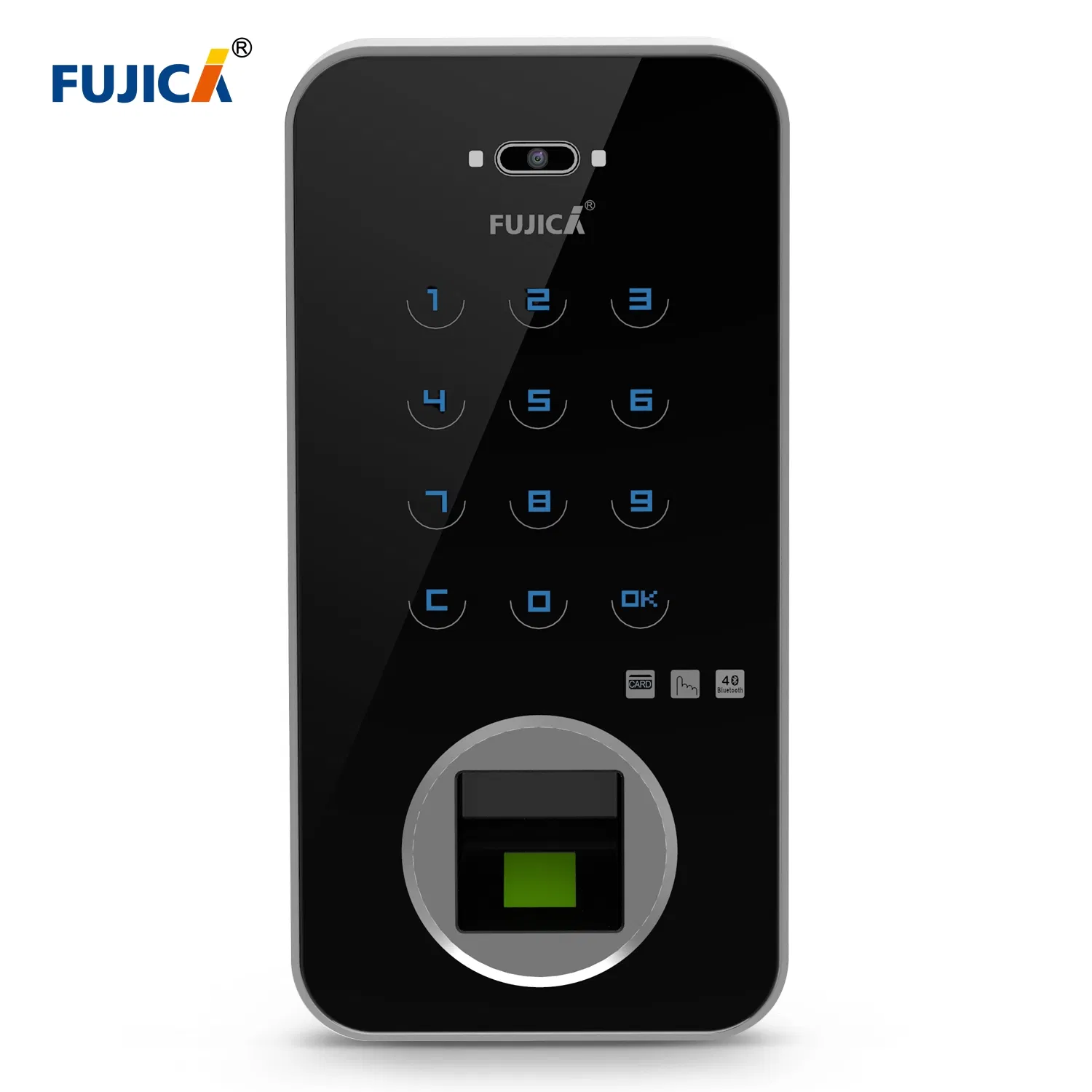

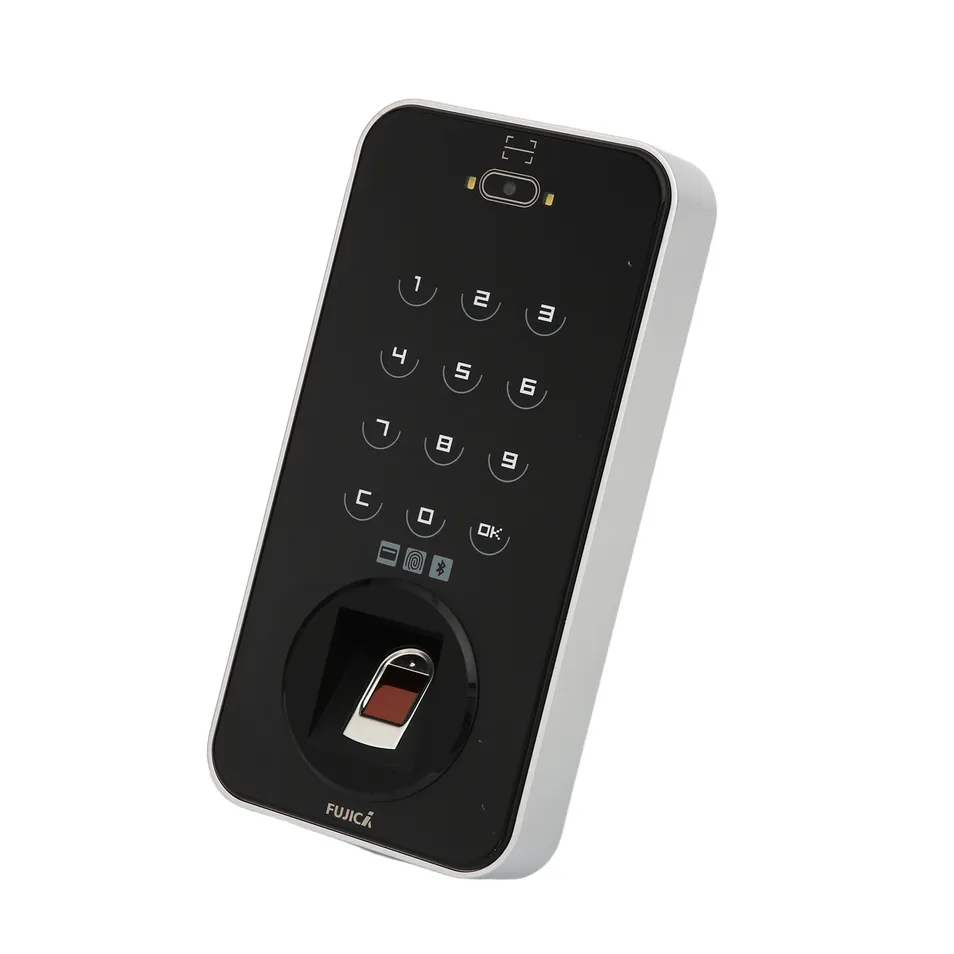

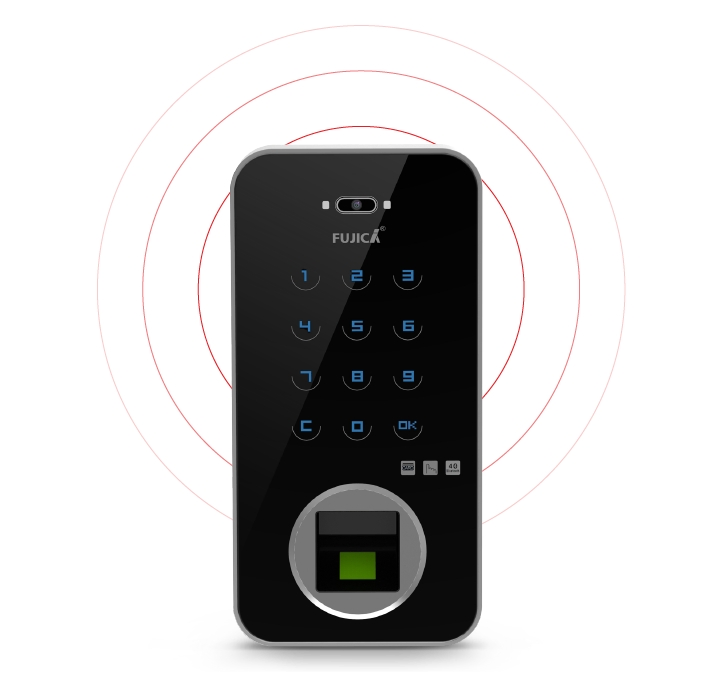

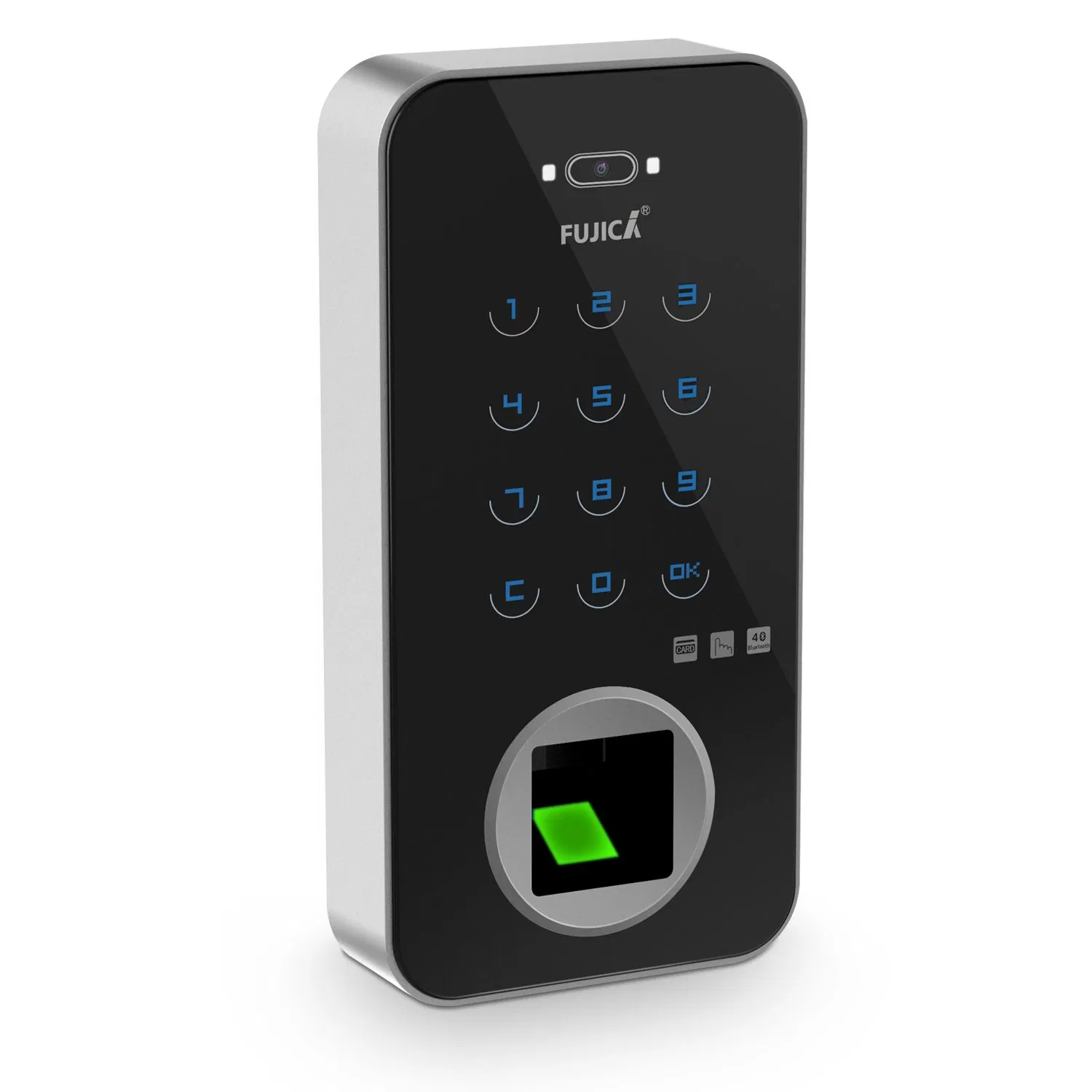

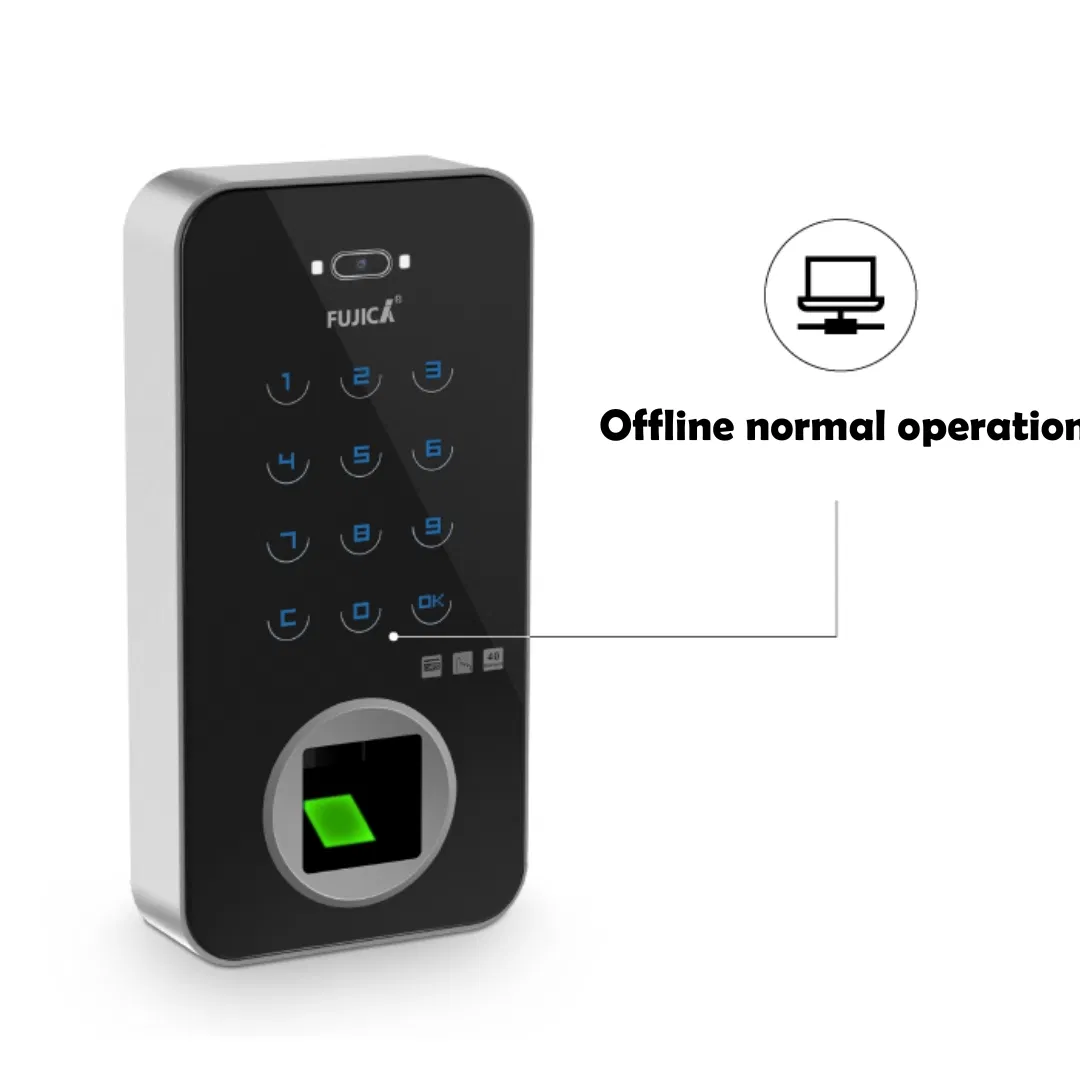

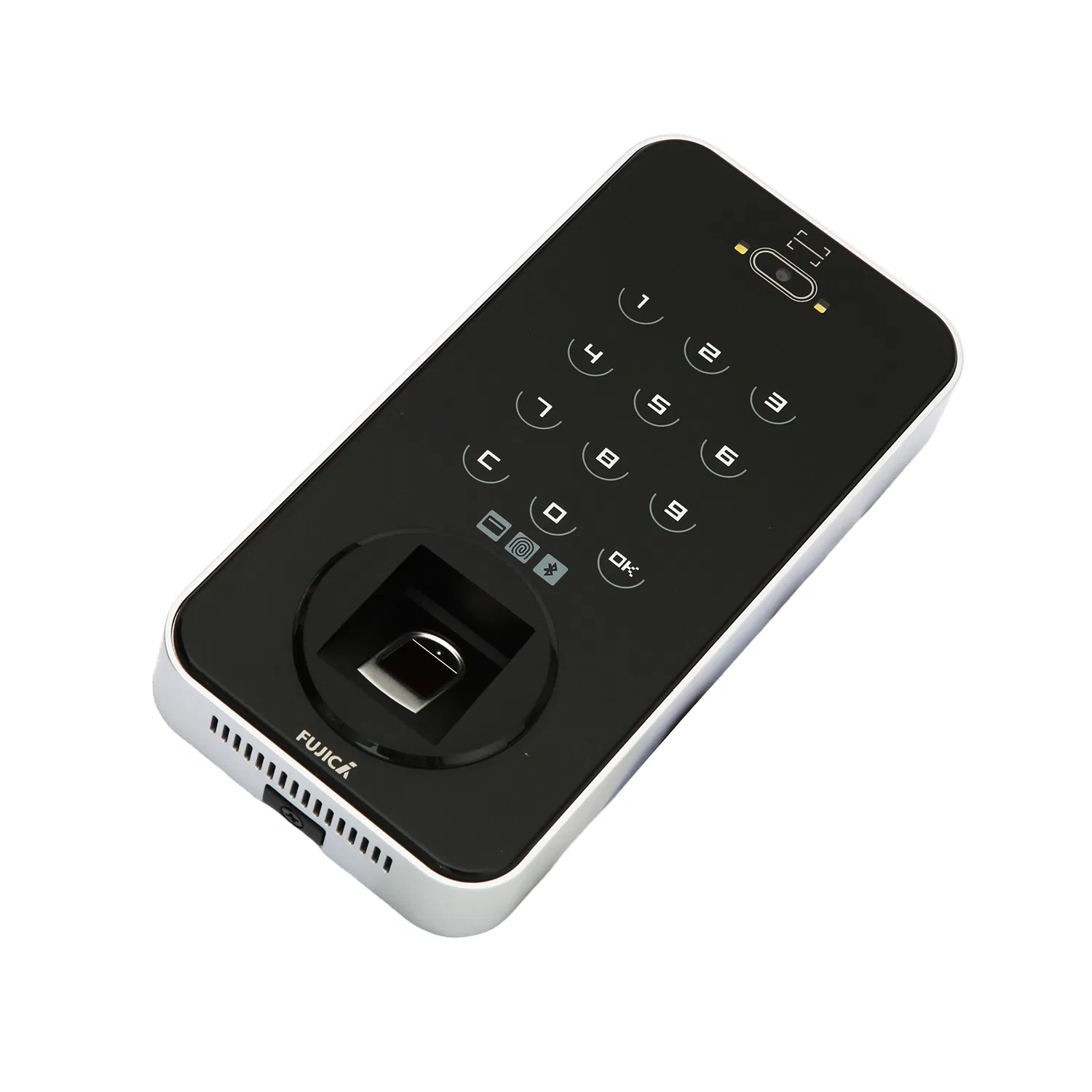

FJC-MAT668 All-in-One Access Control Terminal
The FJC-MAT668D is an integrated access control terminal developed based on a high-performance ARM Cortex-M4 processor. It features an advanced capacitive fingerprint recognition module and supports multiple unlocking methods, including fingerprint, QR code, IC card, and password access. Designed to meet diverse user needs, this device is ideal for indoor environments such as commercial office buildings, residential communities, and government or enterprise facilities.
| Housing Material | Tempered Glass + ABS + PC |
| Dimensions (L×W×H) | 180 × 90 × 25 mm |
| IC Card Mode | Reading Distance: 0–5 cm |
| Fingerprint Capacity | 3,000 fingerprints |
| User Capacity | 50,000 users (Black/White List) |
| Max Record Capacity | 100,000 records |
| Communication Modes | TCP/IP, RS485 |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity | ≤ 90%, non-condensing |
| Application Environment | Indoor use only |

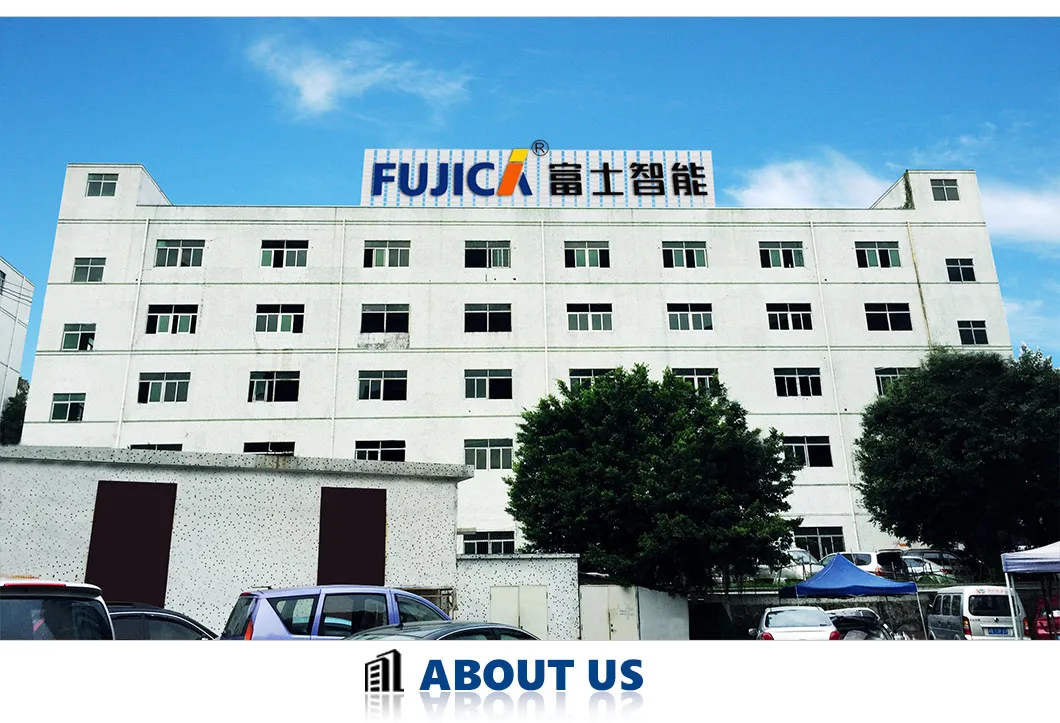

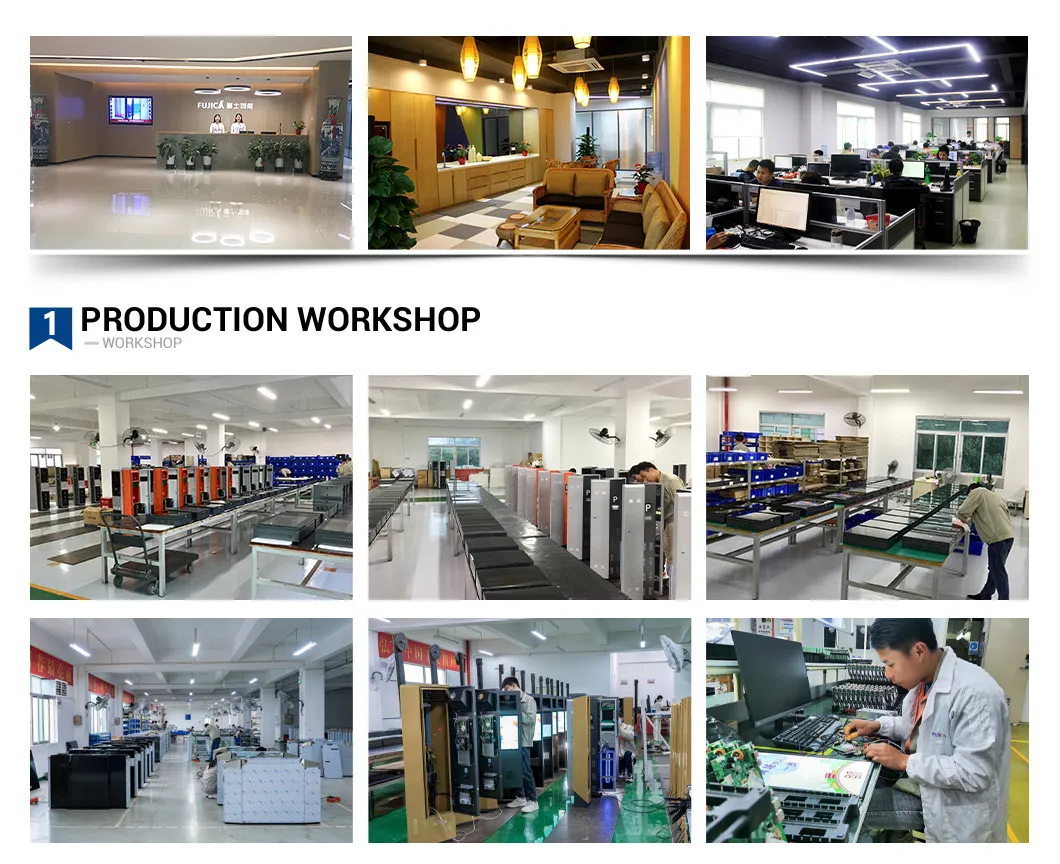

Established in 2004, the company is committed to the construction and operation of smart parking management systems and pedestrian management ecology. As a pioneer in access control management systems, our products hold a significant market share in major urban centers.
As a national high-tech enterprise, we invest more than 10% of sales revenue in R&D annually, forming a complete industrial chain of smart access control hardware and software management platforms.
