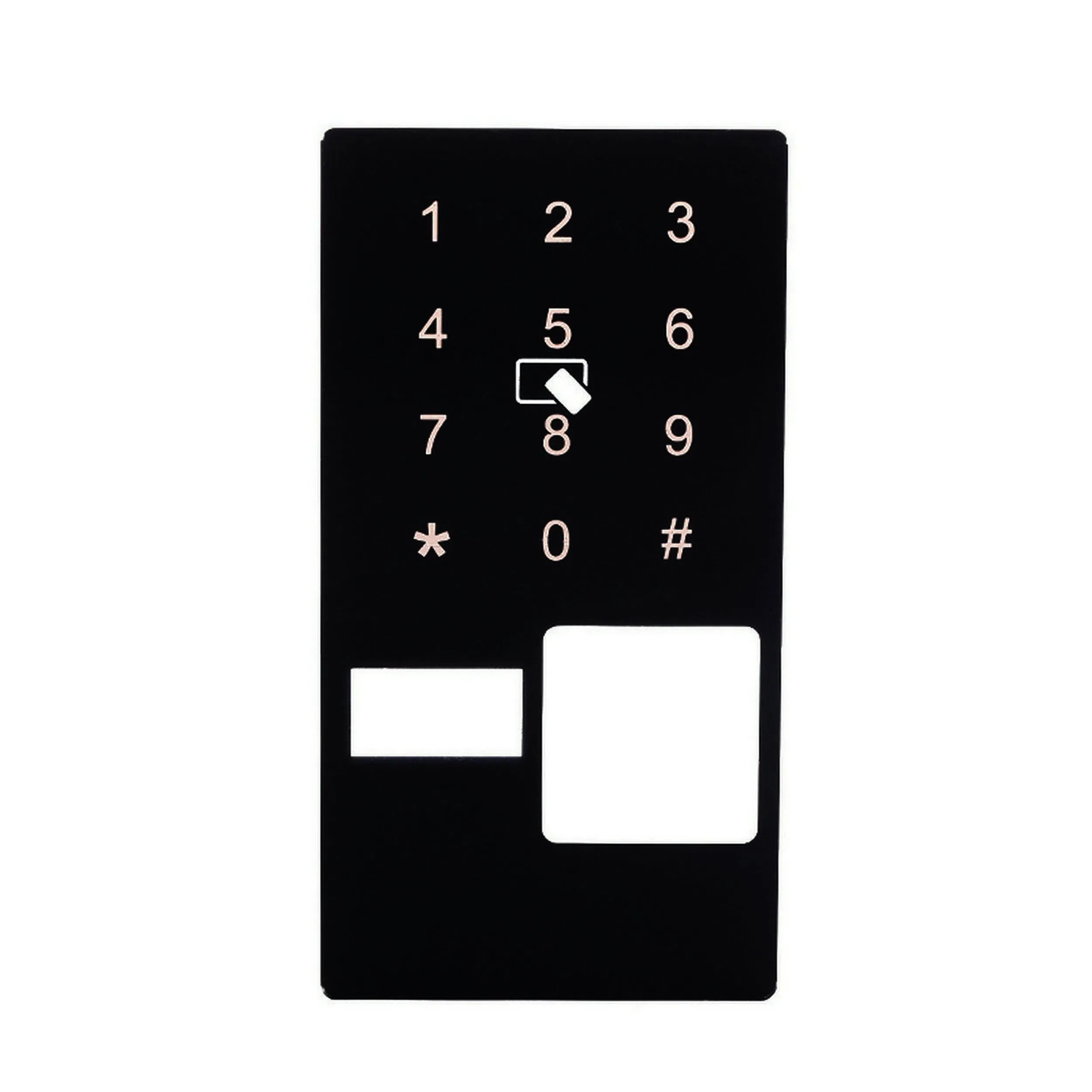

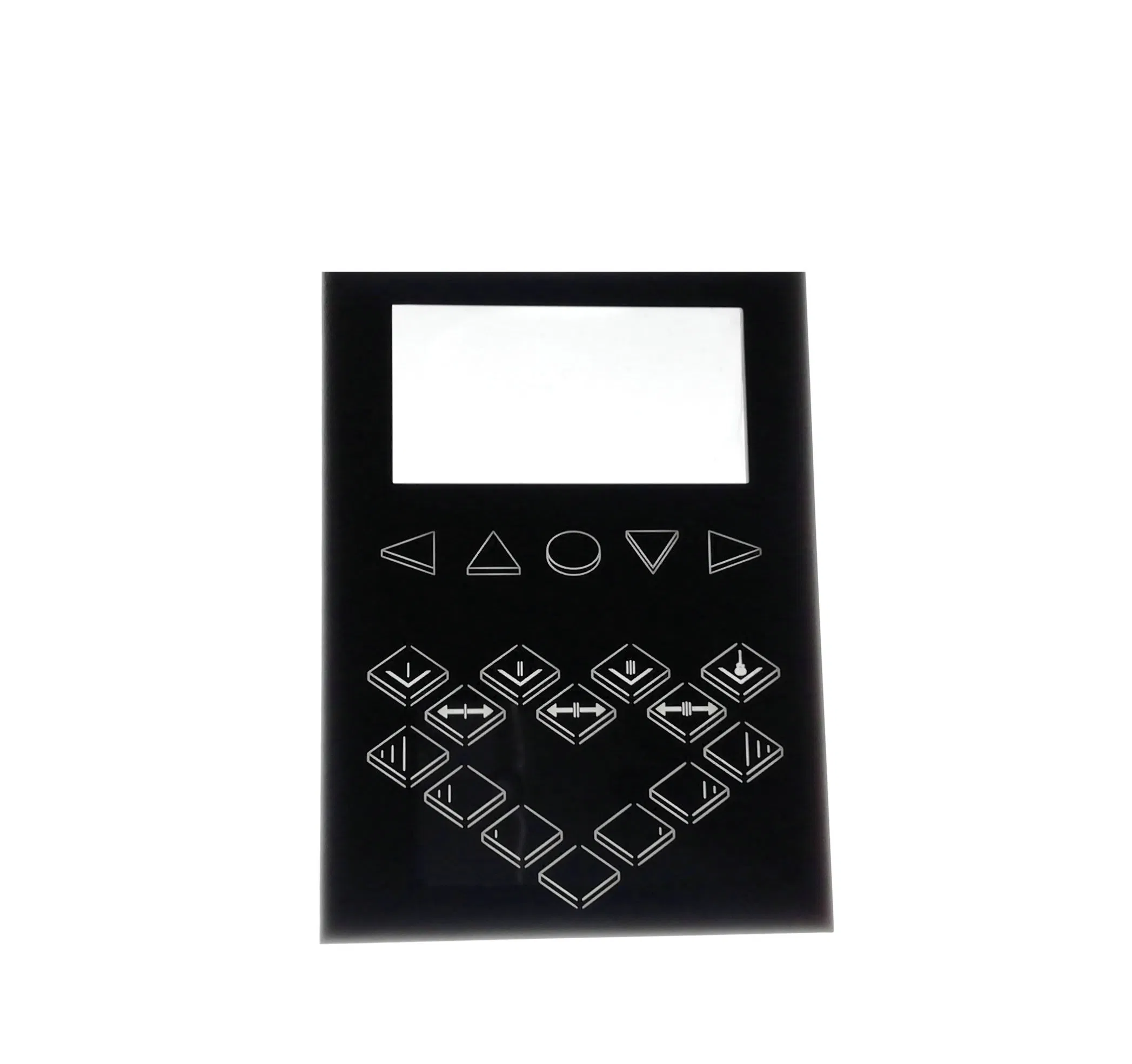

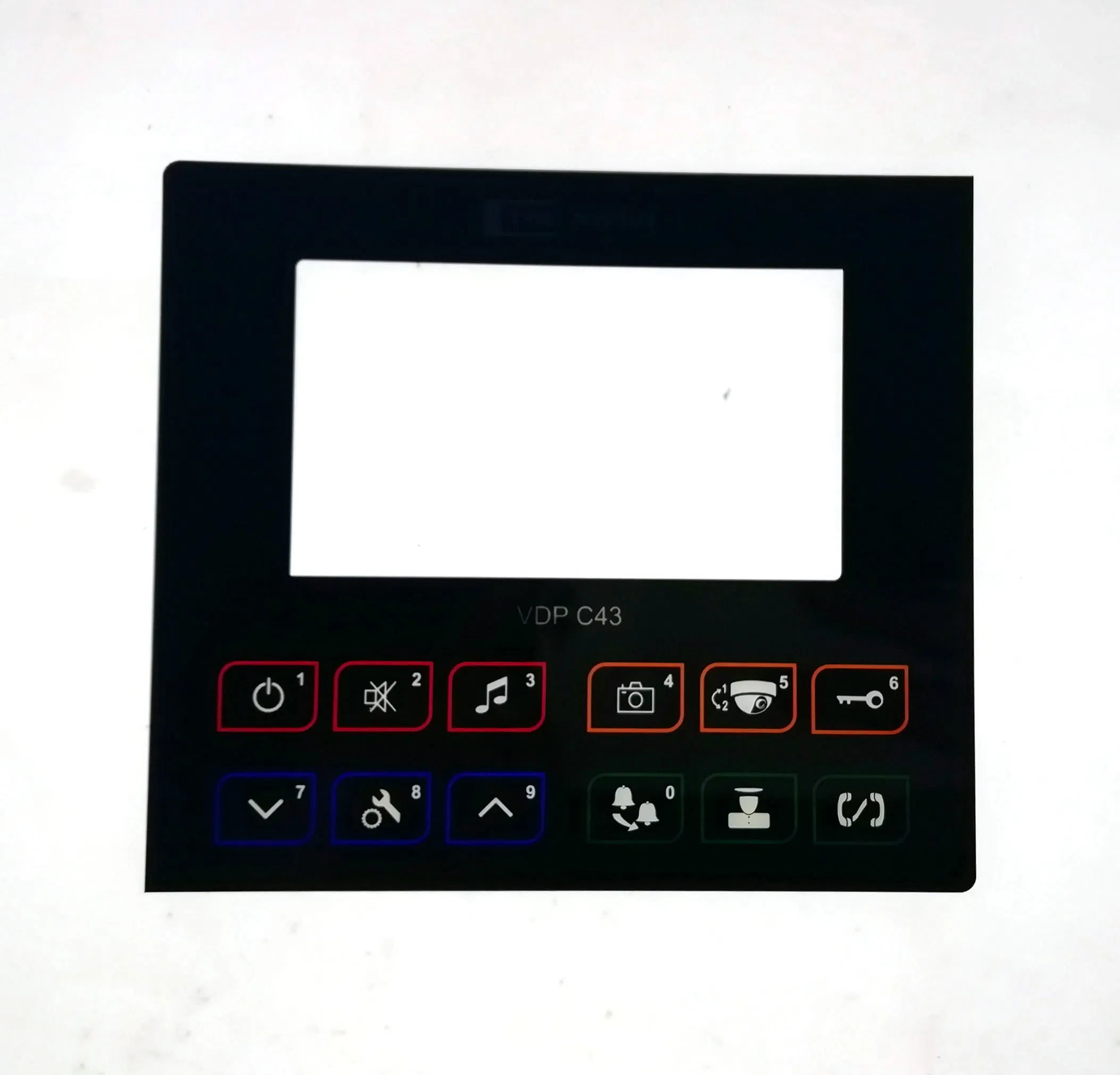

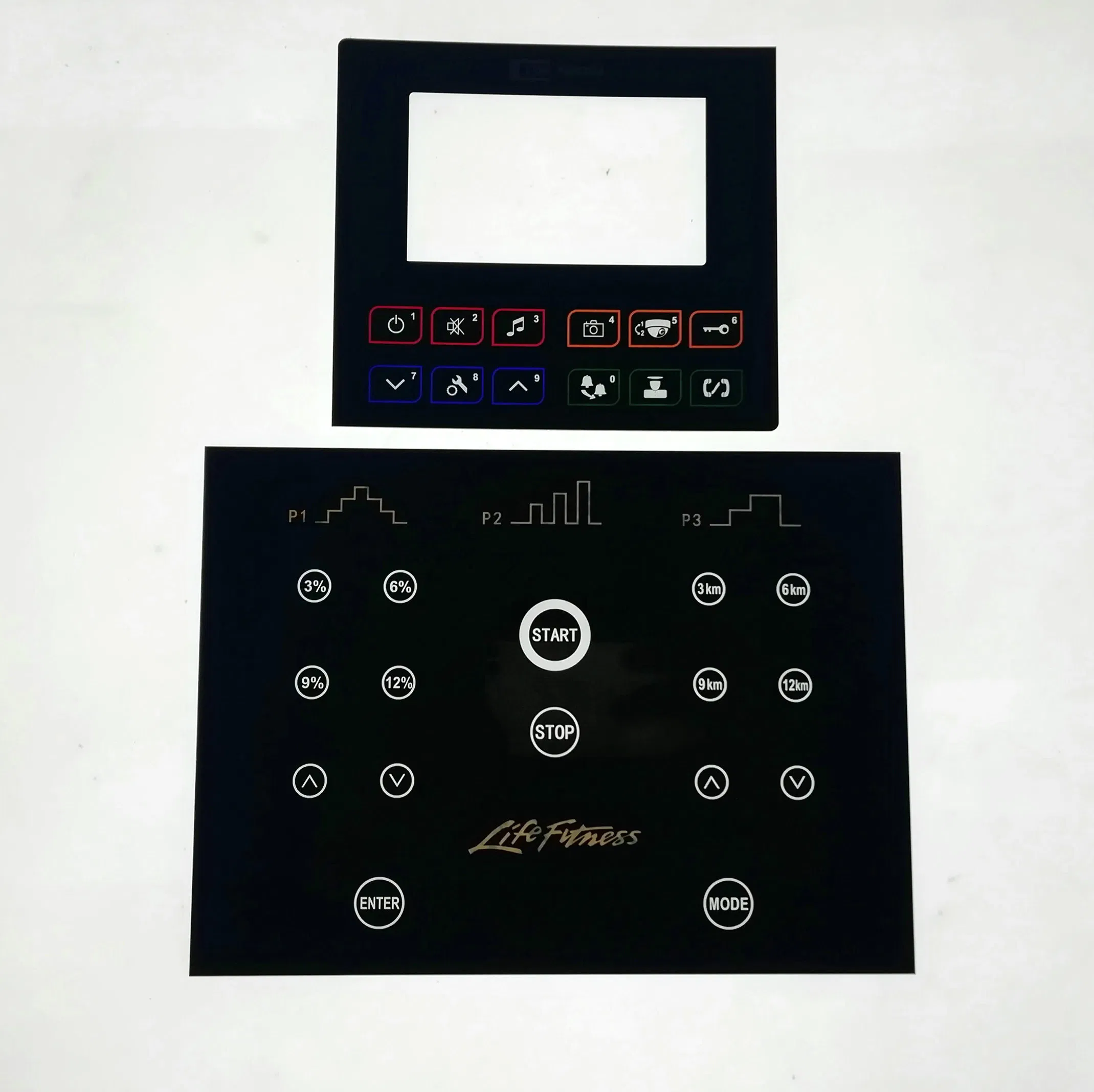

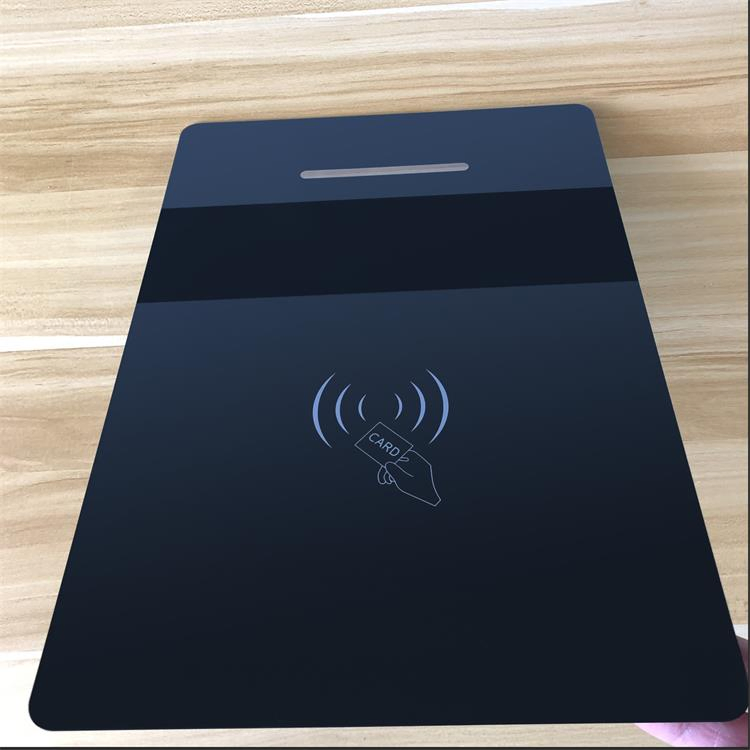

Custom acrylic touch panel, with acrylic plate as the panel, screen printed semi transparent icons on the back, realized capacitive touch function by printing circuit to improved product texture.
Acrylic plate has the advantages of simple processing, saving tooling cost. Acrylic surface can screen printing a variety of icons and graphics, it can use capacitive touch button to realize switching function. And screen printing all kinds of transparent graphics to make products appear high-grade beautiful.

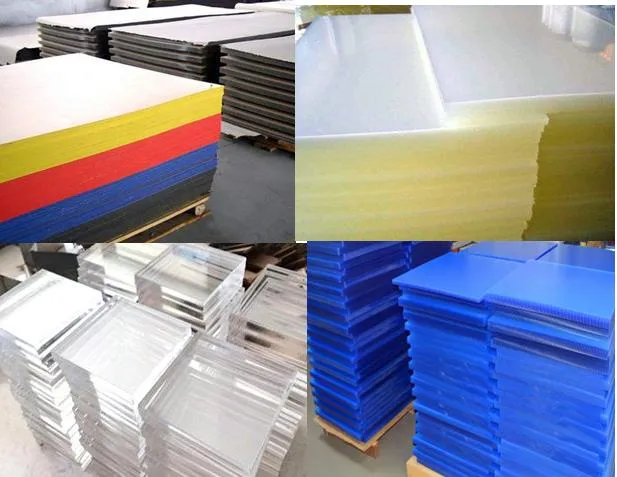

| Base Material | Acrylic, PPMA, Glass |
| Surface | Glossy / Matte Finish |
| Temperature Resistance | -30ºC to 80ºC |
| Thickness | Plate: 0.25-10.0mm |
| Circuit Layer | Silver paste, Carbon paste, Transparent conductive silver ink |
| Category | Technical Detail |
|---|---|
| Electrical |
1. Voltage: ≤ 35V (DC) 2. Current: ≤ 100mA 3. Contact resistance: 20 - 500 Ω 4. Insulation resistance: ≥ 100M Ω (100V / DC) 5. Substrate withstand voltage: 2KV (DC) |
| Mechanical |
1. Reliability service life: > 1 million times 2. Standard working force: 100 - 750g 3. Pin spacing: 2.54, 2.50, 1.27, 1.25, 1.0, 0.5mm 4. Silver paste line width: ≥ 0.3mm |
| Environmental |
1. Working temperature: -20 ºC to +70 ºC 2. Storage temperature: -40 ºC to +85 ºC 3. Atmospheric pressure: 86 - 106kpa |

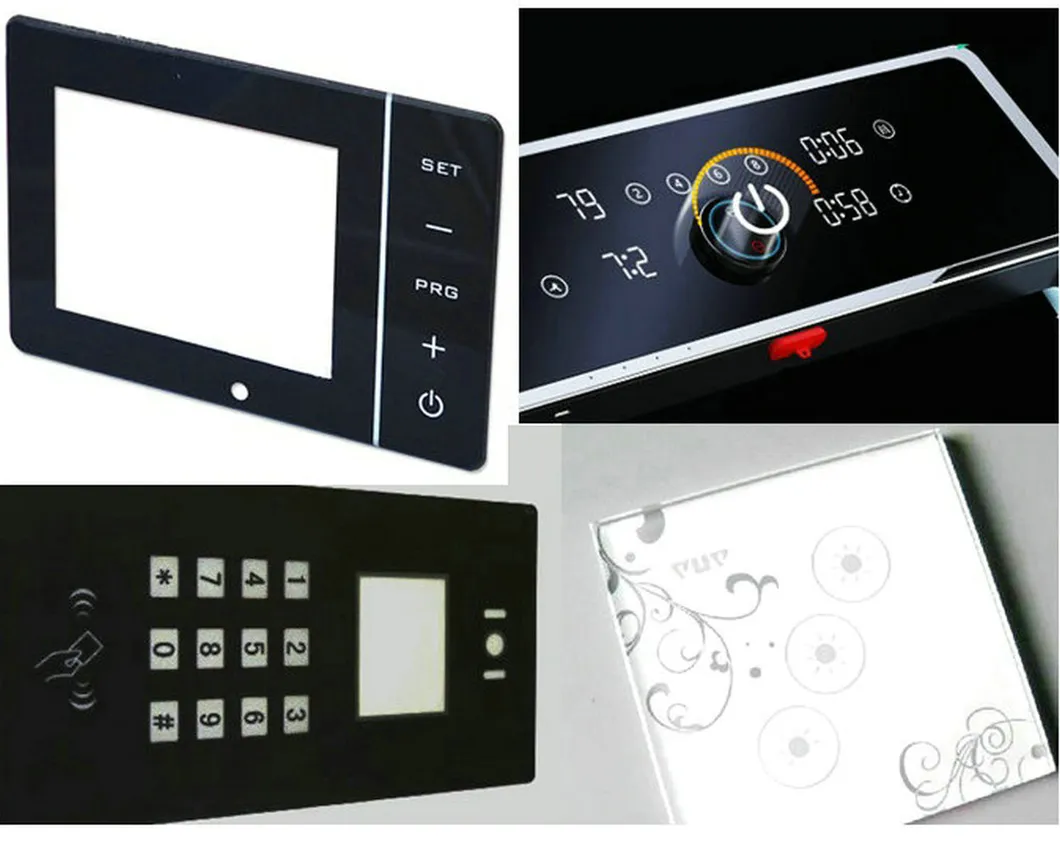

Specializing in the production and custom of Membrane Switch, Acrylic Touch Panel, Industrial Nameplate, Metal Badge and Self-Adhesive Sticker. Products are widely used in Smart household appliances and industrial control equipment.

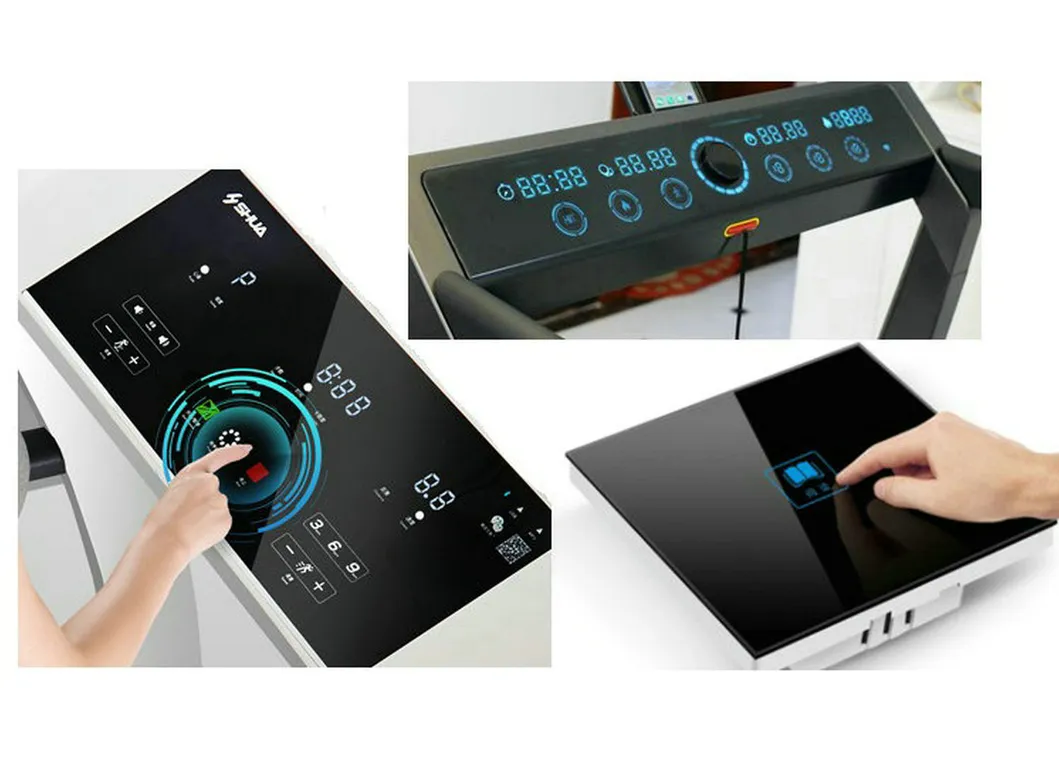

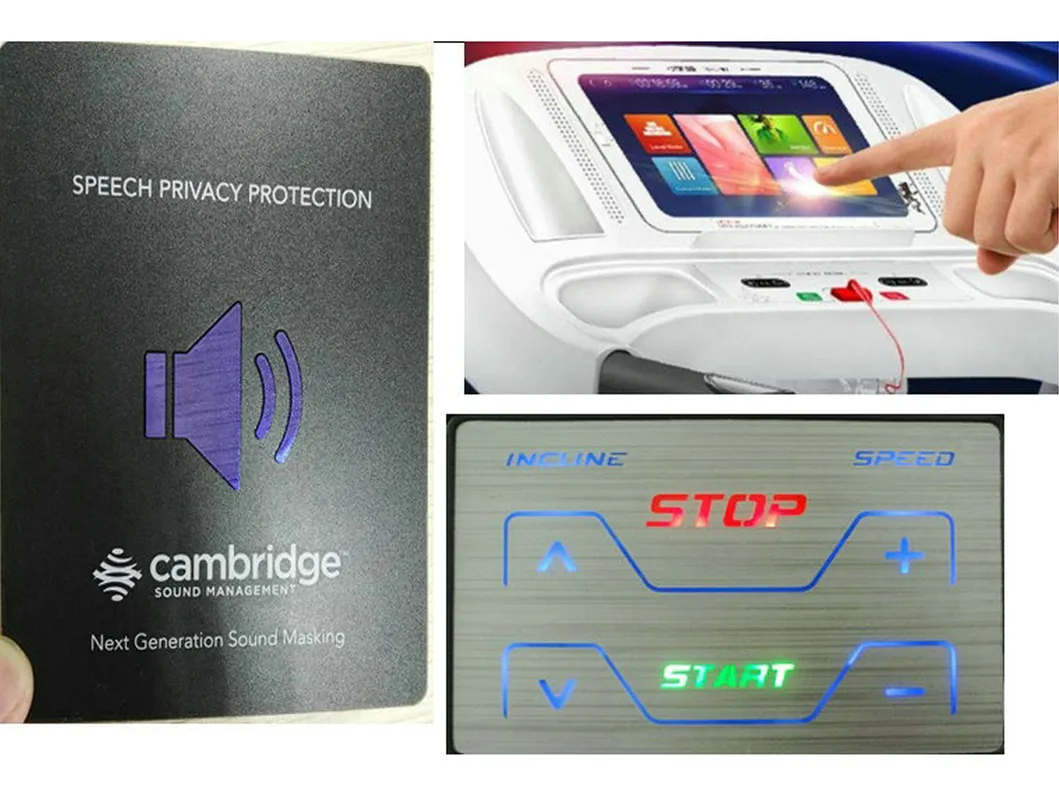

Industrial control equipment, household appliances, display instruments, medical equipment, fitness equipment, security equipment, automobile instrumentation, electronic scale, and intelligent furniture.
