Customization: Available
Compatibility: Cars
Installation Type: High-Mount
Send Inquiry

Product Description

Basic Specifications

Model NO.
TD- F9
Material
Metal, Steel
Resolution
1080p
Viewing Angle
70 Degree
Waterproof Rating
IP67
Function
Control Barrier Gates
Upright Post
122cm
Night Vision
Yes
Position
Entry Lane
Specification
500mm(L) * 310mm(W) * 1223mm(H)

Product Description

Ticket Dispenser is also known as entry station. It is usually set at the entrance of parking lot to automatically issue barcode ticket. For regular vehicle, it also add a function which is to tap the monthly/ season card. This equipment can easily work with ticket validator, barrier gate and pay station.

System Working Principle

1
Entry Ticket Dispenser: When a vehicle enters the parking lot, the driver presses the button, and the ticket dispenser issues a ticket to the vehicle, recording the entry time and license plate number.
2
Automated Payment Station (APS): Inside the parking lot, drivers can proceed to the Automated Payment Station (APS) to make payments using the ticket or license plate number. The APS accepts various payment methods such as cash, credit cards, mobile payments, etc.
3
Exit Payment: Drivers can also choose to pay parking fees at the exit when leaving the parking lot. The system calculates parking fees based on entry and exit times.
4
Quick Exit: Once payment is successful, the system records payment information and automatically opens the barrier when the driver exits, enabling quick departure.
5
Real-time Data Updates: The system continuously updates the status and payment information of vehicles in the parking lot in real-time to ensure accurate parking management and billing.

Detailed Photos

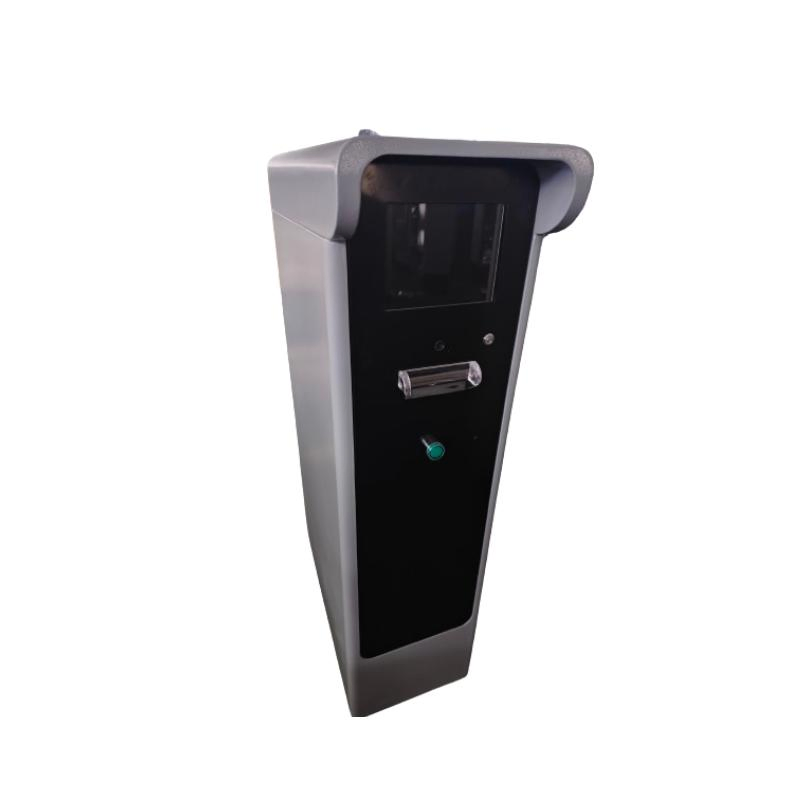

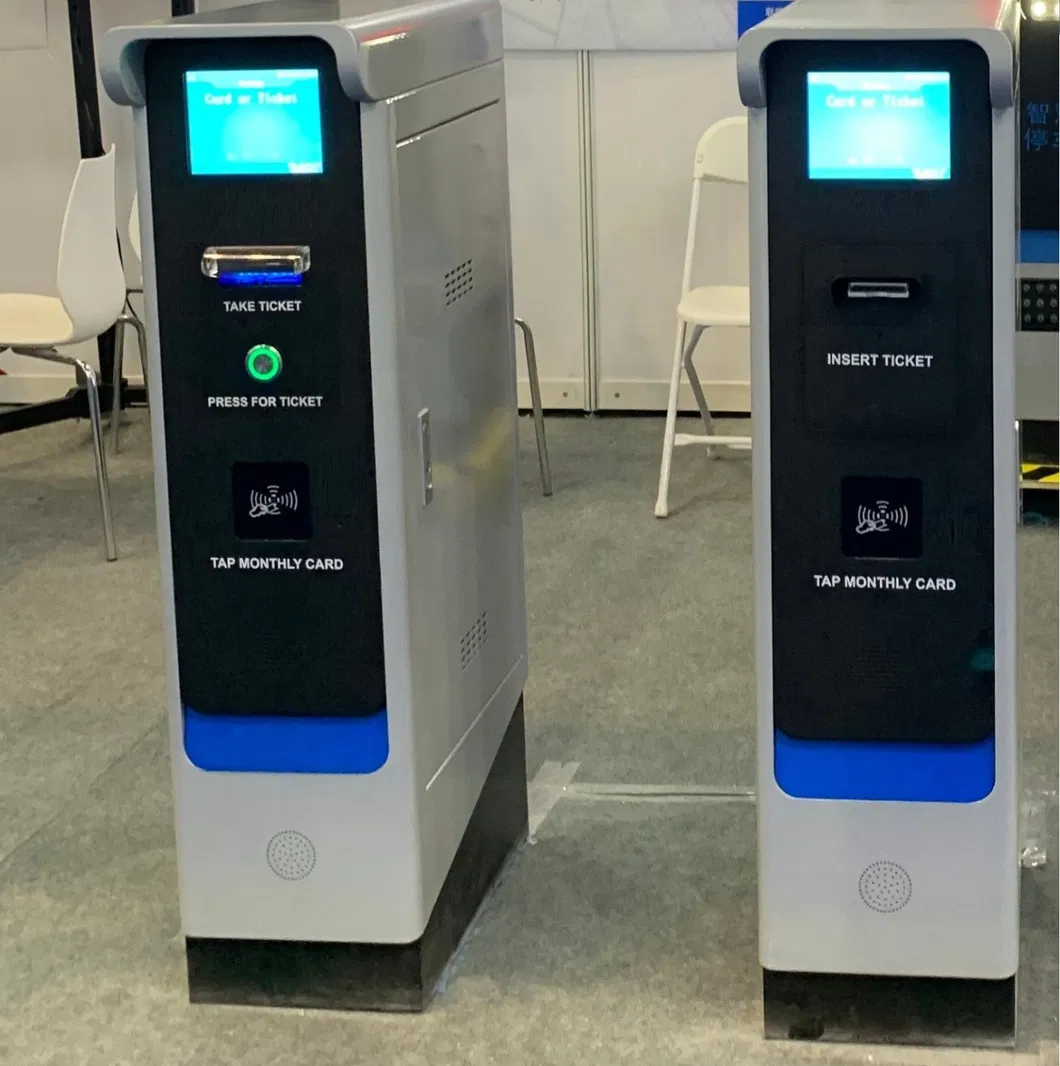

Smart Parking System Ticket Machine

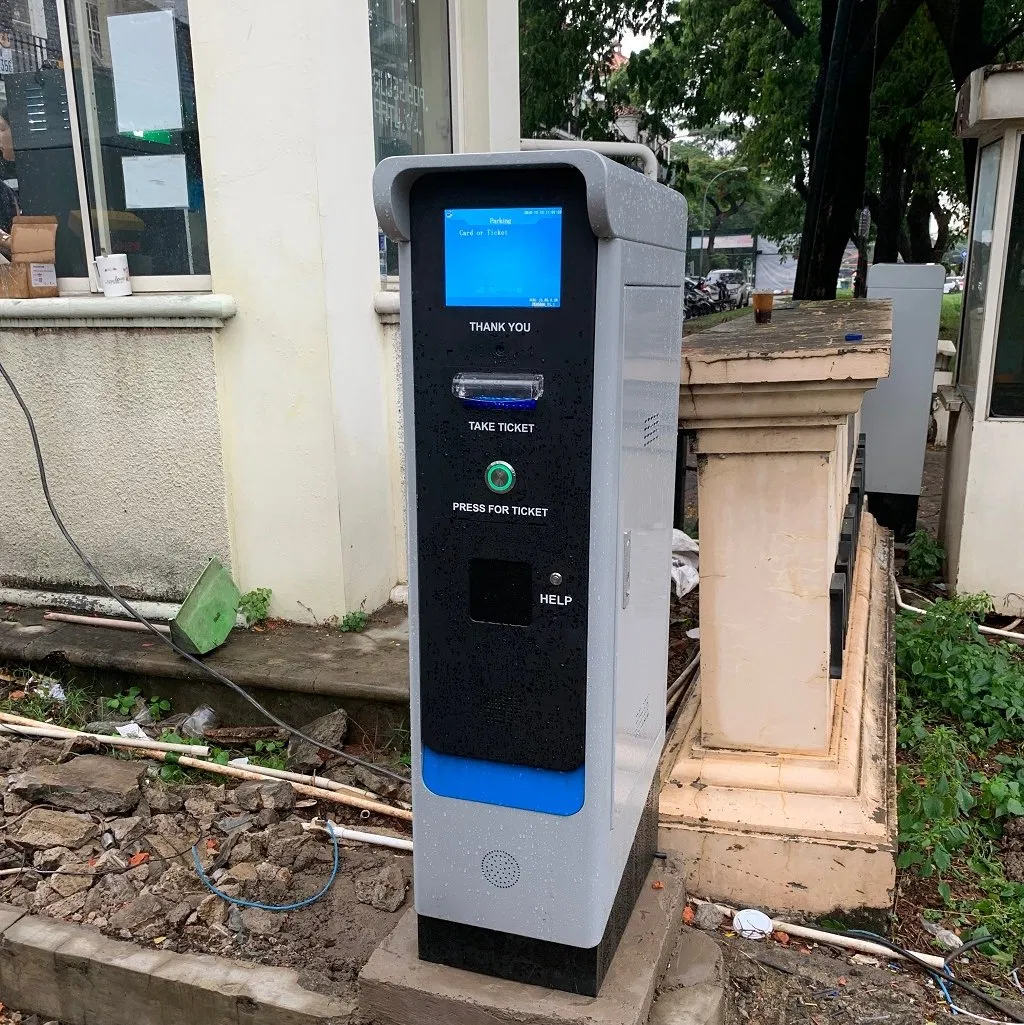

Parking Entry Station

Technical Parameters

Card Reader
Built-in IC/ID Optional
Weight
75 KG
Power Supply
DC 24V, AC110V-220V
Temperature
-35ºC ~ +65ºC
Consumption
30W - 120W (max)
Communication
TCP/ IP
  • Cold-rolled steel housing
  • Heavy duty thermal printer
  • Large size paper roll (4000 tickets)
  • Optional built-in heater
  • Optional built-in intercom
  • TCP/IP communication protocol

Case Reference

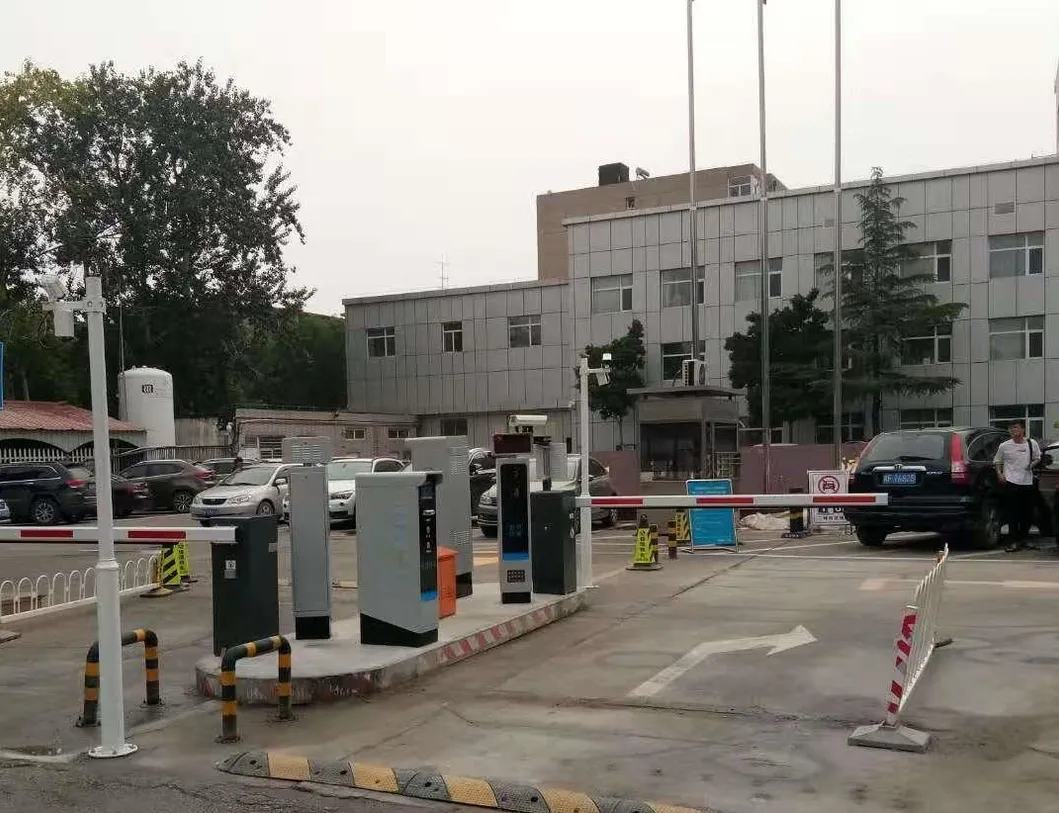

Parking Case Study 1

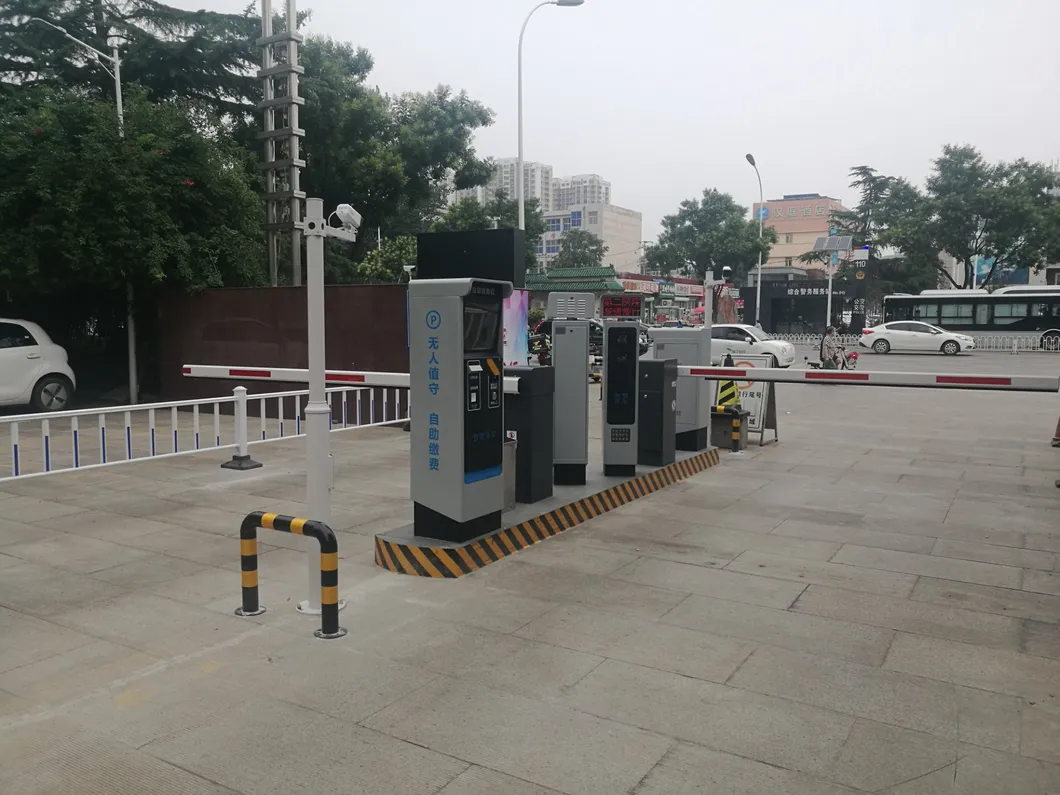

Parking Case Study 2

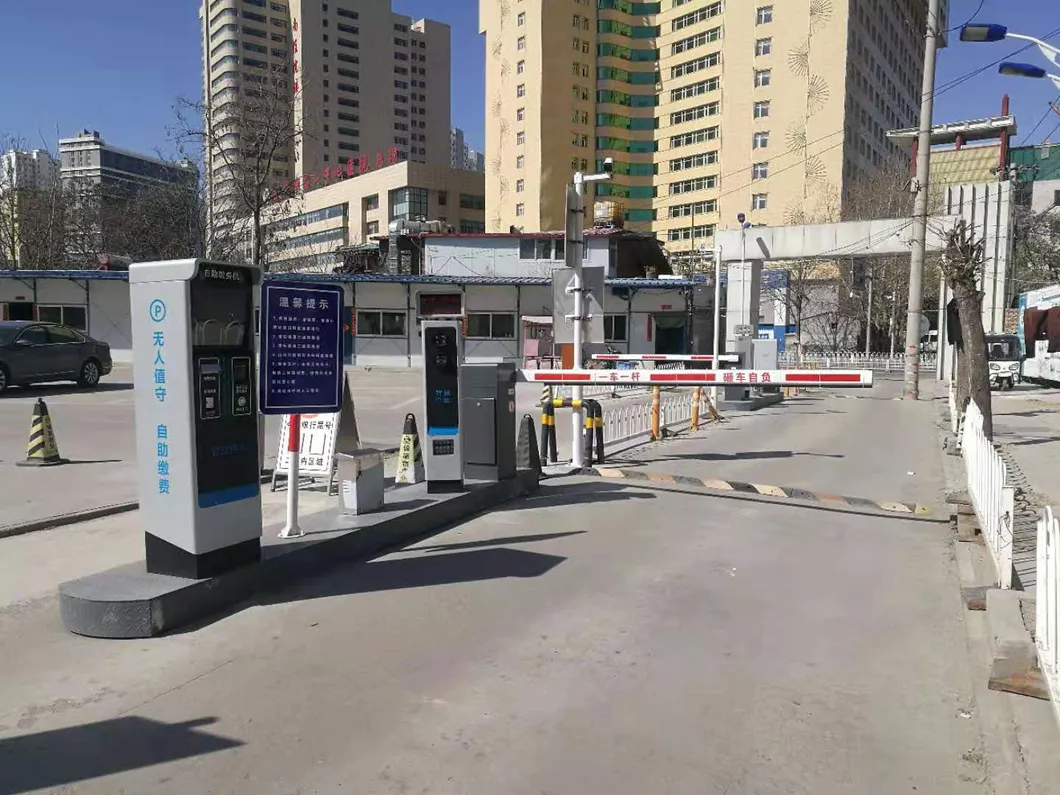

Parking Case Study 3

Packaging & Shipping

Packaging Detail 1
Packaging Detail 2
Shipping Logistics

Who We Are

A high-tech enterprise specialized in commercial automation equipment parts research, development, production, and sales services. We possess strong R&D strength, providing design and production of machines and modules, as well as customization of non-standard products and platform-level project development.

Our expertise spans embedded development, software development, and mobile development. We have successfully launched cloud parking platforms, off-street parking, and on-street parking solutions across modern urban streets, intelligent buildings, and commercial complexes worldwide.

About Us Information

FAQ

Q1: How many tickets can the dispenser hold? A1: The device features a large paper roll holder that supports approximately 4,000 thermal tickets per roll.
Q2: Can the system operate in extreme cold climates? A2: Yes, the dispenser is designed to operate between -35ºC to +65ºC and has an optional built-in heater for extreme environments.
Q3: Does the system support monthly parking subscribers? A3: Yes, it includes a built-in proximity card reader (IC/ID optional) specifically for regular monthly or seasonal parking access.
Q4: Is the housing durable for outdoor installation? A4: The unit is constructed with a cold-rolled steel housing and carries an IP67 waterproof rating for long-term outdoor durability.
Q5: What communication protocol does the system use? A5: It uses the standard TCP/IP communication protocol for reliable real-time data exchange with the central management system.
Q6: Can drivers communicate with staff if there is an issue? A6: Yes, there is an optional built-in intercom substation that allows for direct communication with the parking management office.
