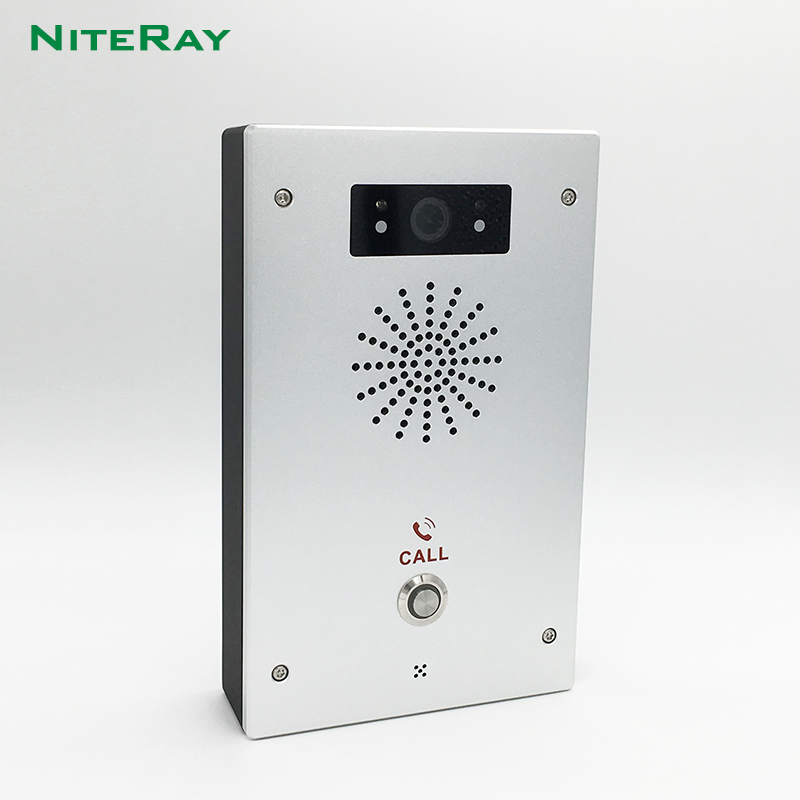

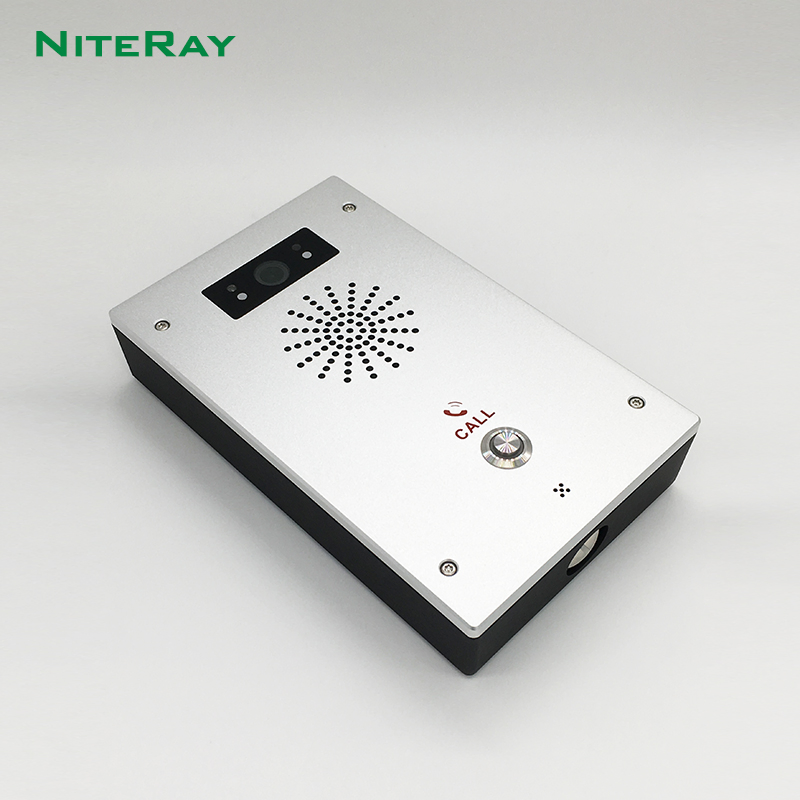

Door Opening Apartment Home Security Kit Villa Multi-Unit Cat5 Multi-Apartment Video Intercom System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
Q514
Color
Silver
Voice Service
With Voice Service
Installation
Wall-Mounted
Certification
RoHS, FCC, CE
Protocol
2 Way SIP Protocol
Waterproof
IP65
Specification
1.2kg
HS Code
8531809000
Capacity
50000PCS/Year
Product Description

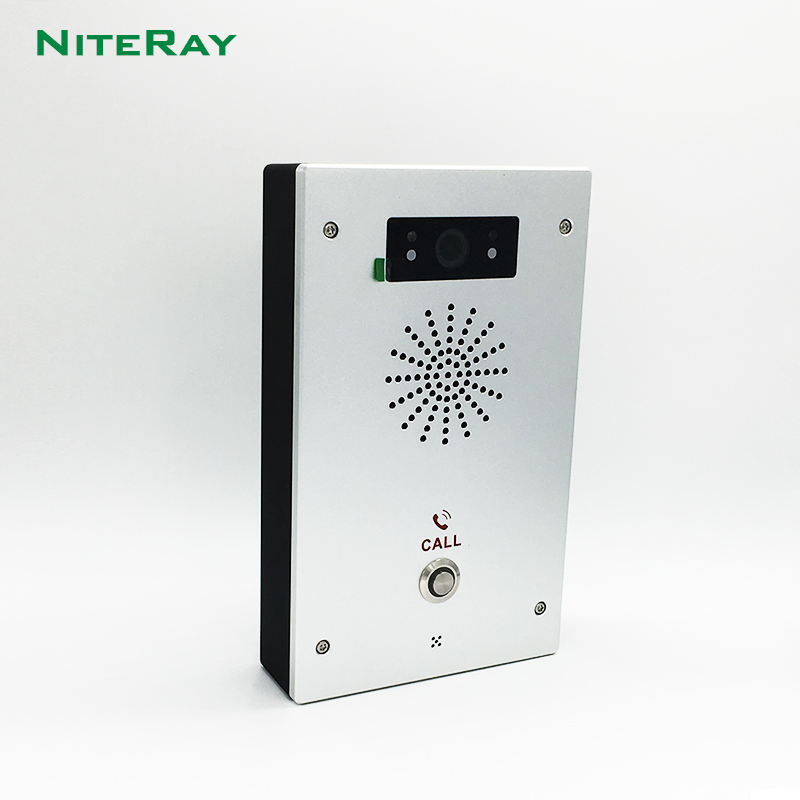

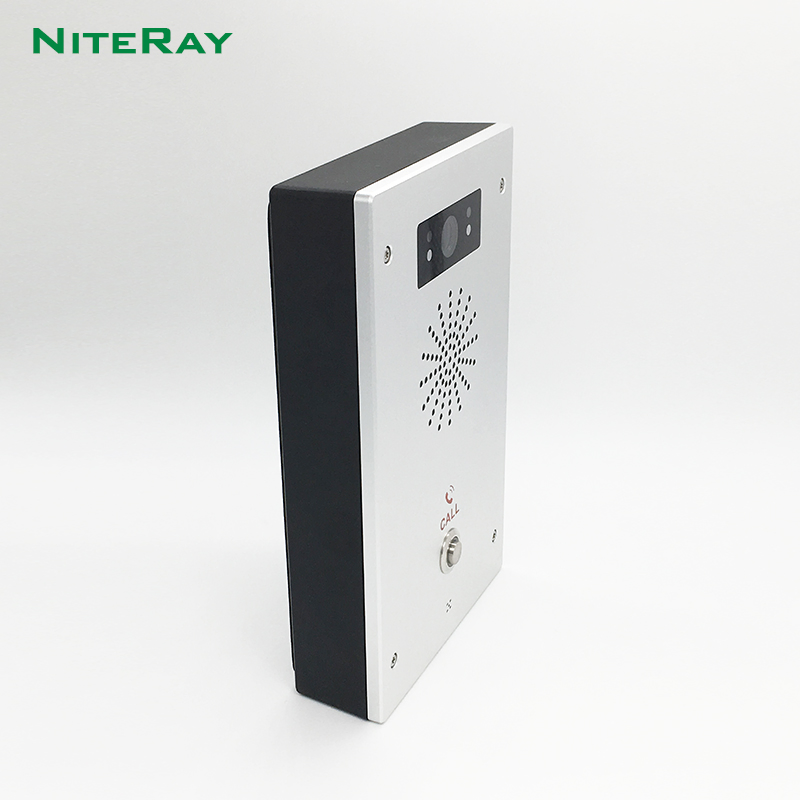

🏠 Door Opening Apartment Home Security Kit Villa Multi-unit Cat5 Multi-apartment Video Intercom System

With large volume, can be easily configured for: bank, schools, apartment, cities, parking station, building entrance, etc. (even without server/PBX), waterproof design outer case also a good security smart device for many scene uses.

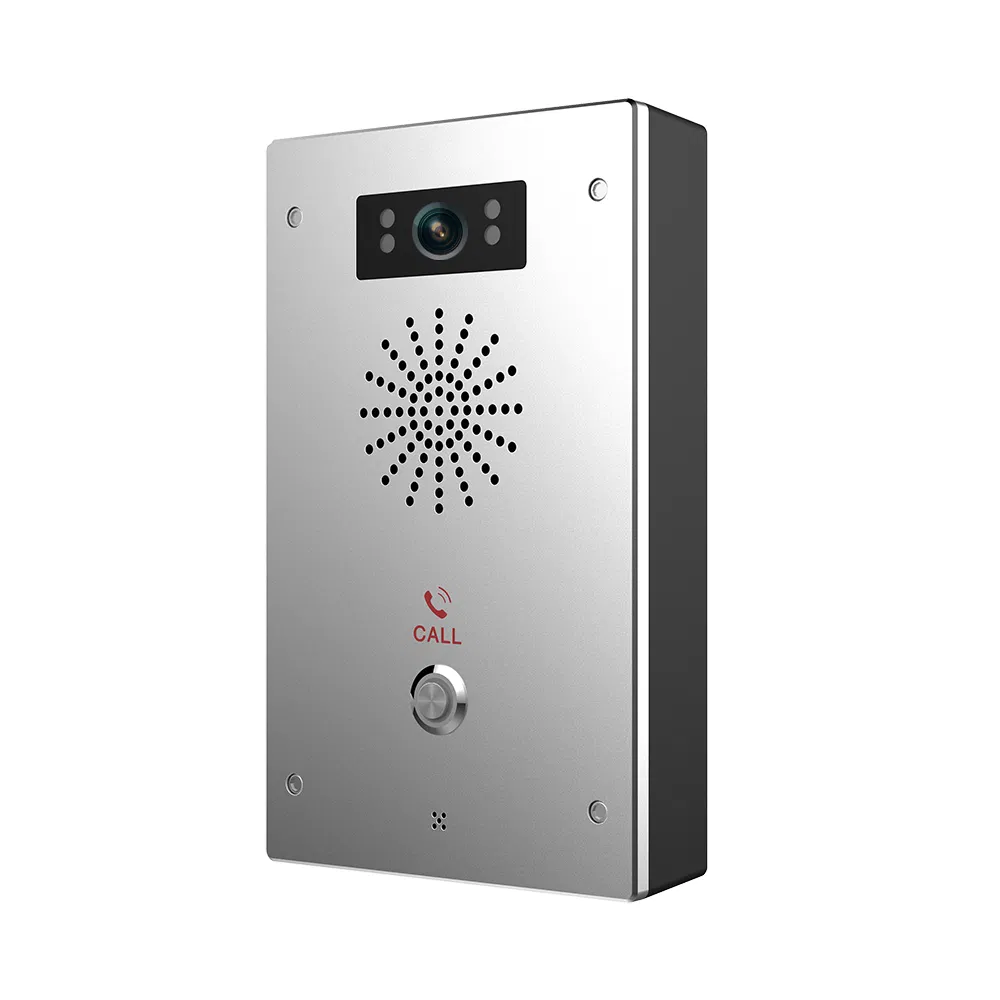

Video Intercom System

⭐ Highlights

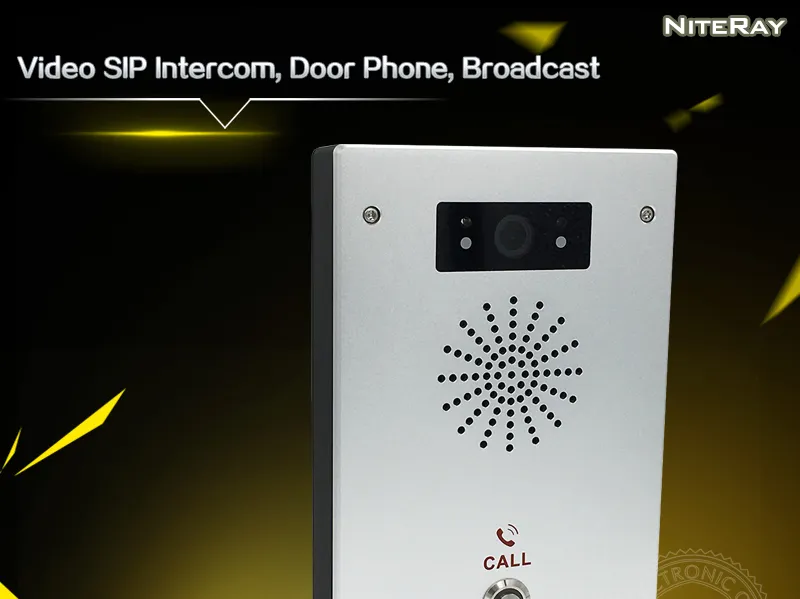

  • Professional solution for SIP video intercom, Broadcast, Paging, Door Phone
  • Video SIP door phone (Q514) with HD video/audio
  • Infrared night vision with IR LED

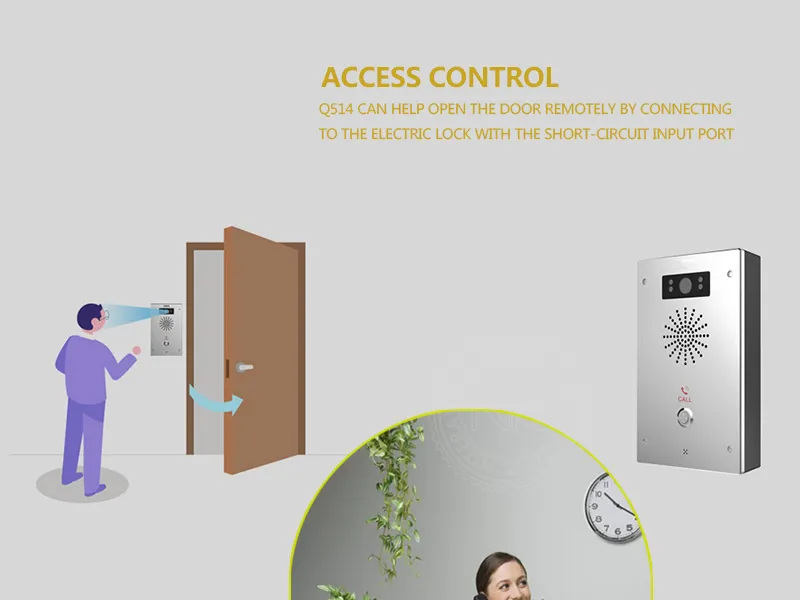

  • Relay to Connect to Door Lock, NO/NC Relay mode
  • Able to create Intercom with or without server/PBX
  • SIP Protocol, Easy to Deploy
  • Directly Call to Preset Telephone
  • Waterproof design (IP65)
  • Aluminum alloy metal box, anti-strike

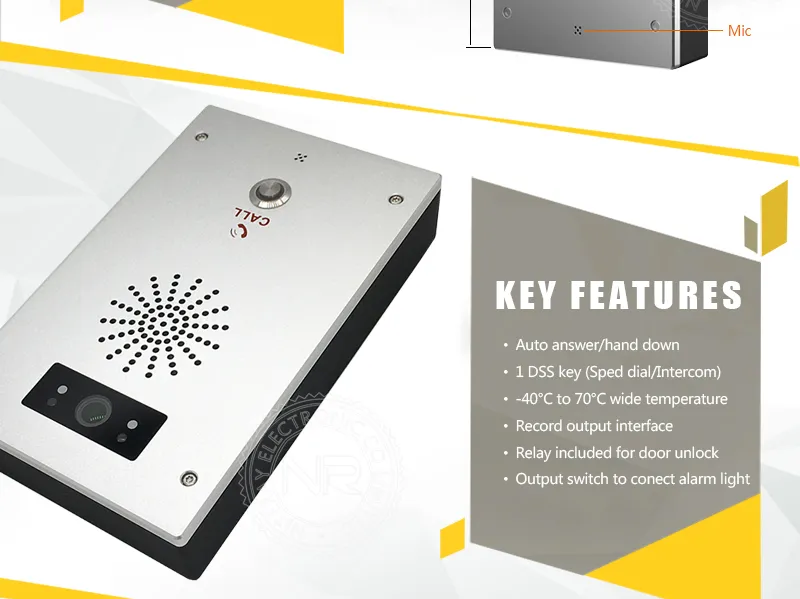

  • Full Duplex Intercom with Auto Answer / Auto Hand Down
Technical Specifications
Generic & Networking Audio & Video
• 2 SIP Lines / SIP2.0 over UDP/TCP/TLS
• Full-duplex handsfree (HF)
• Intelligent DSS Keys (Speed Dial/intercom)
• Industrial Standard: IP65 & IK10
• 10/100Mbps Ethernet
• VPN: L2TP / OpenVPN
• Sensor: 1/2.7" color CMOS / 2 Megapixels
• Codec: H.264 / 1280×720@25fps
• Viewing angle: 112° (H), 84° (V)
• Minimum illumination: 0.1Lux, IR support
• Narrowband: G.711a/u, G.723.1, G.729AB
• Wideband: G.722
Deployment & Maintenance Physical Specifications
• Auto-Provisioning
• Web Management Portal
• Configuration Import and Export
• Firmware Upgrade / Syslog
• Action URL / Active URI

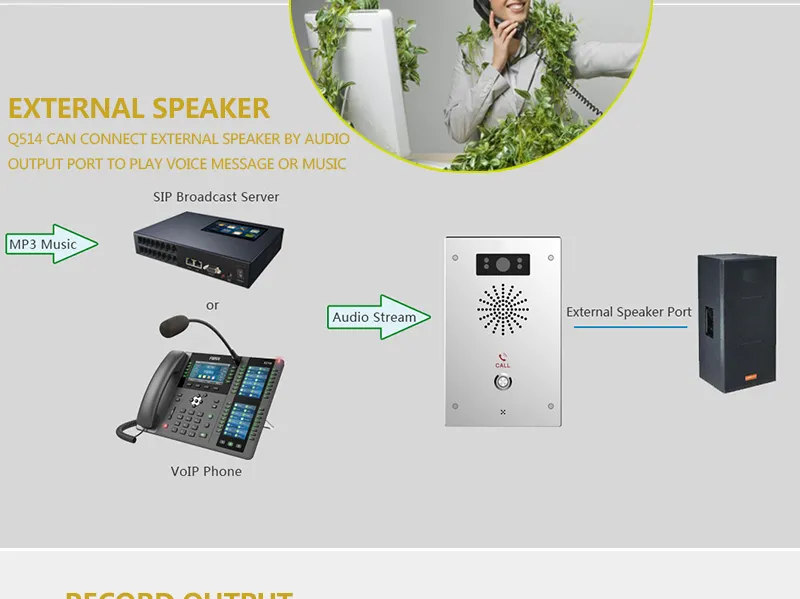

• 1 RJ45 port / 1 Audio output interface
• 2 Relays: MAX DC30V/2A
• Power: DC12V/1A or PoE
• Housing: Aluminum alloy shell

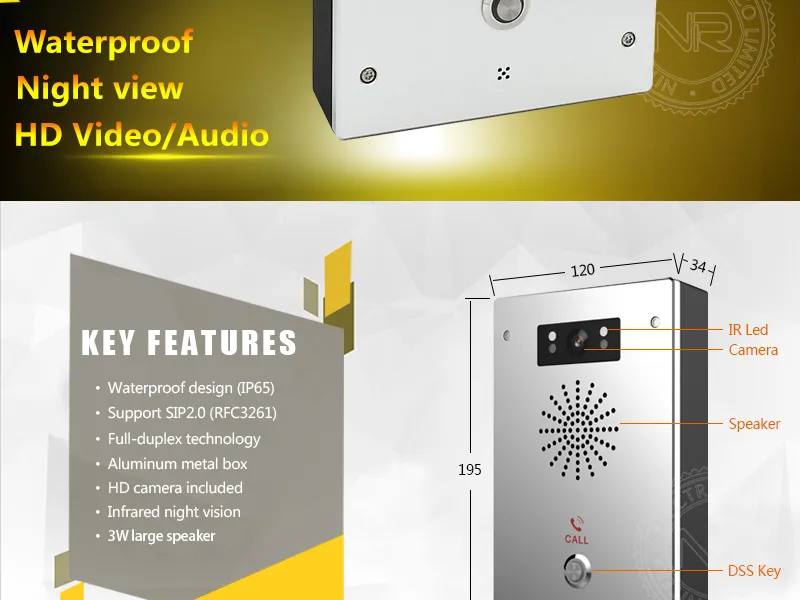

• Dimension: 195x120x34mm
• Working Temperature: -40 ~ 70°C
Frequently Asked Questions
Does this intercom system support PoE power?
Yes, the device supports both DC12V/1A and PoE (Power over Ethernet) power supply options for flexible installation.
Is the device suitable for outdoor use?
Absolutely. It features an IP65 waterproof rating and an IK10 anti-strike aluminum alloy shell, making it durable for various outdoor environments.
Can it work without a SIP server or PBX?
Yes, the system is designed to create intercom connections with or without a central server or PBX, allowing for versatile configurations.
What is the video quality of the Q514 model?
The Q514 is equipped with a 2 Megapixel color CMOS sensor, supporting HD video resolution up to 1280×720 at 25fps.
Does it support night vision?
Yes, it features infrared night vision with built-in IR LEDs, ensuring clear visibility even in low-light conditions.
What is the operating temperature range?
The device is built for extreme environments, with a working temperature range of -40°C to 70°C.
