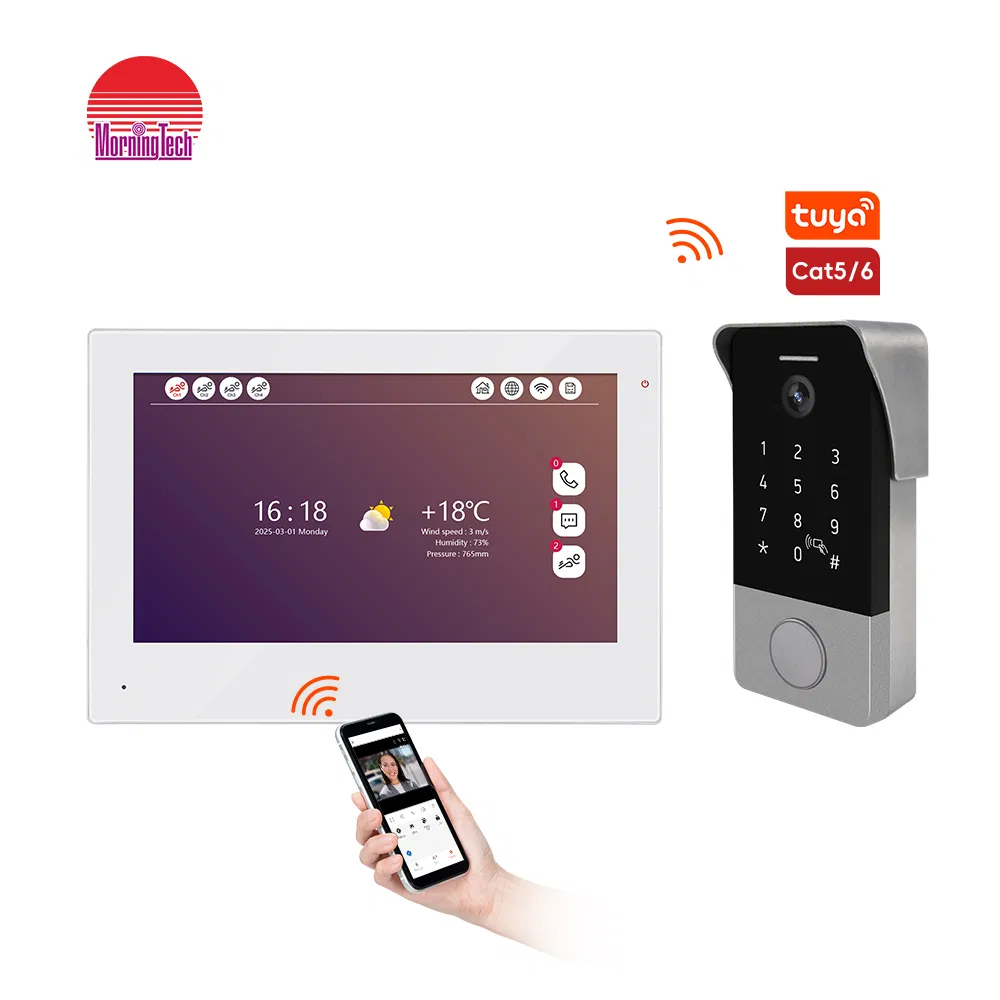

Video Doorphone Intercom System Multi Apartment Video Doorphone Intercom System

Customization:	Available
Night Vision:	With Night Vision
Type:	Wired

Basic Information

Model NO.

97703+97236

Color

White

Voice Service

Without Voice Service

Installation

Surface-Mounted

Certification

RoHS, FCC, CE

Resolution

1024*600

Power

DC15V, 0.8A / AC100-240V 50/60Hz

Screen

7 Inch IPS Screen

Camera

AHD 1080P

APP

Tuya Smart

Product Description

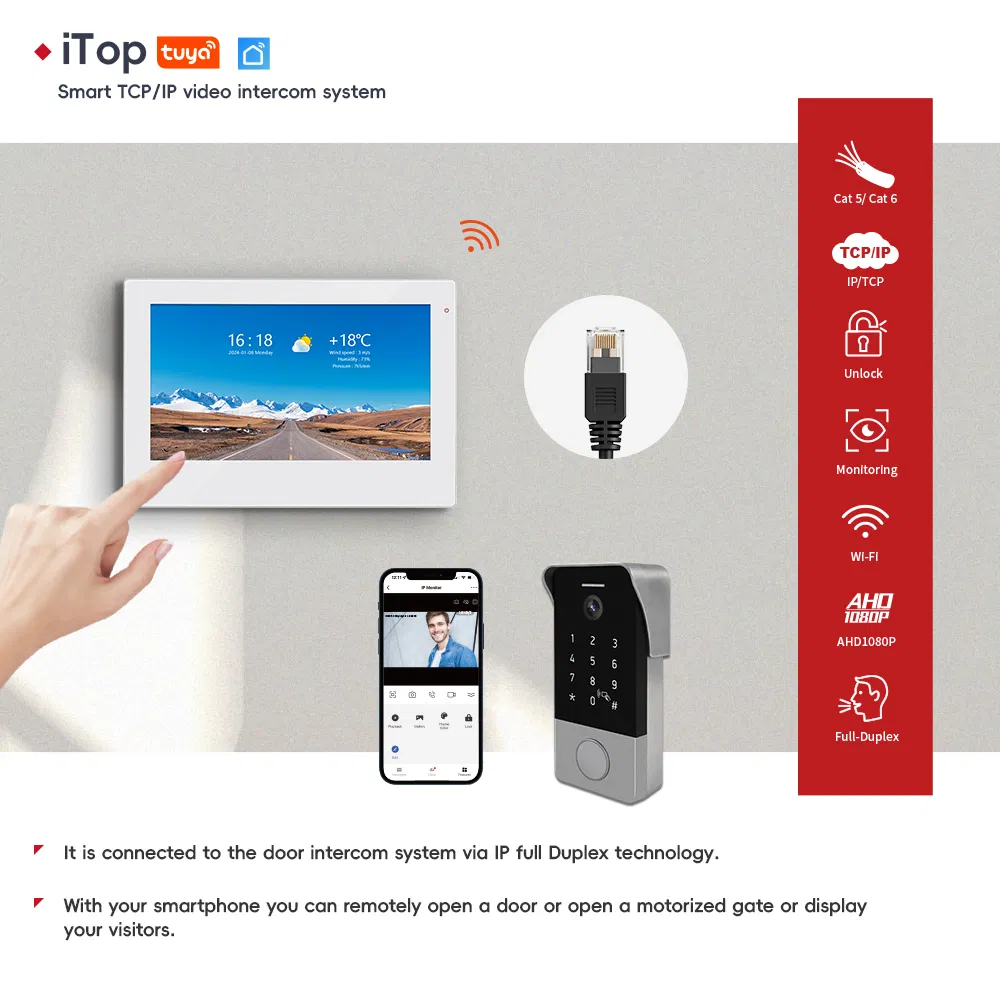

Memory Card Function Tuya Smart Intercom 7" Touch Screen Mobile Phone Remote Home Automation Video Door Phone

Main Features:

7" Touch button HD display 1024x600
Signal support 800TVL / 720P / 1080P
Signal formats support CVBS / AHD / TVI / CVI
10 polyphonic ring-tones switch freely
With TUYA APP control
Customized fancy start-up logo support
Easy DIY connection to the WiFi
Simple steps to add device to Tuya APP
Setup within 1.5 mins
Support Ethernet connection
Server covers 190+ countries
Connection: Cat5/Cat6

Indoor Monitor Functions:

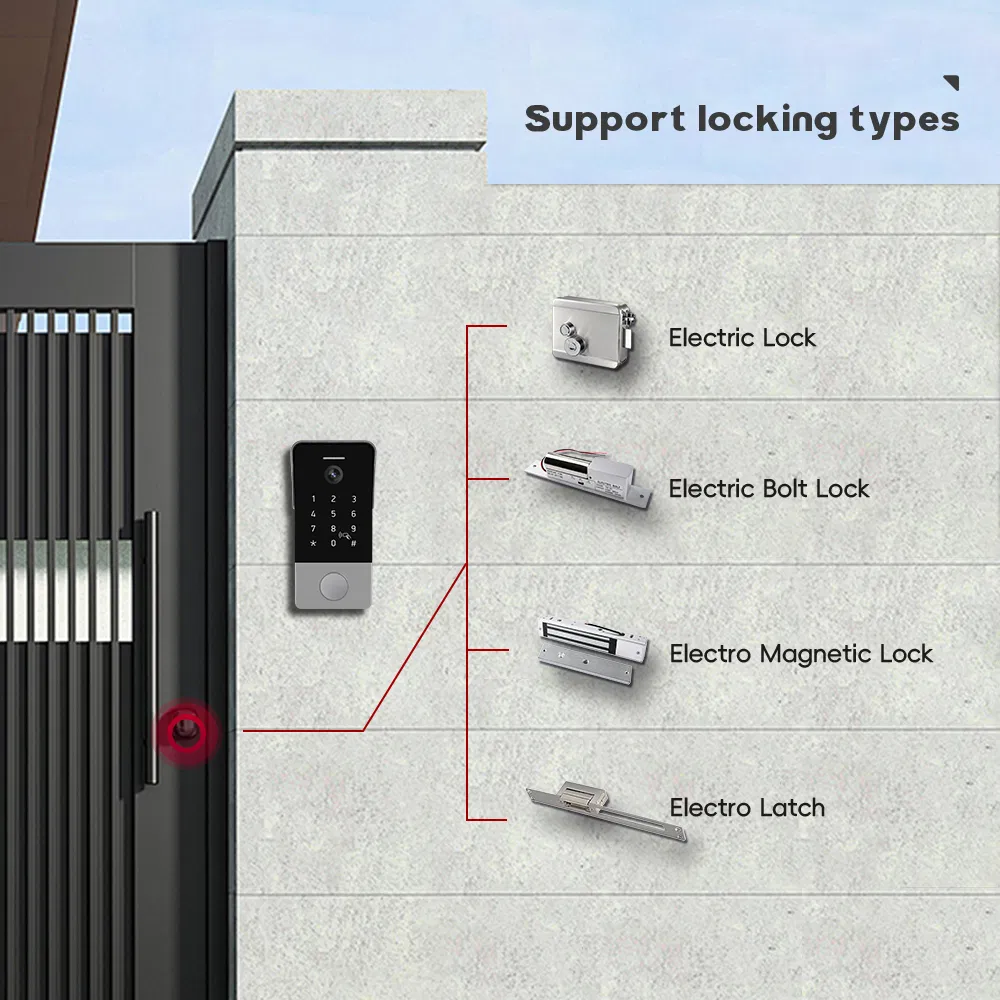

Hands free intercom & Lock control
Don't disturb function
Support micro SD card
Auto message leave
Video & audio recording
Motion detection DVR function
Image capturing function
Multimedia: Photo Frame, Music Playing

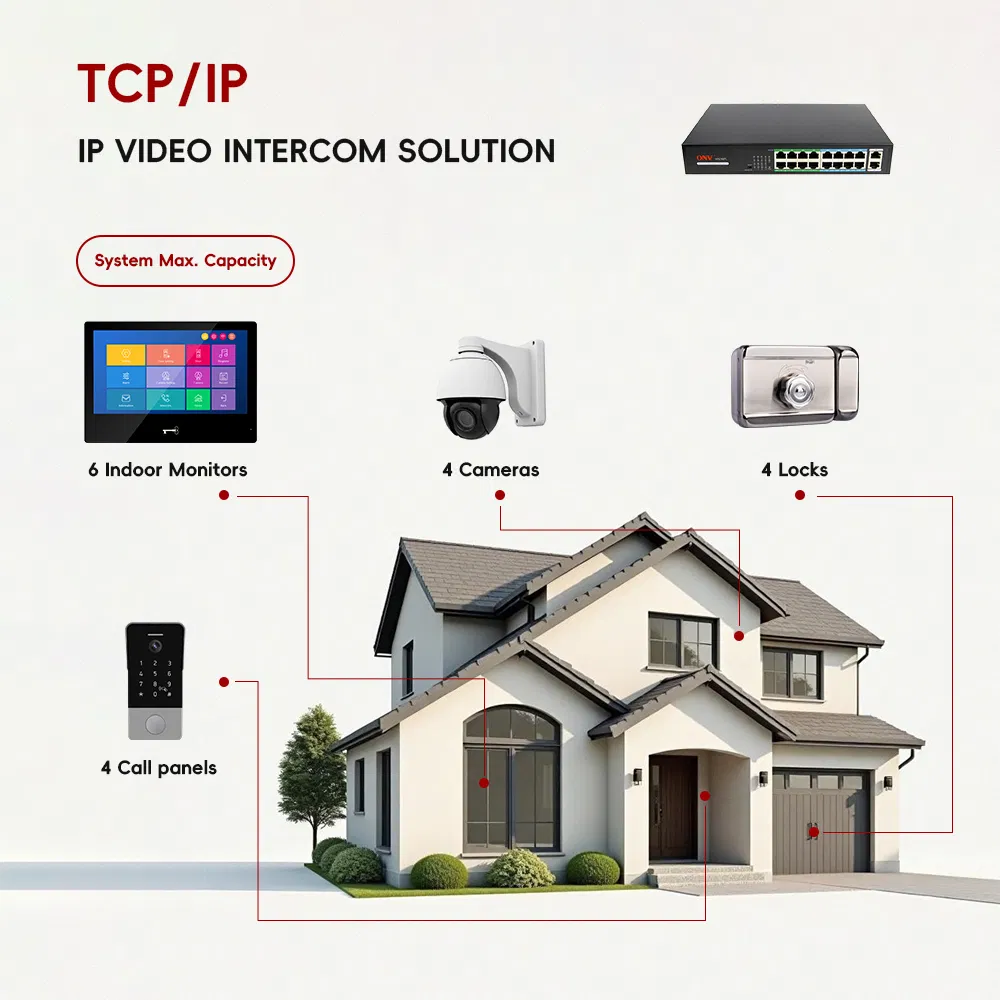

Supports 2 Doorbells + 2 CCTVs + 6 Monitors
Adjustable Color, Brightness & Contrast
Real-time monitoring
Broadcast & Monitor Listening

Outdoor Doorbell Specifications

Resolution	800 TVL/720P/1080P (Optional)
Type of signal	AHD/CVBS/CVI/TVI (Optional)

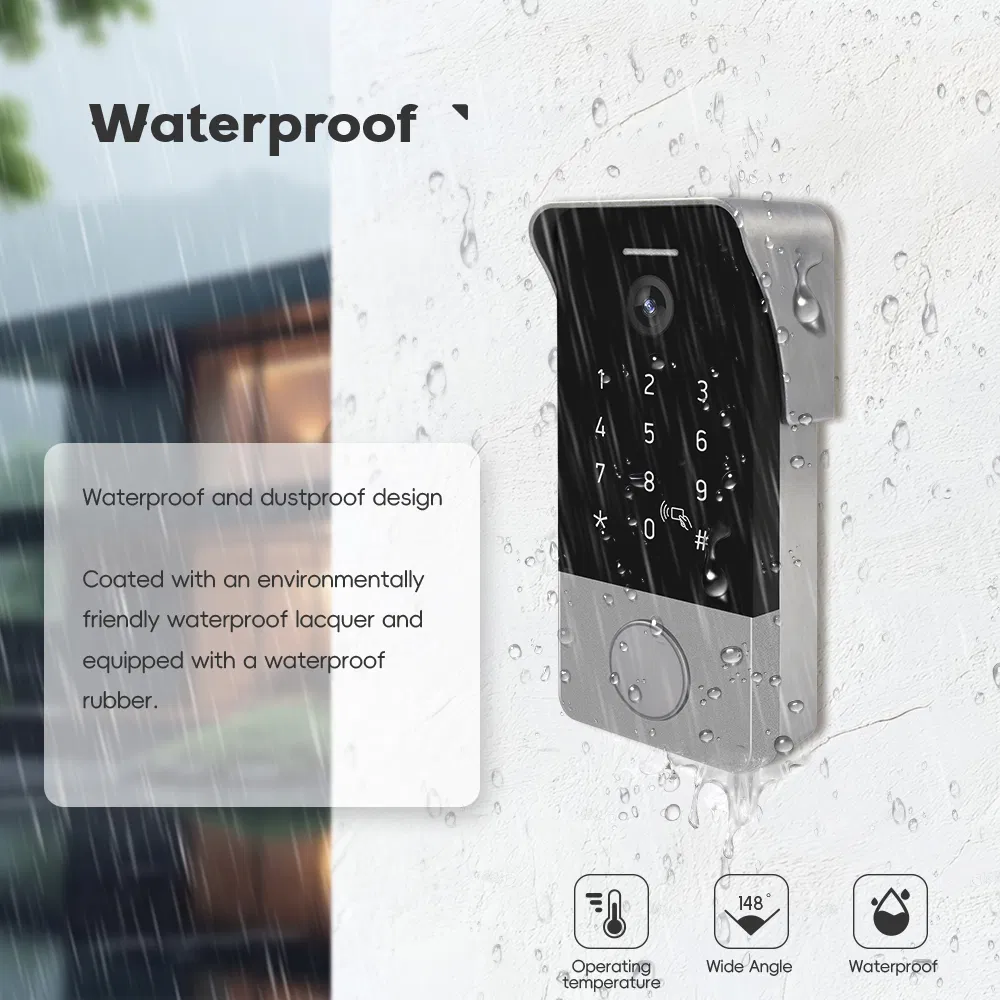

Waterproof	IP65 Rating
Temperature	-40ºC to +50ºC
Viewing Angle	150 Degrees Wide Angle
Power Voltage	DC 10V-15V

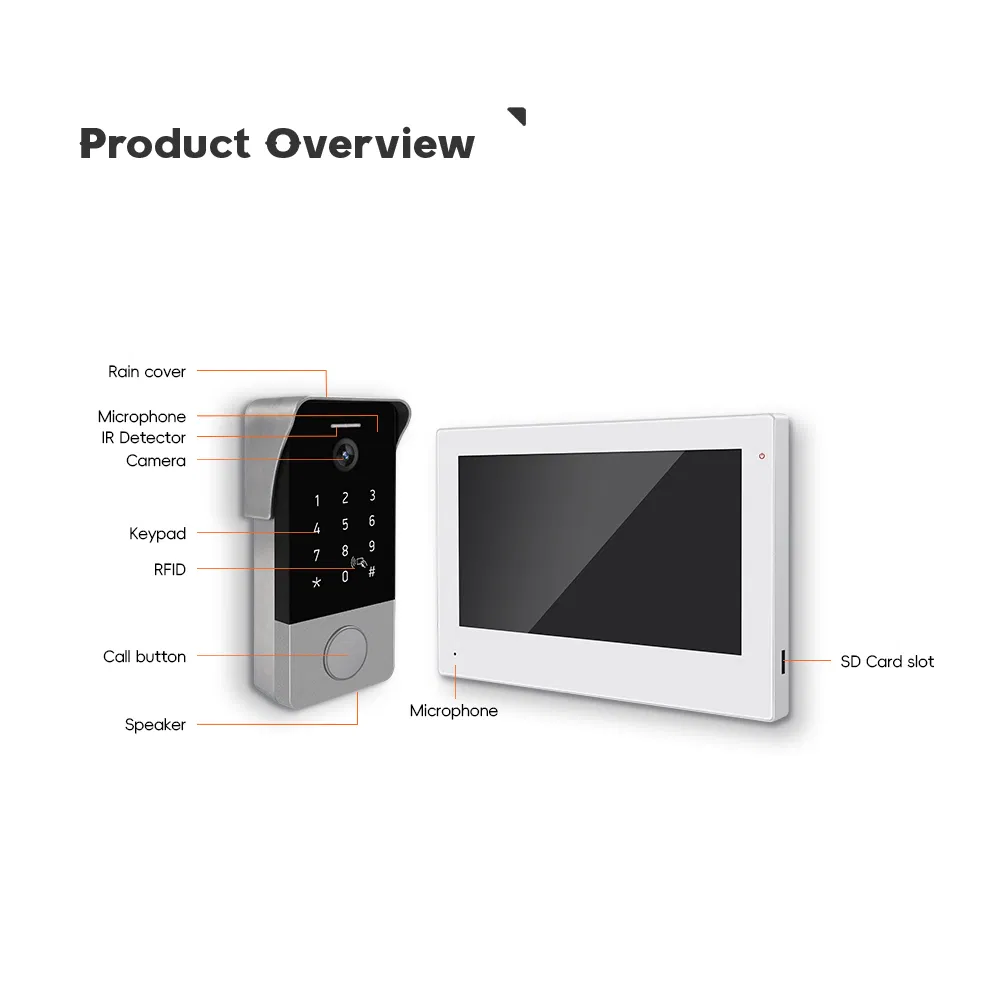

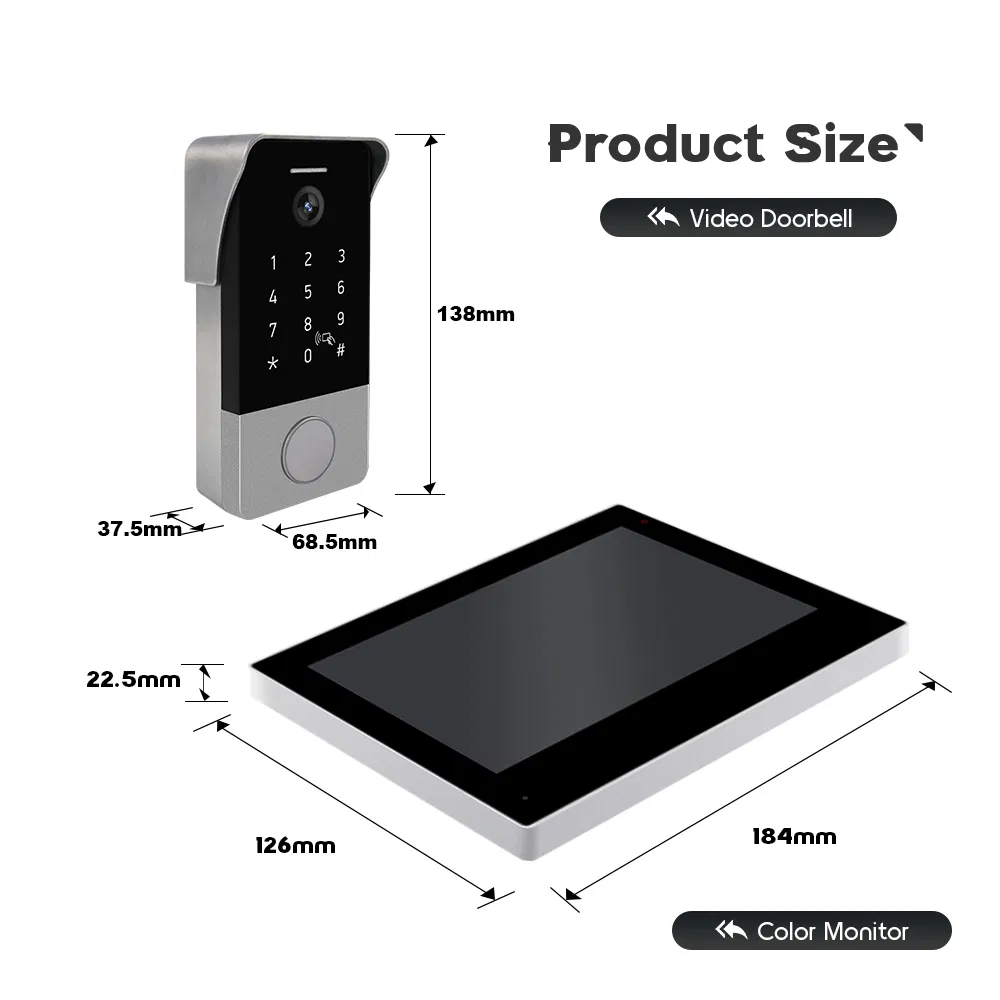

Detailed Product Photos

Company Background

Our company was founded in 2016 by a diligent and enterprising team with extensive expertise in video door phone systems. Amidst a market saturated with traditional analog VDP products, our technical director resolved to innovate by developing an AHD door phone system. In 2017, we took the lead in launching the AHD720P door phone system. Six months later, the introduction of the AHD1080P model captured the interest of global clients seeking high-quality video security. Since then, we have continued to lead this path of innovation.

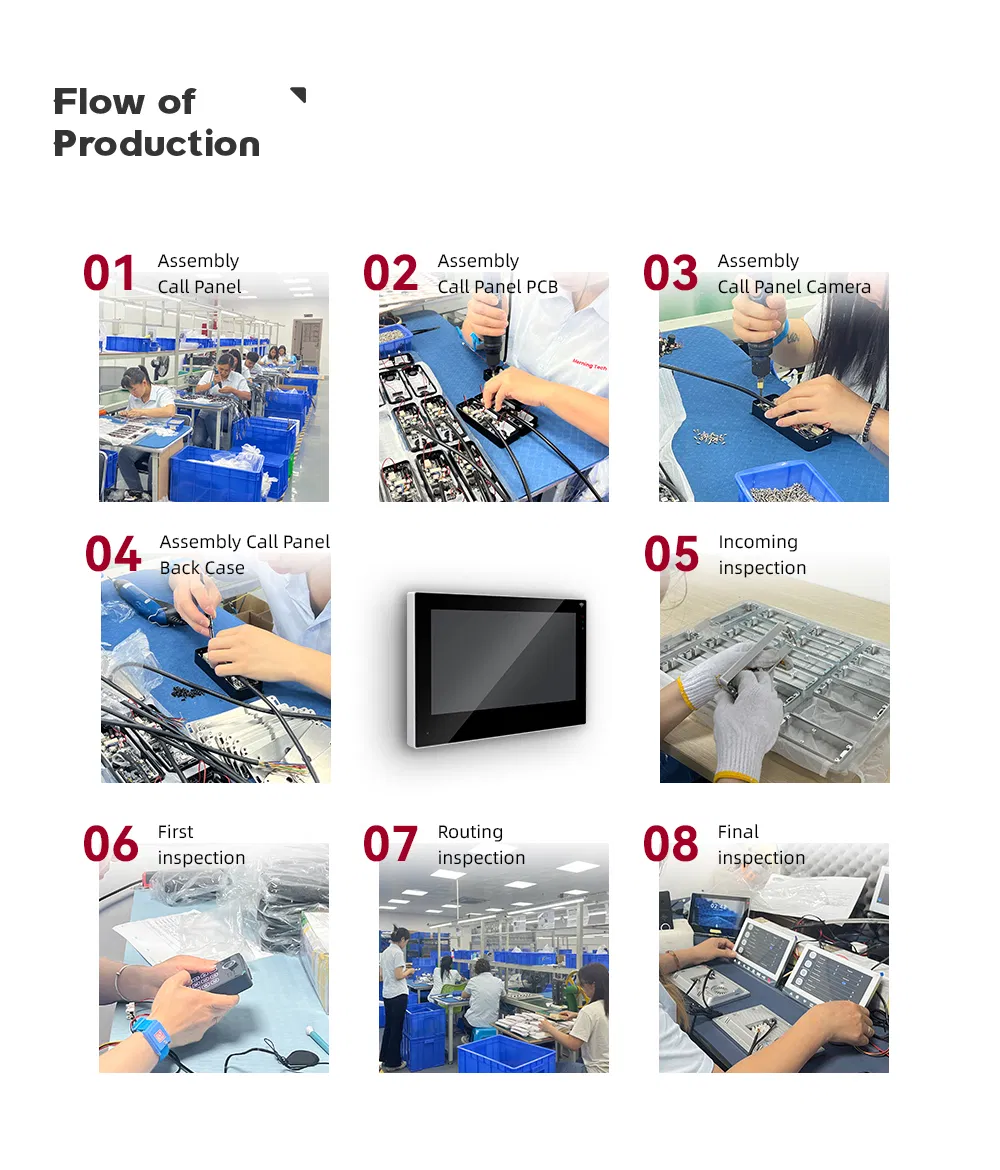

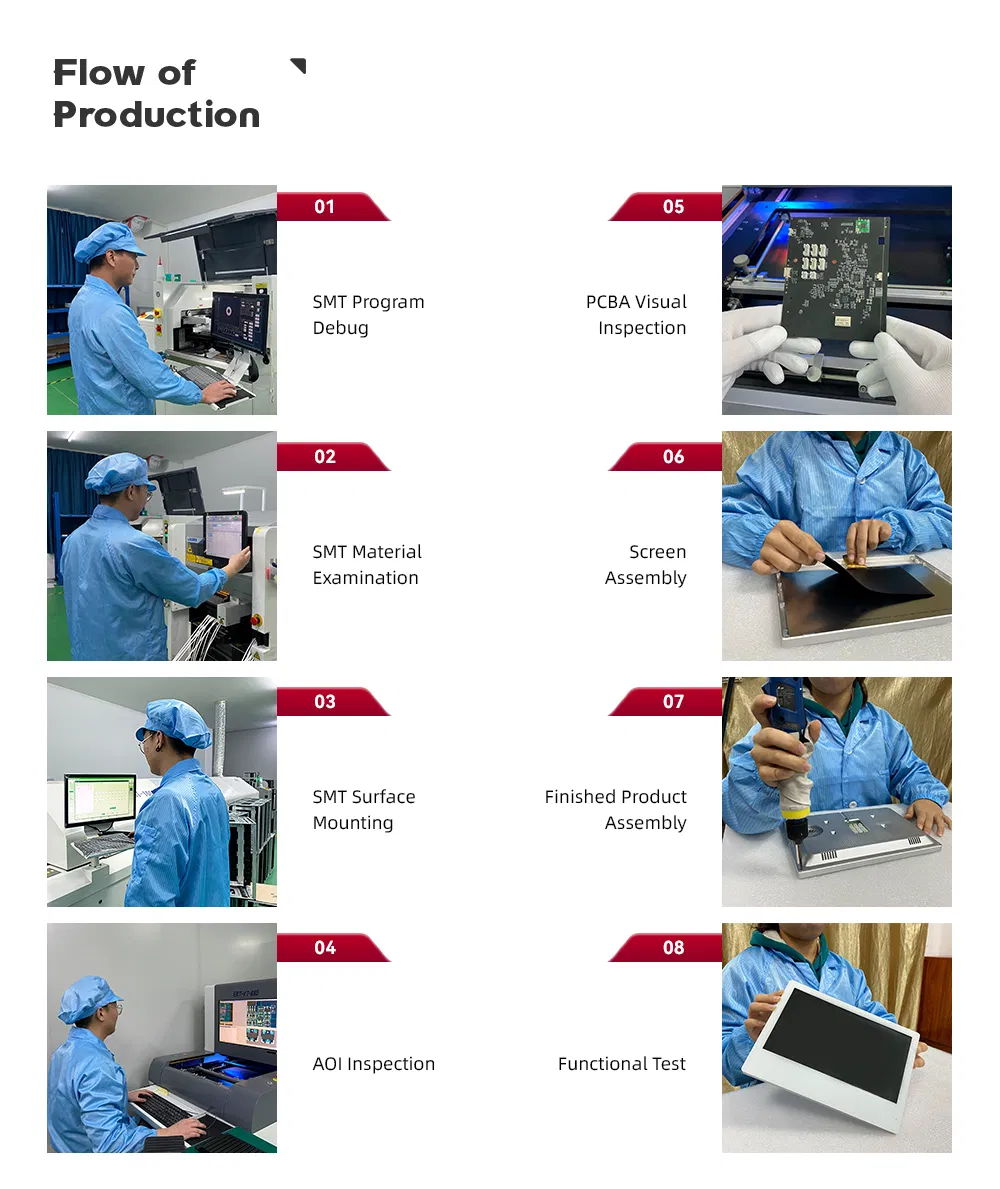

Production & Exhibition

Certifications

Frequently Asked Questions

Can smart locks be integrated?

Our system is compatible only with our company's exclusive smart lock. They can be sold together with our smart lock and video doorbell to ensure seamless integration.

Is it possible to customize packaging or logos?

Yes. The minimum order quantity (MOQ) is 100 pieces for boot logos and silkscreen logos. For paper manuals and customizable packaging, the MOQ is 500 pieces.

Does the IP video doorbell support wireless cameras?

Currently, it supports IP cameras that use the ONVIF protocol. It does not support Web RTSP or SIP protocols at this stage.

Is your video doorbell based on Android?

We are a professional developer of AHD video door phones. With our own R&D department and over 10 years of experience, our systems are built on a stable Linux architecture.

What is the minimum quantity for sample purchases?

The MOQ for the first sample order is 1-2 kits. For subsequent wholesale orders, the MOQ ranges from 5 to over 500 pieces depending on customization needs.

What cables are required for connection?

The system supports standard Cat5 or Cat6 wiring for easy installation and high-speed signal transmission.
