CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. With an embedded relay, it is designed to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, NFC tags, ISO14443B, iCLASS Seos® |
| SAM Slot | ISO7816 (T=0, T=1) 1 SAM module |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit control |
| Offline Logs | 10,000 users / 50,000 logs |

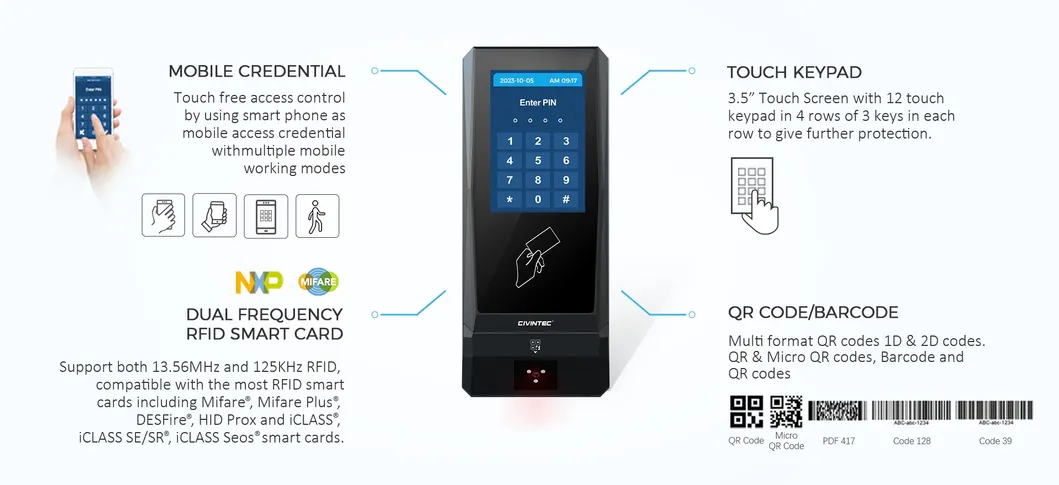

Multiple Access Credentials

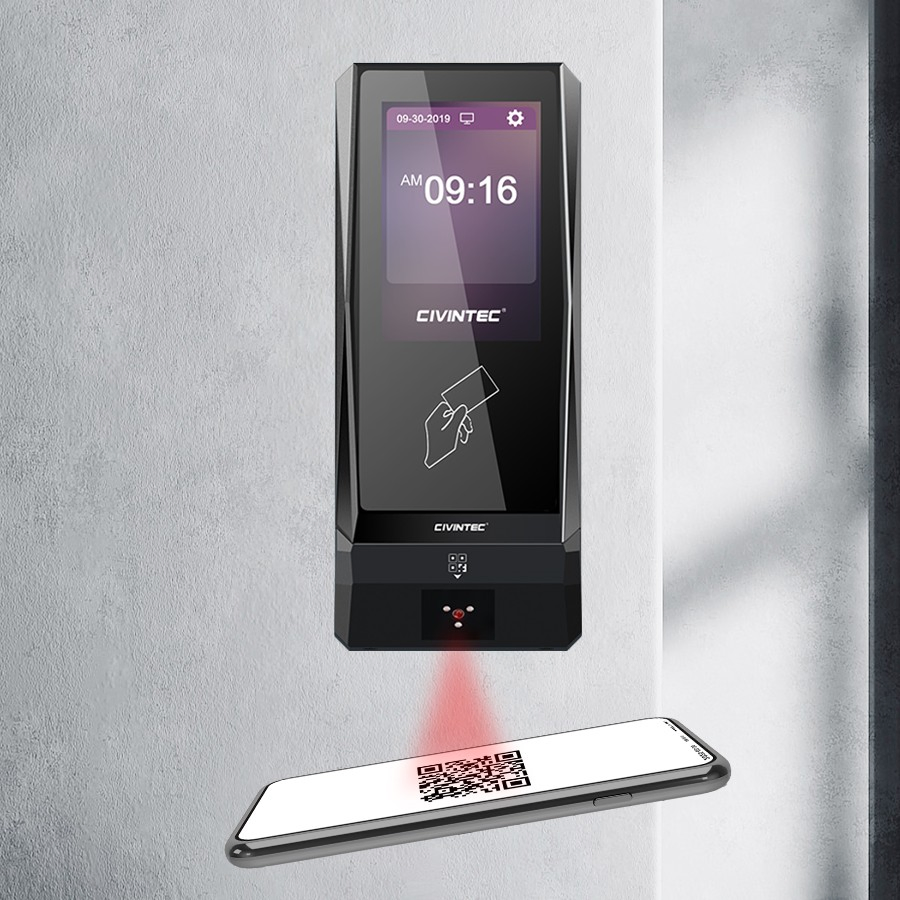

Incorporates 5-in-1 technologies: touch keypad, RFID dual-frequency smart cards, BLE & NFC mobile access, and QR CODE/barcode for versatile visitor management.

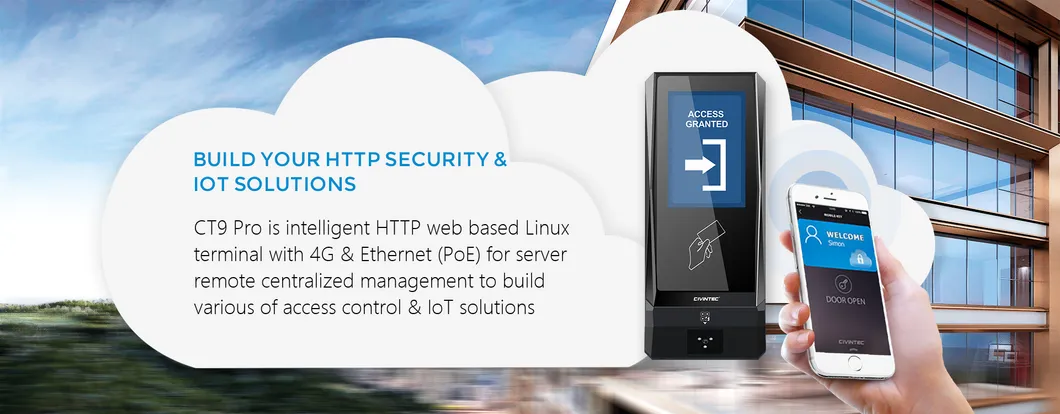

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and IoT facility management.
Weather-Resistant Protection
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
Leading designer and manufacturer of access control devices, offering customization on hardware, housing, firmware, and software design. Users can program and display their own logo on the 3.5" touch screen.
Frequently Asked Questions
Q: What types of credentials does the CT9 Pro support?
A: It supports 5-in-1 credentials: RFID (125KHz & 13.56MHz), Mobile NFC, BLE, QR Code/Barcode, and Touch Pincode.
Q: Is the device suitable for outdoor installation?
A: Yes, the CT9 Pro is IP65 waterproof and UV-resistant, making it perfect for various outdoor and rugged environments.
Q: How does the device communicate with a server?
A: It supports bi-directional communication via standard HTTP or HTTPs protocols over WiFi, 4G, or TCP/IP Ethernet.
Q: Does the terminal support Power over Ethernet (PoE)?
A: Yes, it is compatible with PoE IEEE 802.3af, in addition to standard 12-24V DC power supply.
Q: Can I customize the interface on the touch screen?
A: Yes, users can program the 3.5" touch screen to display their own branding or specific logos.
Q: What is the storage capacity for offline use?
A: By default, it supports up to 10,000 card users and 50,000 event logs, with options for more on request.
