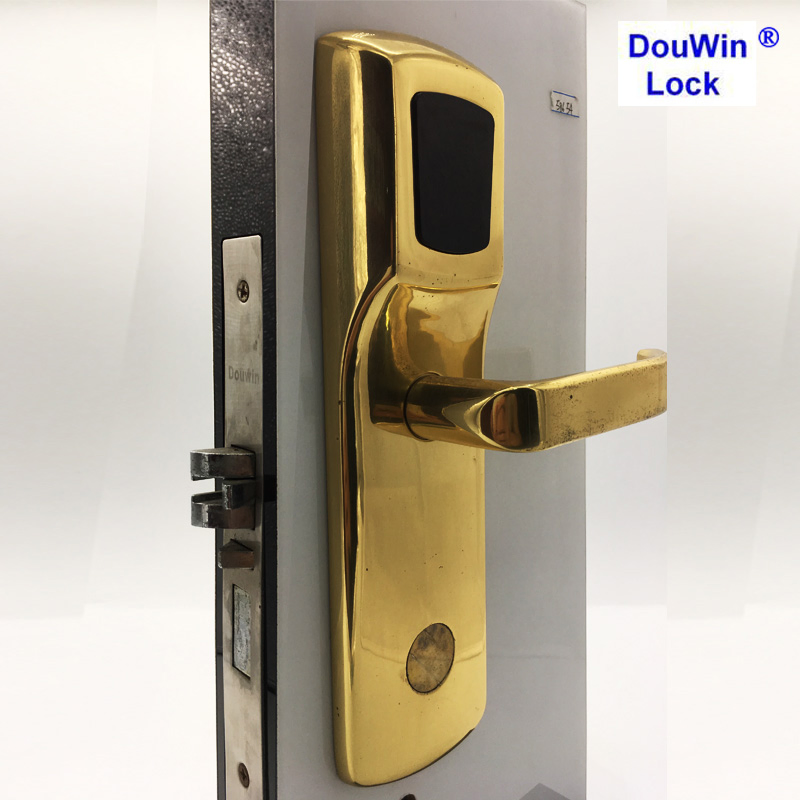

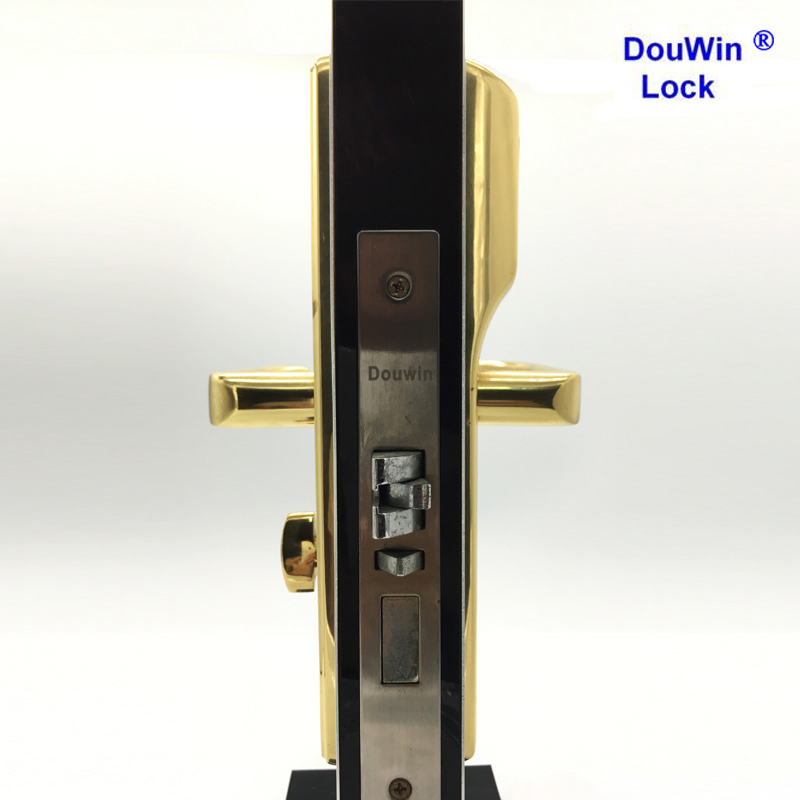

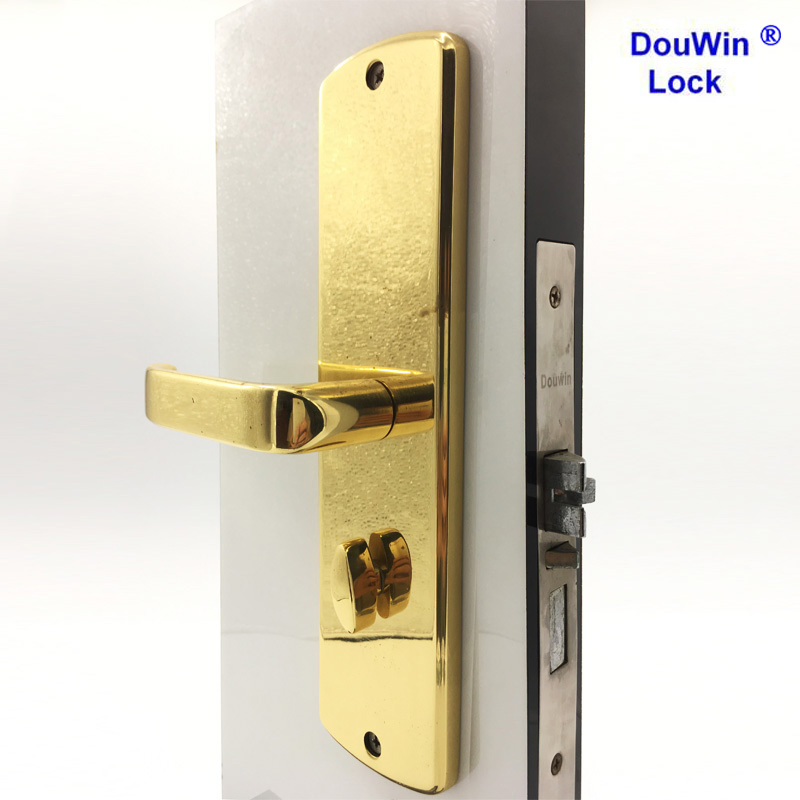

Hotel Card Door Lock System with Smart Key Card Door Lock System

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Basic Information
Model NO.
586MFGB
Surface Treatment
Brushed
Style
Modern
Power Type
DC
Certification
CE, FCC
Color
Silver
Suitable for
Home & Hotel Door
Door Thickness
30-55mm
Card Type
Smart Card Type
Emergency
Mechanical Key
Battery
4 AA Batteries
HS Code
83014000
⚙️
Product Description

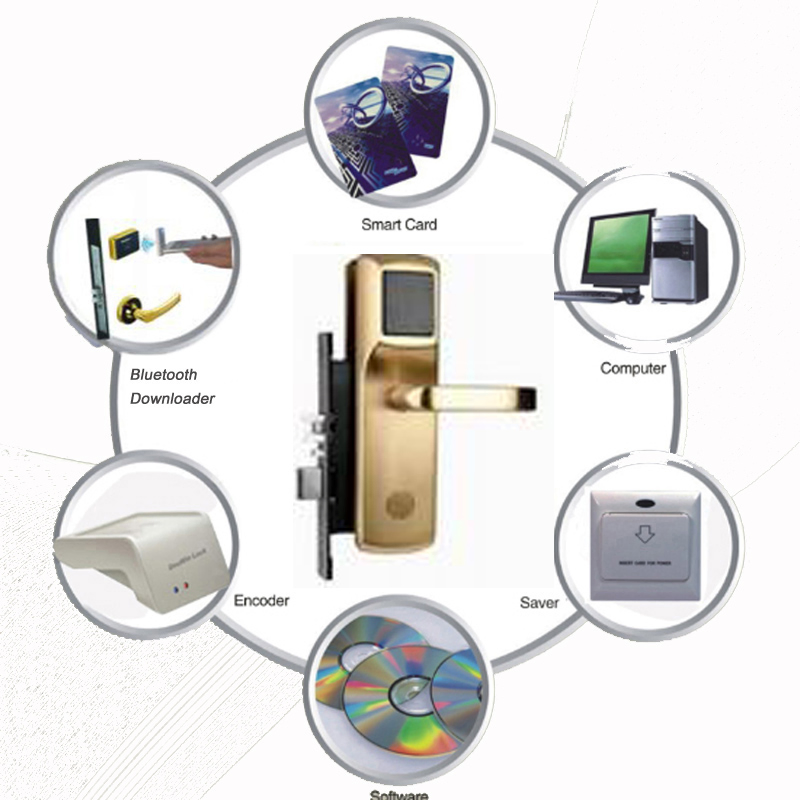

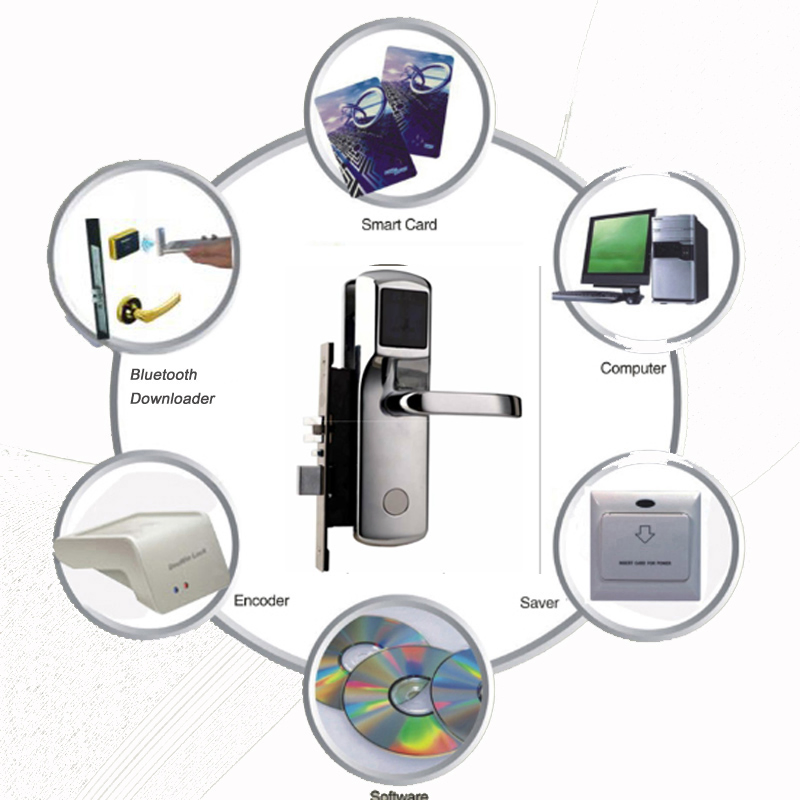

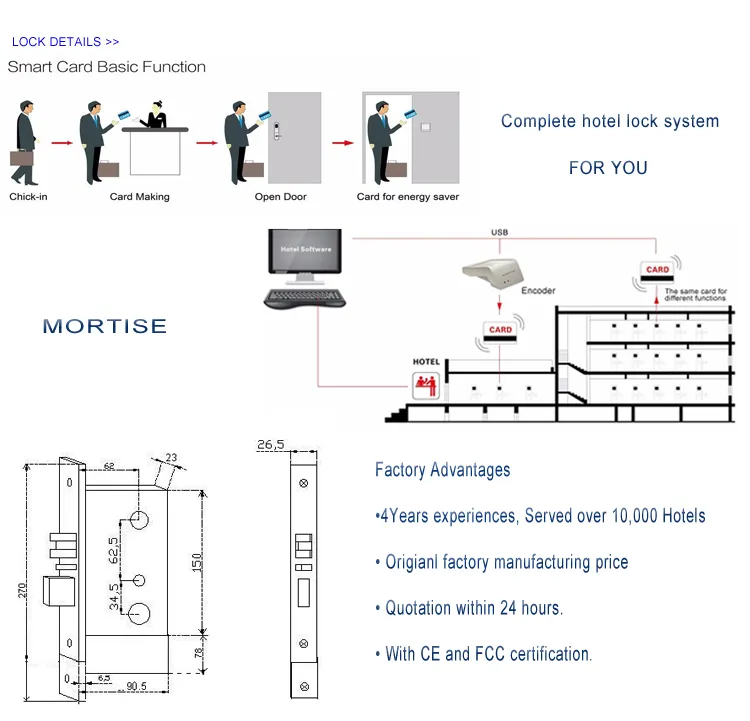

Basic System Configuration
LockFor guest room
EncoderFor authorize card, when need software management
Energy saver switchTo gain power for the room (optional software managed)
CardTo open doors
Date gatherTo collect entrance information
SoftwareFree, permanent, packed with Encoder
Extended Function
Access controlFor common area, or main doors etc. same software, same card
Elevator controllerFor elevator. same software, same card
Room statusFor guest room, come with door bell
Technical Features
Applicable cardID, TEMIC, MIFARE®: 100,000 times life
MaterialZinc Alloy with chrome plated: moisture proof, fire retardant.
Panel surface finishingPVD-durable for 15 years at least
Power supply4 pcs AA alkaline batteries
Battery life8-12 months in normal state
Low voltage warningWarning when power < 4.5V; can still unlock 50 times
Static consumption< 30 uA
Working temperature-25C ~ 55C

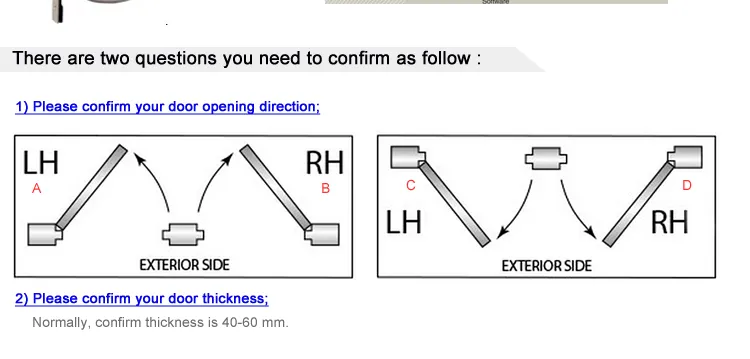

Door thickness32-60mm (Customizable range)
🖼️

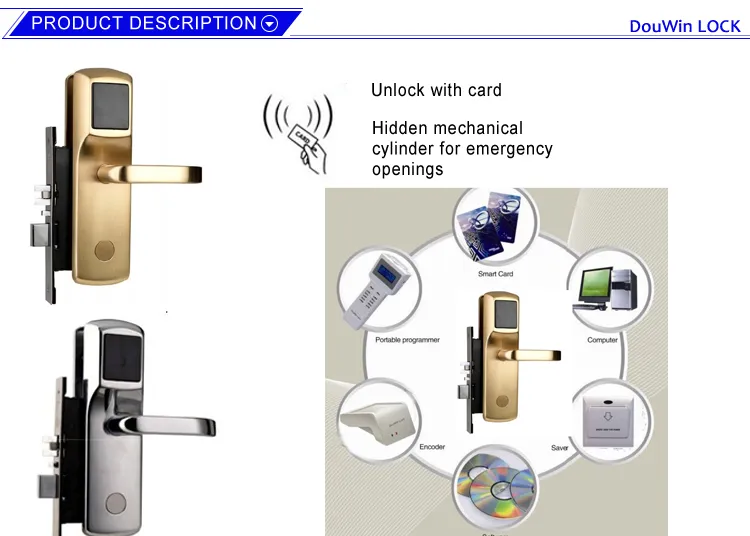

Product Visuals

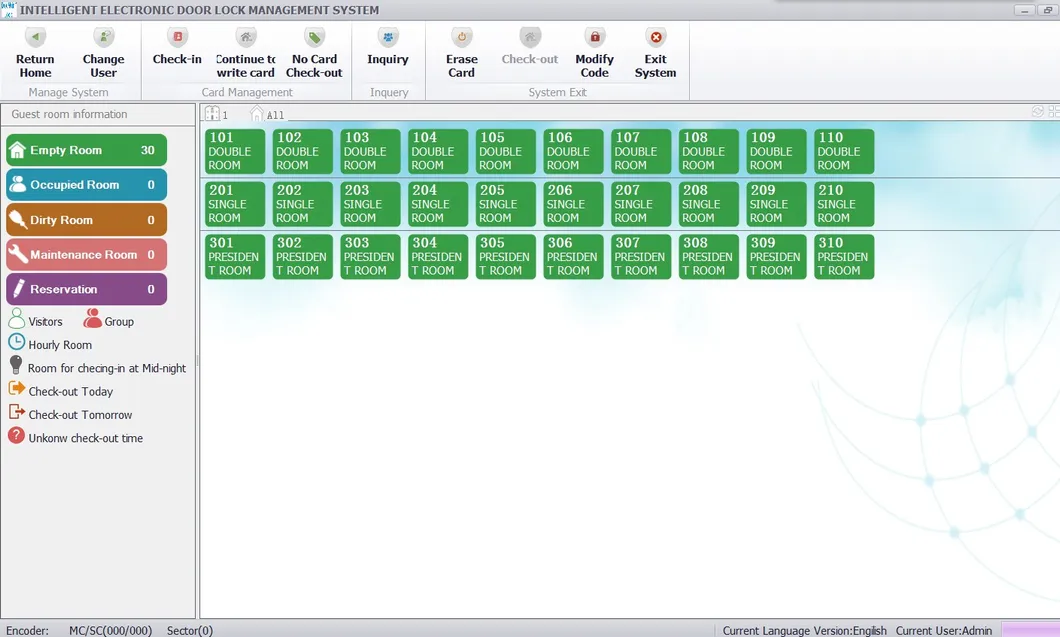

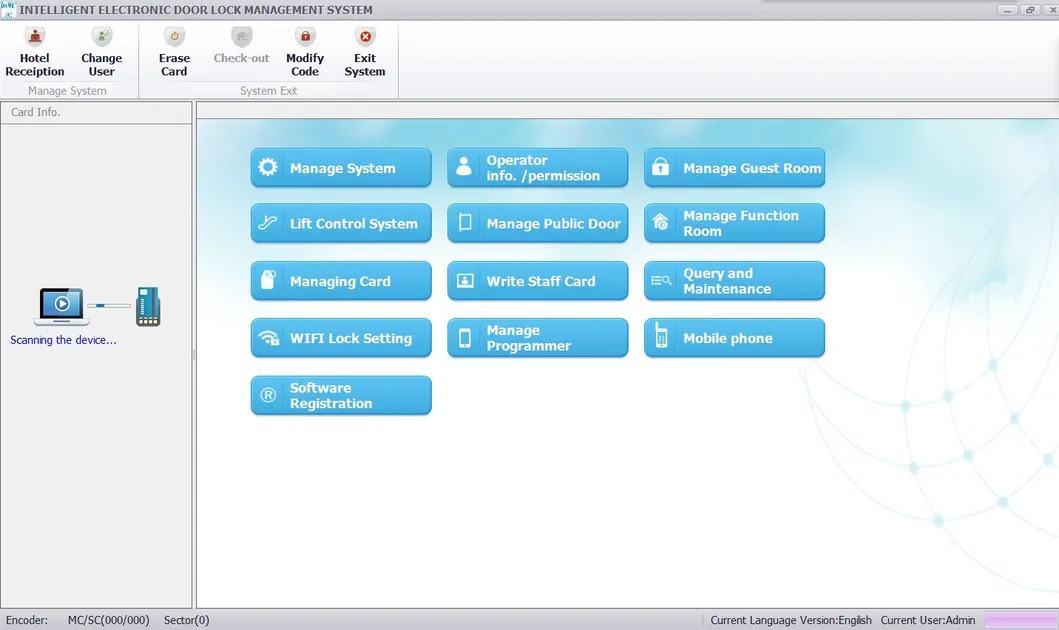

Software Interface & Management

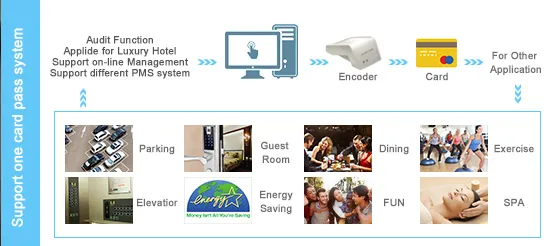

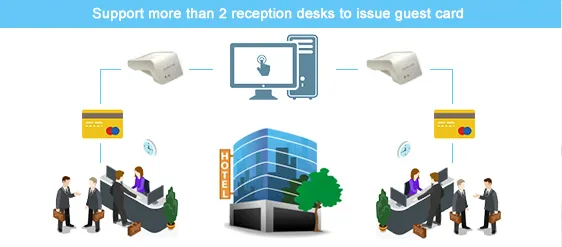

Network Integration: Door lock software data is shared in the LAN, allowing hotels to arrange "Check in" for guests at different front desk receptions simultaneously. It can be integrated with hotel management software (PMS) via SDK (DLL).
Advantages & Packaging
Frequently Asked Questions
Q1: What type of batteries does the lock use and how long do they last?
The lock is powered by 4 AA alkaline batteries. Under normal usage, the battery life typically lasts between 8 to 12 months.
Q2: Is the management software free to use?
Yes, the software is free, permanent, and comes packed with the Encoder for authorized card management.
Q3: What happens if the battery voltage becomes low?
When the voltage drops below 4.5V, a warning will sound during unlocking. The lock can still be opened approximately 50 times after the first warning before batteries are exhausted.
Q4: Can this system be integrated with other hotel software?
Yes, the powerful door lock software can be integrated with any Hotel Management Software (PMS) using our SDK (DLL).
Q5: What materials are used for the lock construction?
The locks are made of high-quality Zinc Alloy with chrome plating, making them moisture-proof and fire-retardant. The PVD surface finishing is designed to last at least 15 years.
Q6: What is the emergency opening method if the card fails?
In case of emergency or electronic failure, the lock can always be opened using a traditional mechanical key.
