WiFi Smart Tuya New Electric Door Lock Keypad Security Access Control System

Customization:	Available
Card Reader Quantity:	2
Control Gates:	One Gate

📊

Basic Information

Model NO.

ZDAC-2400W-WiFi

Technology

32-Bit Technology

Way of Control

Computer Control

Type

One-way Controller

Item

Waterproof WiFi Access Control

Identification

Card, Pin, Card & Pin

Reading Distance

3-6cm

Card Type

125kHz, EM

Voltage

DC 12-24V

Capacity

2000 Users

Waterproof

IP68

Material

Metal Case + Metal Keypad

Size

120* 58*20(mm)

Specification

CE, RoHS

🛡️

Product Description

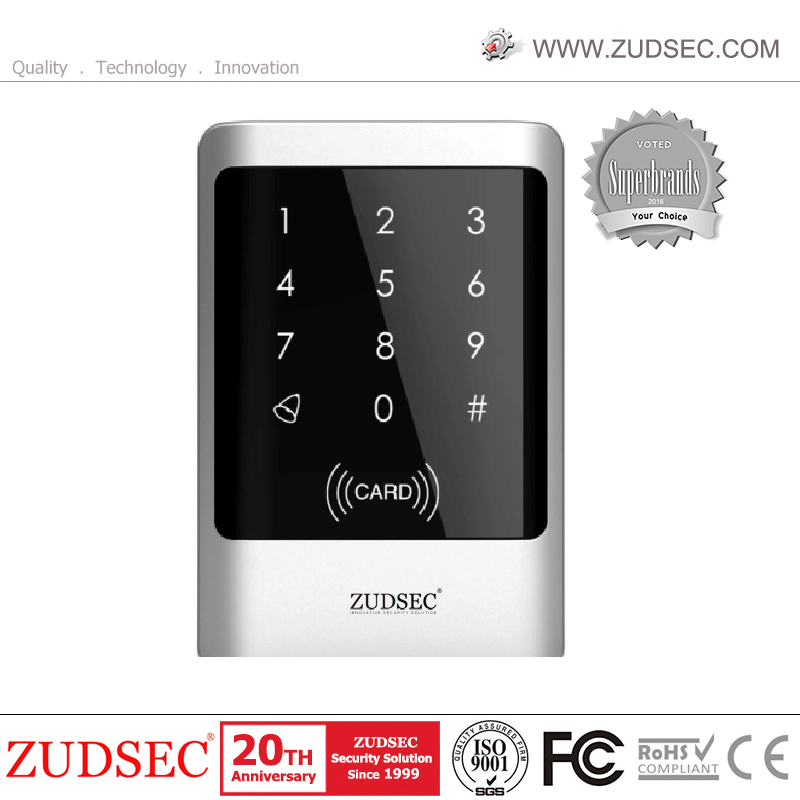

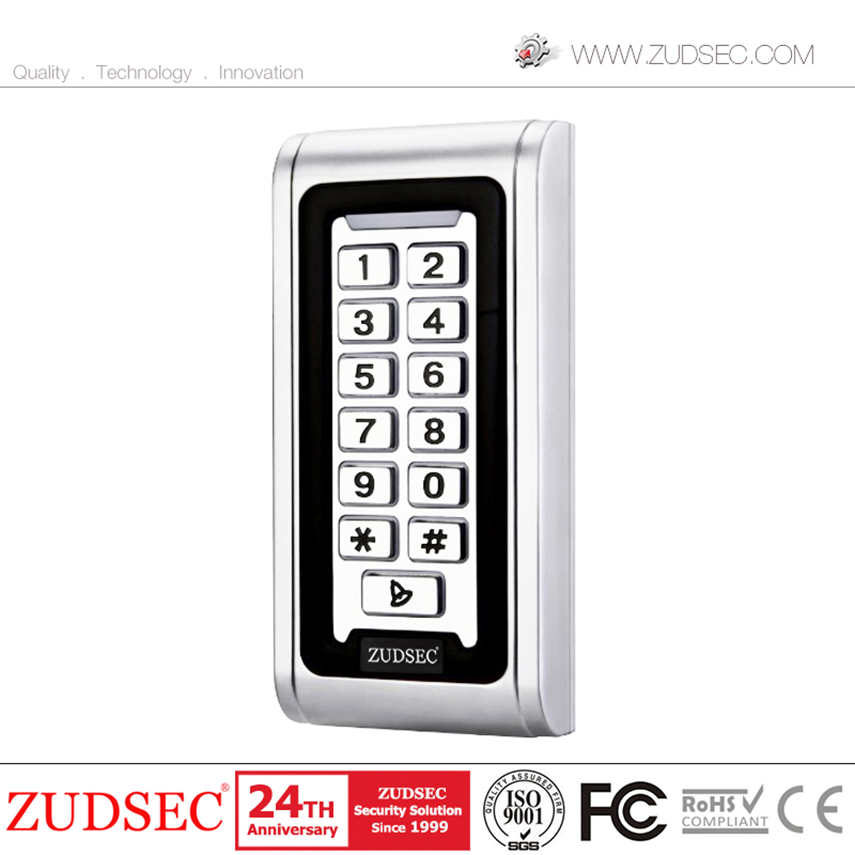

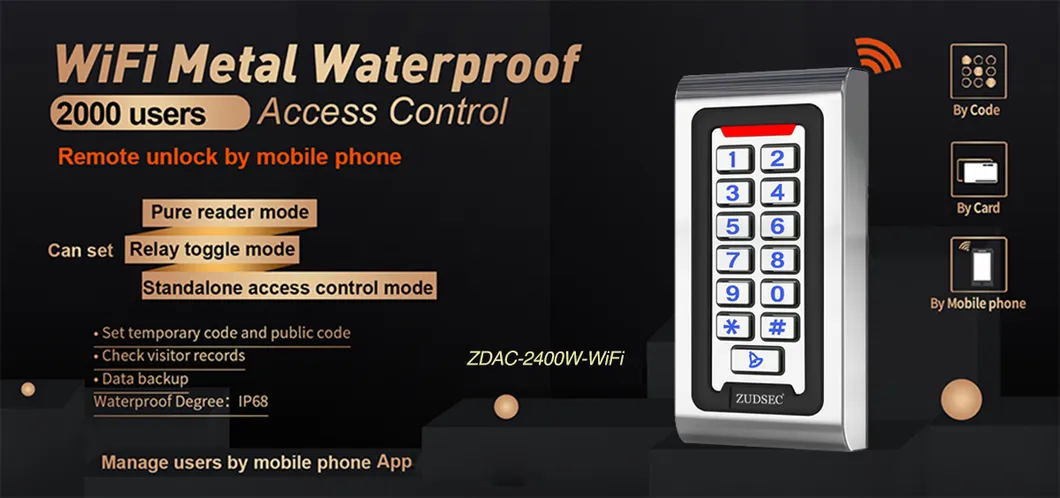

WiFi Smart Tuya New Electric Door Lock Keypad Security Access Control System

Aluminum alloy structure, Waterproof, fully potted, confirms to IP65 (also rated IP68 for specific models), 125KHz EM and HID card for optional. Multi-function unit with a 12P cable, built-in door bell function, and capable of operating as a slave reader, single door controller, or anti-pass back system. Suitable for various professional occasions.

⭐

Key Features

Aluminium alloy case, waterproof, fully potted (IP65 standard)
Metal digital backlit keypad (Adjustable: ON, OFF, or Human-Approach ON)
Built-in doorbell function
Built-in 125KHz card reader with Auto-Recognition
Supports up to 2000 users (Card and 4-6 digits password)
Master card support for easy management
Supports 2-10 cards for multi-access entry
Wiegand 26-37 output for card numbers and keypad multiple output
Relay control to open, 1A

📝

Technical Specifications

Operating Voltage	DC 12-24V; Operating Current ≤35mA
Reading Distance	3-6CM
Keypad Format	4-6 digits key press to output card format (4 bits or 8 bits data)

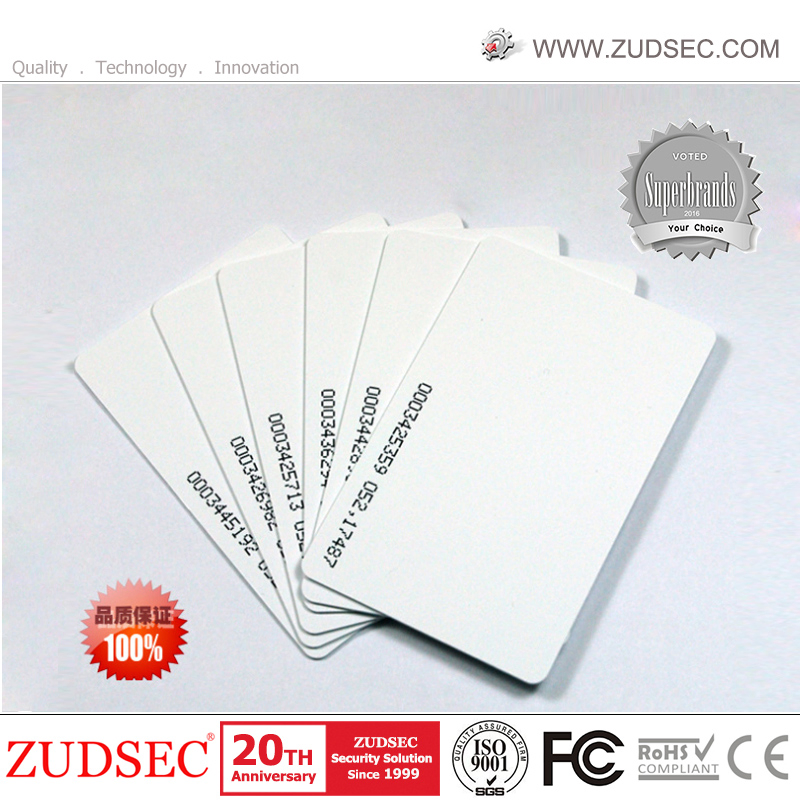

ID Card Type	125KHz, EM
Transmit Format	Wiegand 26-37
Temperature	-40ºC to 60ºC
Humidity	0~95% (non-condensing)
Product Size	158.6L x 43W x 21.7D (mm); Weight: 0.5Kg

🔗

Related Product Series

❓

Frequently Asked Questions

1. Is this access control system waterproof for outdoor use?

Yes, it features a fully potted aluminium alloy case with an IP65/IP68 waterproof rating, making it suitable for outdoor installation and harsh environments.

2. How many users can the device store?

The system supports up to 2000 users. Each user can be assigned an ID card and a unique 4-6 digit password.

3. Does it support WiFi connectivity?

Yes, this is a Smart Tuya WiFi version, allowing you to manage access control via the mobile application.

4. What is the working voltage requirement?

The device operates on a wide voltage range of DC 12V to 24V, ensuring compatibility with most standard power supplies.

5. Can the keypad backlight be adjusted?

Yes, the metal digital backlit keypad can be set to "Normal ON", "Normal OFF", or "Human-Approach ON" depending on your preference.

6. What card types are compatible with the reader?

It features a built-in 125KHz card reader that is compatible with EM and HID cards.
