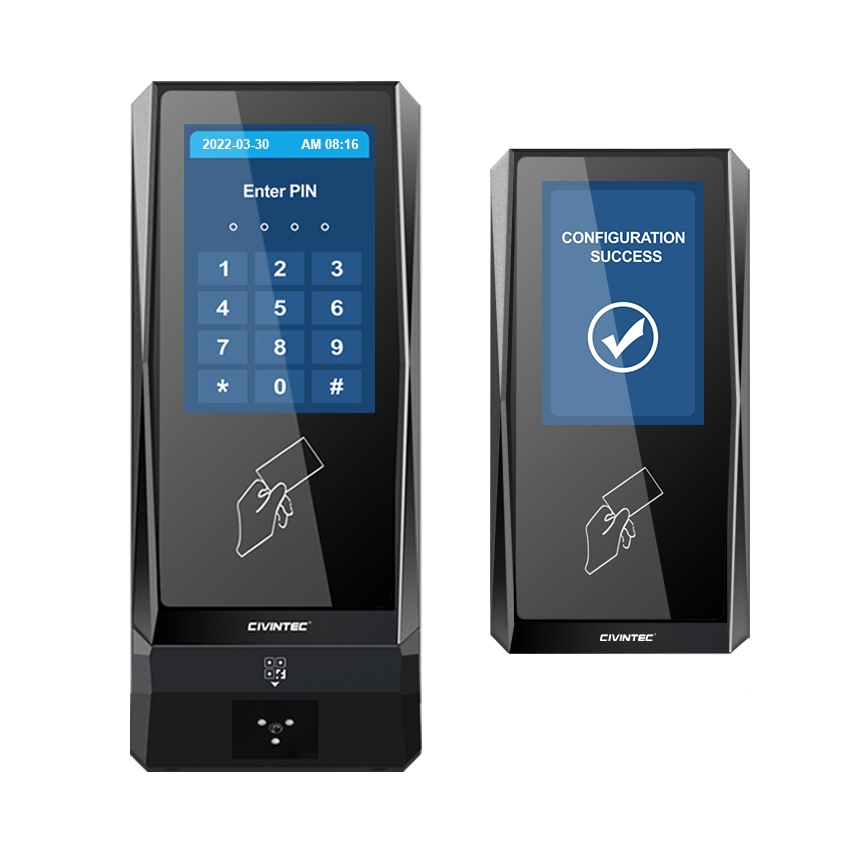

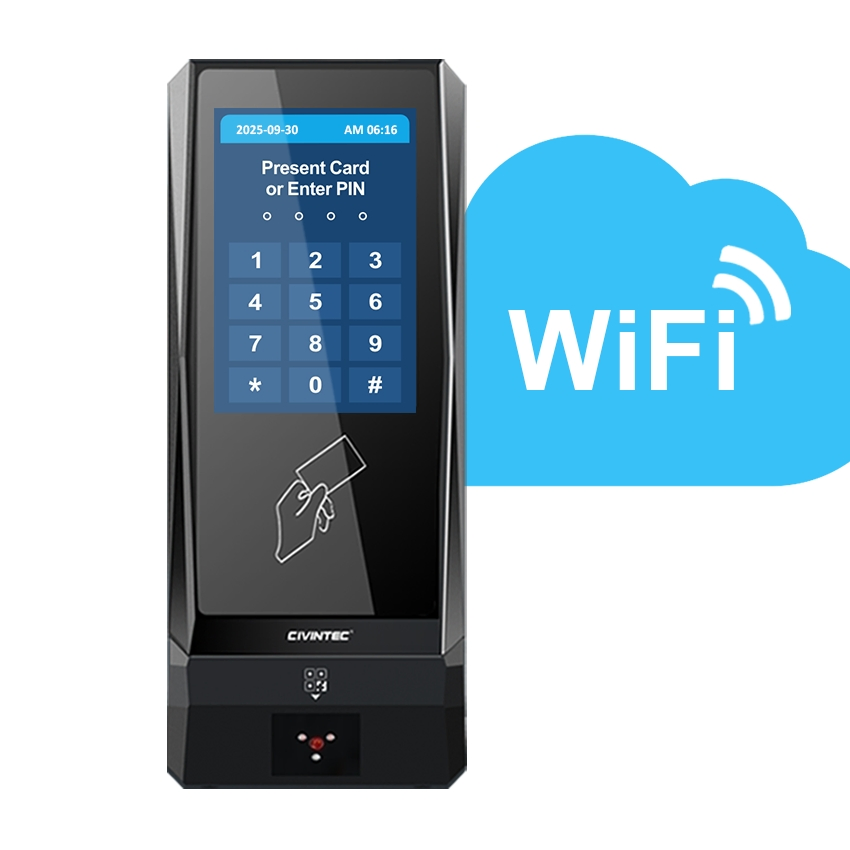

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID smart card | - EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B - CLASS SE/SR® iCLASS Seos® smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module, more on request |
| Communication interface | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2, customizing protocol on request |
| Power Supply | 12-24V DC; PoE IEEE 802.3af |
| Indicator | Controllable buzzer |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit, Buzzer control, output Buzzer control |
| Offline Logs | 10,000 users / 50,000 logs (more on request) |
| IP protection | IP65 outdoor/indoor use, UV-resistance |
| Certification | CE, FCC |

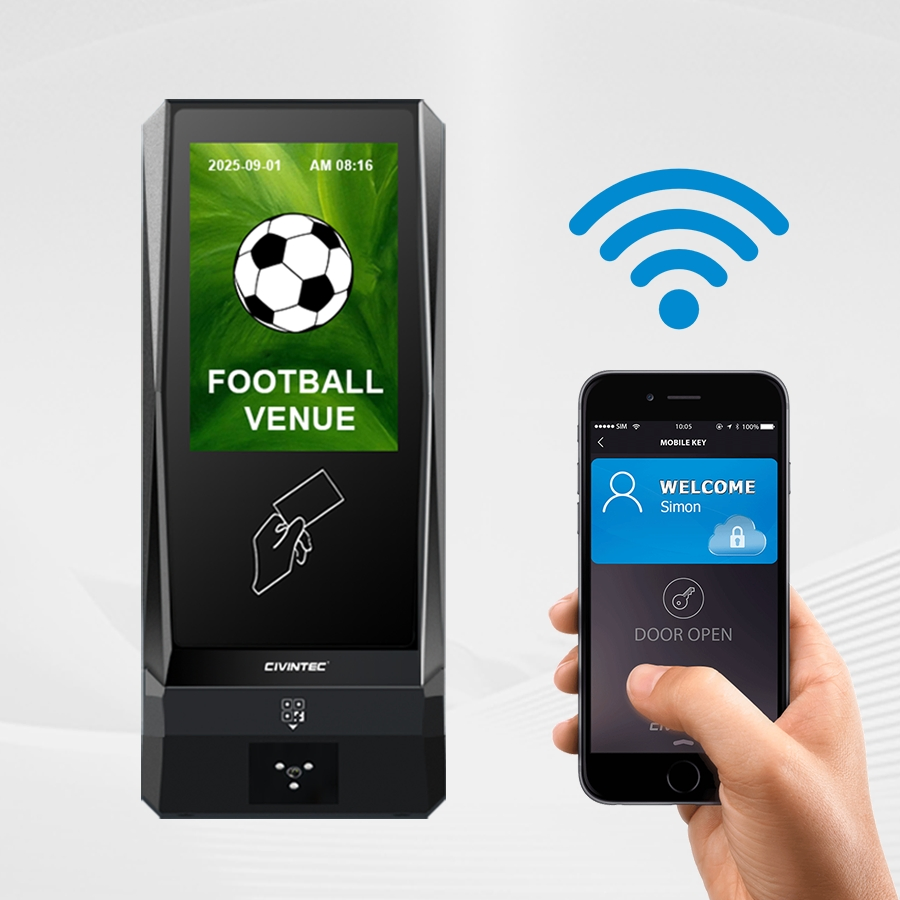

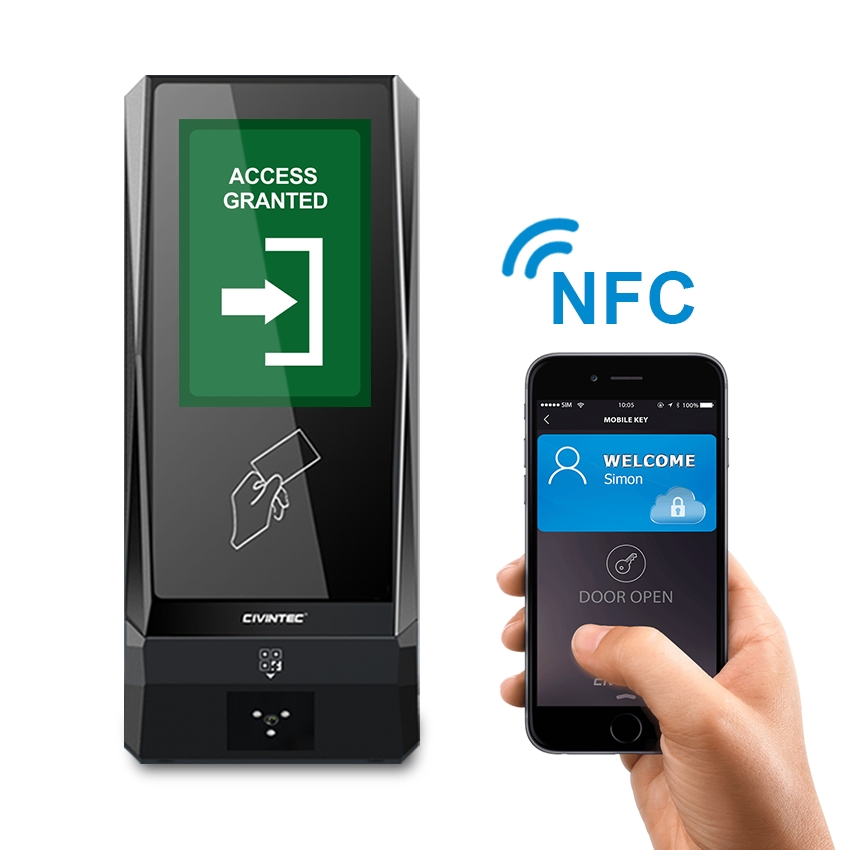

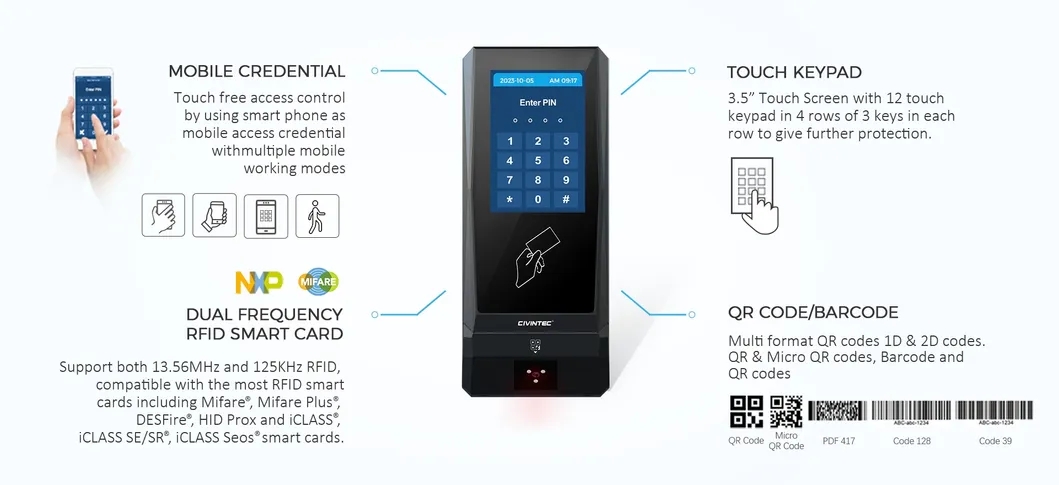

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.

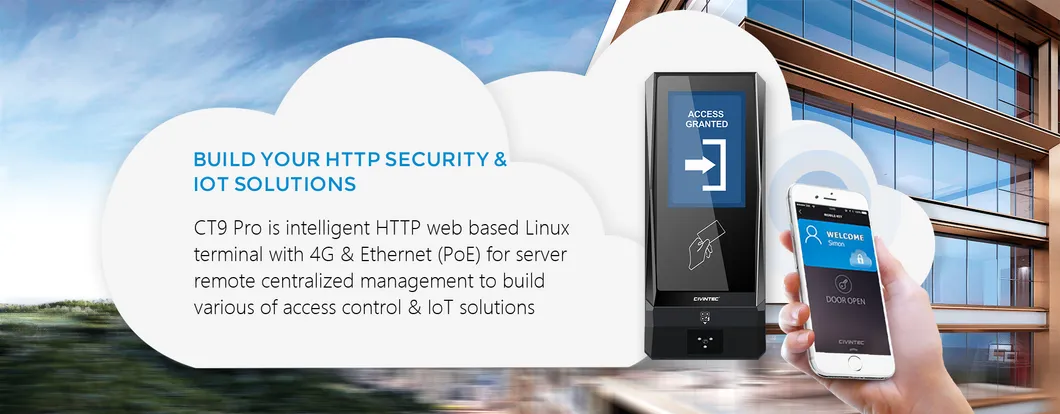

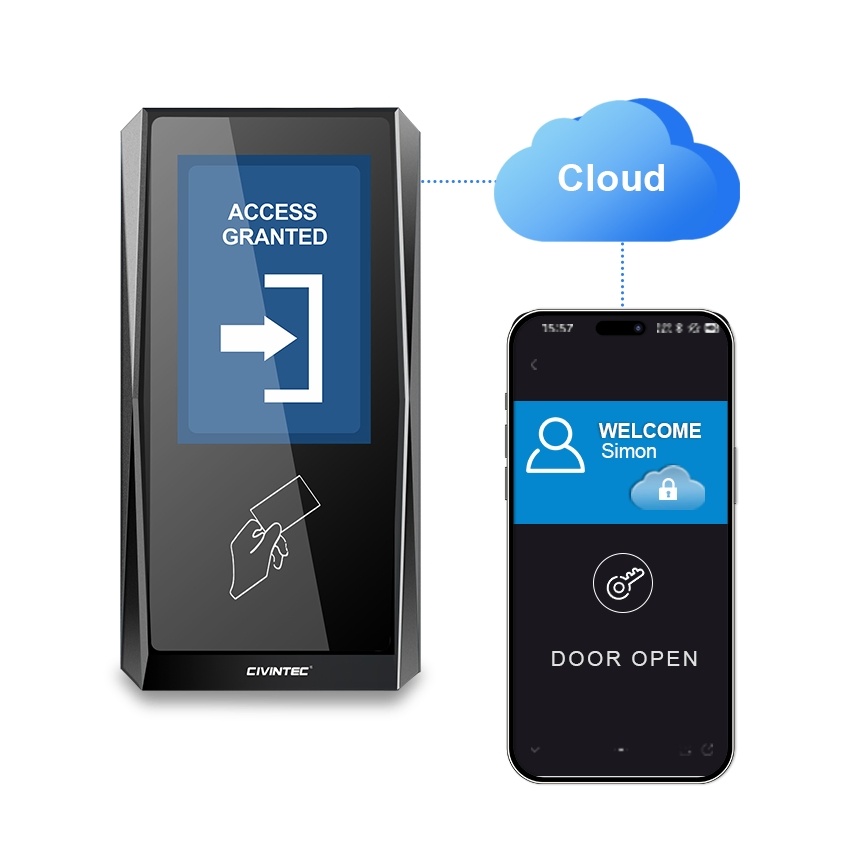

Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It can control facility to build IoT solution.
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use and various rugged working environments.
We offer ODM customization on both hardware, reader housing, firmware and software design service. User can free program and display own LOGO on 3.5" touch screen. We also offer OEM LOGO printing on reader body.
