Basic Info
Model NO.CT9 PRO
Reading Distance10cm-15m
Operating SystemLinux OS
Display3.5" Touch Screen
IP ProtectionIP65 Waterproof
Power12-24V DC / PoE

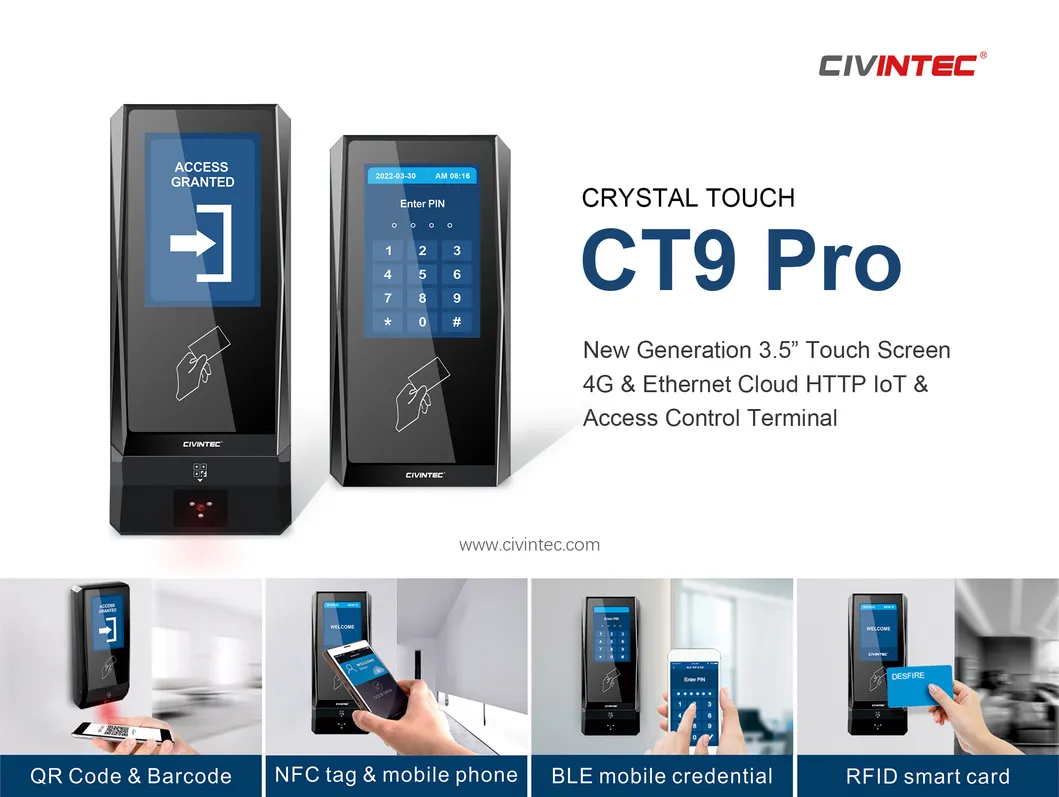

Product Overview

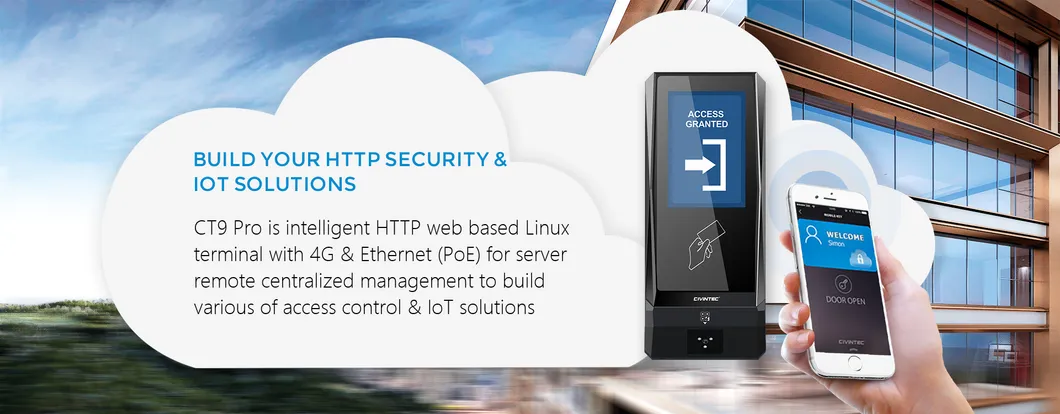

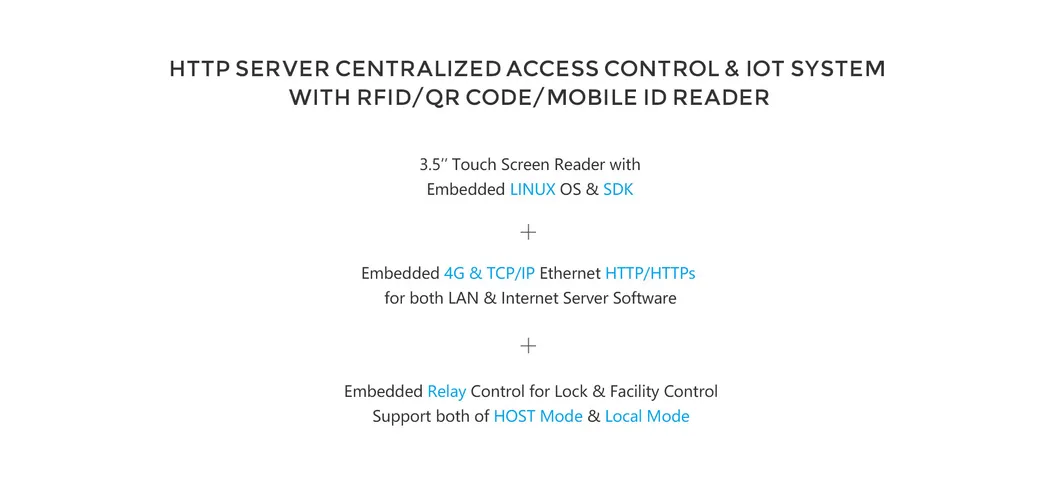

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet, perfectly suited for both LAN and Internet cloud server software communication. With an embedded relay, it is designed to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including a touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via smartphone.
| Display | 3.5" capacitive touch screen |

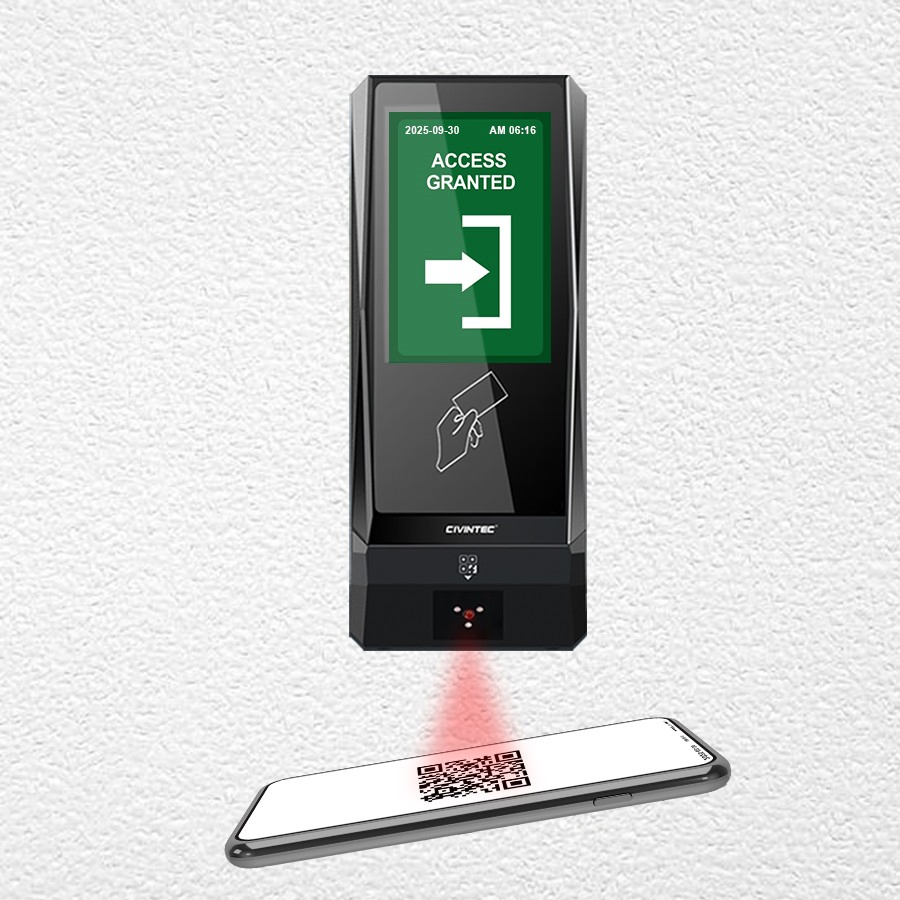

| QR code | Multiple formats (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID smart card | EM 125KHz, 13.56MHz Mifare® Classic, Plus, DESFire® EV1/EV2/EV3, Seos® |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Interfaces | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |
| Storage | 10,000 users / 50,000 logs |
Product Features
🔘

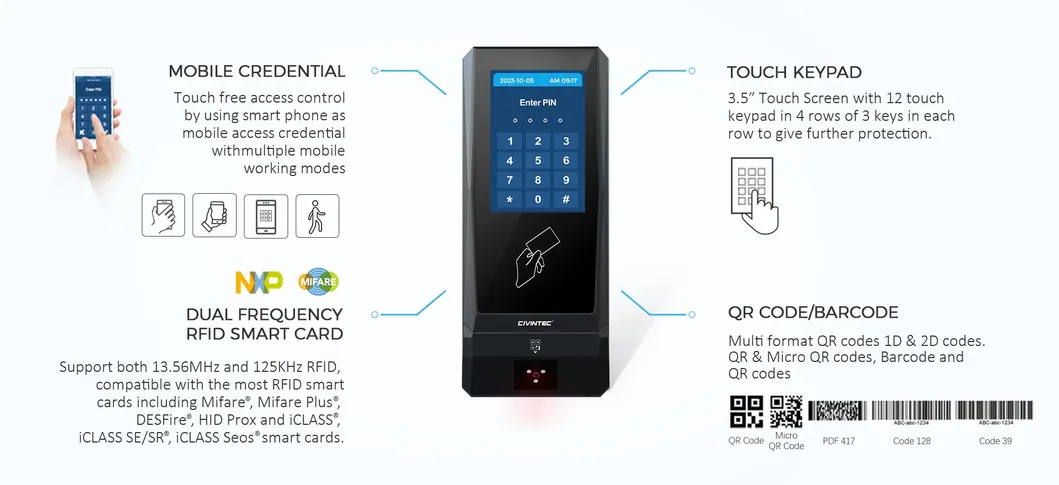

Multiple Access Credential
Incorporates 5-in-1 technologies: touch keypad, RFID smart cards, BLE & NFC mobile access, and QR CODE/barcode for advanced visitor management.
☁️

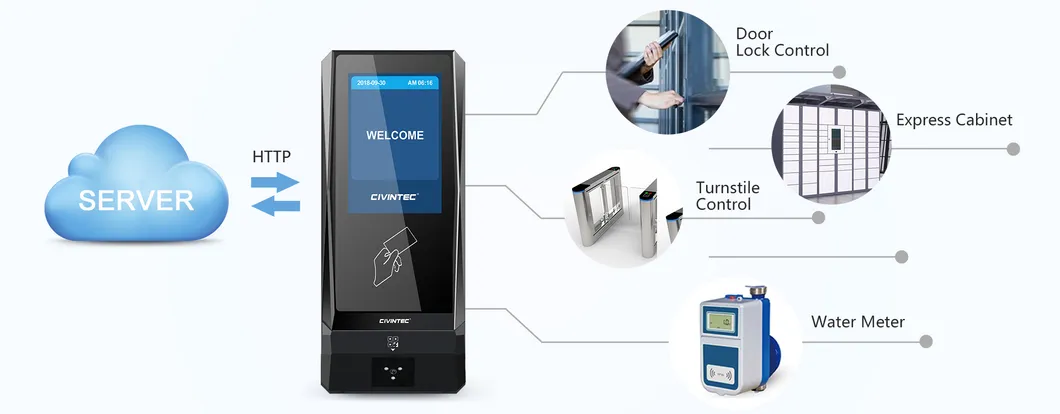

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs protocols allows for remote door lock control and facility management via cloud systems.
🛠️

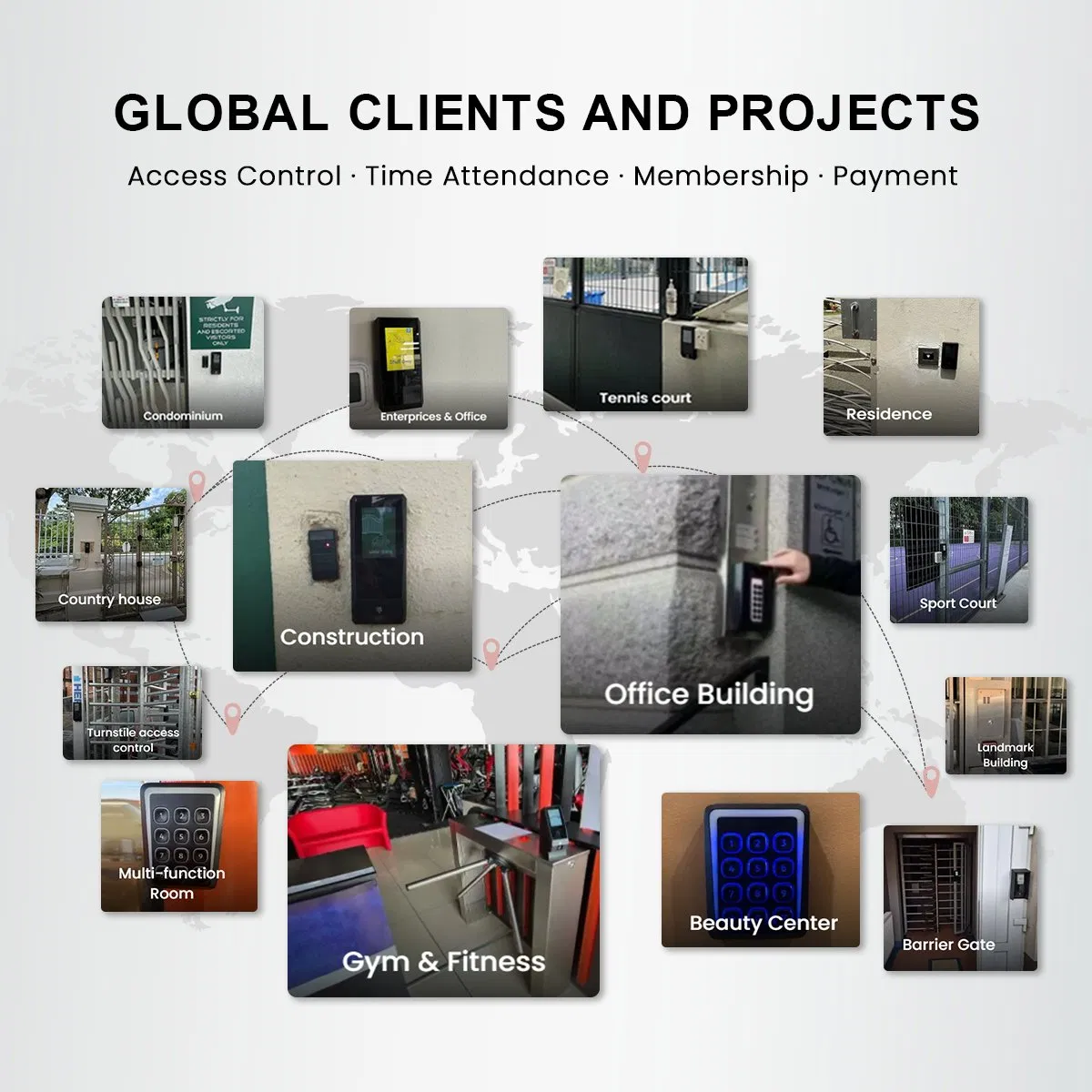

Multiple Application Solutions
The Crystal Touch CT9 serves as an IP access reader controlled by web-based software in real-time. It can manage door access or control other IoT facilities.
🌧️

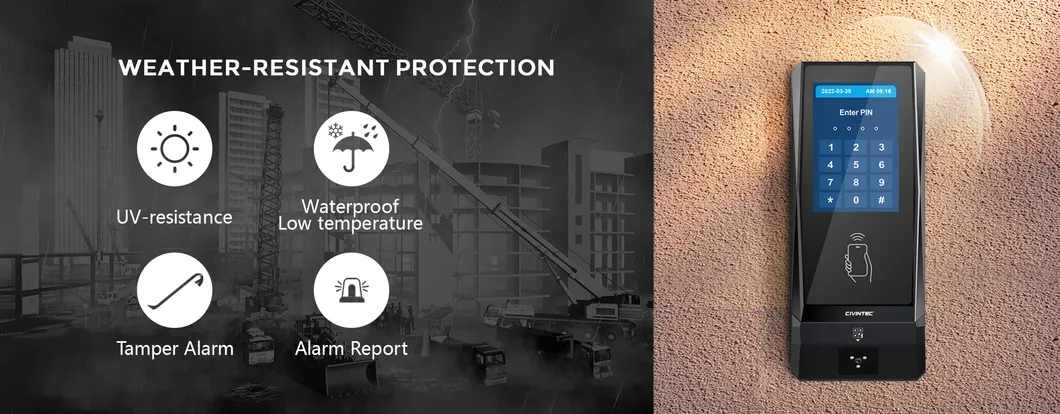

Weather-Resistant Protection
Rated IP65, the CT9 PRO is resistant to rain, dust, and strong sunlight. It is ideal for outdoor installations in rugged environments.

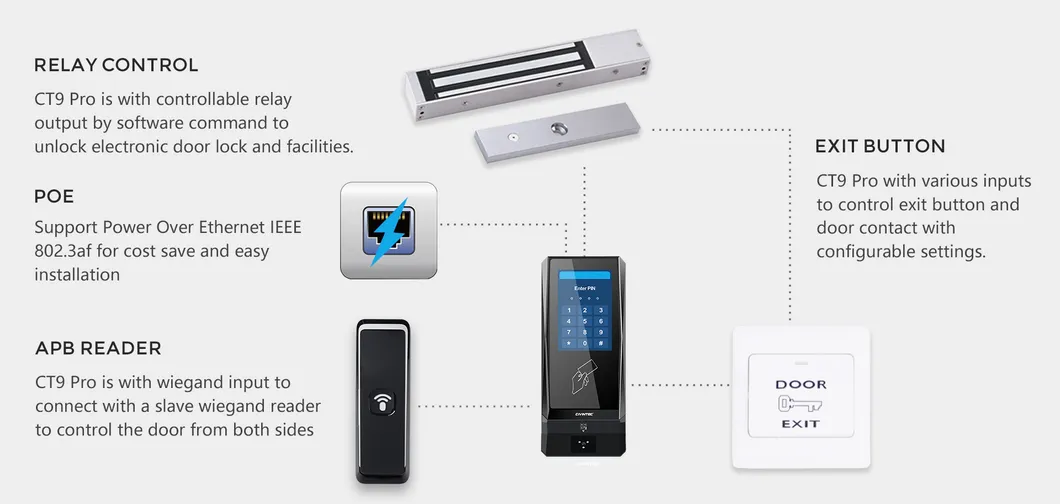

System Configuration
Our Service
We specialize in the design and manufacture of access control devices, offering full customization on hardware, reader housing, firmware, and software. Users can freely program and display their own logo on the 3.5" touch screen.
Related Products
Frequently Asked Questions
1. What access technologies does the CT9 PRO support?
The terminal supports 5-in-1 credentials: RFID (125KHz & 13.56MHz), BLE & NFC mobile access, QR codes/barcodes, and a touch PIN code.
2. Is the device suitable for outdoor use?
Yes, the CT9 PRO is IP65 rated, making it waterproof, dust-proof, and UV-resistant for various outdoor environments.
3. Does it support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af standard as well as a 12-24V DC power input.
4. How does the device communicate with a server?
It uses standard HTTP and HTTPs protocols for secure, bi-directional communication via 4G, WiFi, or TCP/IP Ethernet.
5. Can the display interface be customized?
The 3.5" capacitive touch screen allows users to program and display their own logos and custom interface elements.
6. How many users can the CT9 PRO store offline?
In standalone mode, the device can manage up to 10,000 card users and store up to 50,000 event logs.
