Basic Info.
Interface
Serial Port, 4G, TCP/IP, RS485, Weigand
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4G TCP/IP Access Control Terminal
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2, Em 125kHz
Mobile Credential
ISO18092 NFC, BLE (Bluetooth Low Energy)
IP Protection
Waterproof Outdoor Use
Product Overview
CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats: QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A/B, Mifare Classic, DESFire EV1/EV2, HID Prox, iCLASS |
| Communication | 4G, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
Product Features

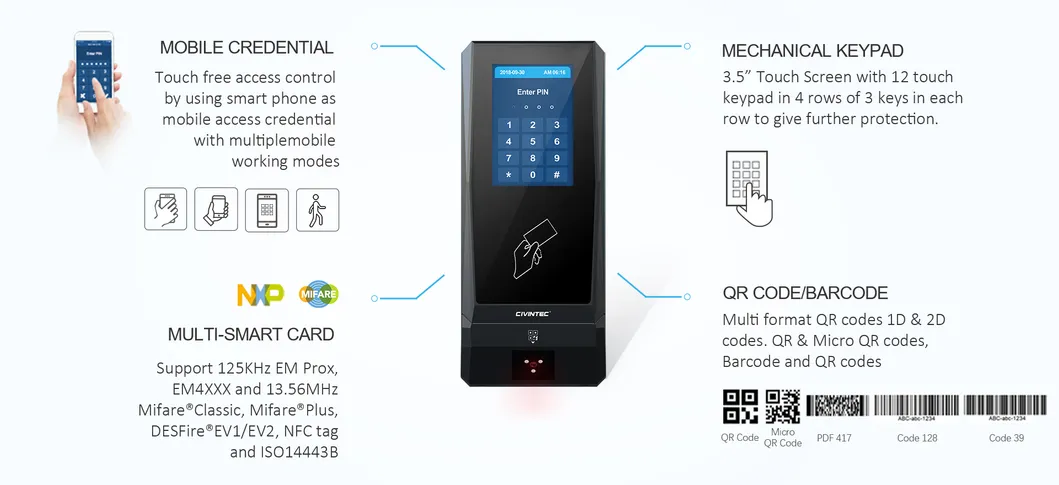

Multiple Access Credential
Incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC, and QR CODE/barcode for visitor access management.
Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facility management.
Multiple Application Solutions
Remotely controlled by cloud web-based software in real-time. Embedded relay output controls door locks as Access Denied or Access Granted, suitable for diverse IoT solutions.

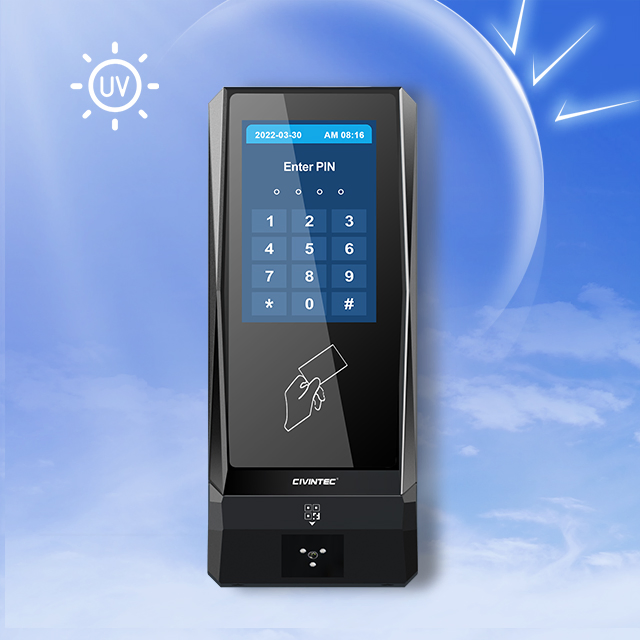

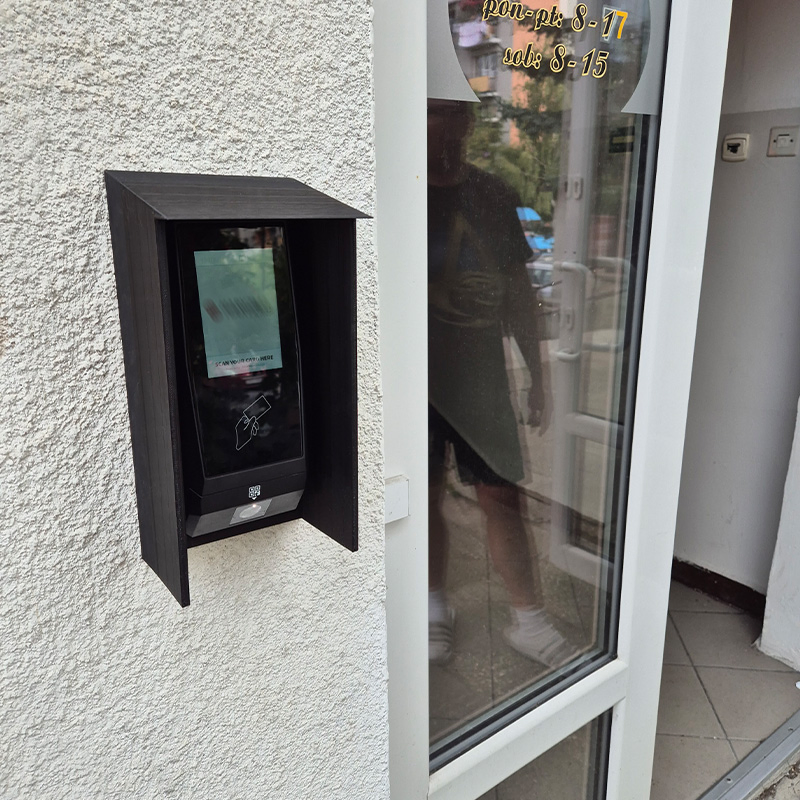

Weather-Resistant Protection
With IP65 ratings, CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and various rugged environments.
System Configuration
Customization Services
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
Related Product
FAQ
What access methods does CT9 Pro support?
The CT9 Pro is a 5-in-1 terminal supporting Touch Keypad (Pin code), RFID smart cards (125KHz & 13.56MHz), Mobile BLE & NFC access, and QR Code/Barcode scanning.
Can CT9 Pro be used outdoors?
Yes, the device has an IP65 rating, making it waterproof and UV-resistant, suitable for both indoor and outdoor installations in various environments.
What communication interfaces are available?
It supports 4G wireless, TCP/IP Ethernet, Wiegand, and RS485 (OSDP 1&2 protocols) for flexible networking and integration.
How many users can the device store?
The standard configuration supports up to 10,000 card users and 50,000 event logs, with options for more upon request.
Does it support cloud server integration?
Yes, it uses bio-directional communication via standard HTTP and HTTPs protocols for real-time remote control through cloud-based software.
Is the touch screen customizable?
Yes, the 3.5" capacitive touch screen allows users to program and display their own custom branding or LOGO.
