Customization: Available
Type: Access Control System
Card Type: CPU, EM, DESFire EV1/EV2/EV3
Send Inquiry

Product Description

Basic Specifications

Model NO.
CT9 PRO
Reading Distance
10cm-15m
Product Type
Access Control Terminal
OS
Linux OS
Display
3.5" Touch Screen
Identification
RFID, NFC, BLE, Pin Code, QR Code
RFID Card
13.56MHz & 125kHz
Interfaces
4G, WiFi, TCP/IP, RS485, Wiegand
Protection
IP65 Waterproof
Power
12-24V DC; PoE IEEE 802.3af
Access Control Terminal

Product Overview

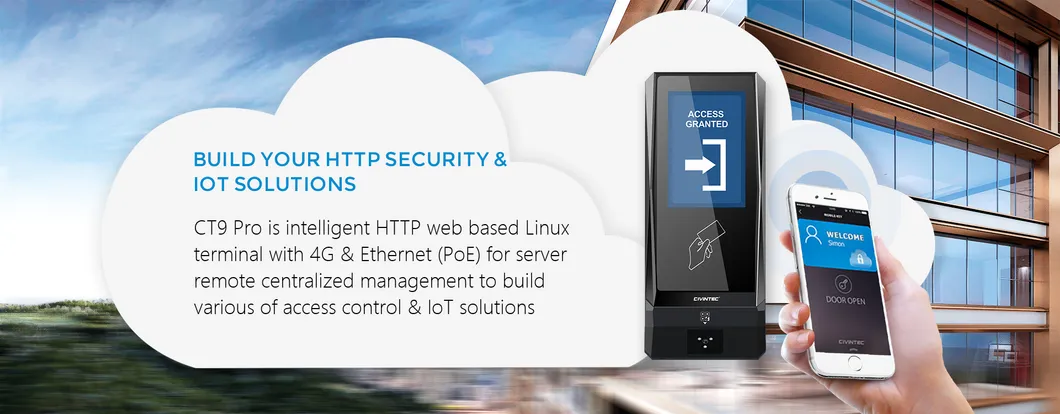

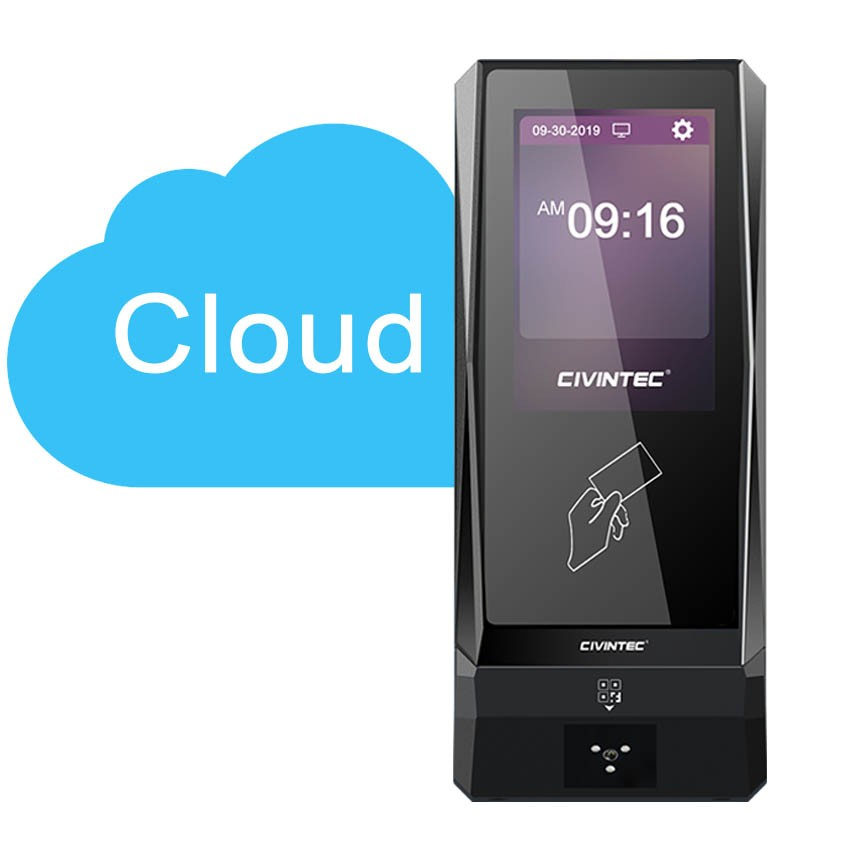

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server communication, featuring embedded relays for versatile IoT and security solutions. It supports 5-in-1 multiple access technologies, including touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning.
Terminal Features Access Methods
Display3.5" capacitive touch screen
QR Code1D & 2D (QR, Micro QR, PDF417, Code 128, etc.)
Mobile IDBLE (iOS & Android), NFC (Android)
RFID Smart CardEM 125KHz, Mifare Classic/Plus, DESFire EV1/EV2/EV3, ISO14443A/B
Communication4G, WiFi, TCP/IP, Wiegand, RS485 OSDP
ProtectionIP65 outdoor/indoor use, UV-resistance
LogsUp to 50,000 logs

Product Features

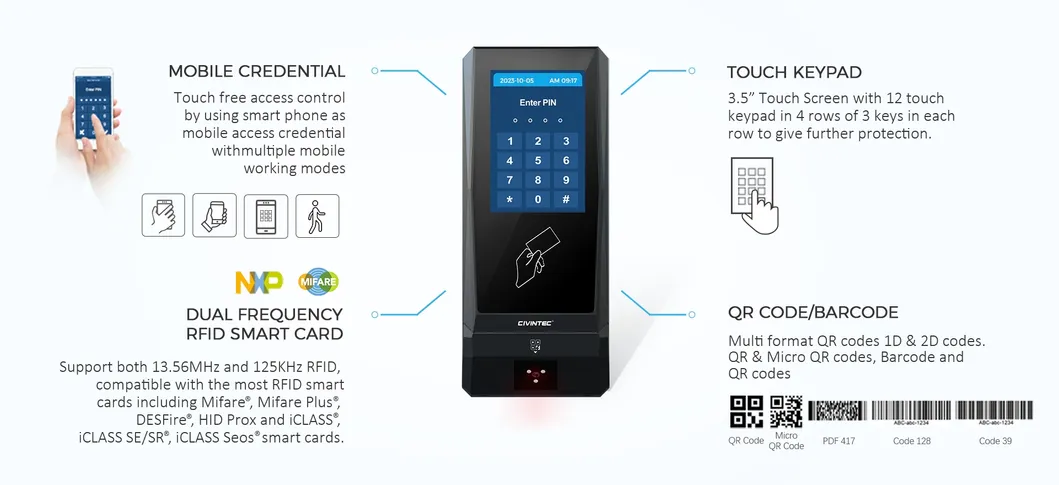

Multiple Access Credential

Supports 5-in-1 technologies: touch keypad, RFID, BLE, NFC, and QR code scanning for comprehensive visitor and staff management.

Credentials

Cloud Server Remote Control

Bi-directional communication via standard HTTP & HTTPS protocols allows remote management of door locks and IoT facilities from a central server.

Cloud Control

Weather-Resistant Protection

With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for rugged outdoor environments.

IP65 Rating

System Configuration

System Diagram

Customization & Service

We offer ODM customization on hardware, housing, firmware, and software. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.

Customization LOGO Display

Related Products

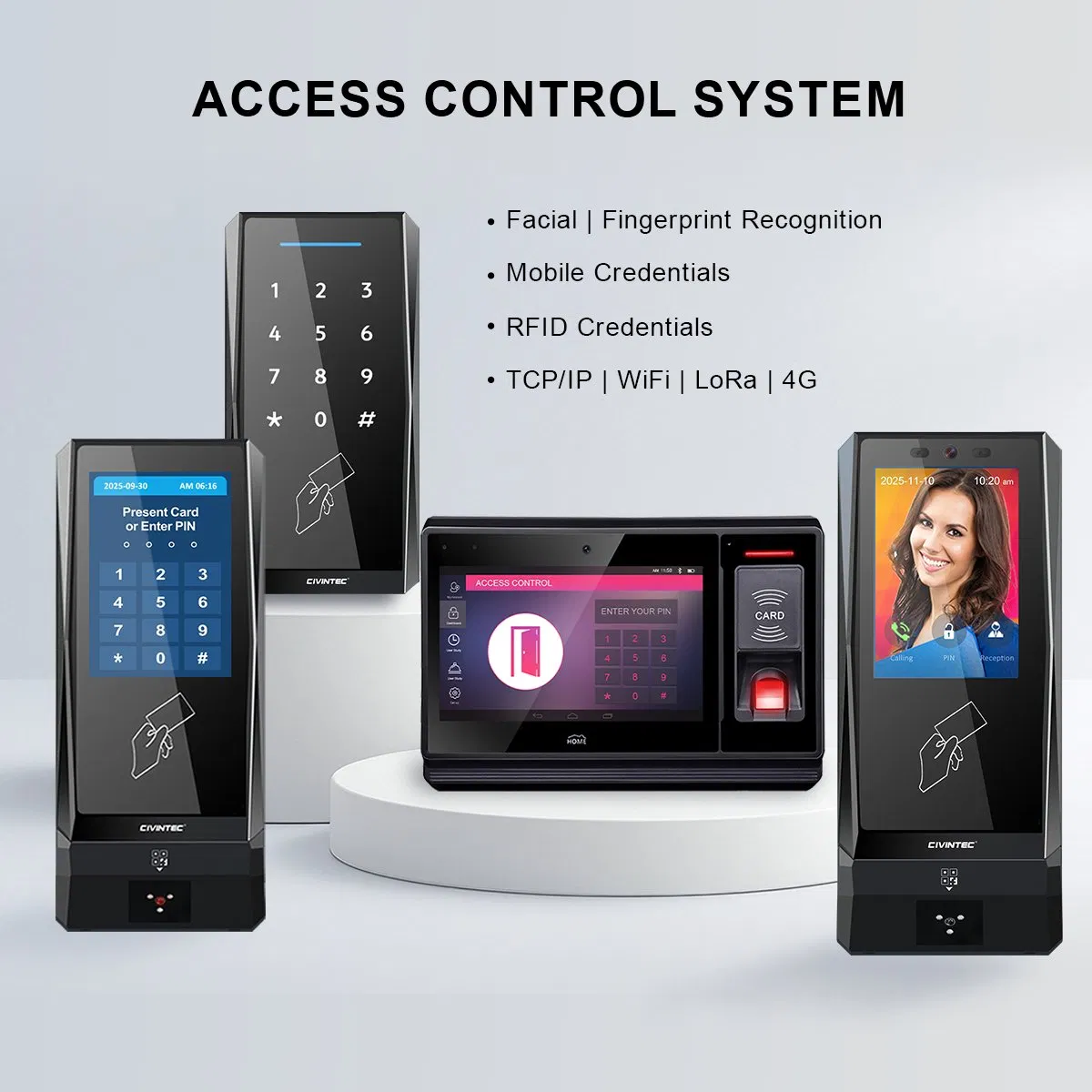

Product Range
Reader Details Specifications
Interface Diagram Dimensions

Frequently Asked Questions

What access methods are supported by CT9 Pro?
The CT9 Pro supports five identification methods: RFID cards (125KHz & 13.56MHz), mobile NFC, Blue-tooth (BLE), QR codes/barcodes, and touch PIN codes.
Is the device suitable for outdoor installation?
Yes, it features an IP65 rating, making it waterproof and UV-resistant, suitable for both indoor and outdoor environments.
How does the device communicate with the server?
It uses encrypted HTTP or HTTPS protocols to communicate in real-time via 4G, WiFi, or TCP/IP Ethernet connections.
Does the terminal support Power over Ethernet (PoE)?
Yes, the CT9 Pro supports PoE IEEE 802.3af for simplified installation, as well as 12-24V DC power supply.
Can I customize the display interface?
Absolutely. Users can program the 3.5" touch screen to display custom logos and interfaces through firmware customization.
What is the user and log capacity?
The standard configuration supports up to 10,000 offline card users and 50,000 event logs, with more available upon request.
