Industrial Aluminum Alloyed Automatic Car Door Opening System

Product Overview

Model NO.PB3-4L15

Output Signal TypeRelay

MaterialAluminum Alloy + PC

IP RatingIP67

CertificationCE

Beams4-Beams

Height30cm

Detection Range20m

Power SupplyDC12-24V

Response Time50/100/150/200ms Adjustable

Working Temperature-20 to 60 ℃

Rotation Angle180 Degrees Horizontal

Product Description

Automatic Car Door Opening System

PB3-4L15 is a compliant monitored device that replaces a photo eye for most commercial and industrial door applications. There's no need for an external control box. This system uses a series of thru-beam photo eyes attached near the door track or door guides. The light curtain provides a dense barrier of light that, when interrupted by the presence of an obstacle, signals the door's motor to stop and reverse operations. This Edge light curtain with waterproof housing can span up to 20m wide range and 30cm high.

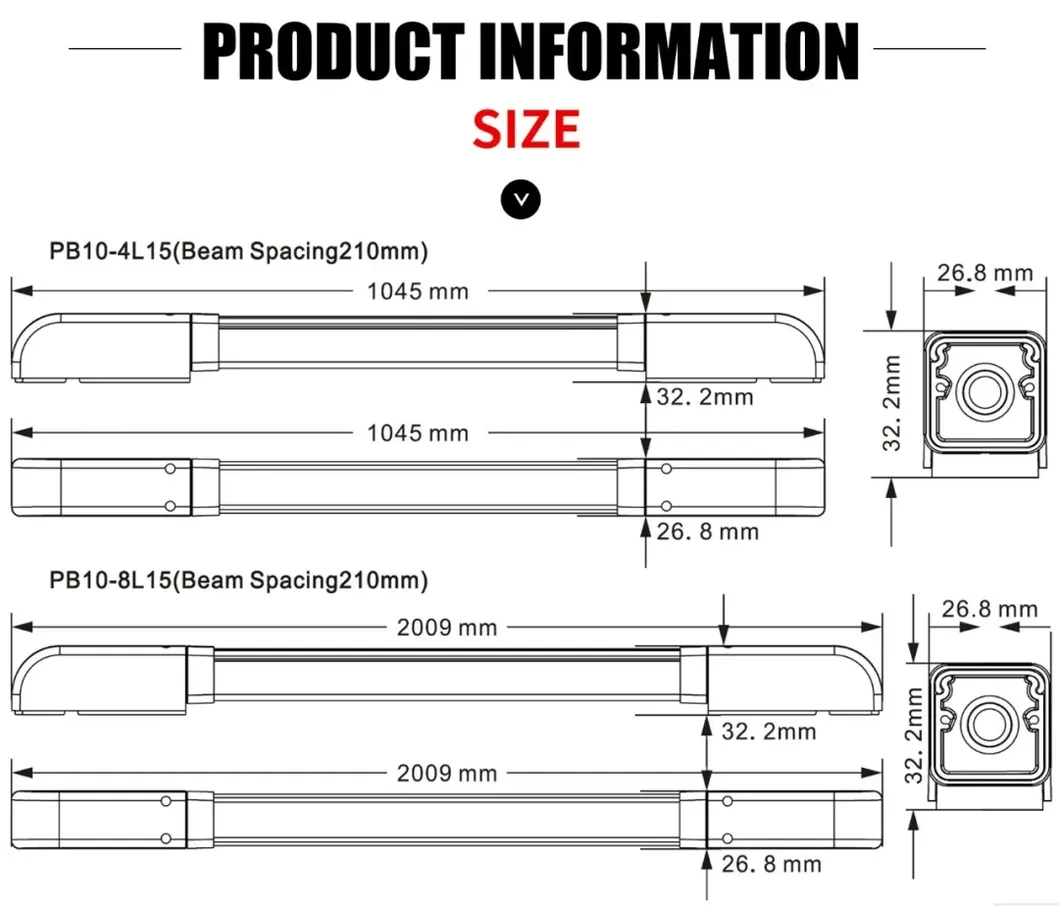

Product Details & Design

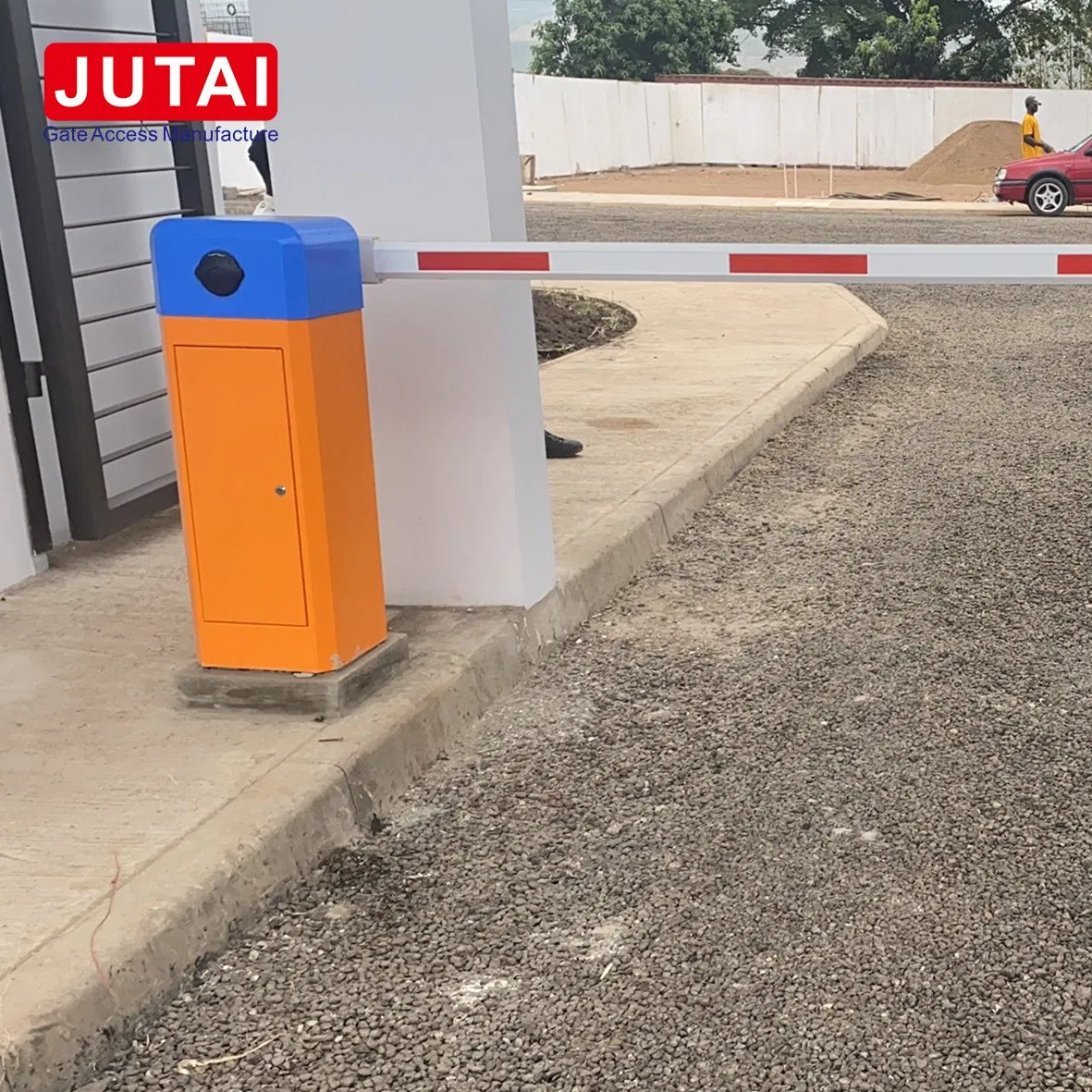

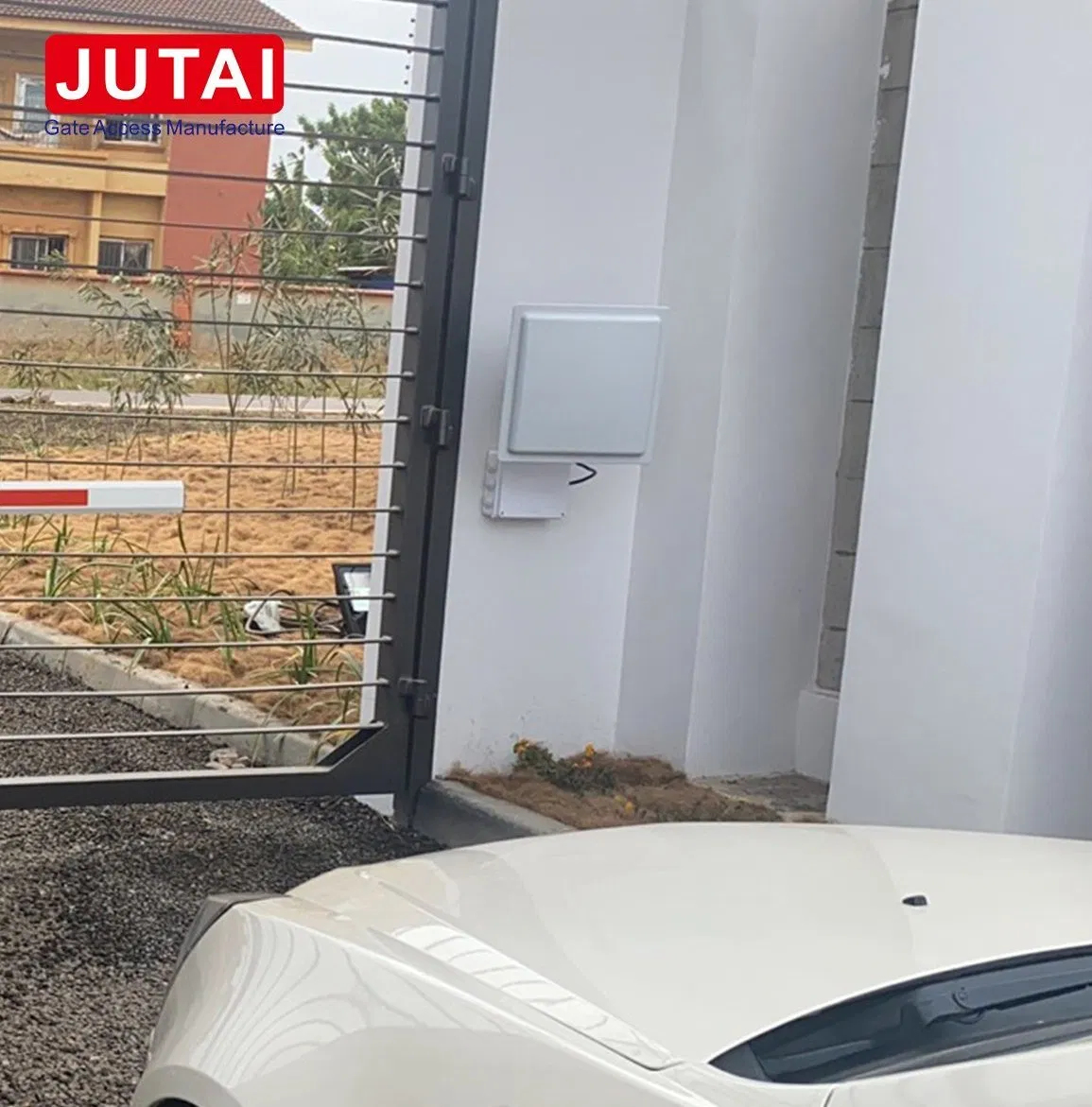

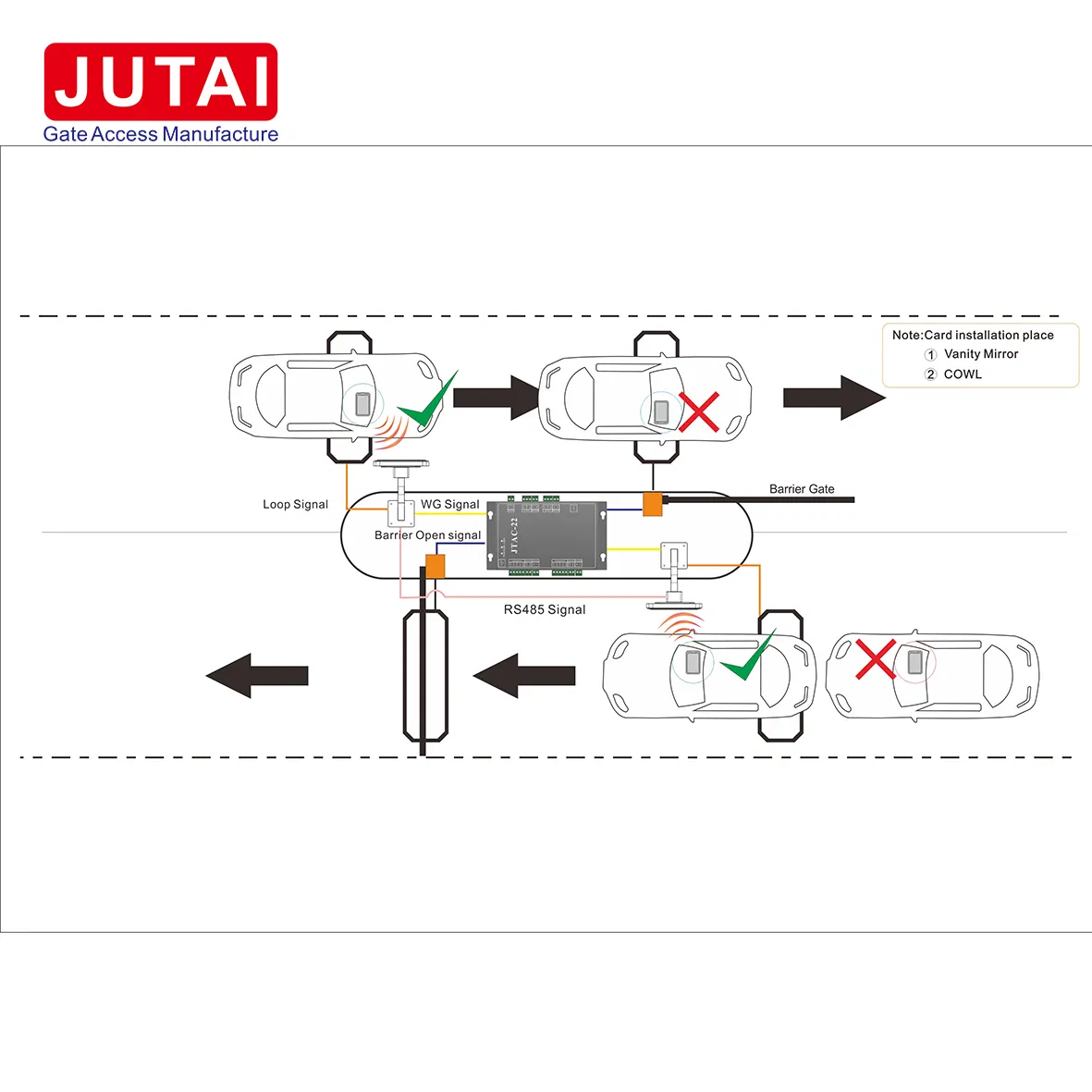

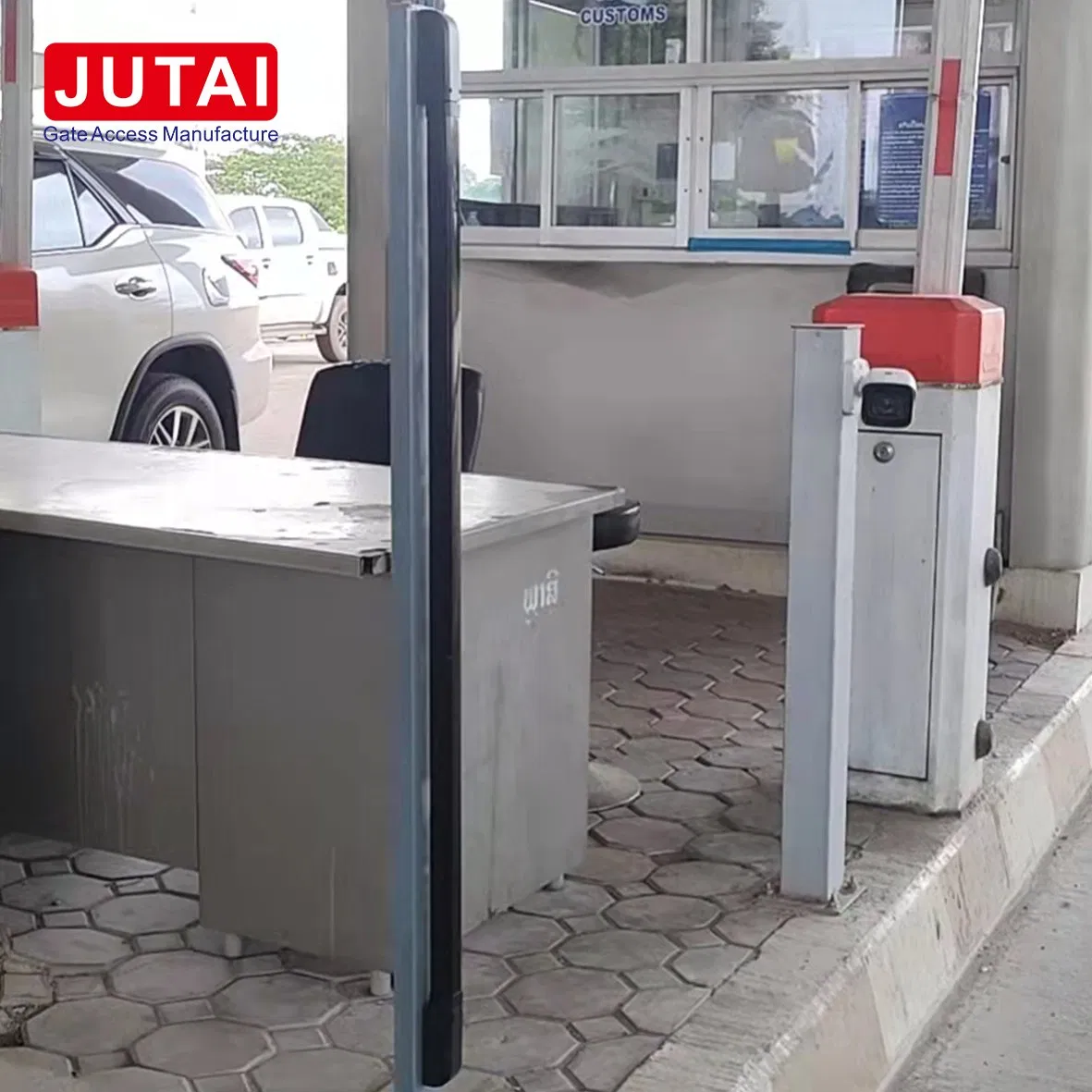

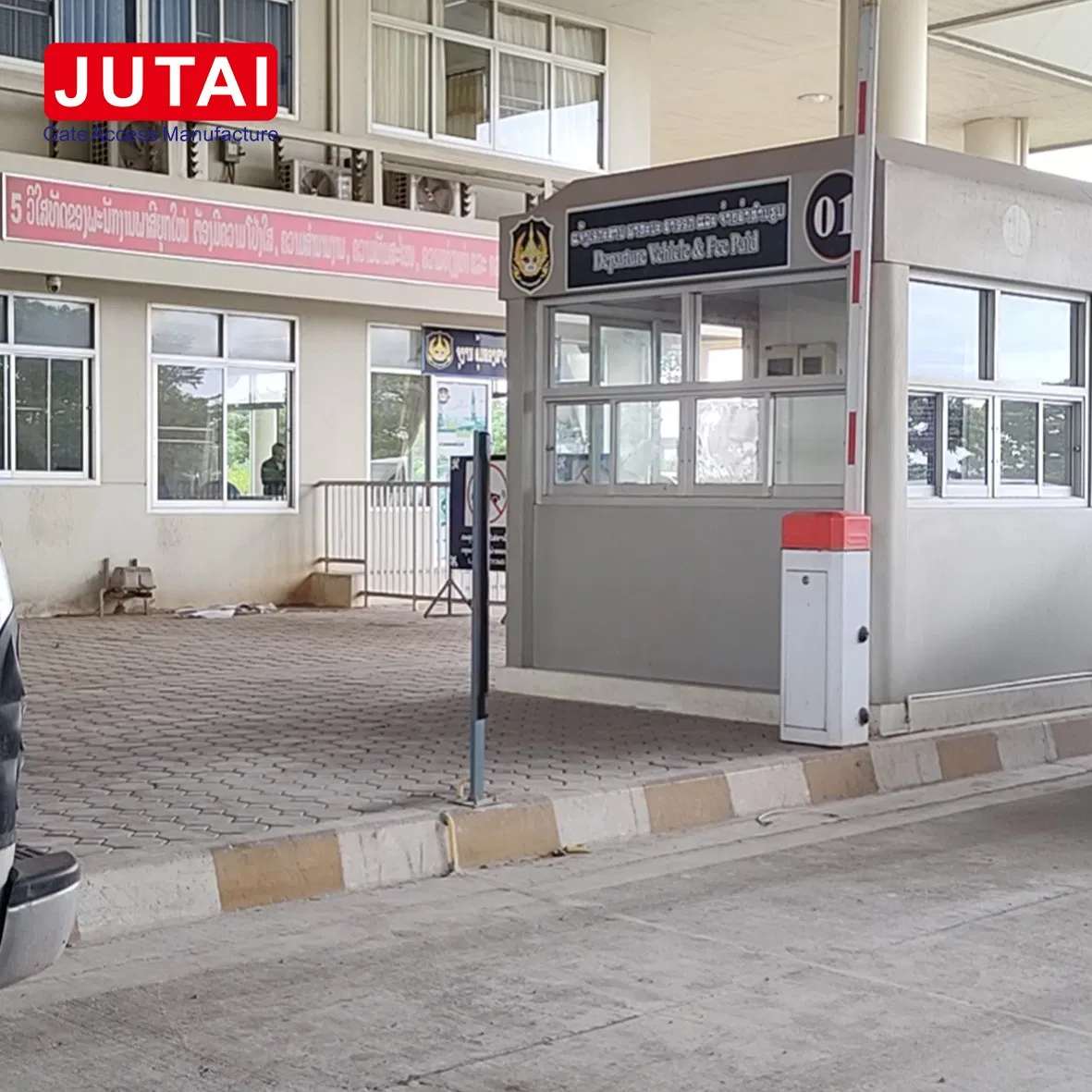

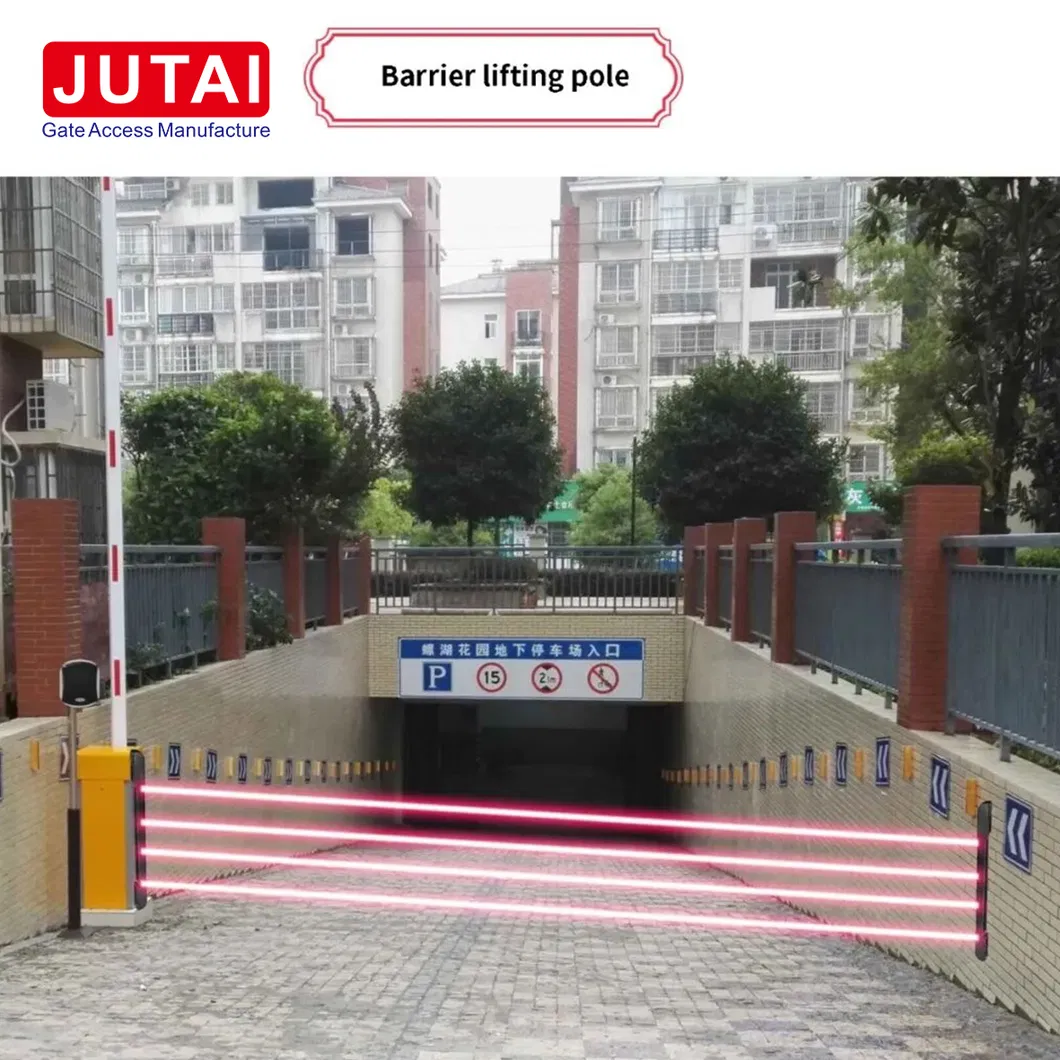

Application Scenarios

Key Functions

Independent wired infrared grating alarm: Integrated high-efficiency alarm system can be triggered independently without an alarm host.
Stable Infrared Beam: High-quality industrial-grade emitter ensures stability and a long service life.
Sealed Waterproof & Dustproof: Built to withstand harsh weather conditions including wind and rain.
Accurate Detection: Anti-false alarm logic ignores small animals or falling leaves. Triggers only after 2 seconds of blockage for single beams, or immediately for multiple beams.
180° Directional Rotation: Facilitates easy installation and alignment of the projection focus.
Anti-dismantling function: Alarms are triggered if the grating is illegally disassembled or the cable is cut.

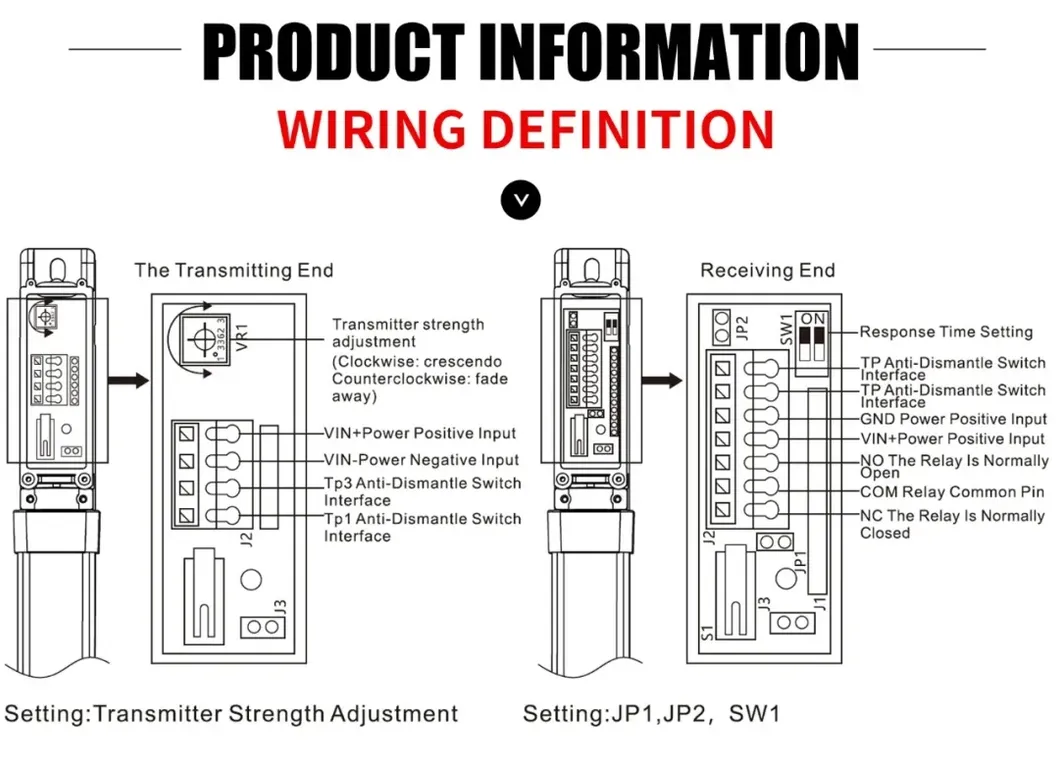

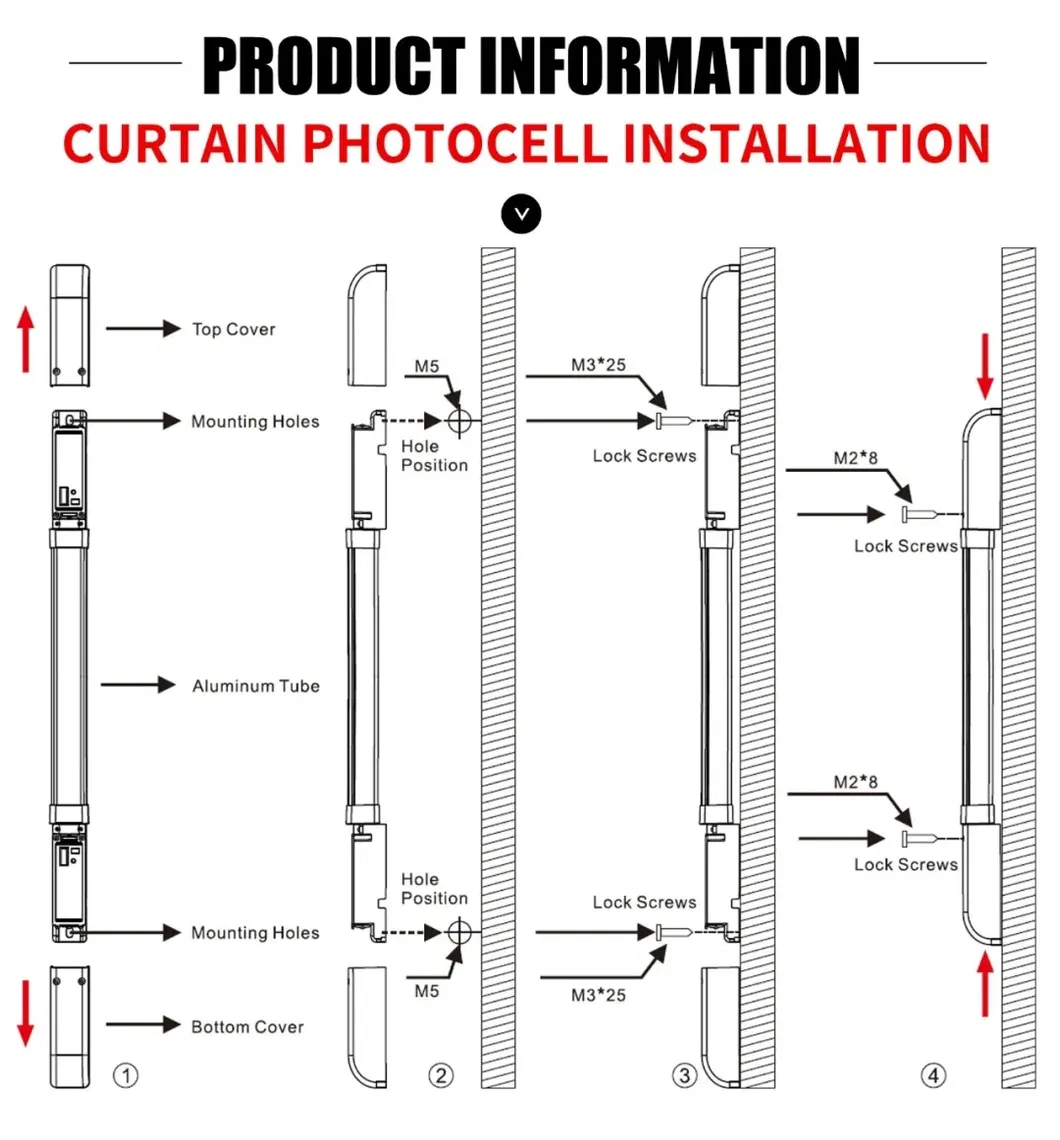

Installation Instructions

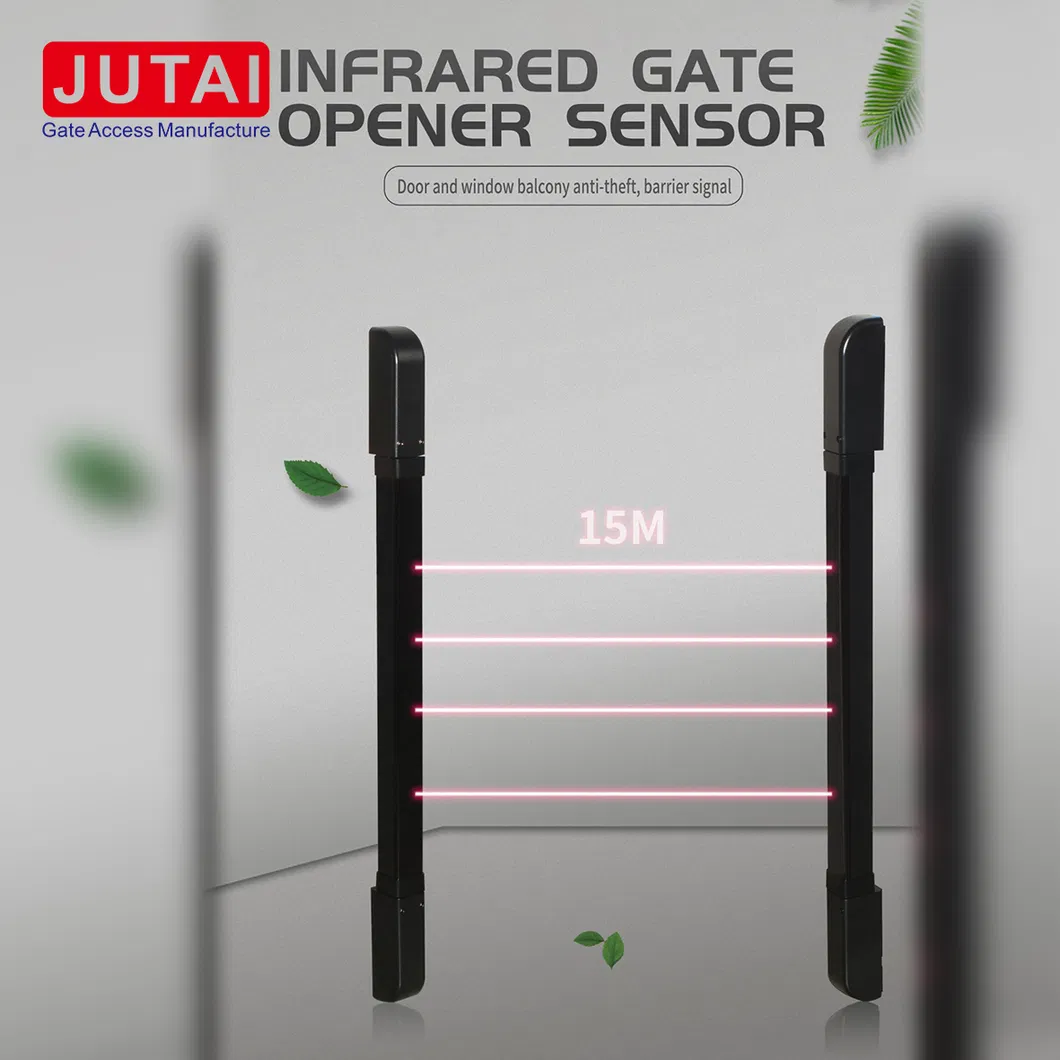

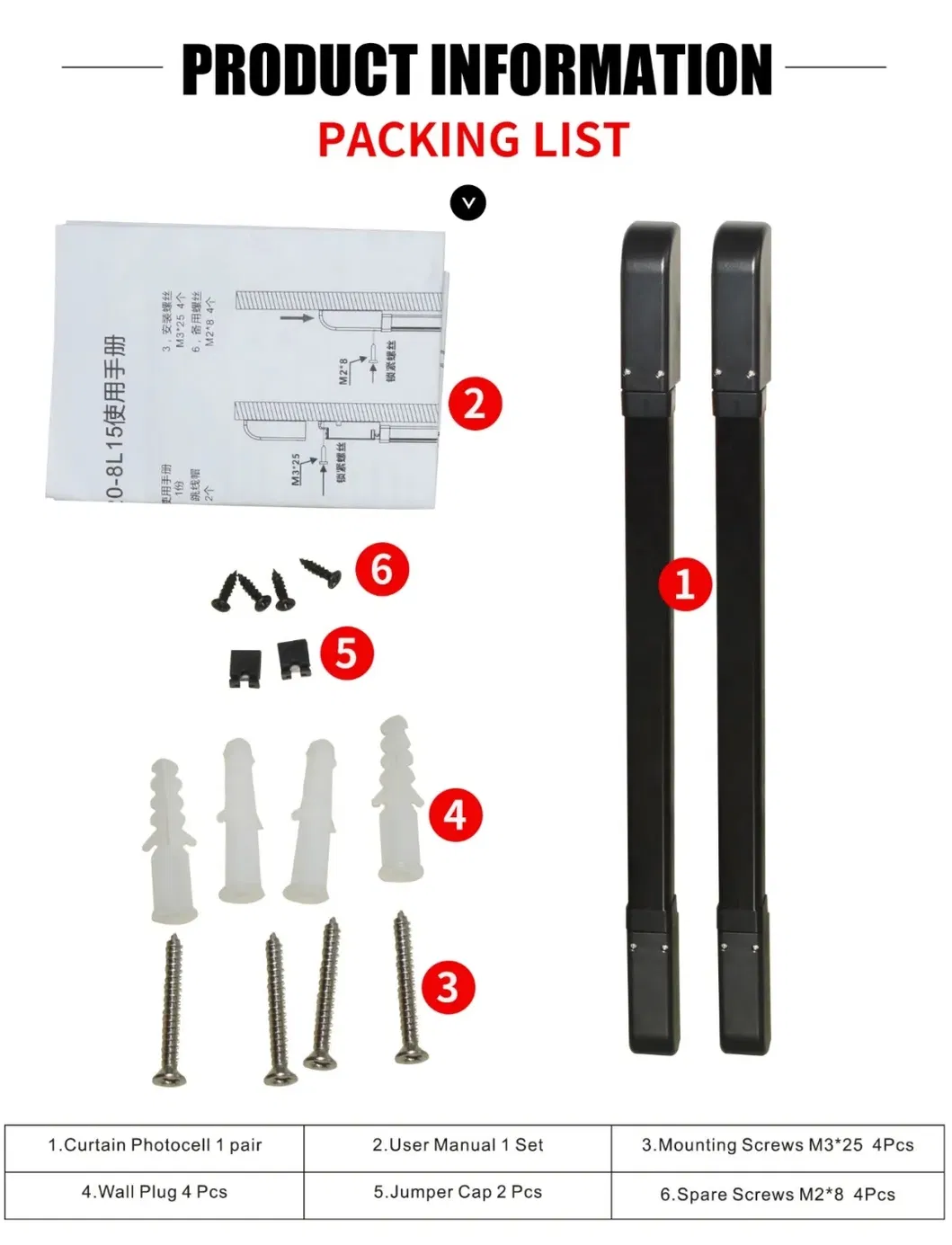

Detailed Photos

Frequently Asked Questions

Q: What is the maximum detection range of the PB3-4L15?

A: The system supports a wide detection range of up to 20 meters.

Q: Is this device suitable for outdoor use?

A: Yes, it features an IP67 rating, making it completely waterproof and dustproof for outdoor environments.

Q: Can the infrared beams be adjusted during installation?

A: Yes, the unit supports 180-degree horizontal rotation to simplify focus alignment.

Q: How does the anti-false alarm feature work?

A: It is designed to ignore small interruptions like falling leaves. It triggers after a 2-second delay for a single beam or immediately if multiple beams are blocked.

Q: What is the power supply requirement?

A: The system operates on a DC12-24V power supply.
