Product Overview
The control panel is primarily utilized in building control systems, integrated with other devices on the bus to create a cohesive system. Its intuitive operation allows users to plan and execute functions systematically based on specific requirements.
● Controls switches, dimming, and blinds.

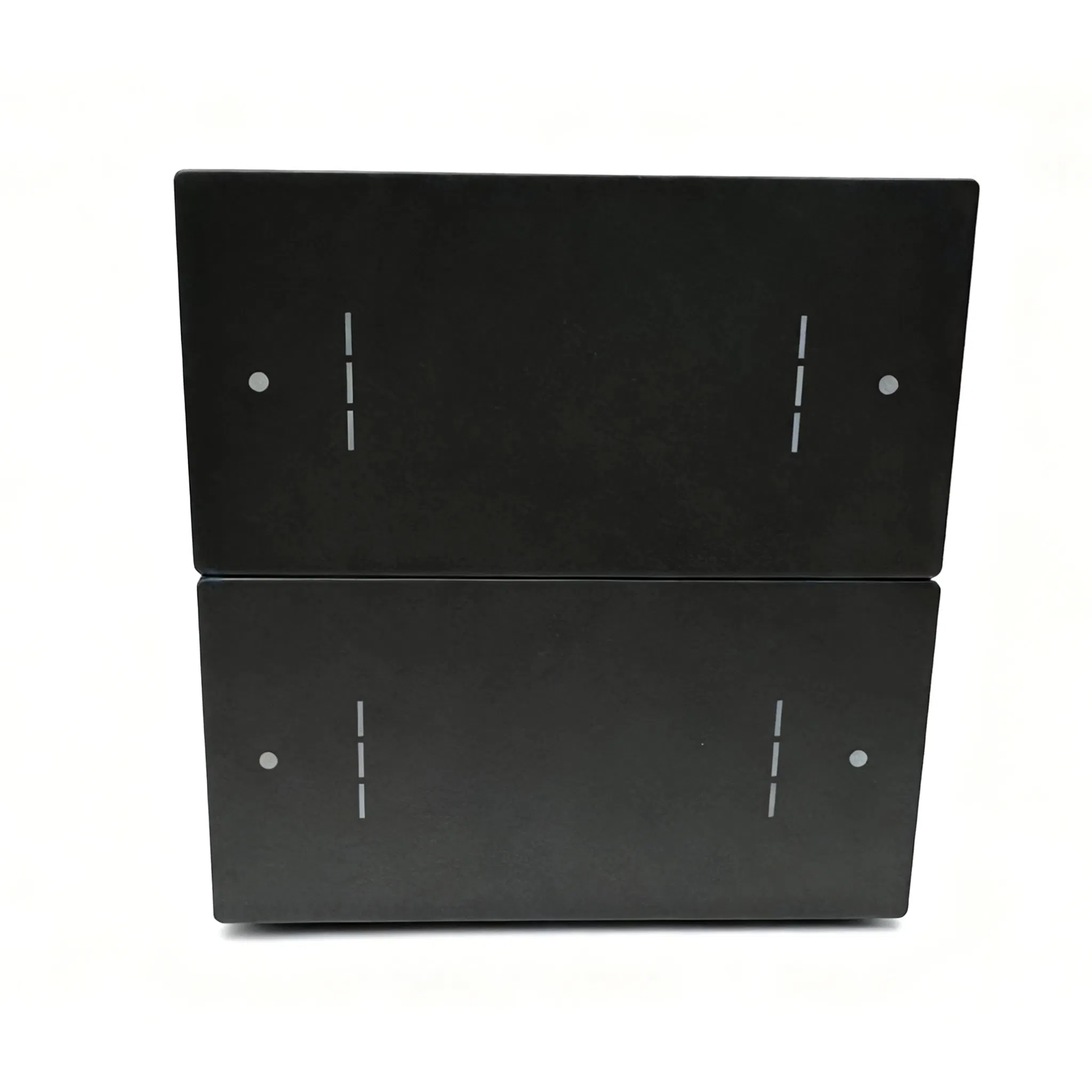

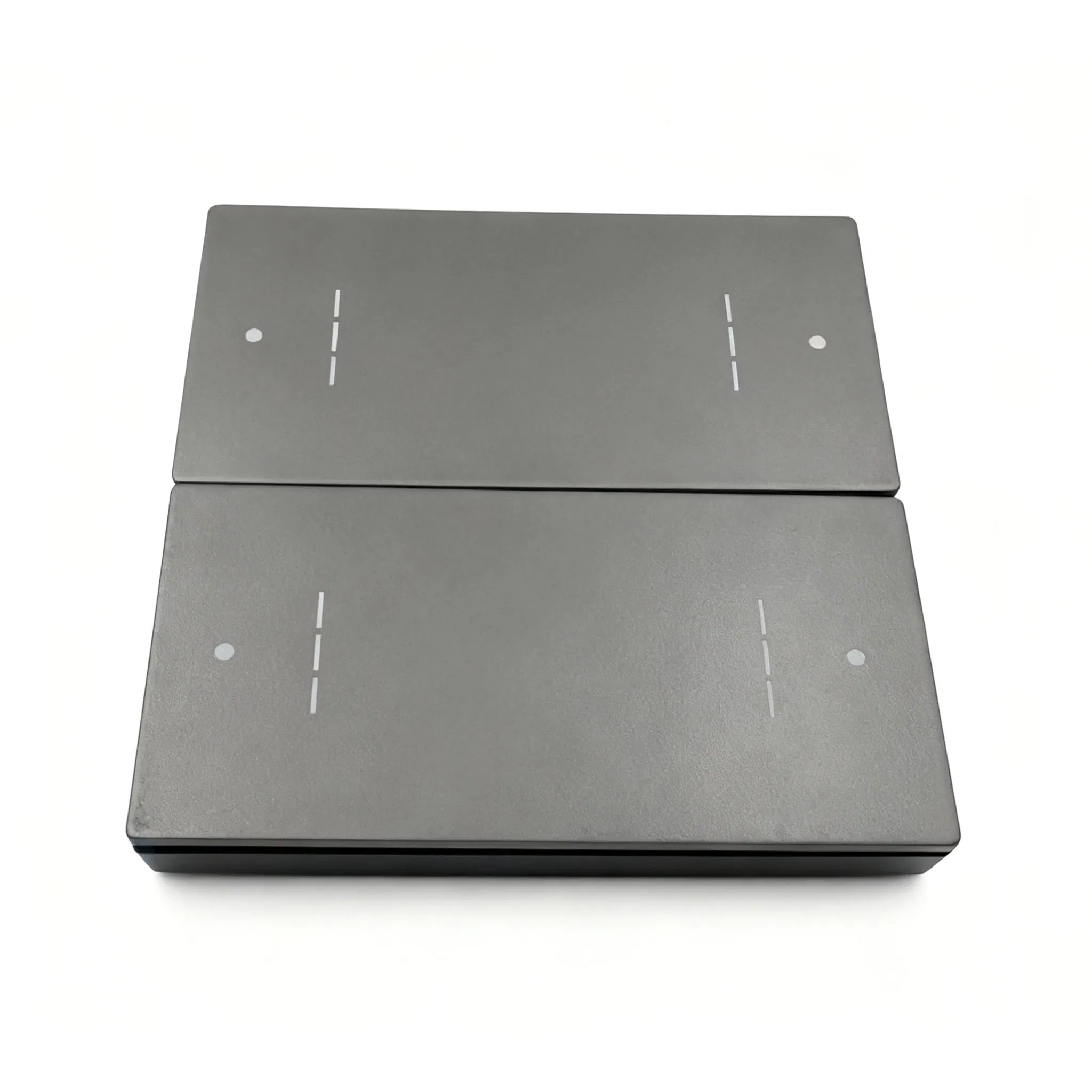

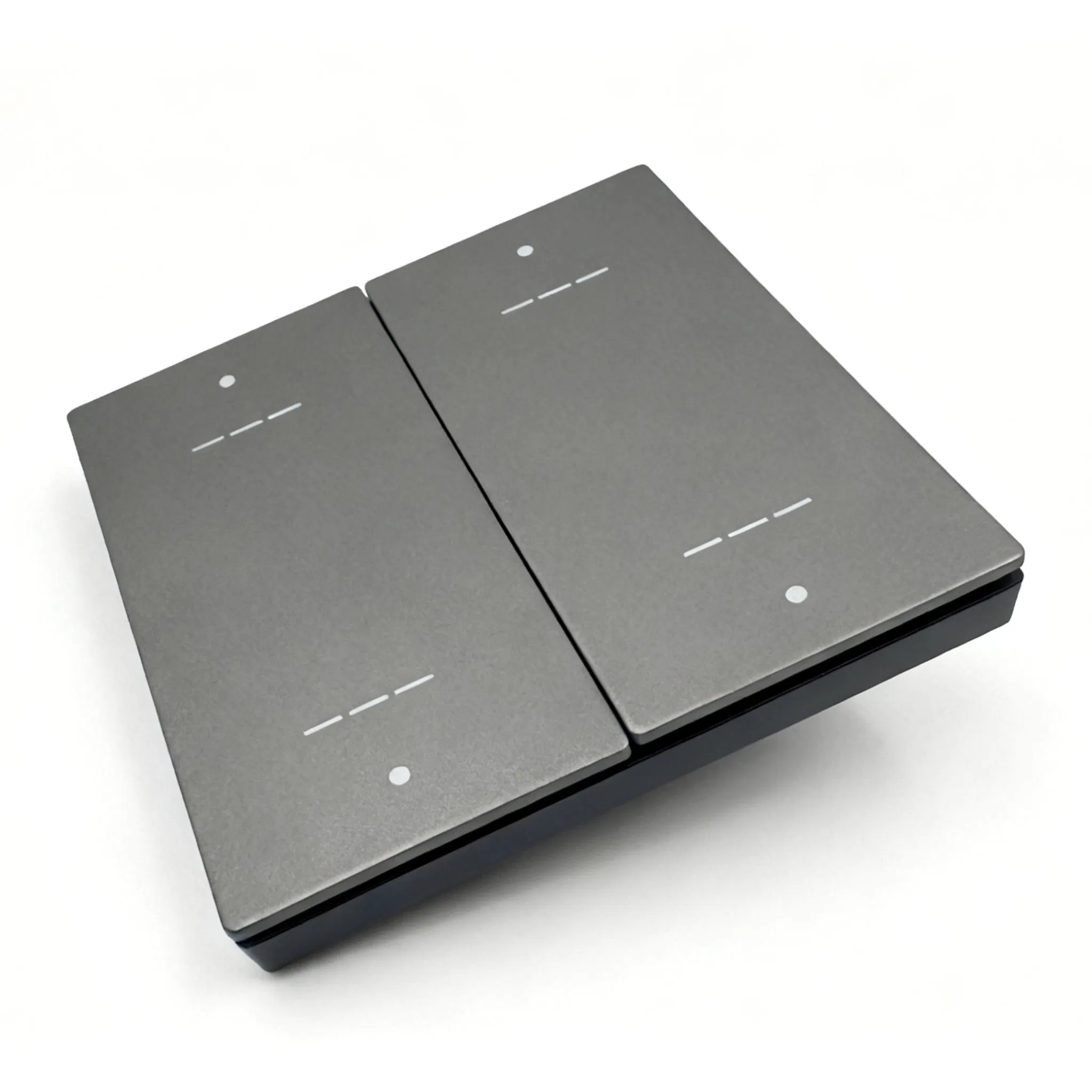

● Each channel features buttons and LED indicator lights.

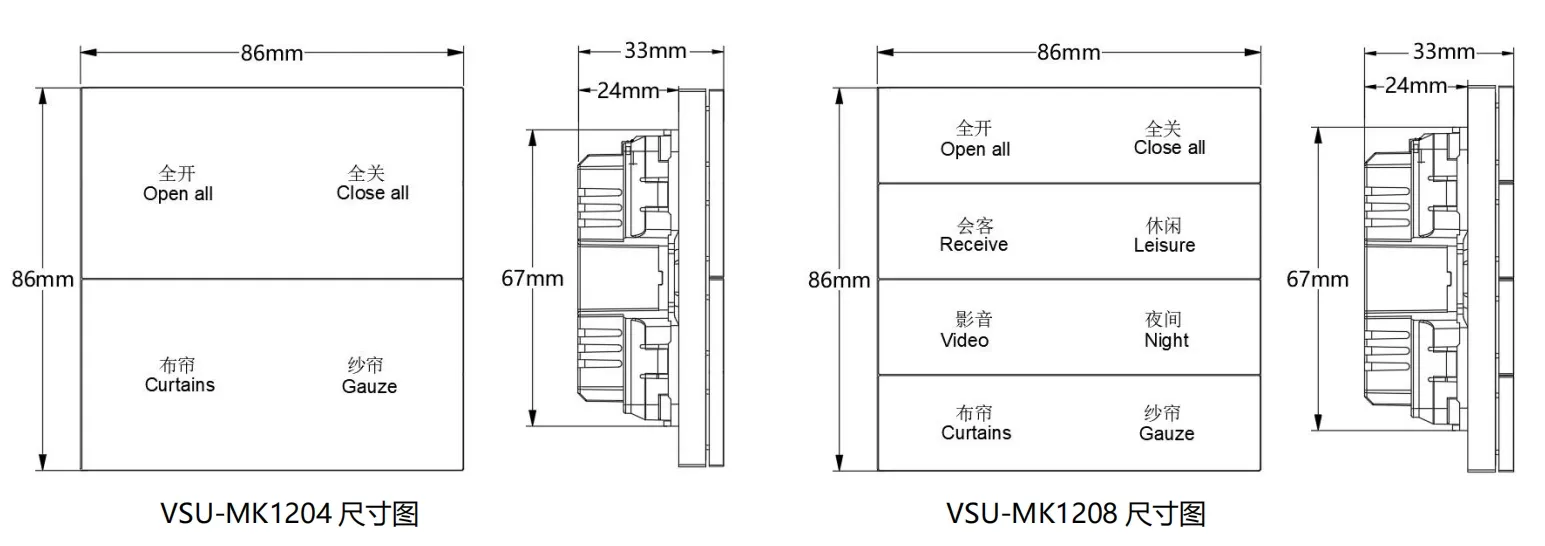

● Standard 86 bottom box installation with 1-4 or 1-8 button outputs.
● Connects to EIB/KNX systems via the bus using ETS software for configuration.
● Requires 24VDC auxiliary power supply; all channels operate independently.
Core Functions
✔ Versatile control for lighting, curtains, and projection screens with long/short press support.
✔ Advanced dimming capabilities including relative and absolute dimming output.
✔ 8-bit scene control for calling pre-set environmental functions.
✔ Multifunctional LED indicators (normally on, off, or flashing).
✔ LED interlocking grouping and brightness adjustment features.
✔ Brightness wake-up and delayed extinguishing for status and backlight LEDs.
Frequently Asked Questions
Q1: What functions can this control panel perform?
It can be used for switching lighting, controlling curtain opening/closing, projection screen lifting, and dimming devices with both absolute and relative dimming functions.
Q2: Does it support scene control?
Yes, it supports 8-bit scene control and allows users to call pre-set scene functions easily.
Q3: What is the typical lead time for orders?
For quantities between 1-100 pieces, the lead time is approximately 3 days. Products in stock can often be shipped within 7 days after payment.
Q4: Can the product be customized with our own design?
Yes, OEM/ODM services are provided. Your specific logo and design can be applied to the merchandise.
Q5: What is the warranty period for these devices?
The warranty is applicable within 90 days after the package has been received. All products are original and undergo strict quality checks.

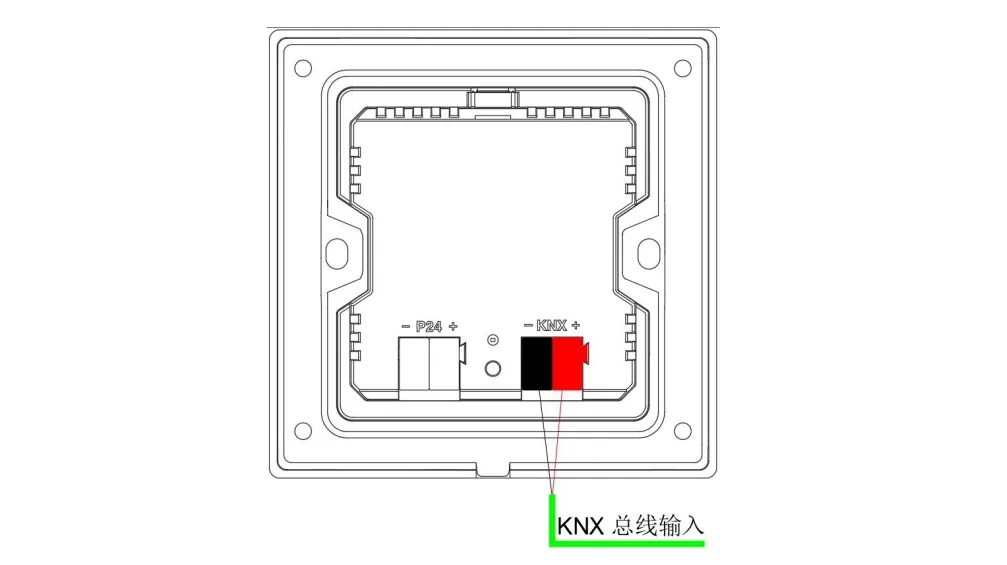

Q6: What are the installation and power requirements?
The panel is designed for standard 86-box installation. It is powered by the KNX bus (21-30 VDC) and requires an additional 24VDC auxiliary power supply.
