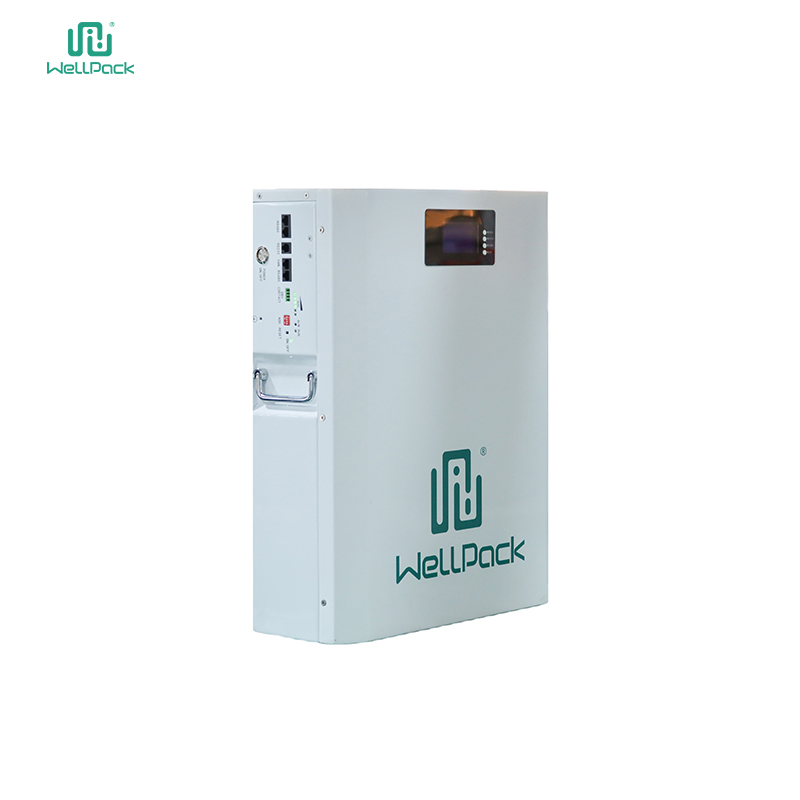

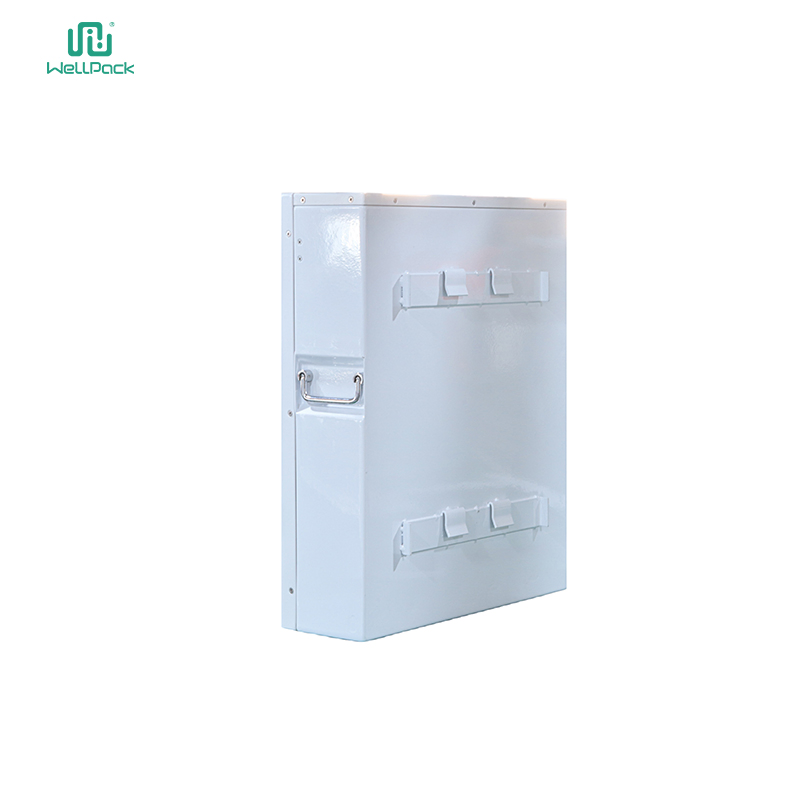

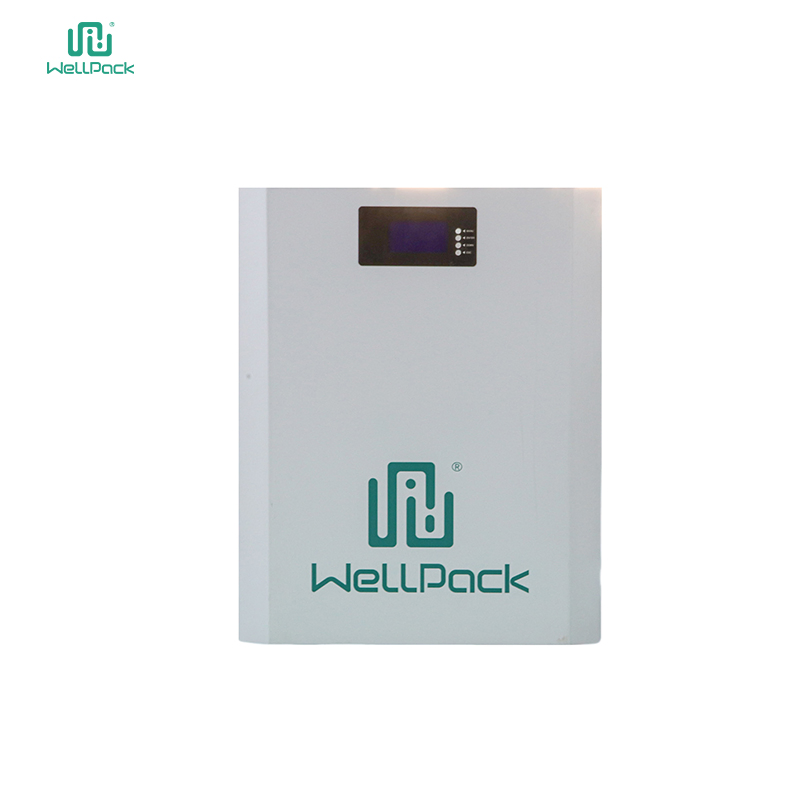

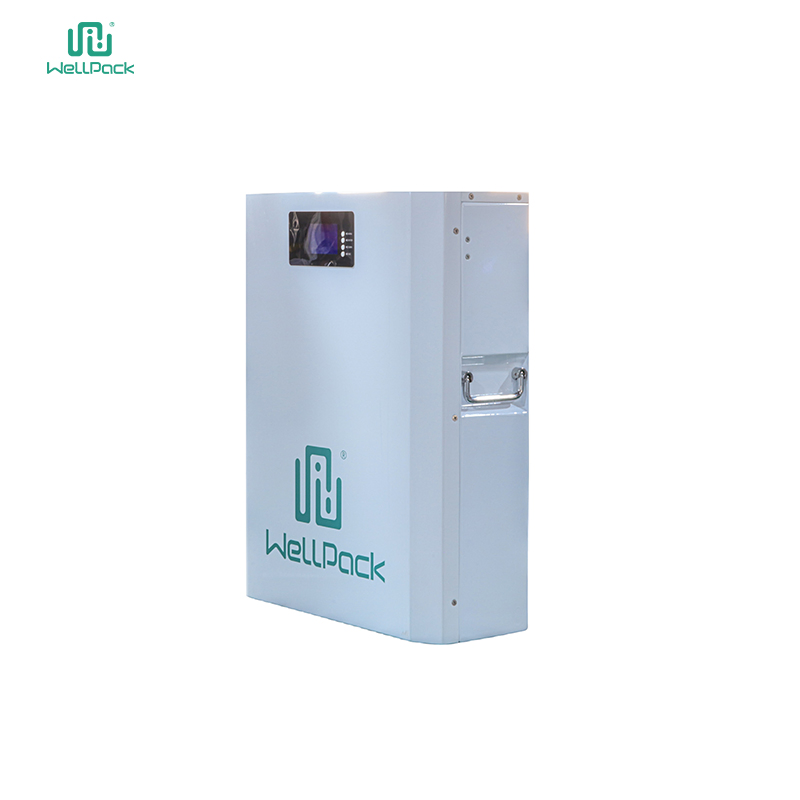

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

1 / 5

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Home Wall Mounted Energy Storage System 5.12kwh

Customization:	Available
Nominal Voltage:	180-850V
Nominal Capacity:	5.12kwh

Send Inquiry

Product Description

⚡ Product Overview

Model NO. 5.12KWh

Cycle Life 4000+

Charge Current Limit 20A

Charging Voltage 57.6V±0.5V

Specification 580*440*180mm

Origin China

📋 Technical Parameters

Item	Technical Parameter	Note
Battery Type	Li-ion battery	-
Cell Material	LiFePO4	-
Nominal Voltage	51.2V	16S1P
Voltage Range	48~57.6V	Operating voltage range
Charge Limit Voltage	57.6V	-
Battery Energy	100Ah/ 51.2V (5.12KWh)	At 25ºC, 0.2C Discharging
Internal Resistance	≤80mΩ	AC 1kHz tester after full charge
Maximum Charging Current	100A	Continuous maximum support
Maximum Discharge Current	100A	Continuous maximum support
Temperature Range (Charge)	0ºC ~ 45ºC	Optimum performance range
Parallel Connection	Up to 16 Units	Supports parallel, not in series
Product Weight	50Kg	Approximate weight
Shell Material	Sheet Metal	Durable casing

🖼️ Product Display

Energy Storage System Front

Interface Details

Component View

Internal Structure

System Wiring

Size Diagram

Installation Guide

Safety Features

Wall Mounted Setup

Certifications Display

❓ Frequently Asked Questions

What is the cycle life of this LiFePO4 battery?

The battery is designed for a long service life with over 4000 cycles at standard operating conditions.

Can I connect these batteries in series for higher voltage?

No, this model supports parallel connection only (up to 16 units) to increase capacity. Series connection is not supported.

What is the recommended charging temperature?

The optimum range for charging temperature is between 0ºC and 45ºC.

Does the battery include built-in protection?

Yes, it features integrated overcharge protection at 58.4V and discharge termination protection at 43.2V.

What are the main applications for this 5.12KWh system?

It is primarily designed for home wall-mounted energy storage, solar power backup, and off-grid power solutions.

What is the maximum discharge current supported?

The system allows for a maximum continuous discharge current of 100A.
