Product Description

Basic Information

Model NO.	VSU-MK1201
Function	APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Certification	CE
Bus Voltage	21-30 VDC, Powered by KNX Bus
Material	Metal + ABS + PC
Installation	86-Box Installation

⚙

Product and Function Overview

The control panel is primarily utilized in building control systems, integrated with other devices on the bus to create a cohesive system. Its operations are intuitive, allowing users to plan and execute functions according to specific requirements. It can effectively control switches, dimming, and blinds. Each channel on the panel is equipped with buttons and LED indicator lights.

This is a standard 86 bottom box installation device featuring 1-4 or 1-8 button outputs. It connects to the EIB/KNX system via the EIB bus and uses ETS software for address allocation and parameter setting. The device is directly powered by the bus and requires a 24VDC auxiliary power supply.

✓

Key Functions

Lighting control, curtain movement, and projection screen lifting with long/short press support.

Relative and absolute dimming output functions for advanced device control.

8-bit scene control to call pre-set lighting and atmosphere scenes.

LED indicators with multiple states: normally on, normally off, or flashing.

Brightness adjustment and delayed extinguishing for backlight LEDs.

Independent channel functionality and LED interlocking grouping.

Technical Parameters

Bus Current	≤12mA
Bus Power	<360mW
Size (H x W x D)	86 x 86 x 33 mm
Operation Temp	-5℃ to +45℃
Auxiliary Voltage	24VDC
Auxiliary Current	≤27.5mA
Relative Humidity	Max 90%

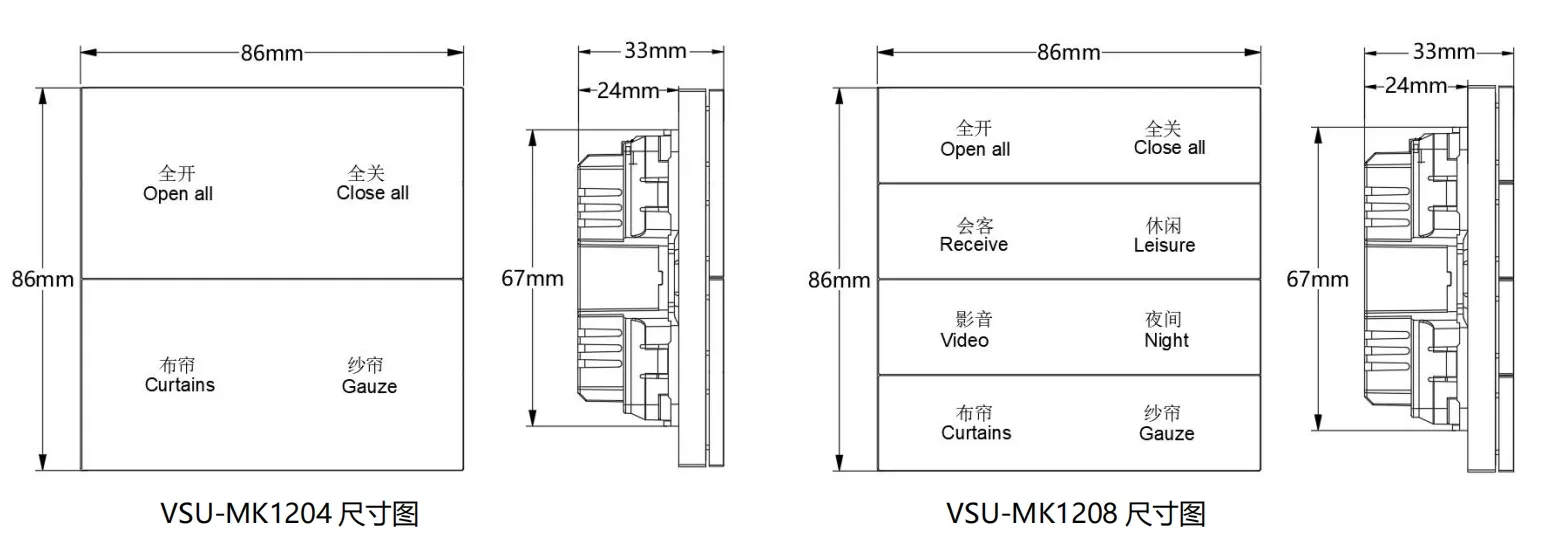

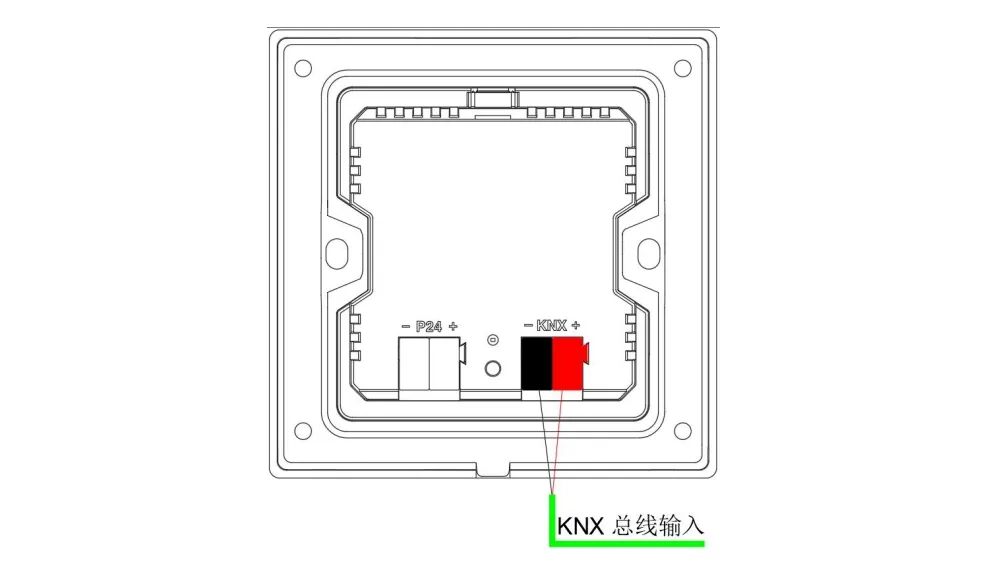

Dimensional & Wiring Diagrams

Packaging & Delivery

Package Size	25.00cm * 20.00cm * 18.00cm
Gross Weight	3.000kg
Lead Time	3 days (1 - 100 Pieces); To be negotiated (> 100 Pieces)
