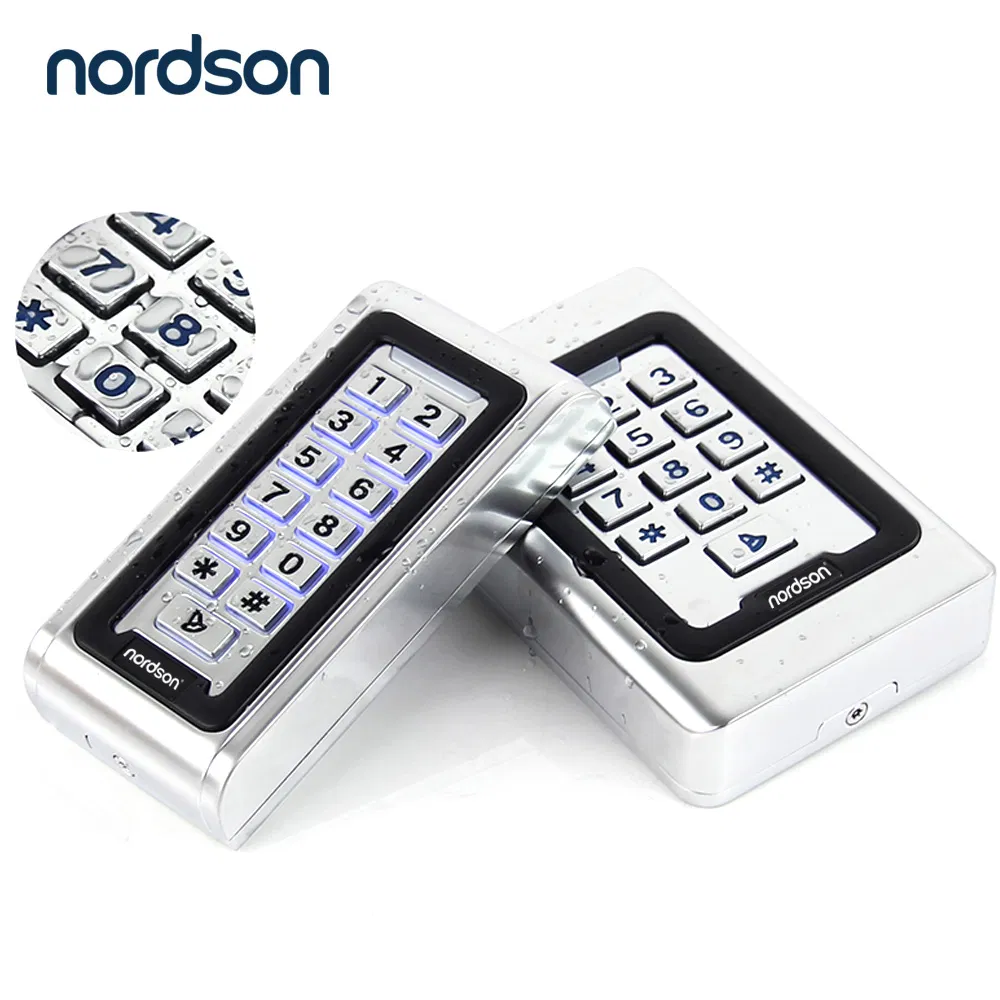

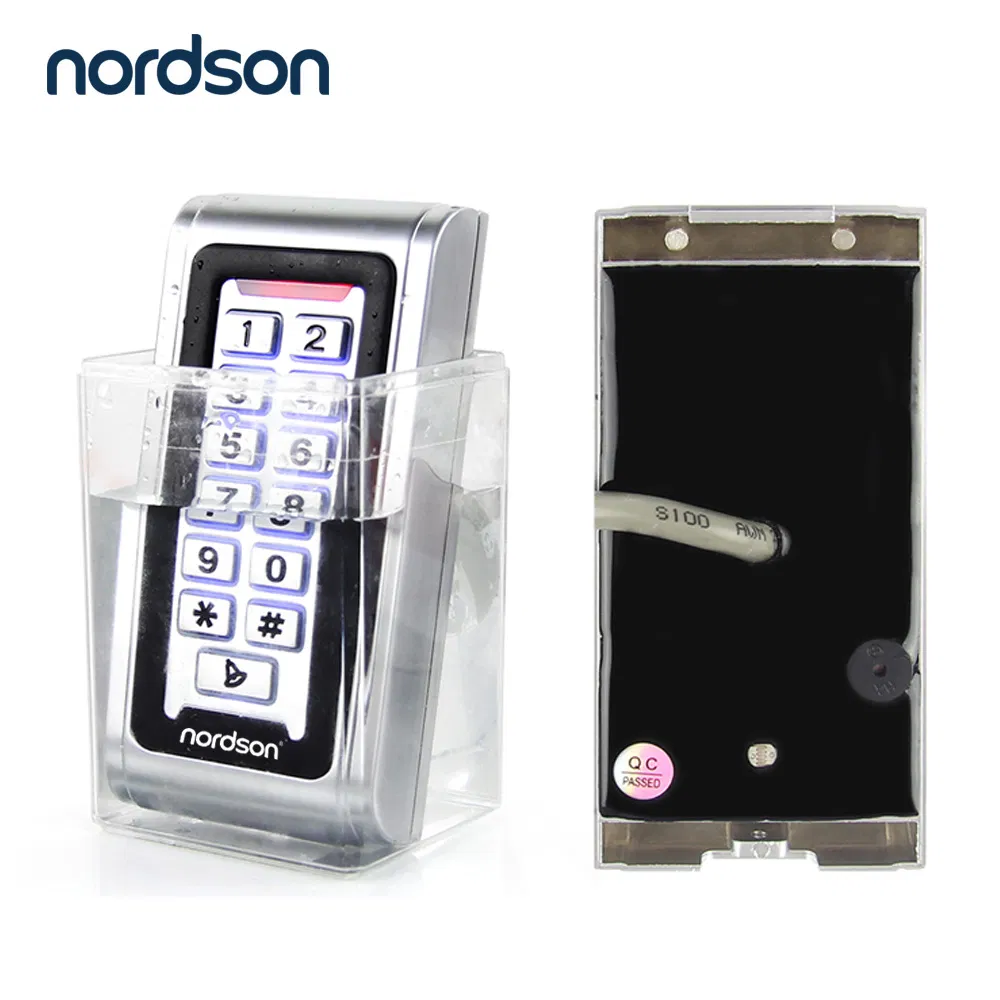

IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
1 / 5
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System
IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System

IP65 Waterproof Signal Metal Keypad Door Access Controller 125kHz 13.56MHz RFID Card Reader Door Entry System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:NT-109EM
Technology:32-Bit Technology
Way of Control:Computer Control, Hand Control
Communication:RS485
Type:Two-way Controller
Package:Neutral Packing
Specification:120*56*18mm
Origin:China
HS Code:830140000
Capacity:5,000,000
Waterproof Metal Keypad Door Access Control System

NT-109 Waterproof metal Standalone Access Controller, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance. Support Wiegand output & input, can be used as a card reader. Built-in data memory, quickly identify proximity readers, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.

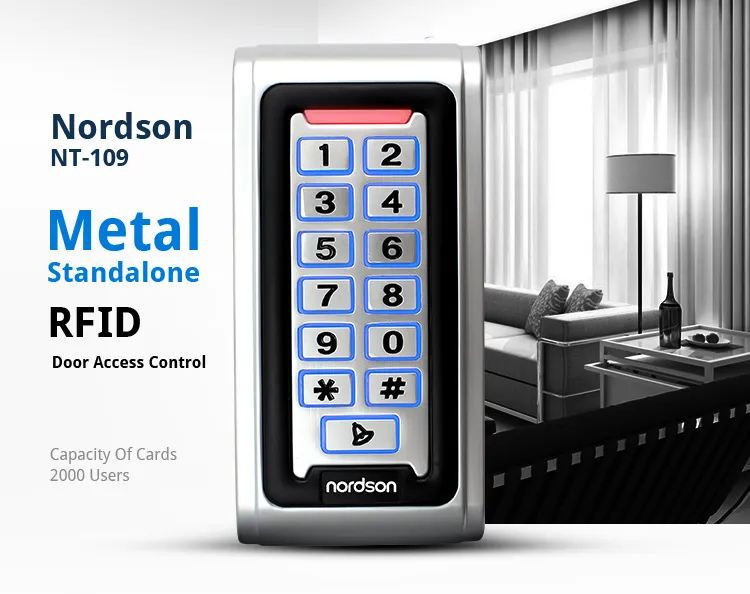

Access Controller View 1

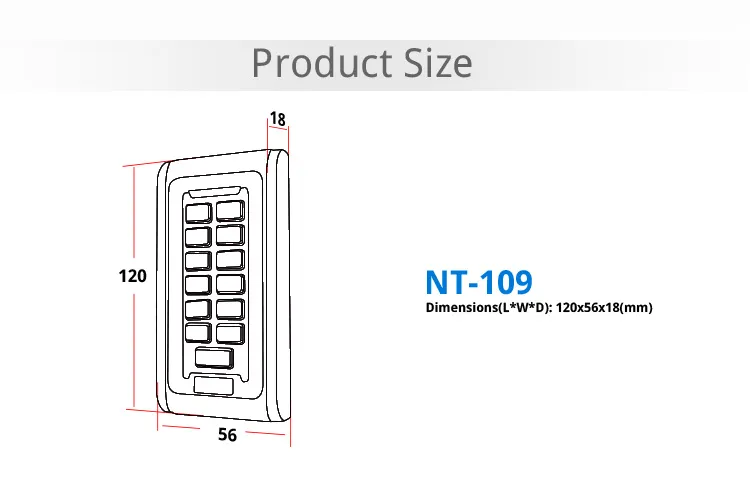

Access Controller View 2

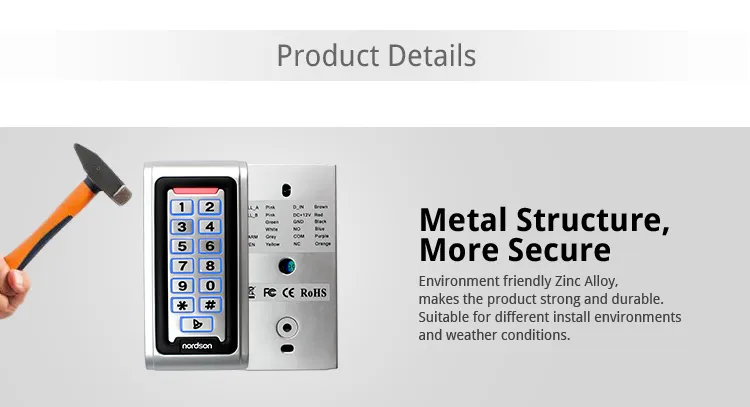

Access Controller View 3

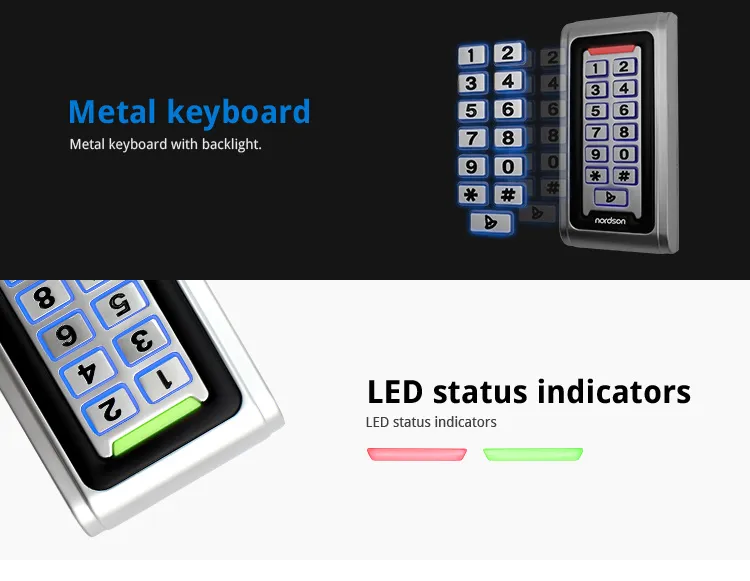

Access Controller View 4

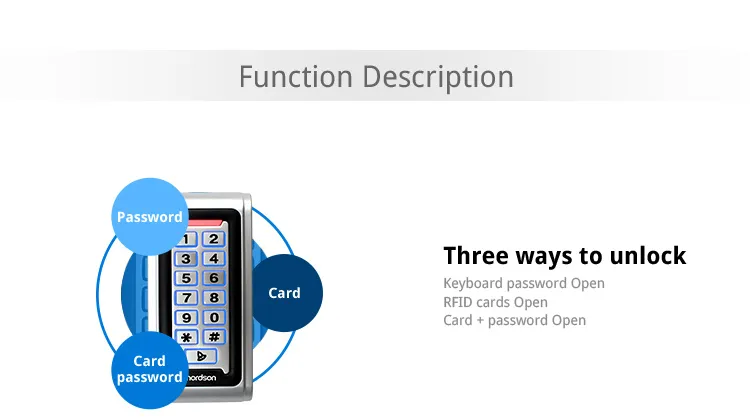

Access Controller View 5

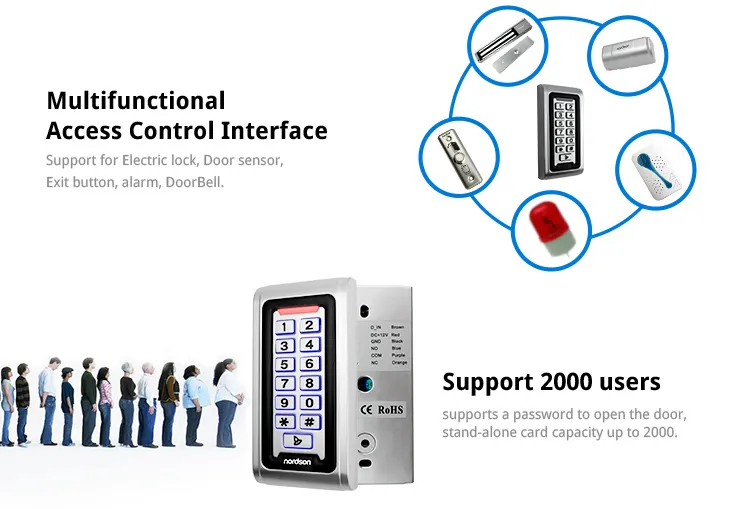

Access Controller View 6

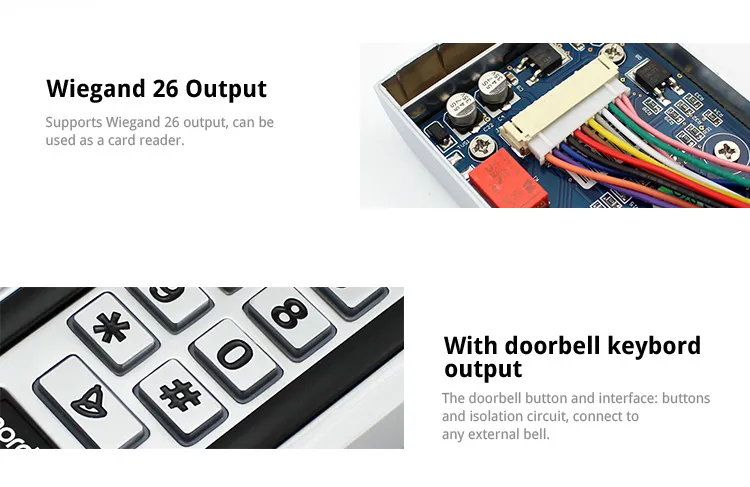

Access Controller View 7

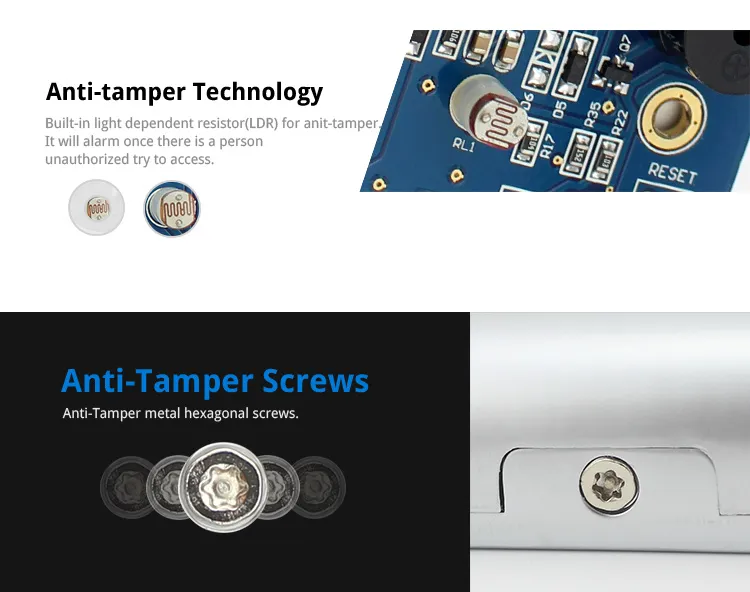

Access Controller View 8

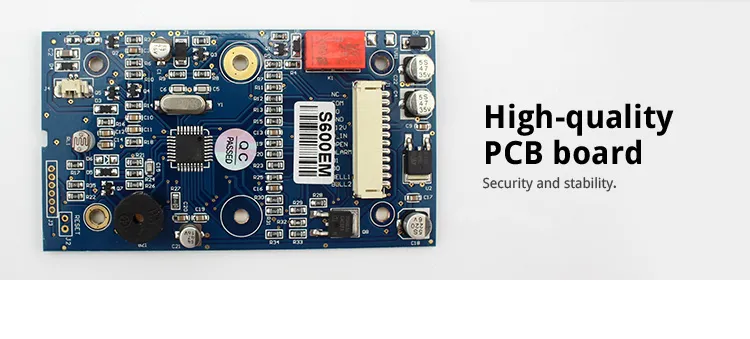

Access Controller View 9

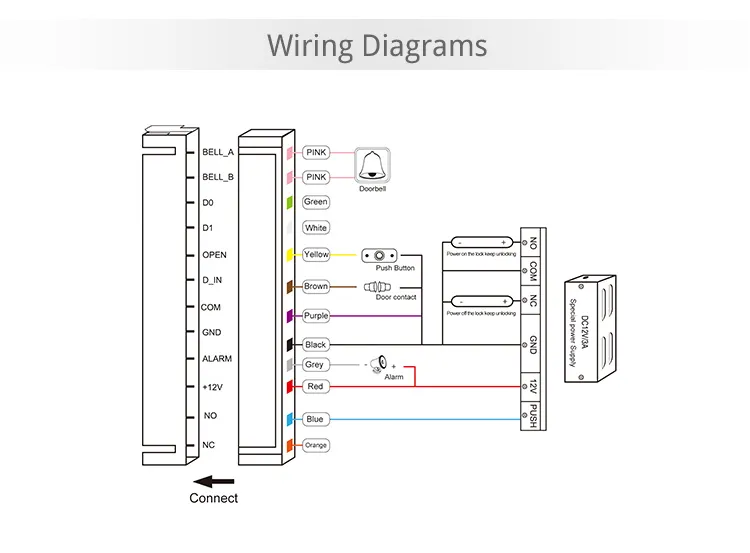

Access Controller View 10
Key Functions
  • Completely independent access control, directly through the keyboard to achieve password, card management and other functions.
  • Supports Wiegand 26 output & input, can be used as a card reader.

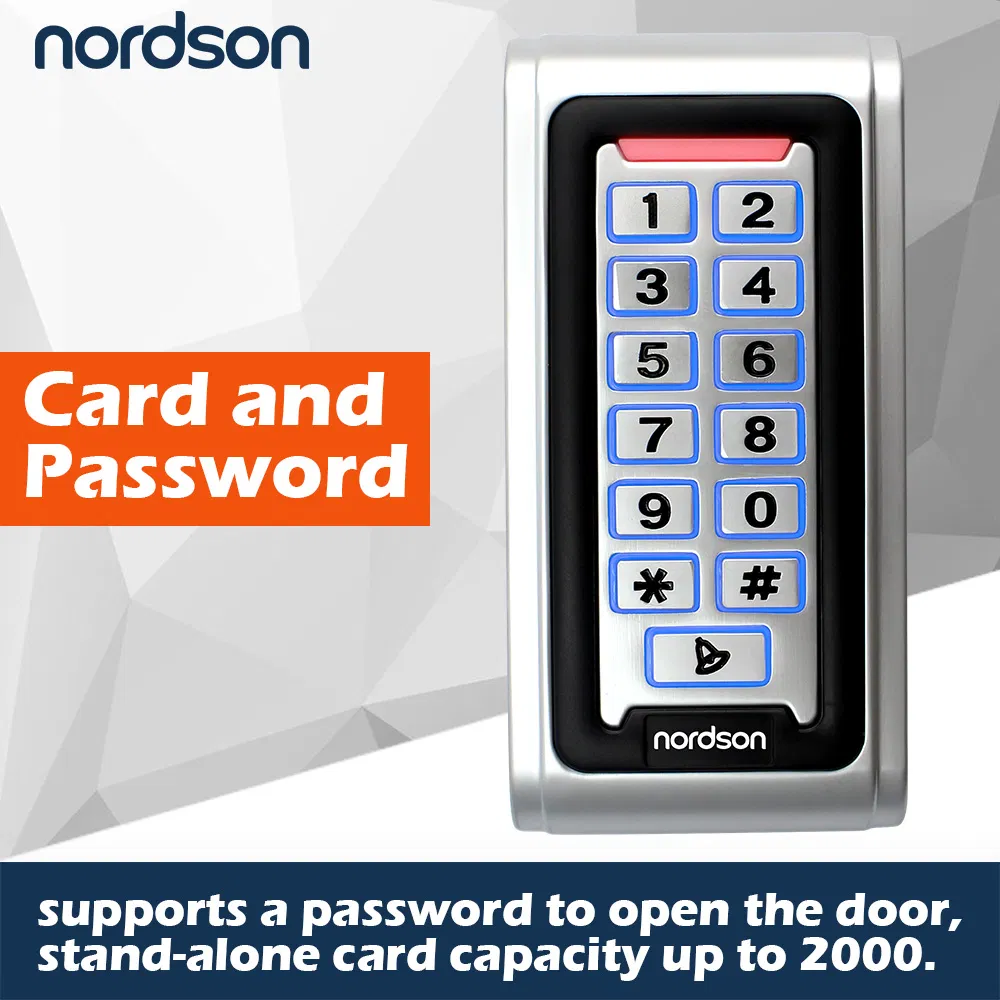

  • Support card, password, and card with password authentication modes.
  • Reader sensor with high sensitivity, response time less than 0.1 seconds.
  • Standalone card capacity up to 2000 users.

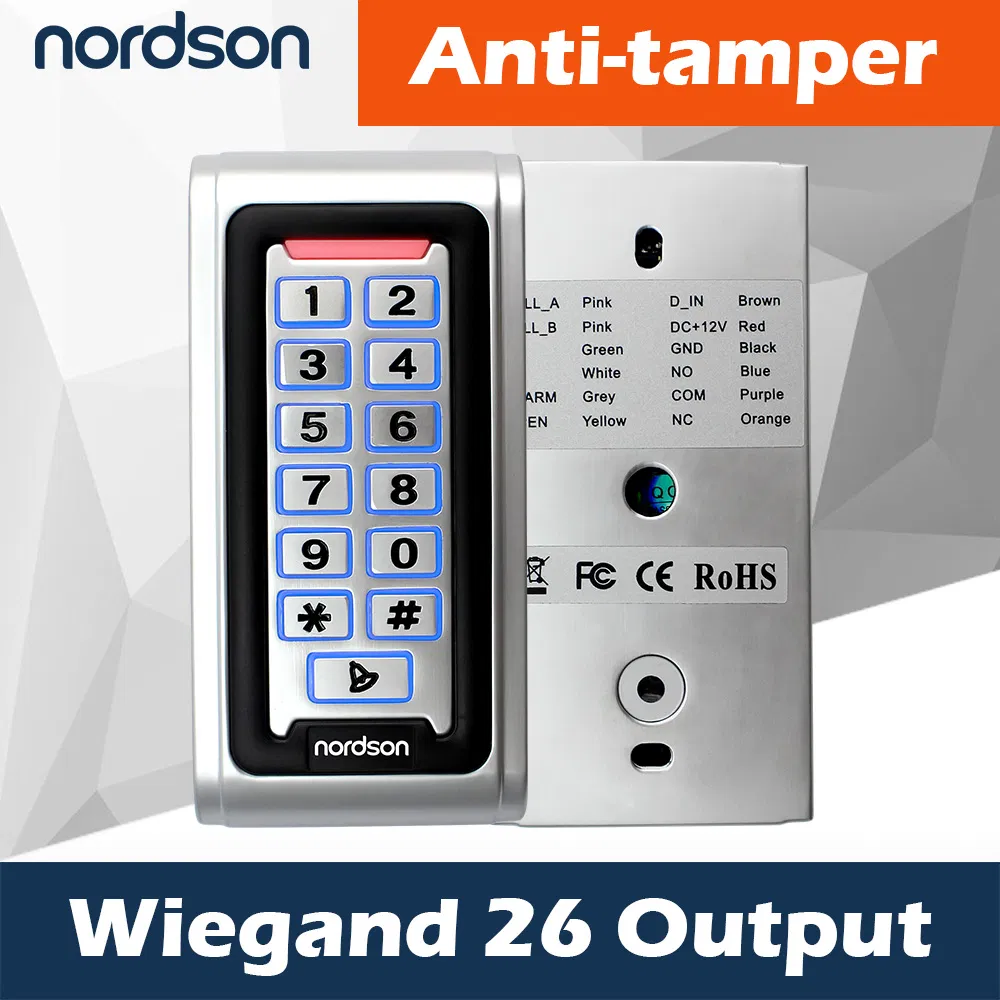

  • High-quality stainless steel materials, with tamper alarm and door sensor alarm functions.
  • Exit button and doorbell input function.
  • Surge absorption protection for enhanced safety.
Technical Specifications
Verification MethodCard, Password, Card+password
KeyboardMetal buttons with luminous backlight
Capacity Of Cards2000 Users
Door Open Time0-99 seconds
Proximity Range3-15CM
FrequencyEM-ID 125KHz or 13.56MHz
Wiegand SignalOutput & Input (Support external WG26 card reader)
VoltageDC 12V

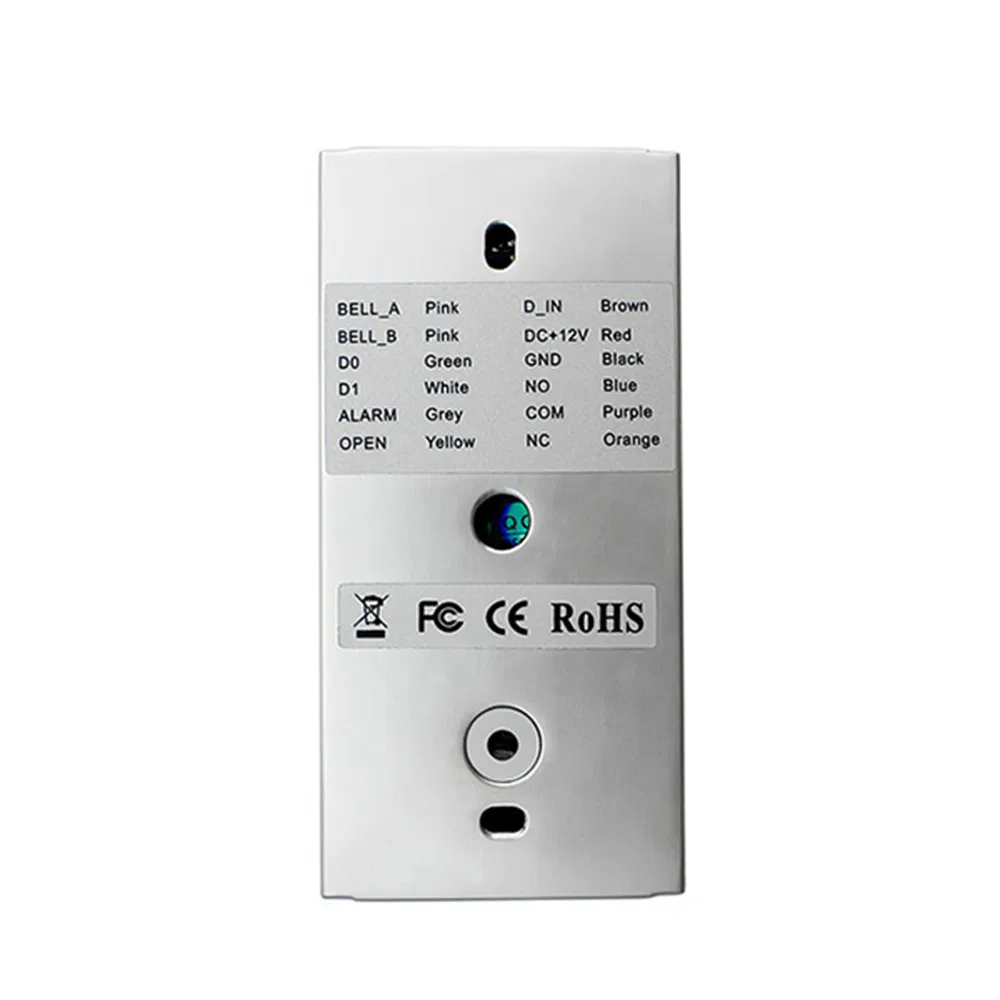

InterfaceElectric lock, Door sensor, Exit button, Alarm, DoorBell
Relay Output2n relay outputs
Operating Temp0°C - 45°C
Operating Humidity20%-80%
Dimensions120x56x18(mm) (L*W*D)
Gross Weight0.52kg
Packaging & Warranty

Packaging: Neutral Package.

Shipping: Small quantity within 1-5 work days after receipt of remittance; large quantity within 14 work days.

Warranty Policy:
• Three-year warranty services for access control system components (panels, locks, strikes).
• One-year warranty for exit buttons, brackets, and power supplies.

Frequently Asked Questions
Q1: Is this access controller waterproof for outdoor use?
Yes, the NT-109 features an IP65 waterproof metal design, making it suitable for outdoor installation and various environmental conditions.
Q2: How many users can the system manage?
The standalone controller can store and manage up to 2,000 users/cards.
Q3: What frequencies does the RFID reader support?
It supports both EM-ID 125KHz and 13.56MHz frequencies (depending on specific configuration).
Q4: Can this device be used as a slave reader for another controller?
Yes, it supports Wiegand 26 output, allowing it to function as a professional card reader for external control panels.
Q5: Does the keypad have a backlight for night use?
Yes, the device is equipped with metal buttons that feature luminous lighting for easy operation in dark environments.
Q6: What is the typical reading distance for cards?
The proximity range is between 3cm and 15cm, providing quick and reliable card sensing.
