📋 Basic Information
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Timer
Material
Plastic / Metal+PC
Operating Temp
-5°C to +45°C
🔍 Product and Function Overview

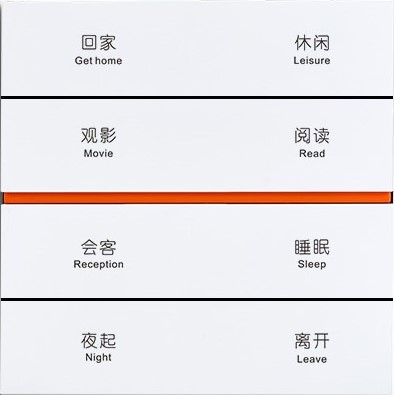

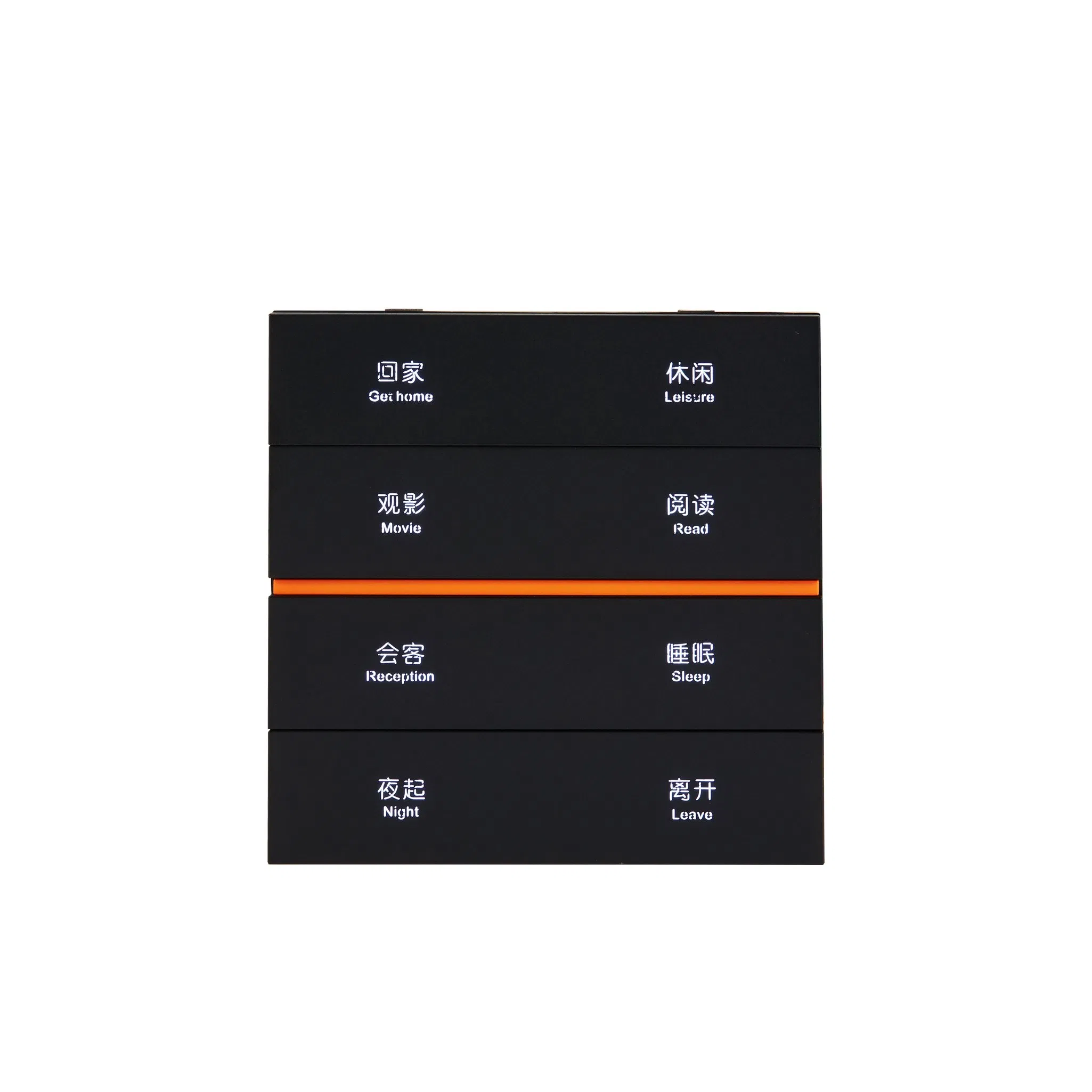

The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system. Users can plan and systematically execute these functions according to their own needs. It can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights.
Standard 86 bottom box installation device with 1-4 or 1-8 button outputs. Connect to the EIB/KNX system via the EIB bus and use engineering design tool software ETS (version ETS4 or above) to allocate physical and group addresses. No need for additional power supply voltage.
⚙️ Function Description
- Switching lighting, curtain opening/closing, projection screen lifting with long/short press functions.
- Dimming device control with relative and absolute dimming output functions.
- 8-bit scene control and pre-set scene calling.
- Value sending (1-bit/1-byte size).
- LED indicator function with multiple states: normally on, normally off, flashing.
- LED interlock grouping and brightness adjustment.
- Programming mode accessible through button operation for data download without wall removal.
- Status and backlight LEDs with brightness wake-up and delayed extinguishing functions.
📊 Technical Parameters
| Bus Voltage | 21-30 VDC, KNX bus power supply |
| Bus Current | ≤12mA |
| Bus Power | <360mW |
| Shell Material | Metal+PC |
| Size (H x W x D) | 86 x 86 x 33 mm |
| Weight | Approx. 0.2kg |
| Installation | 86 bottom box |
| Humidity | Max 90% |

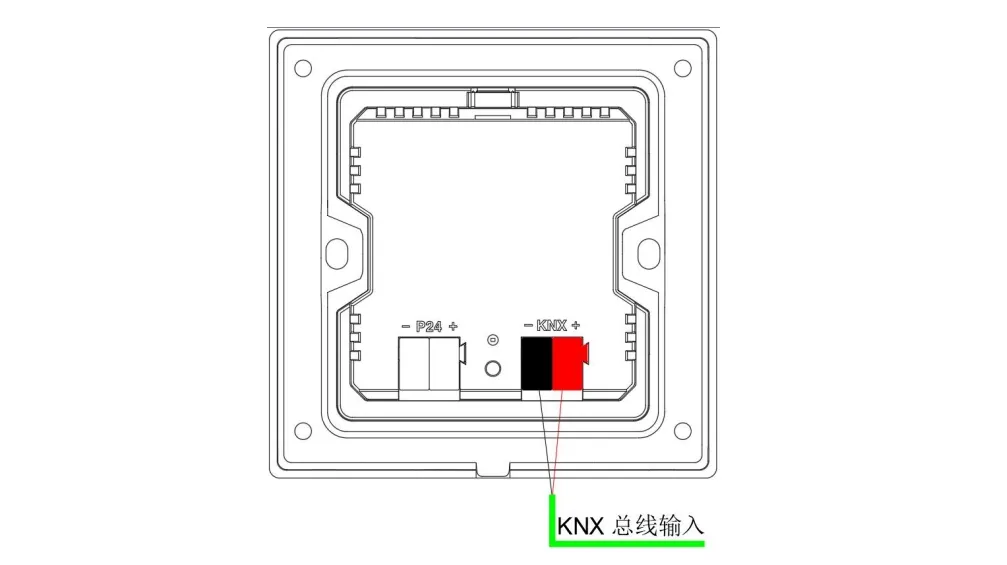

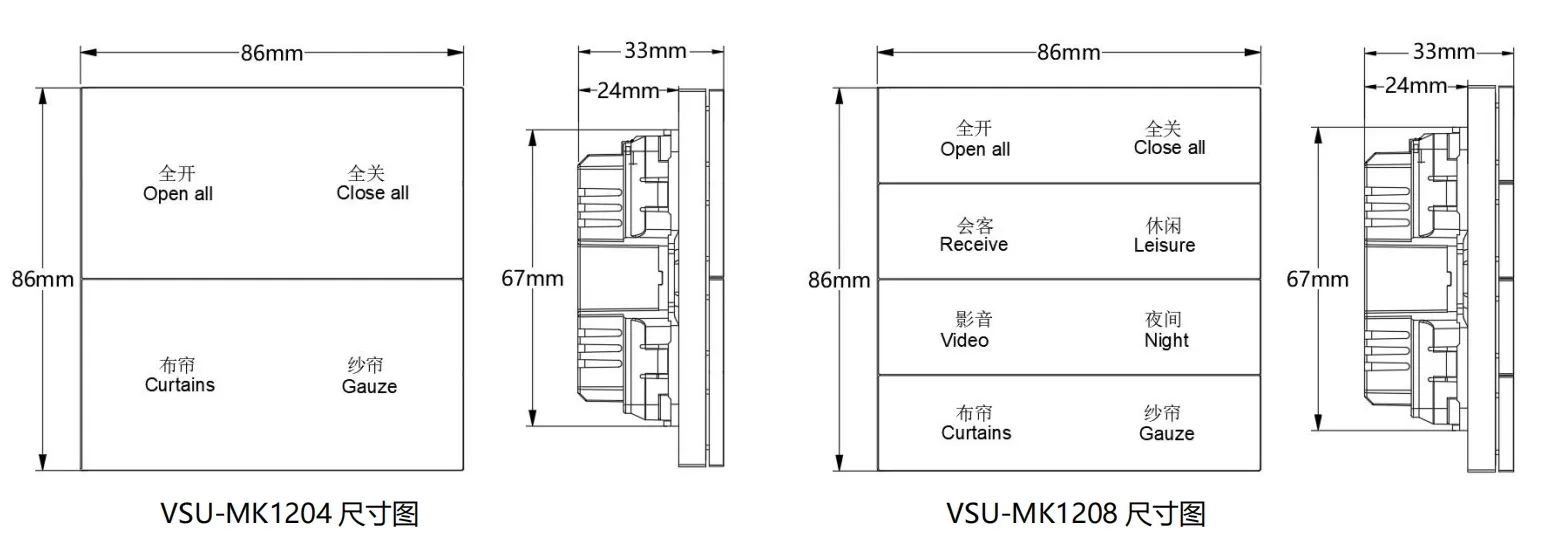

🖼️ Dimensional and Wiring Diagrams
