| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |

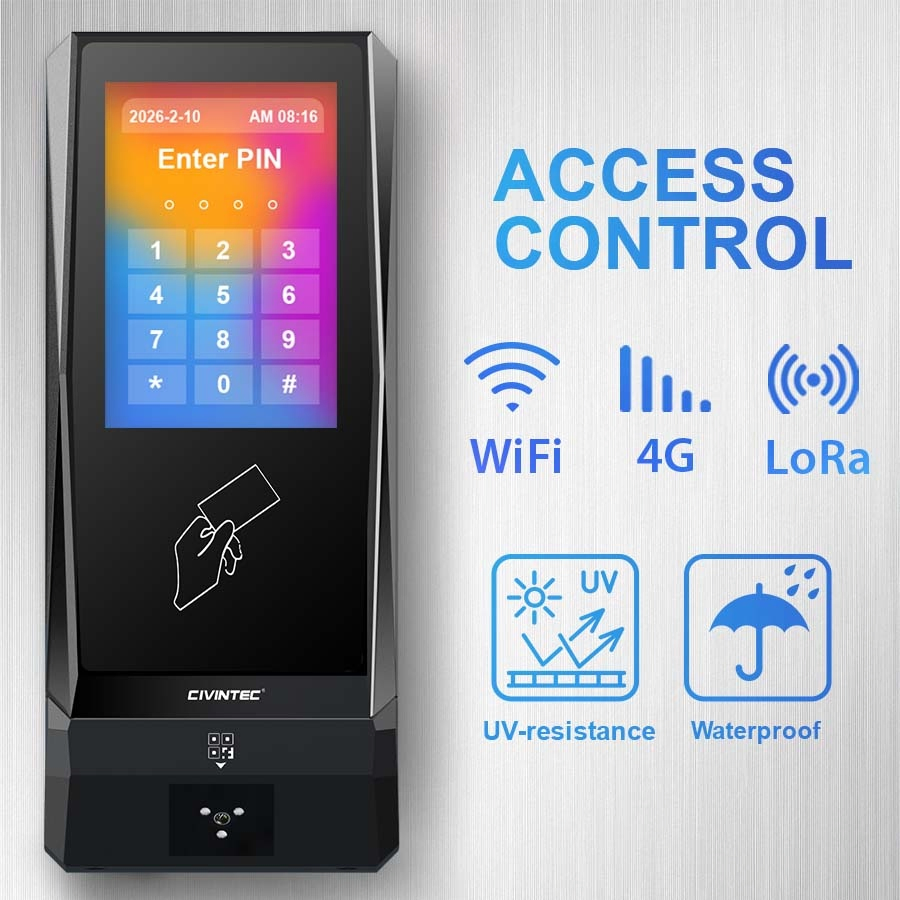

| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional Qr Code |
| RFID Card | 13.56MHz 125kHz |
| Mobile Credential | NFC, BLE |
| Qr Code | Qr Code, Barcode |

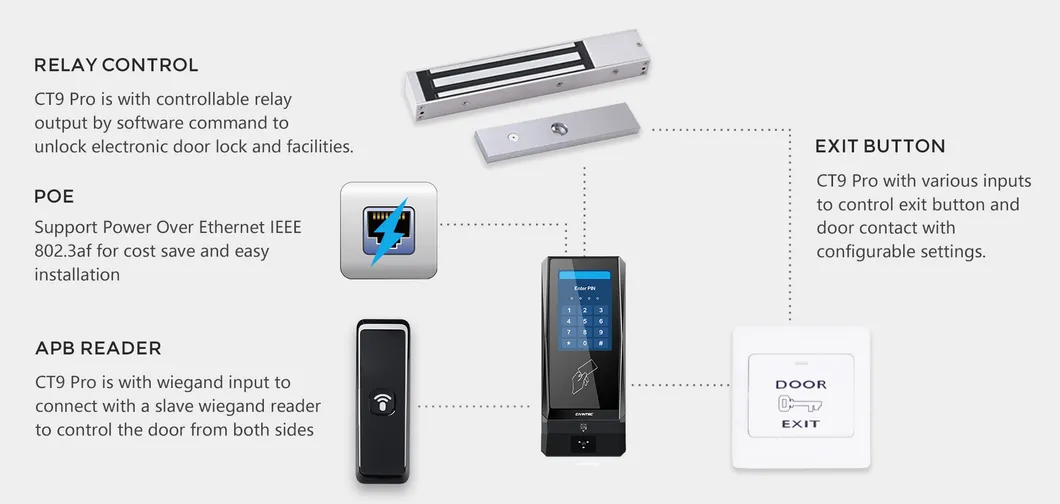

| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| Secure Module | ISO7816 Sam Module |
| Work Mode | Standalone & Network Mode |
| Power | 12-24V DC; Poe IEEE 802.3af |

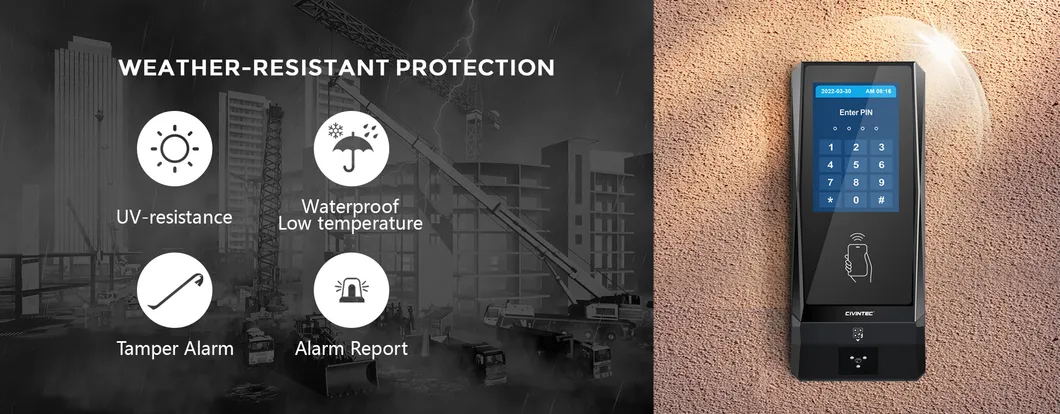

| IP Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |
| Origin | China |

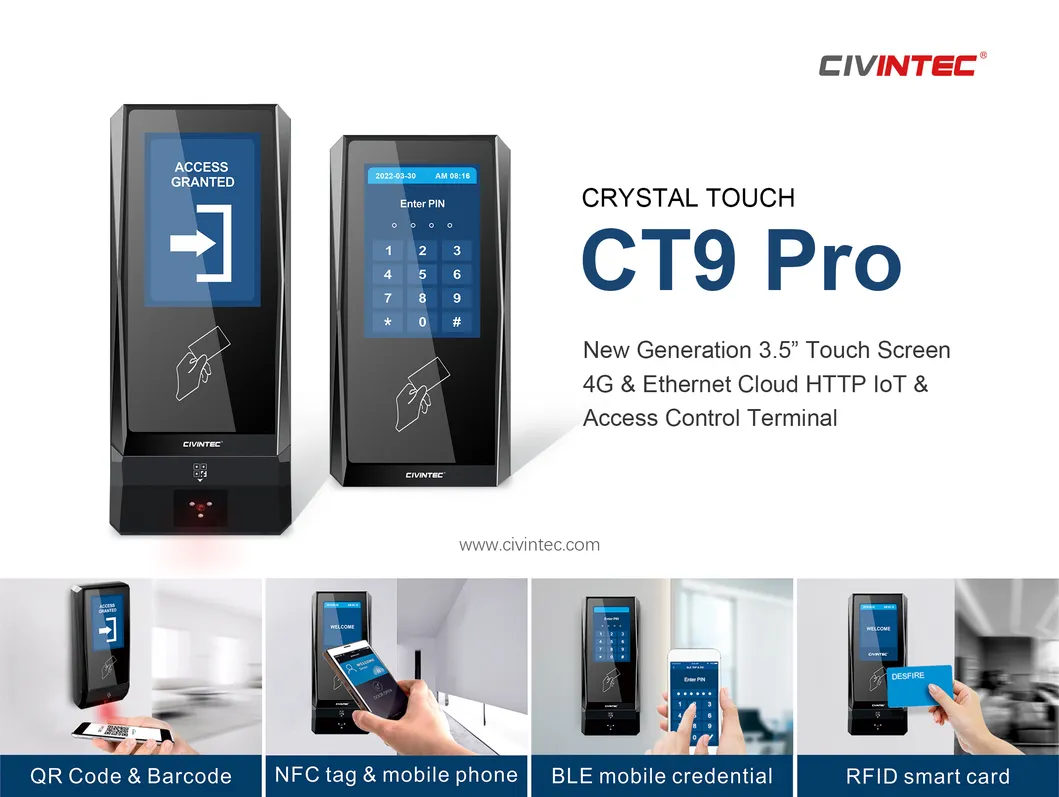

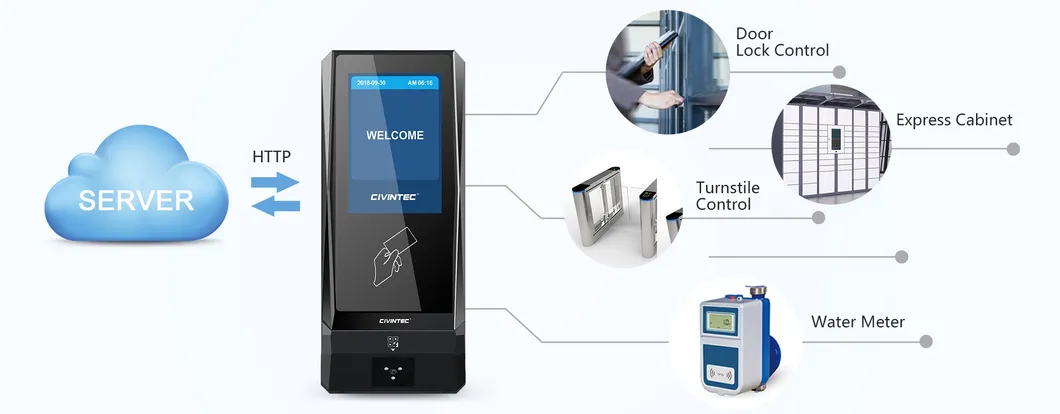

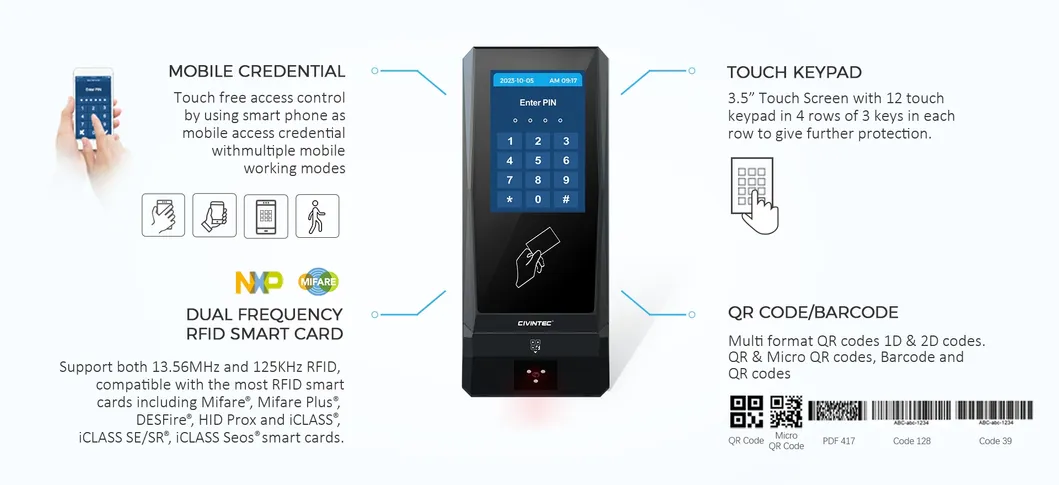

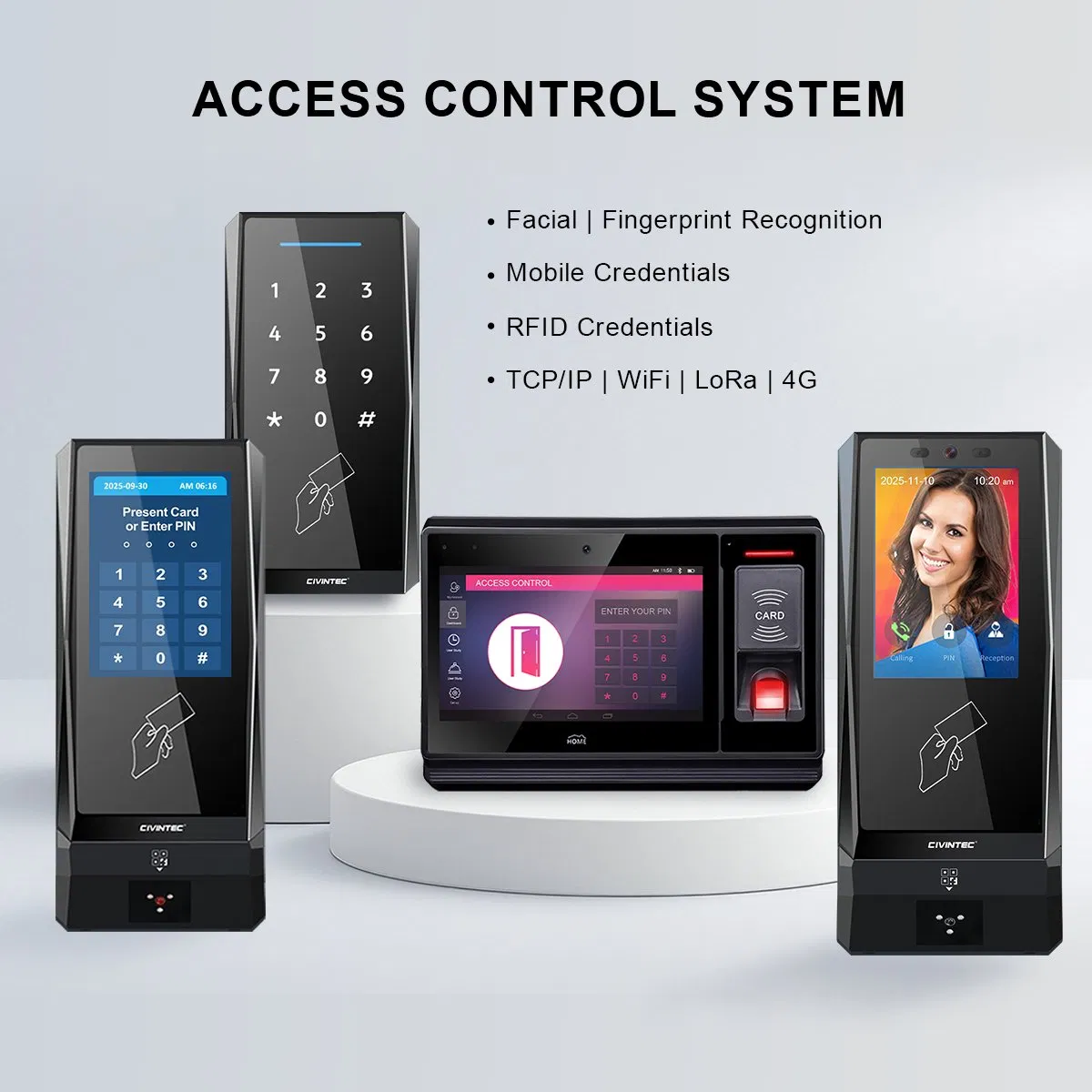

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is perfectly suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode reading via smartphone.

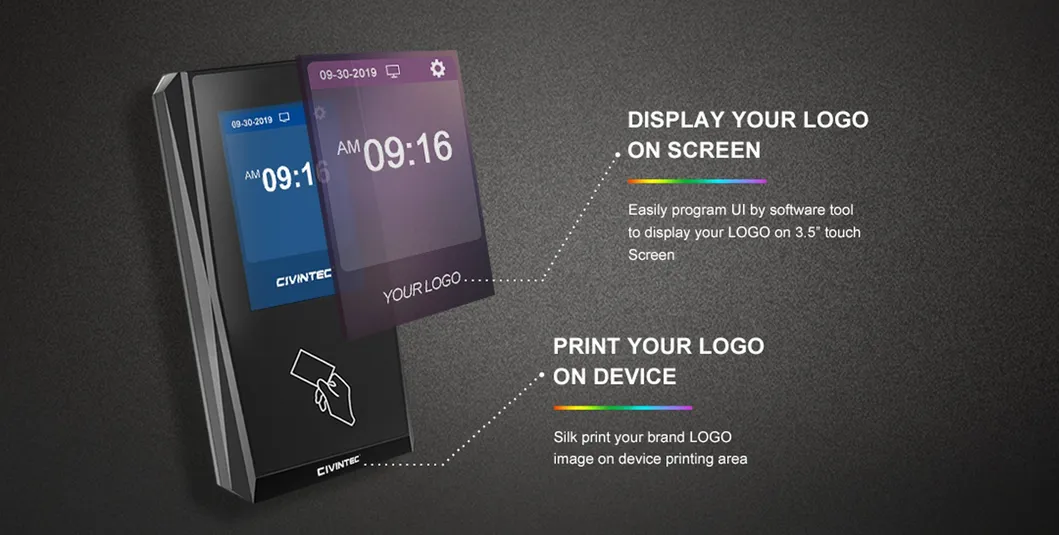

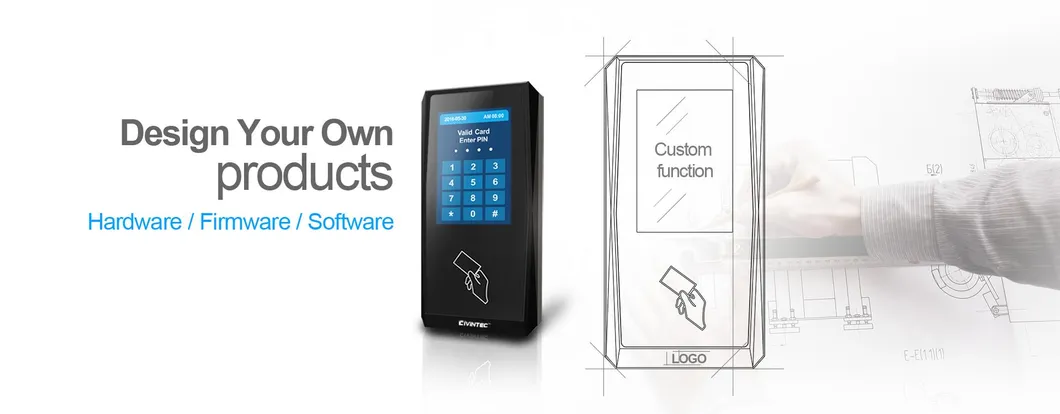

We offer ODM customization on hardware, reader housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen. We also provide OEM LOGO printing on the reader body.
