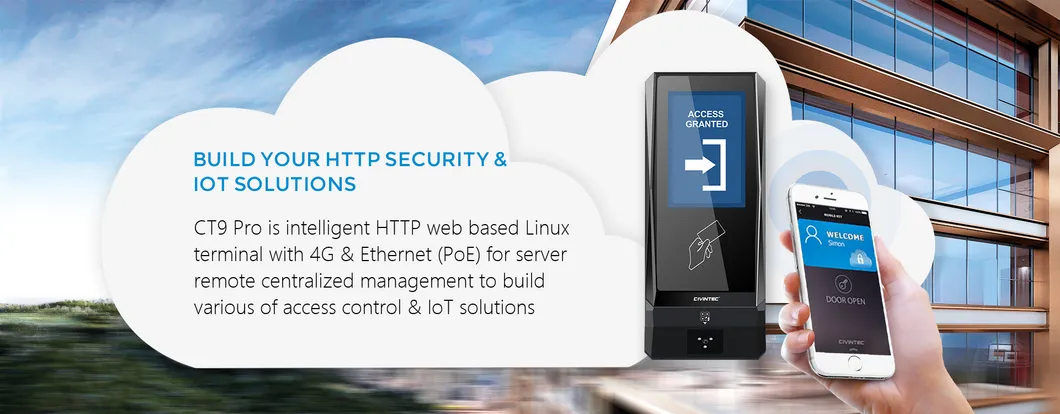

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using a mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 etc. |
| Mobile ID | BLE, NFC (Support BLE in iOS, and NFC/BLE in Android) |
| RFID smart card | - EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B - CLASS SE/SR® iCLASS Seos® smart cards |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-24V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit, Buzzer control |
| Protection | IP65 outdoor/indoor use, UV-resistance |

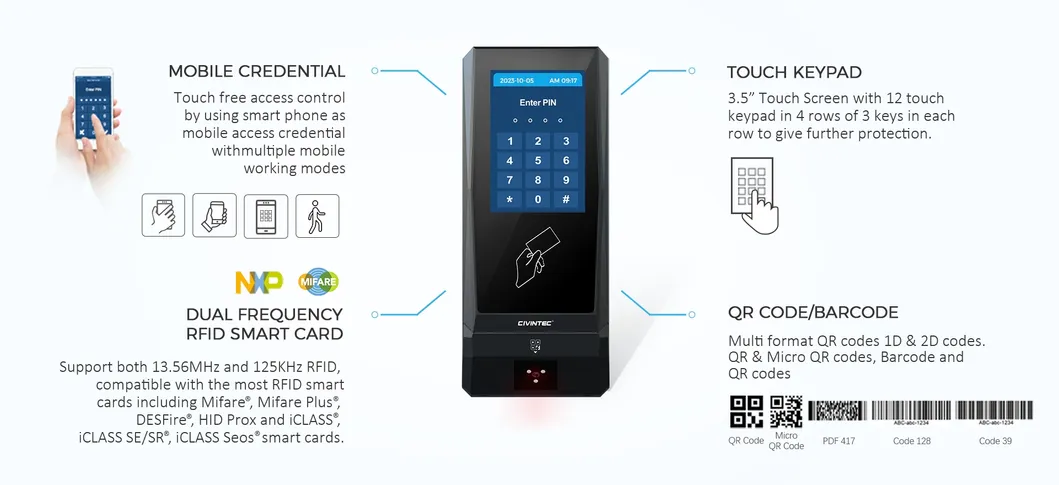

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning for visitor management.

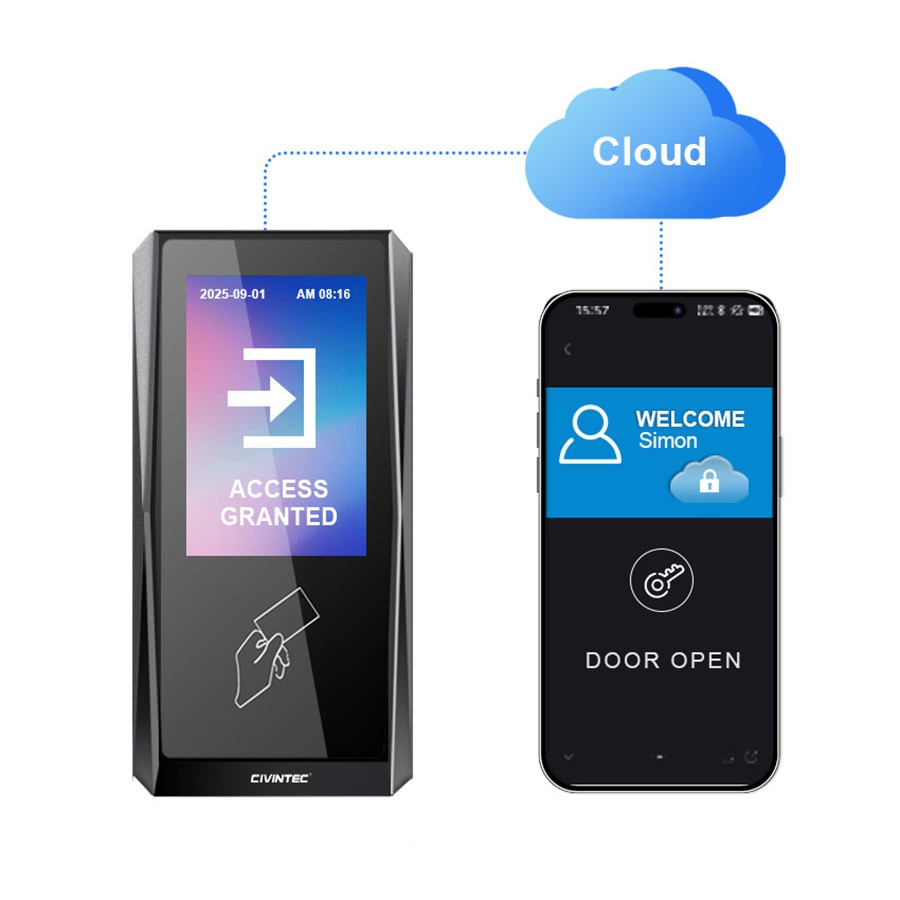

Bi-directional communication via standard HTTP & HTTPS between CT9 Pro and servers allows for remote control of door locks and various IoT facility management systems.
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and various rugged environments.
We offer comprehensive ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
