CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet, suitable for both LAN and Internet cloud server software communication. With an embedded relay, it allows for building versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats: QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic/Plus, DESFire EV1/EV2/EV3, NFC tags |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP Protection | IP65 outdoor/indoor use |
| Certification | CE approved |

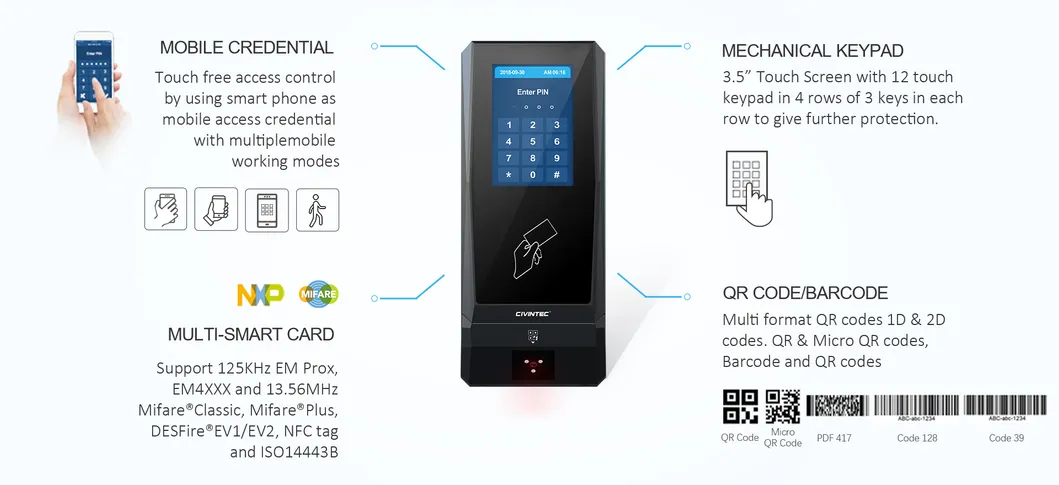

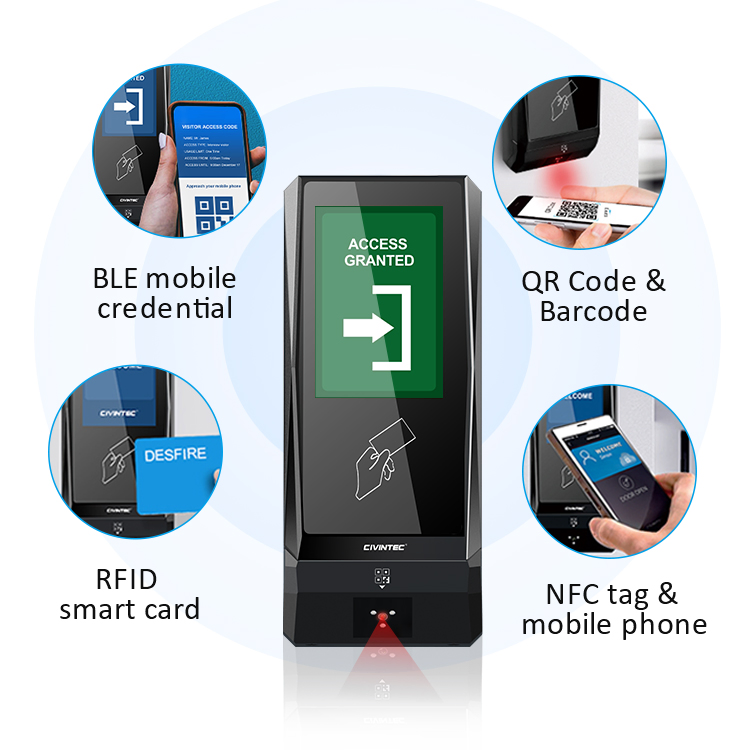

CT9 Pro incorporates 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode for visitor access control management.
Bi-direction communication via standard HTTP & HTTPS between CT9 Pro and server to remotely control door locks and various IoT facility management systems.
Crystal Touch CT9 is an IP access control door reader remotely controlled by cloud web-based software in real-time. It features embedded relay output to control door locks for Access Denied or Access Granted events.
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and various rugged working environments.
We are a leading designer and manufacturer of access control devices, offering ODM customization on hardware, reader housing, firmware, and software design services.
Users can freely program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
