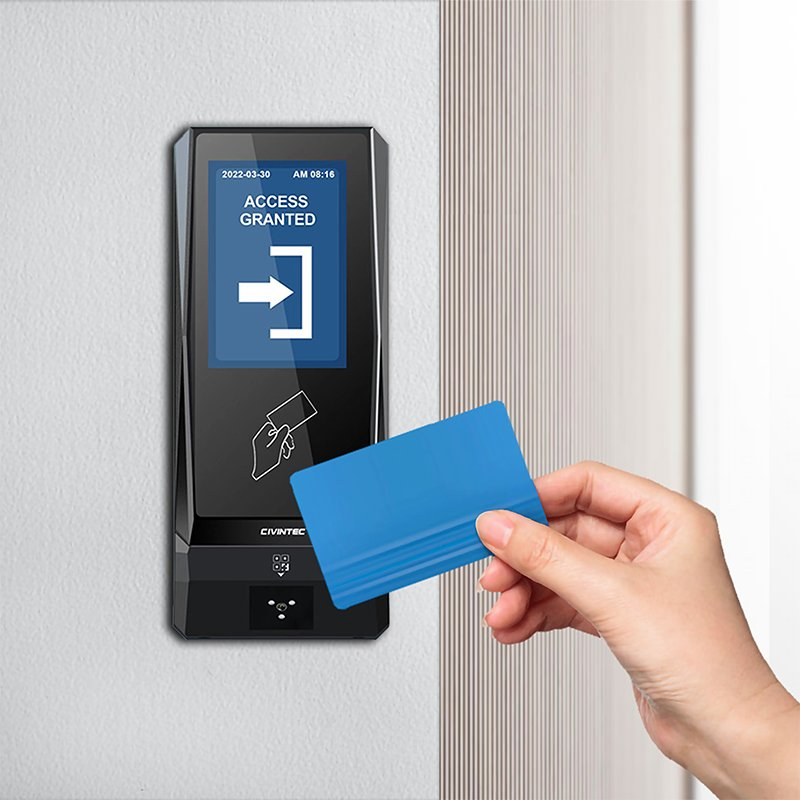

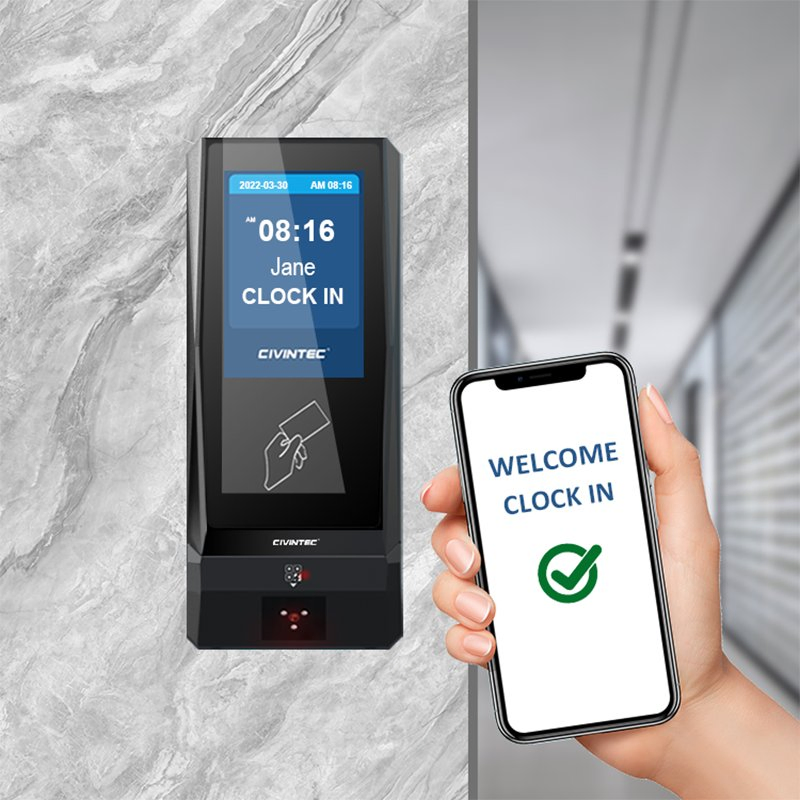

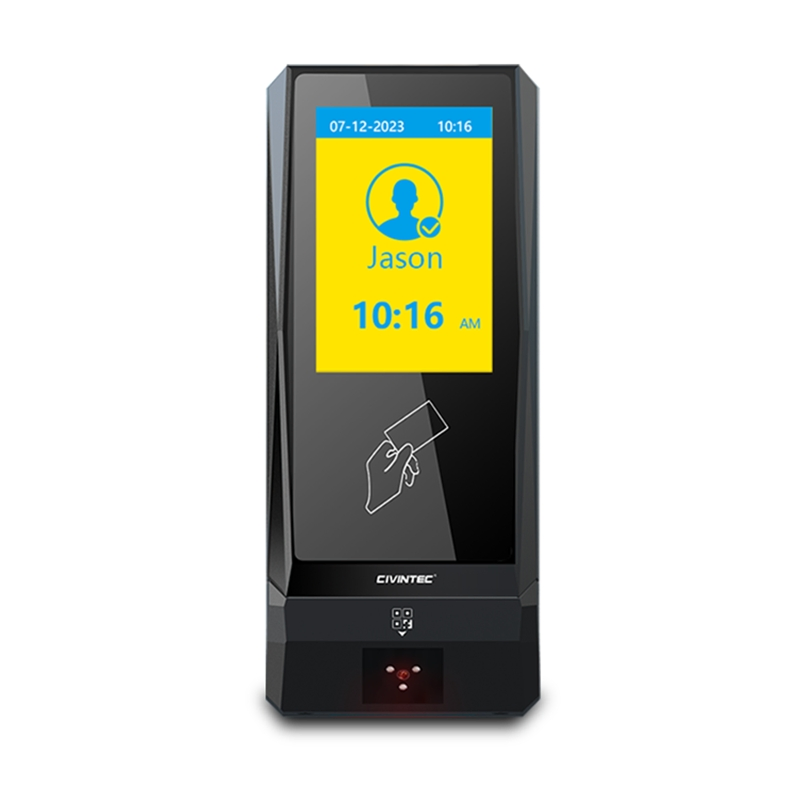

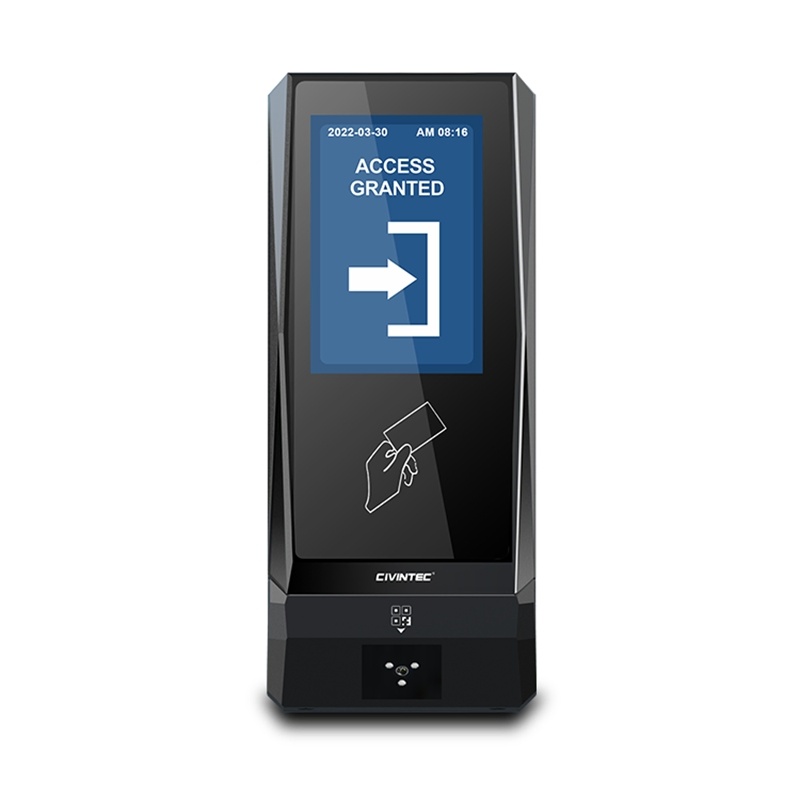

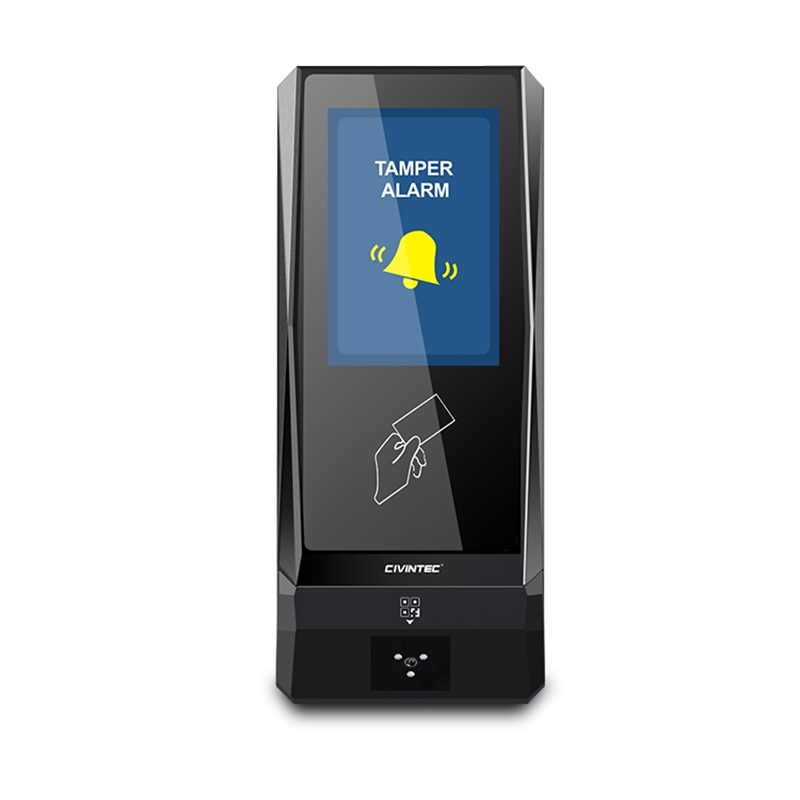

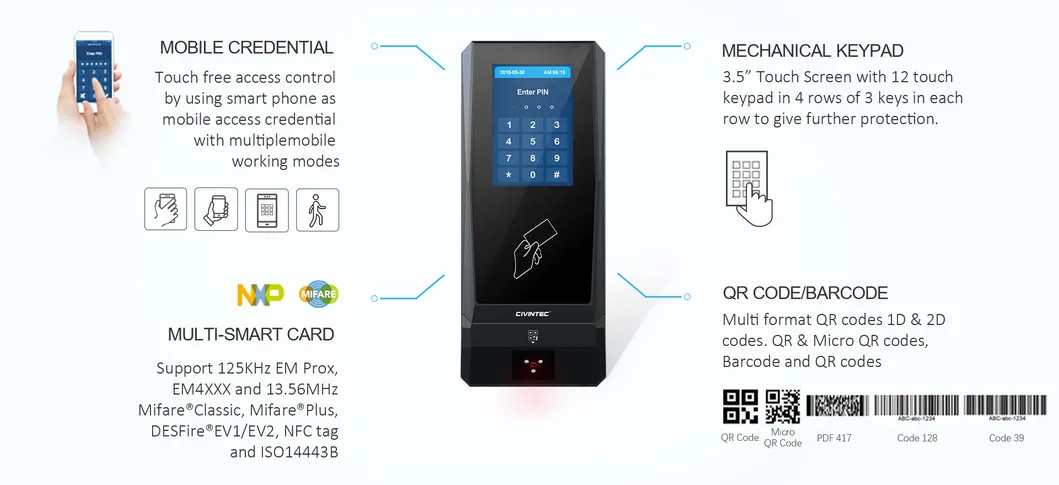

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is perfectly suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC (iOS: BLE; Android: NFC/BLE) |
| RFID Smart Card | 125KHz & 13.56MHz (Mifare Classic, Plus, DESFire EV1/EV2/EV3, HID Prox, iCLASS) |
| SAM Slot | ISO7816(T=0,T=1) 1 SAM module (more on request) |
| Interface | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP Protection | IP65 outdoor/indoor use, UV-resistance |
We offer comprehensive ODM customization on hardware, housing, firmware, and software design. Users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
