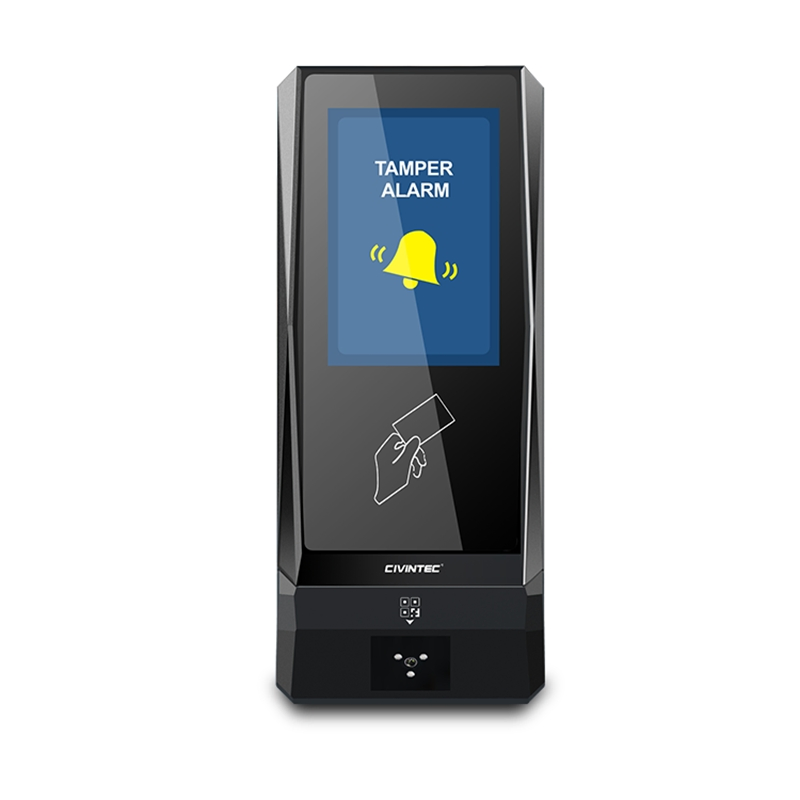

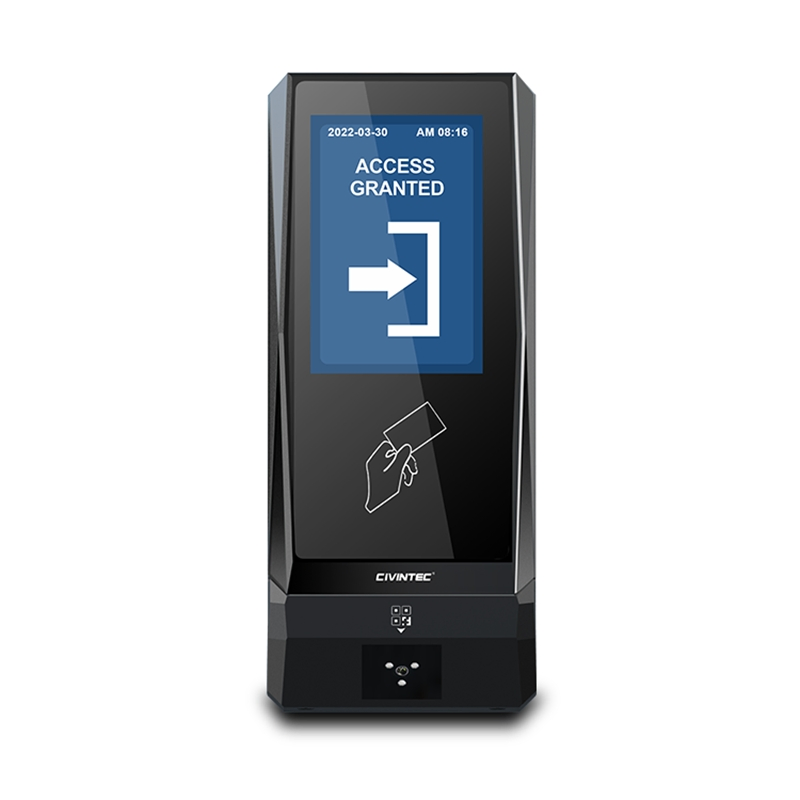

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless 4G and TCP/IP Ethernet. It is perfectly designed for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D): QR Code, Micro QR, PDF417, Code 128, etc. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |

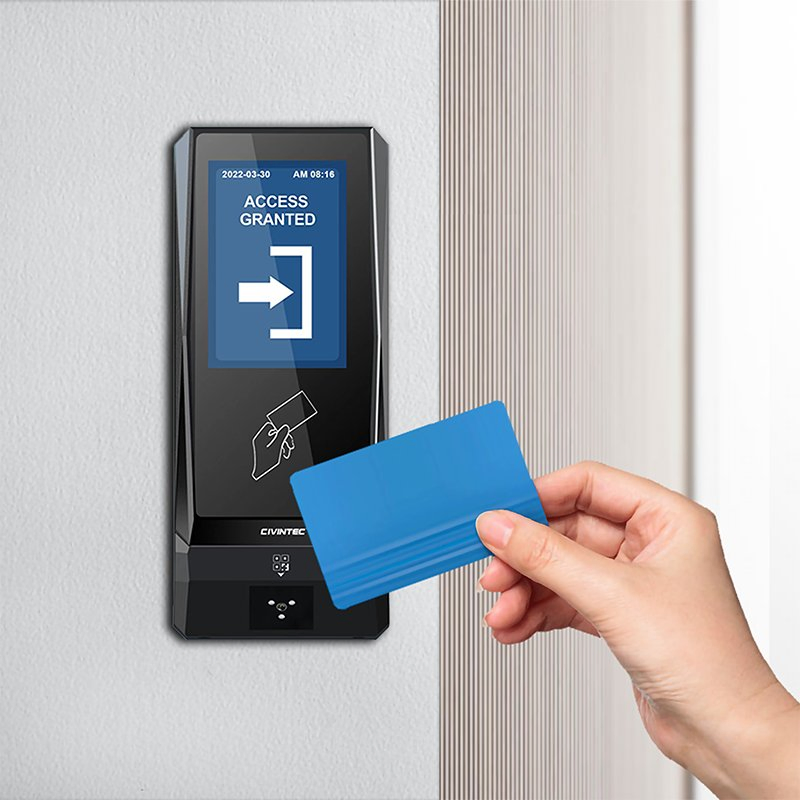

| RFID smart card | EM 125KHz, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2/EV3, HID Prox, iCLASS |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 OSDP |
| I/O Port | 1~2 relay outputs, Tamper alarm, Door contact, Exit button |
| Protection | IP65 outdoor/indoor use, UV-resistance |
Incorporates 5-in-1 technologies: touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR code scanning for comprehensive visitor management.
Bi-directional communication via standard HTTP & HTTPs protocols allows for real-time remote control of door locks and facility management.
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for rugged outdoor and low-temperature environments.
Customization Services: We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen. OEM logo printing on the reader body is also available.

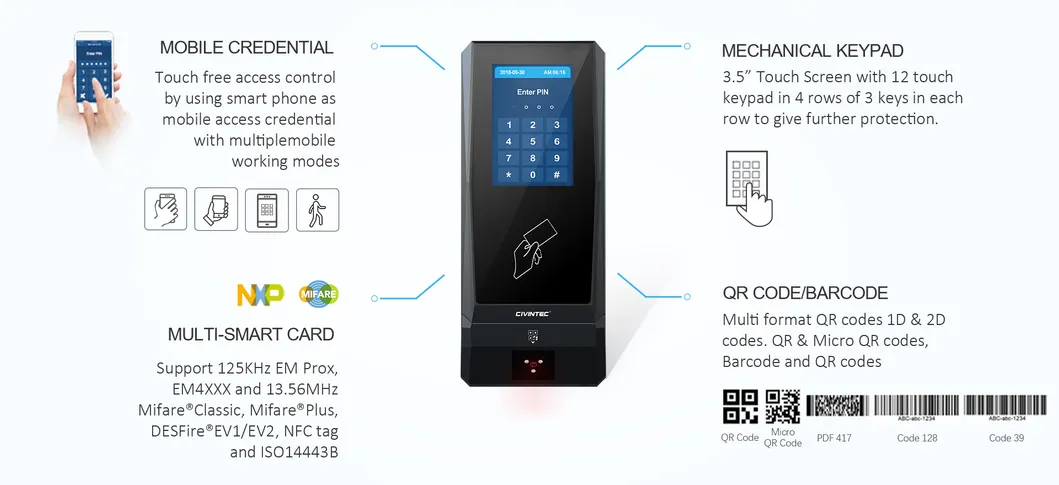

CT9 Pro supports 5-in-1 access methods: RFID (125KHz & 13.56MHz), BLE, NFC, QR Code/Barcode, and a touch PIN code keypad.
Yes, it features an IP65 waterproof rating and UV resistance, making it suitable for both indoor and outdoor use in various weather conditions.
The terminal supports 4G, WiFi, TCP/IP Ethernet, RS485 OSDP, and Wiegand protocols for flexible networking.

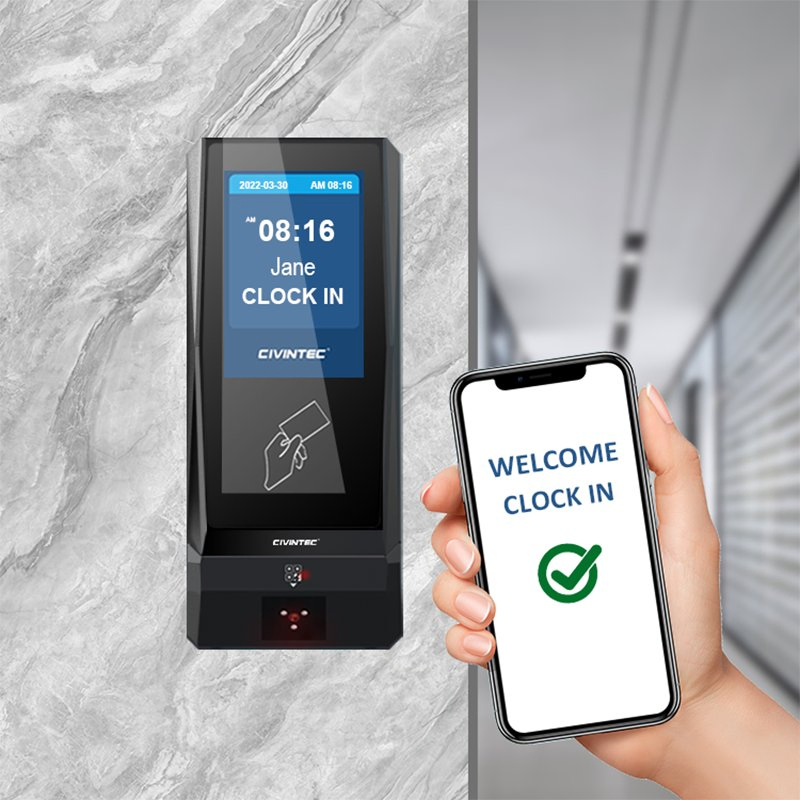

Absolutely. The device supports mobile credentials via BLE (Bluetooth Low Energy) for iOS and Android, and NFC for Android users.
Yes, it supports PoE IEEE 802.3af, allowing for simplified installation with a single cable for both power and data.

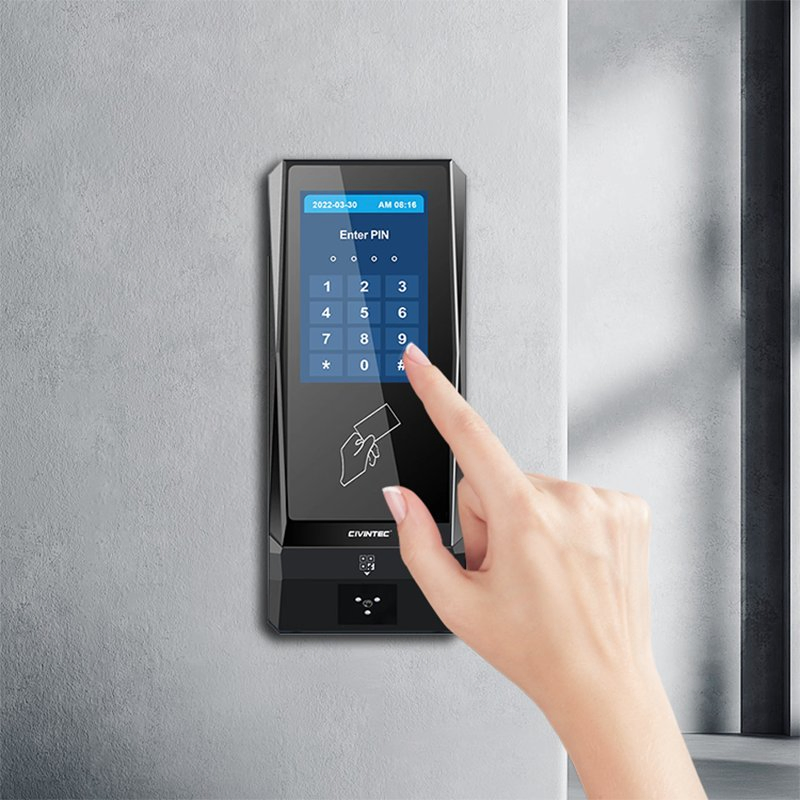

Yes, the 3.5" capacitive touch screen allows users to program and display their own logos and interfaces.
