CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless 4G and TCP/IP Ethernet connectivity. It is designed for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions.

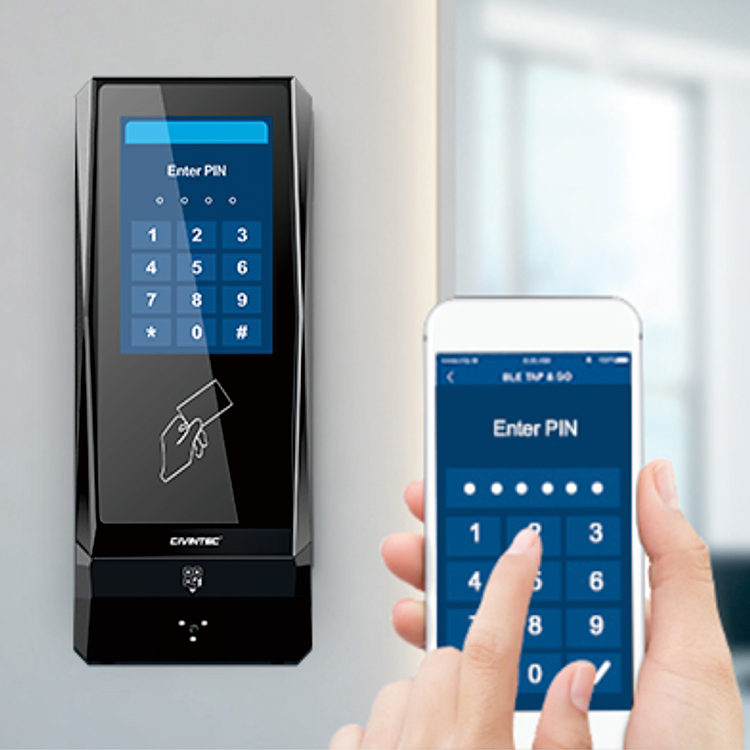

| Display | 3.5" capacitive touch screen |

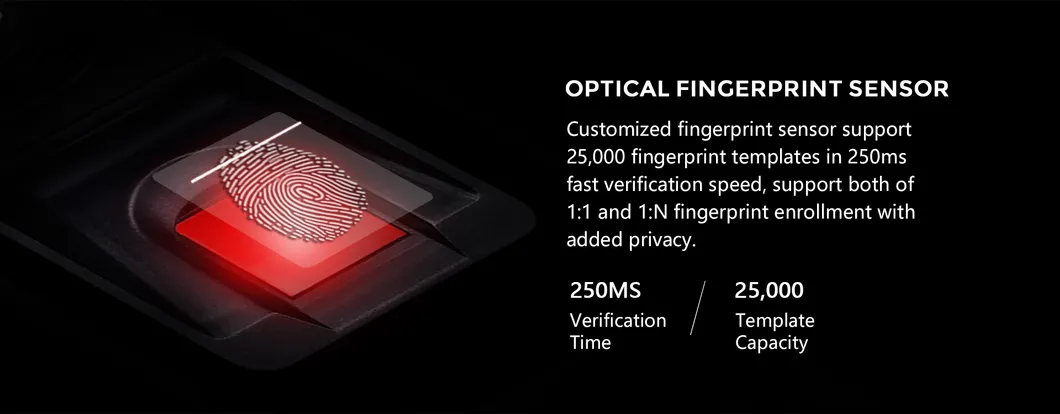

| Fingerprint | 500 dpi optical sensor; Template capacity 25,000 |

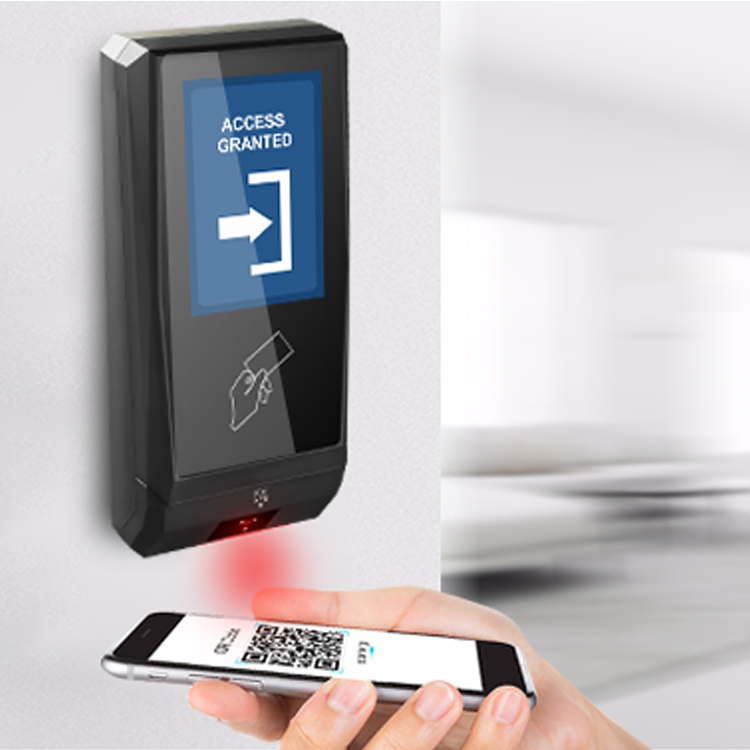

| QR code | QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |

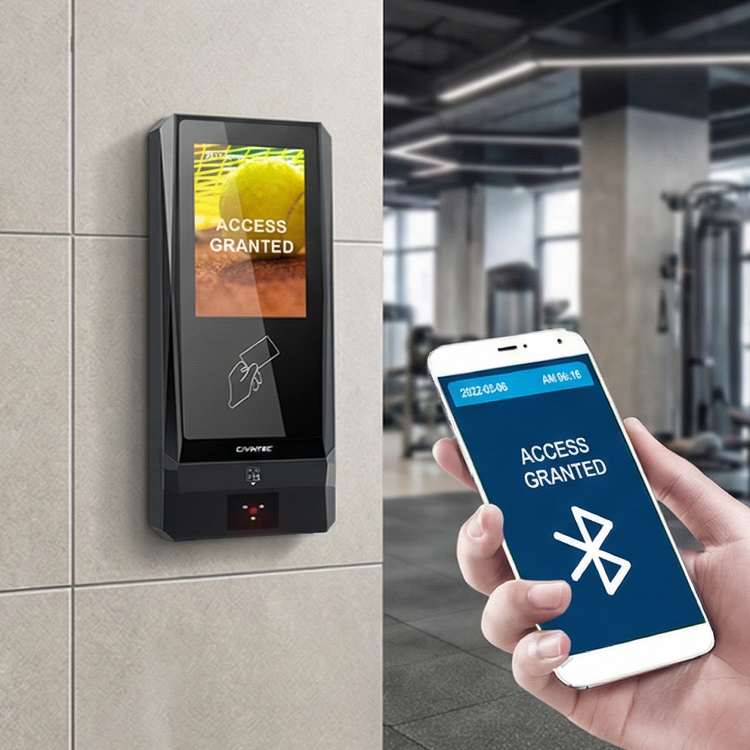

| Mobile ID | BLE, NFC (ISO18092) |
| RFID Smart Card | EM 125KHz, 13.56MHz Mifare, Plus, DESFire EV1/EV2 |
| Communication | 4G, TCP/IP, Wiegand, RS485 OSDP |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP Protection | IP65 Rated |

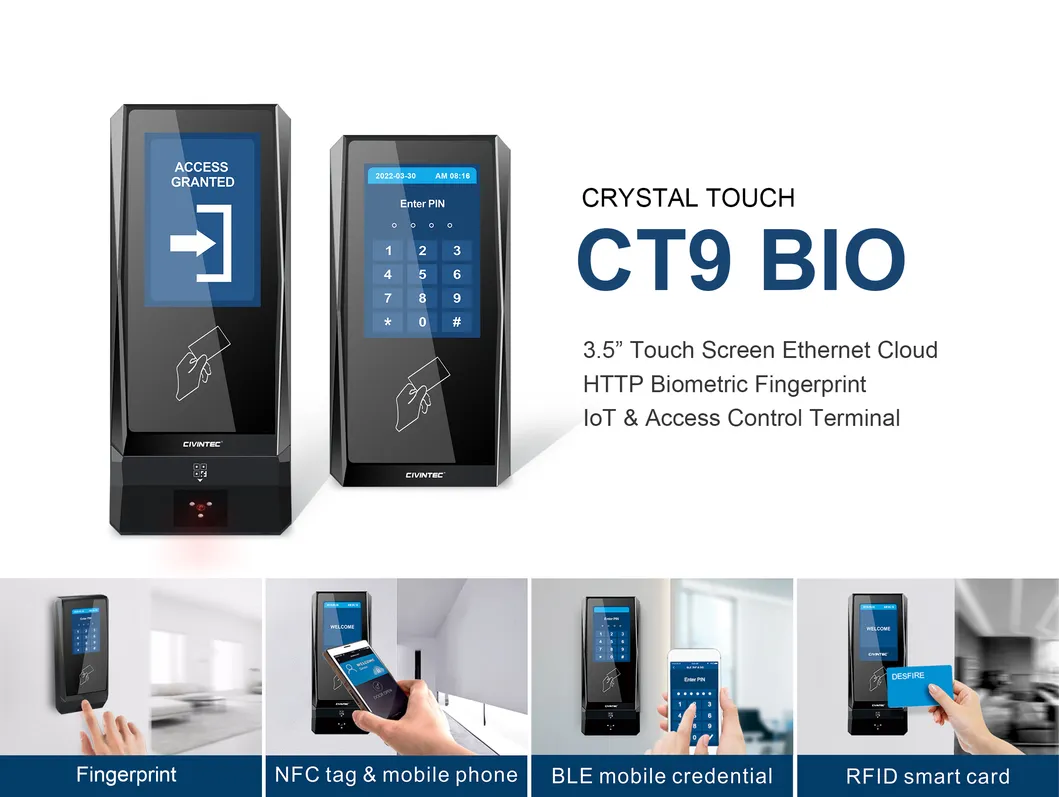

Multiple Access Credentials: Incorporates 5-in-1 technology for flexible visitor and employee access management.

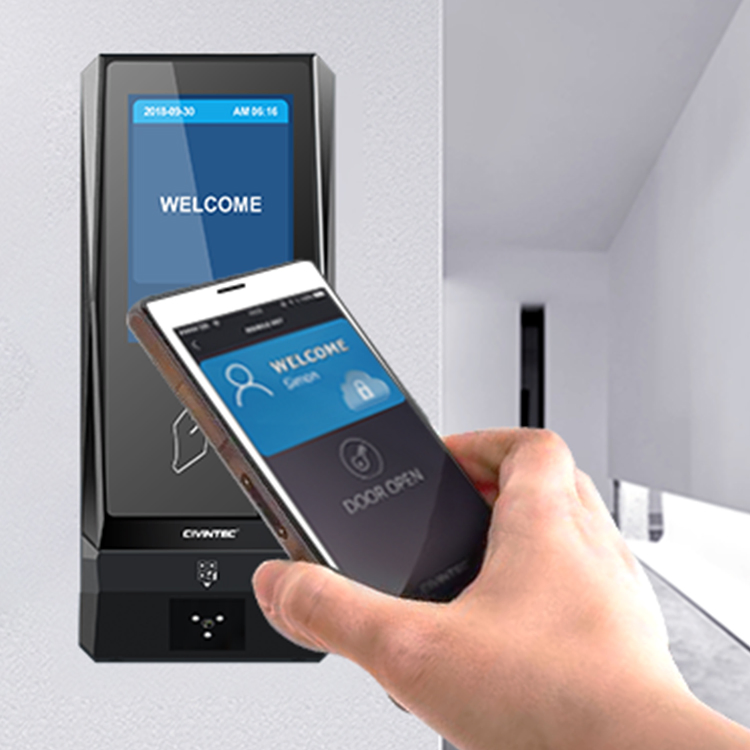

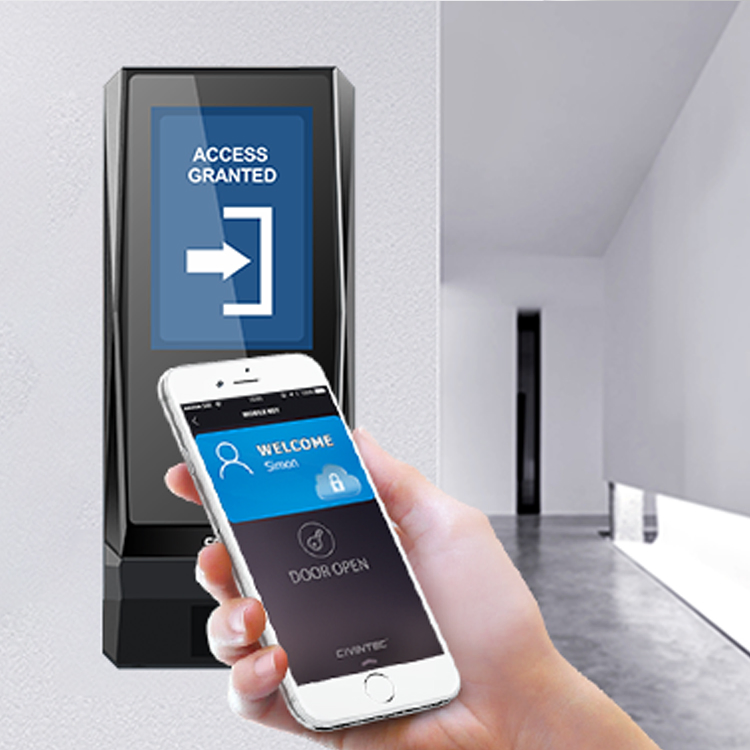

Cloud Server Remote Control: Bi-directional communication via standard HTTP/HTTPS protocols allows for remote door lock control and IoT facility management.
Versatile IoT Solutions: Embedded relay outputs allow the CT9 to act as a controller for building automated IoT environments beyond simple access denial or grant.
We offer comprehensive ODM customization services covering hardware, reader housing, firmware, and software design. Users can program and display their own branding on the 3.5" touch screen, and we provide OEM logo printing on the device body.
