| Model NO. | CT9 PRO |
| Operating System | Linux OS |
| Display | 3.5" Touch Display with Touch Pincode |
| Mobile Credential | BLE, NFC, Qr Code, Barcode |
| RFID Card | 13.56MHz 125kHz |
| Communication | WiFi, 4G, TCP/IP, RS485 (Osdp), Wiegand |
| Work Mode | Standalone & Network Mode |
| Capacity | 10,000 Users; 50,000 Logs |
| Power | 12-30V, PoE |
| IP Protection | IP65 Waterproof |
| Certification | CE, FCC |
| Dimensions | H:160mm, W:230mm, D:45mm |
| Production Capacity | 1000PCS/Month |

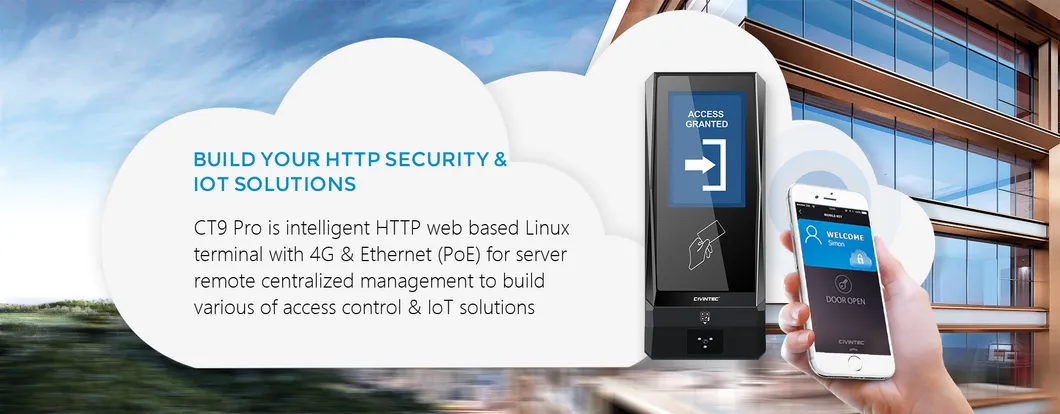

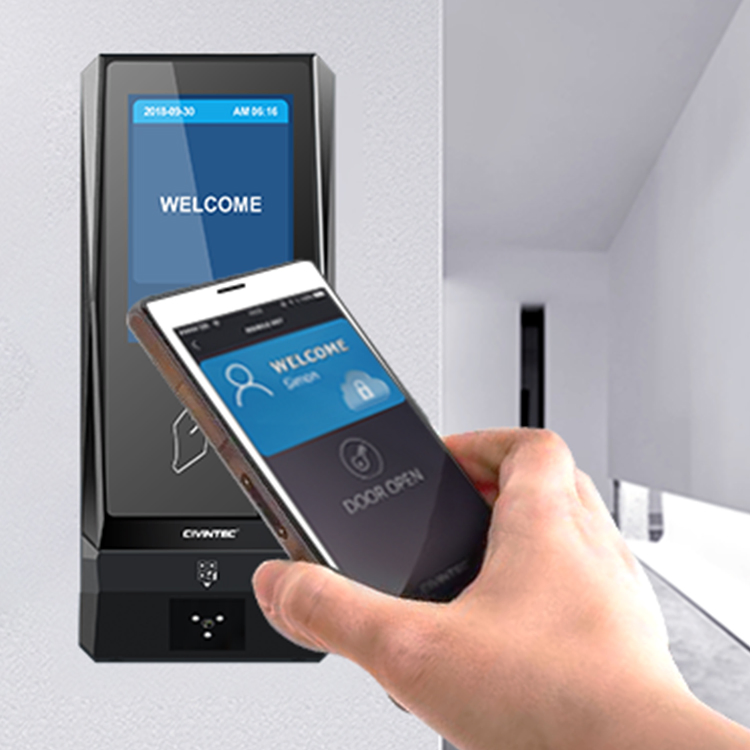

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions.

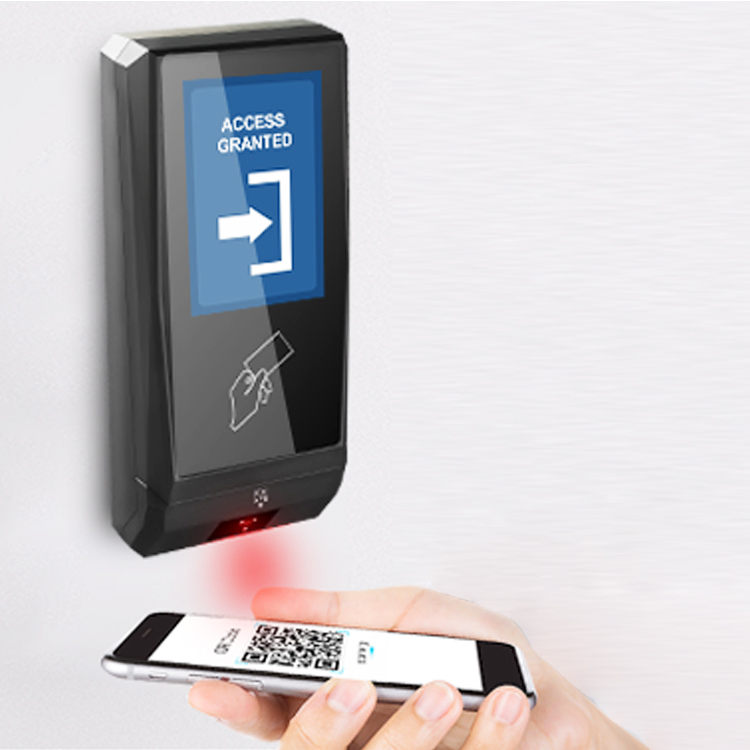

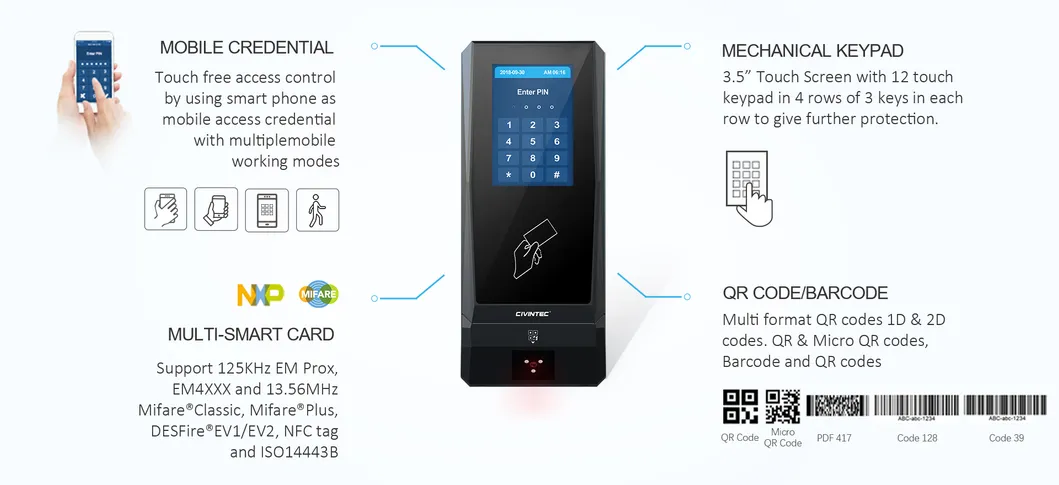

It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning.
| Feature | Technical Details |
| Display | 3.5" capacitive touch screen |
| QR Code | 1D & 2D Codes: QR, Micro QR, PDF417, Code 128, Code 39 |
| Mobile ID | BLE, NFC |

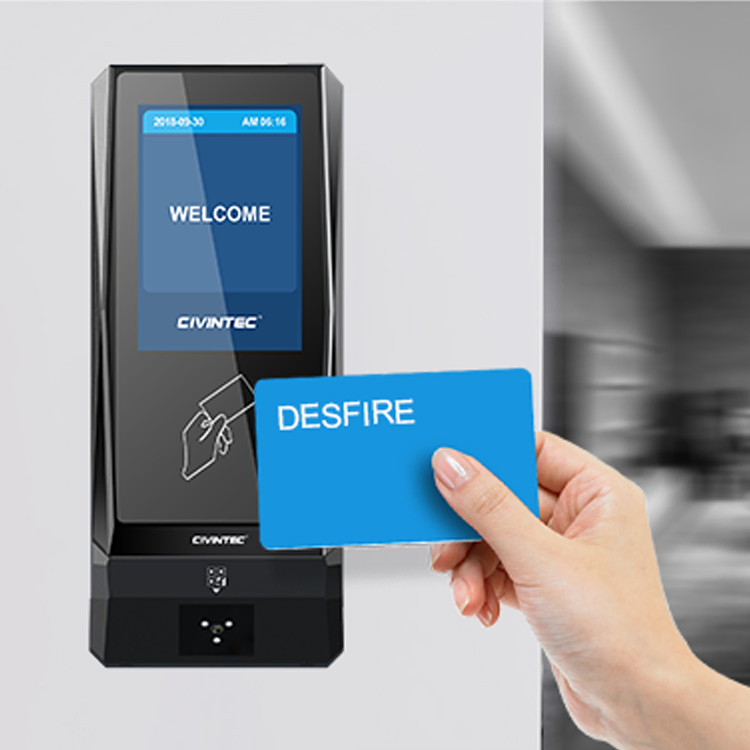

| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A/B, Mifare® Classic/Plus, DESFire® EV1/EV2, NFC tags |
| SAM Slot | ISO7816(T=0, T=1) 1 SAM module |
| I/O Port | Relay output, Tamper alarm, Door contact, Exit button, Buzzer control |
| Protection | IP65 outdoor/indoor use |
Incorporates touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR CODE/barcode for flexible visitor management.

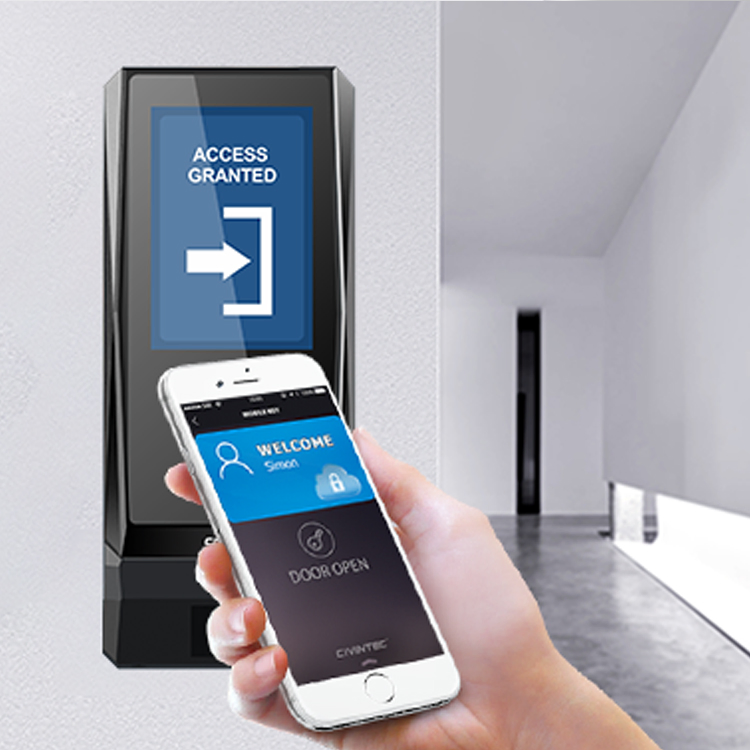

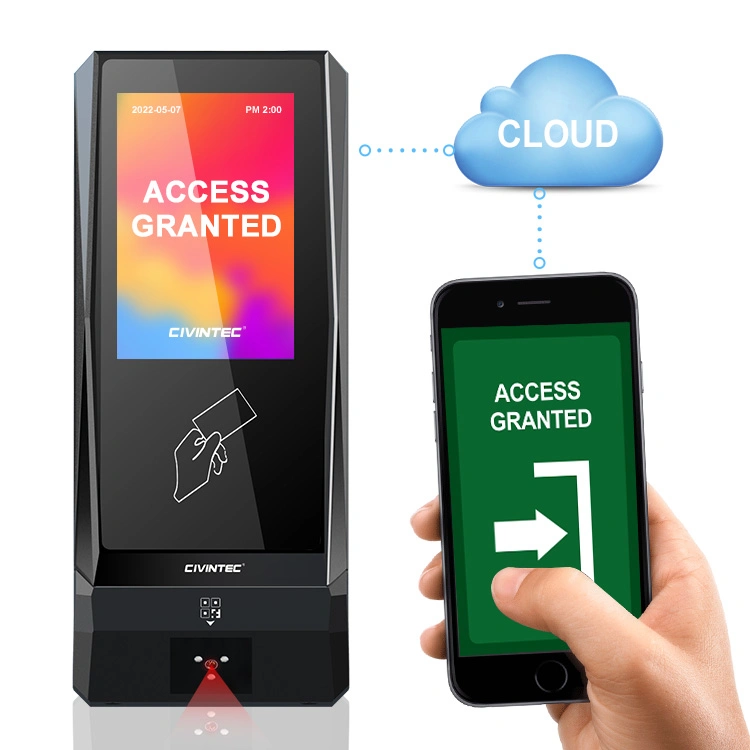

Bi-direction communication via standard HTTP & HTTPs between CT9 Pro and server for remote door control and facility management.
With IP65 ratings, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for rugged outdoor environments.
We offer specialized customization on hardware, housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen and request OEM logo printing on the reader body.
