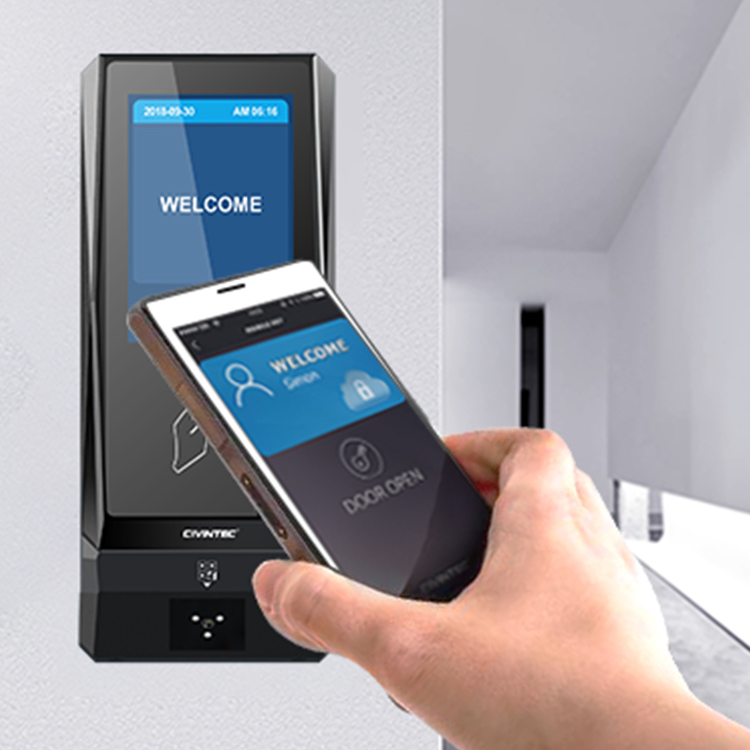

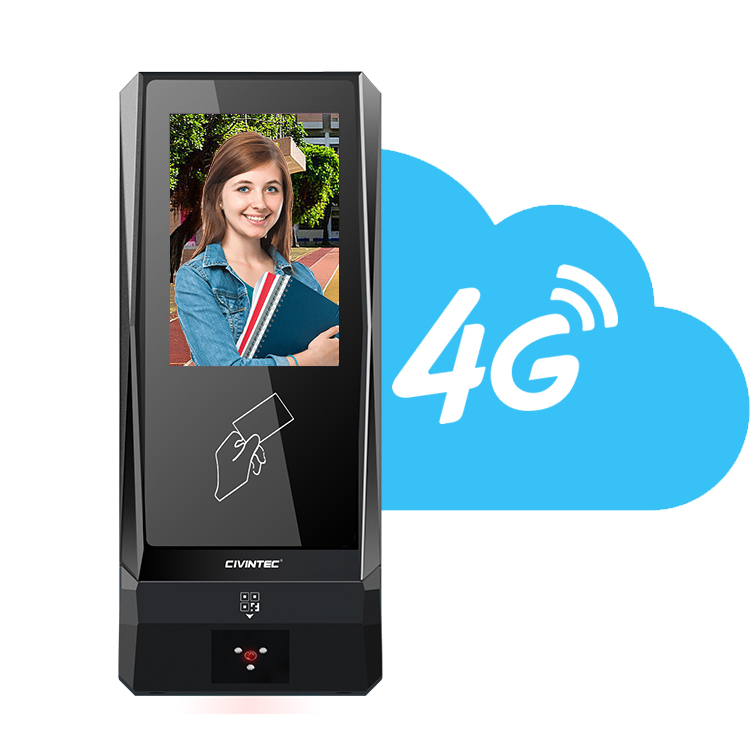

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats (1D & 2D): QR Code, Micro QR, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1, EV2, NFC tags, ISO14443B |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | Relay output, Tamper alarm, door contact, door exit, Buzzer control |
| Capacity | 10,000 users / 50,000 logs |
| IP protection | IP65 |

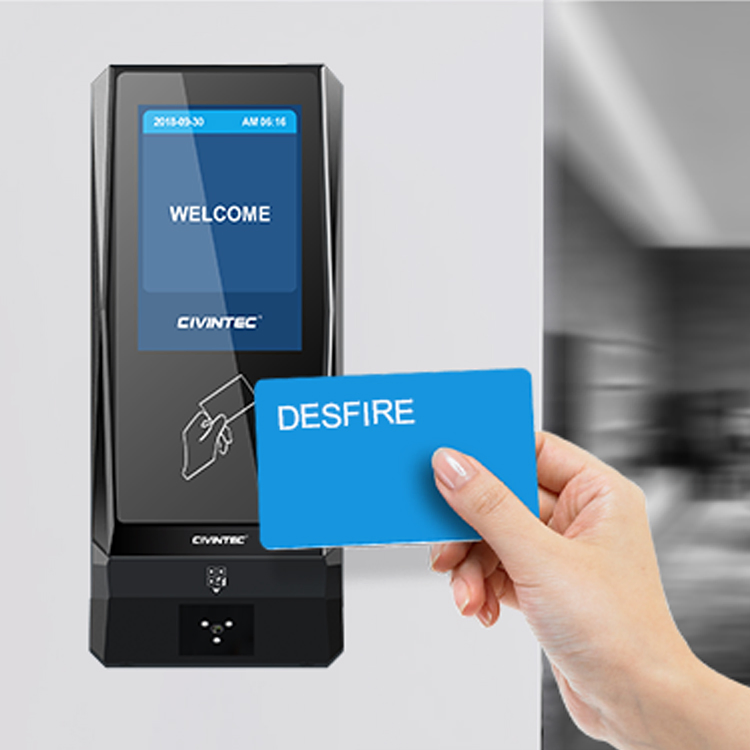

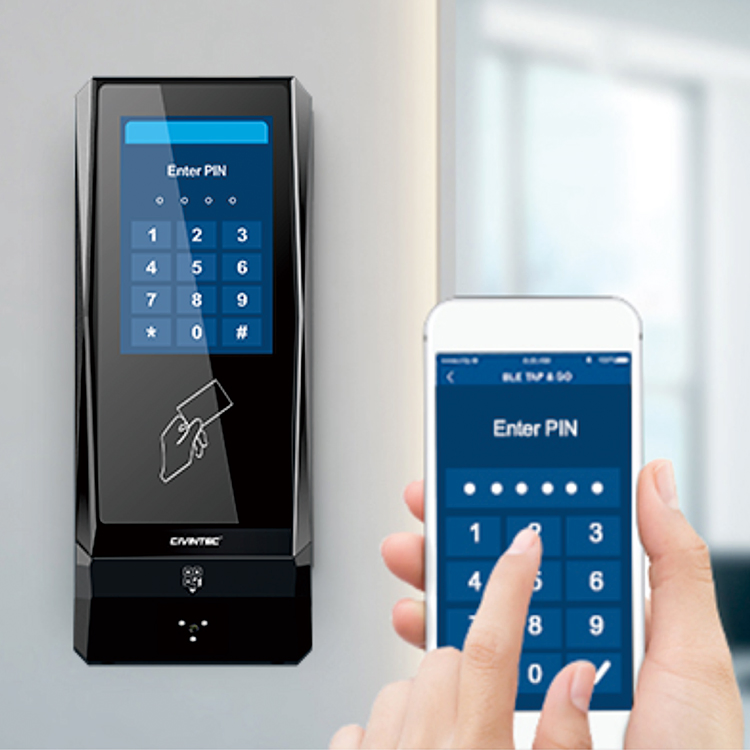

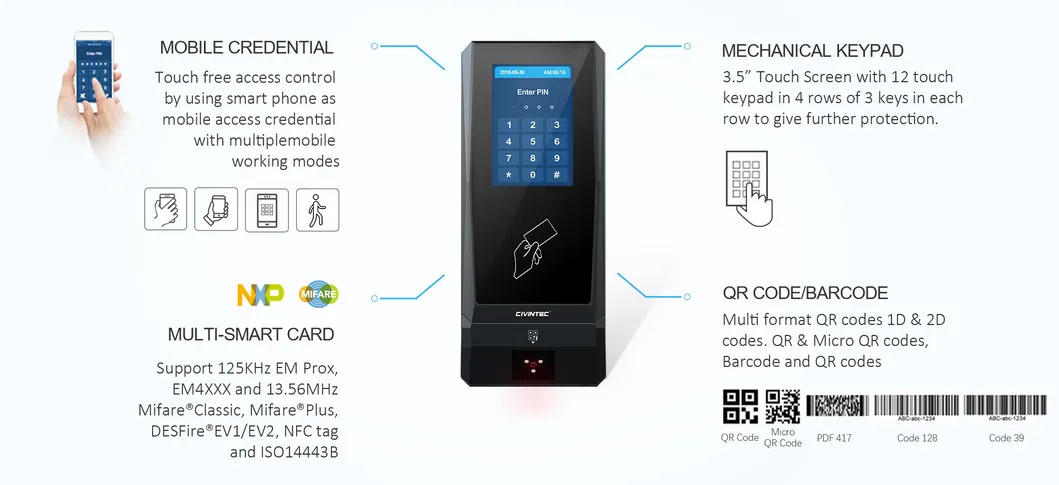

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode via mobile phone for comprehensive visitor management.
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facility management systems.

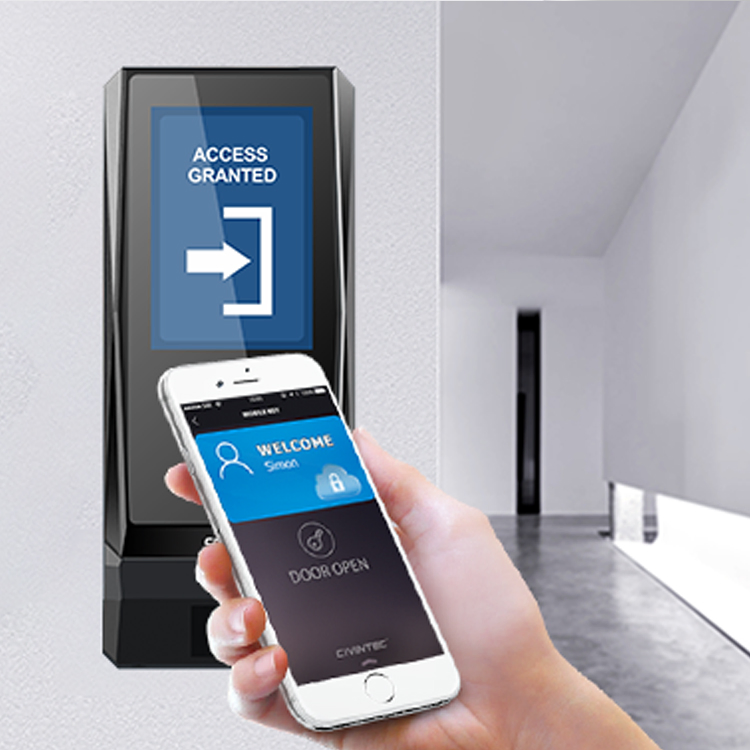

Crystal Touch CT9 is an IP access control reader remotely controlled by web-based software in real-time. It includes an embedded relay output to control door locks for access granting or denial and can manage various IoT facilities.
We are a leading designer and manufacturer of access control devices, offering ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
