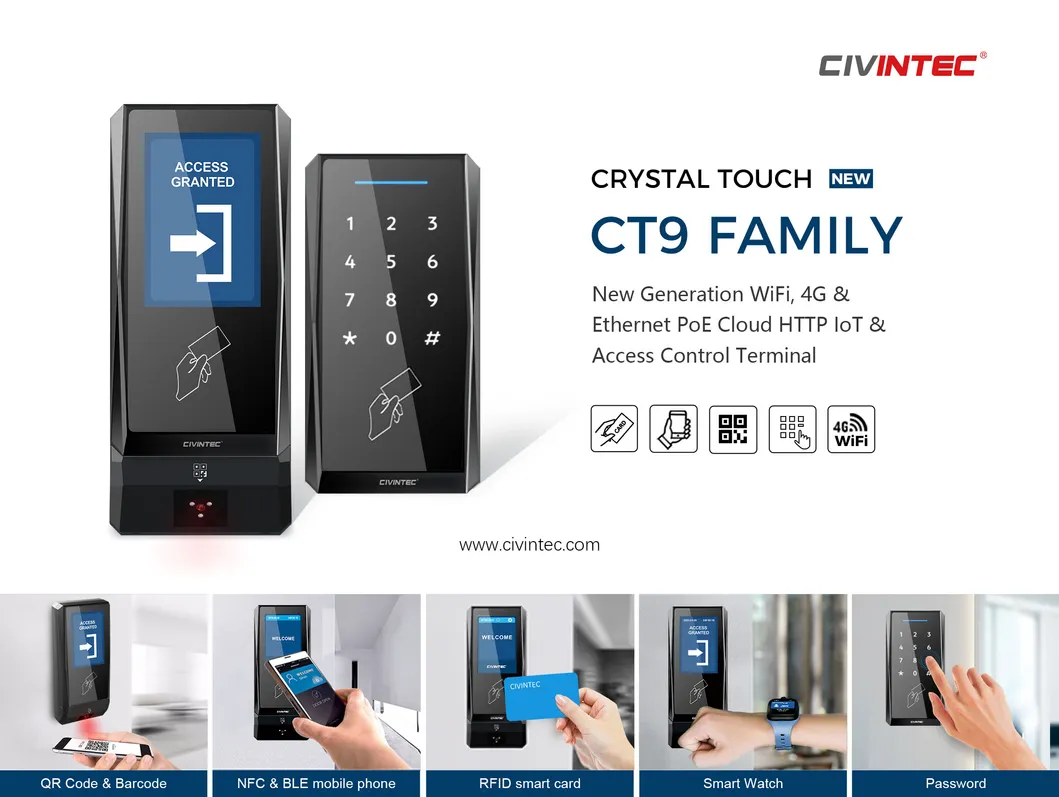

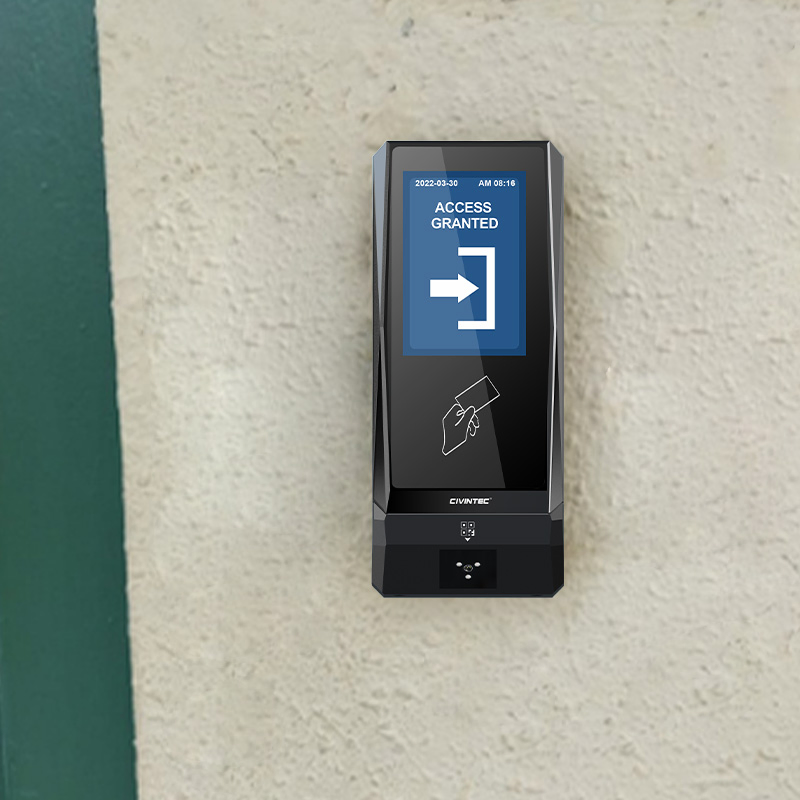

The CT9 Family is a Linux-based HTTP/HTTPS server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication. With an embedded relay, it facilitates the construction of versatile IoT and security solutions.
★5-in-1 Multiple Access Technologies:

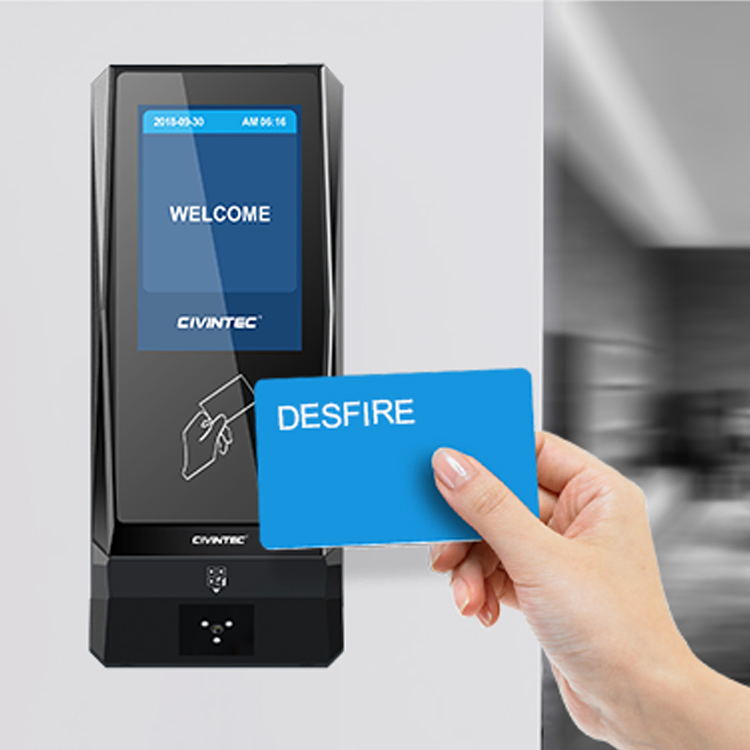

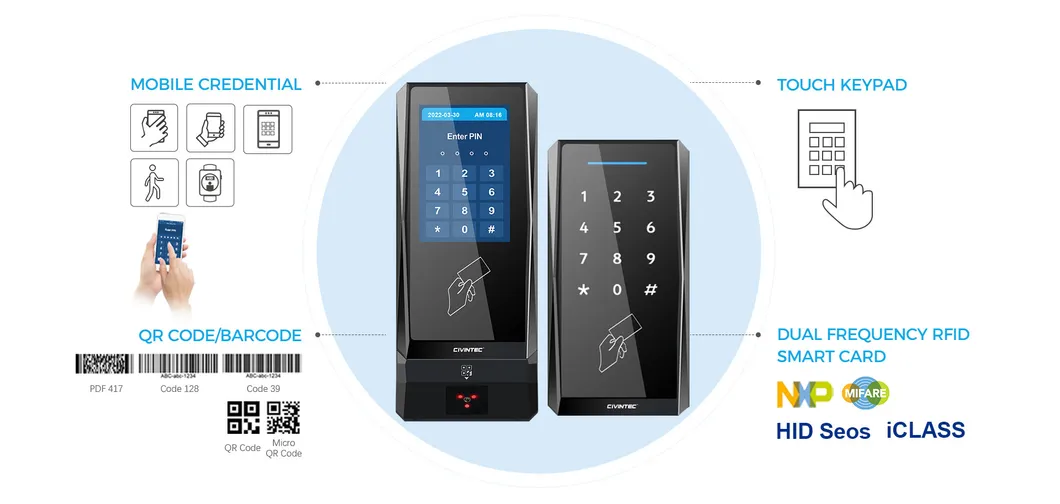

Supports touch keypad, dual RFID (125KHz & 13.56MHz), HID Prox and iCLASS®, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile devices.
Featuring 3.5" Touch Screen, Embedded LINUX OS, and SDK support.
| CT9 FAMILY | CT9 E | CT9 PRO |
|---|---|---|
| IDENTIFICATION TECHNOLOGIES | ||
| RFID Contactless Cards | - 125KHz PROx, EM - 13.56MHz Mifare® Classic, DESFire® EV1/EV2/EV3, NFC - HID iCLASS, Seos, HID Prox |
|
| Mobile Credential | BLE (2.4Ghz), NFC | |
| Barcode / QR scanner | 1D & 2D QR Code, Micro QR, PDF417, Code 128, etc. | |
| INTERFACE & GENERAL | ||
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand | |
| Display | ----- | 3.5" Touch Screen |

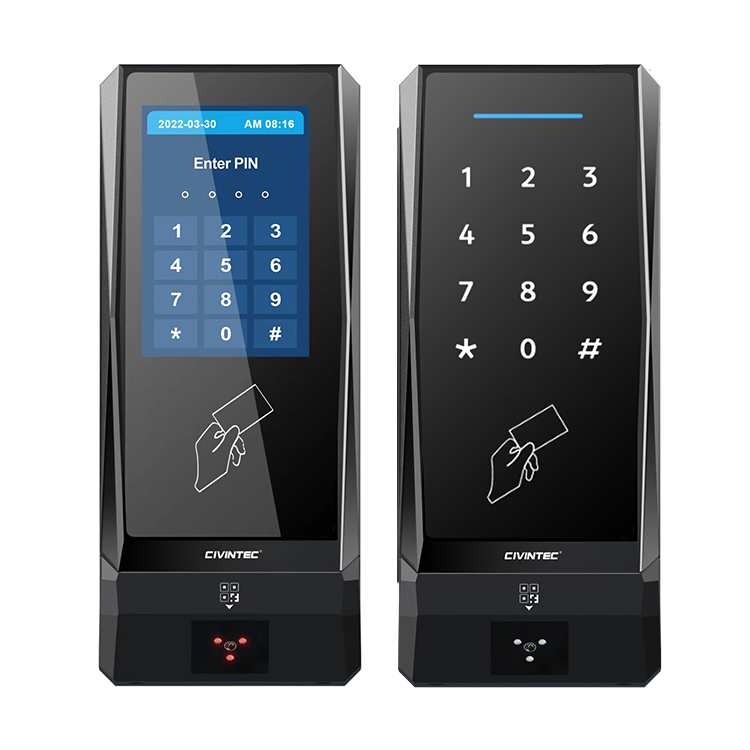

| Keypad | 12 Digit Touch Keypad | Touch Screen Keypad |
| Protection | IP65 Waterproof, UV Resistant | |

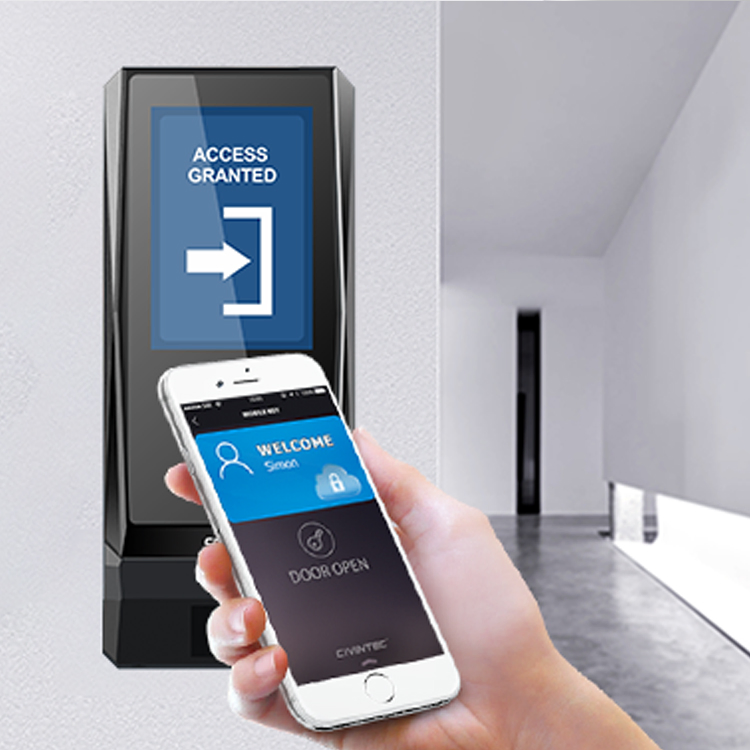

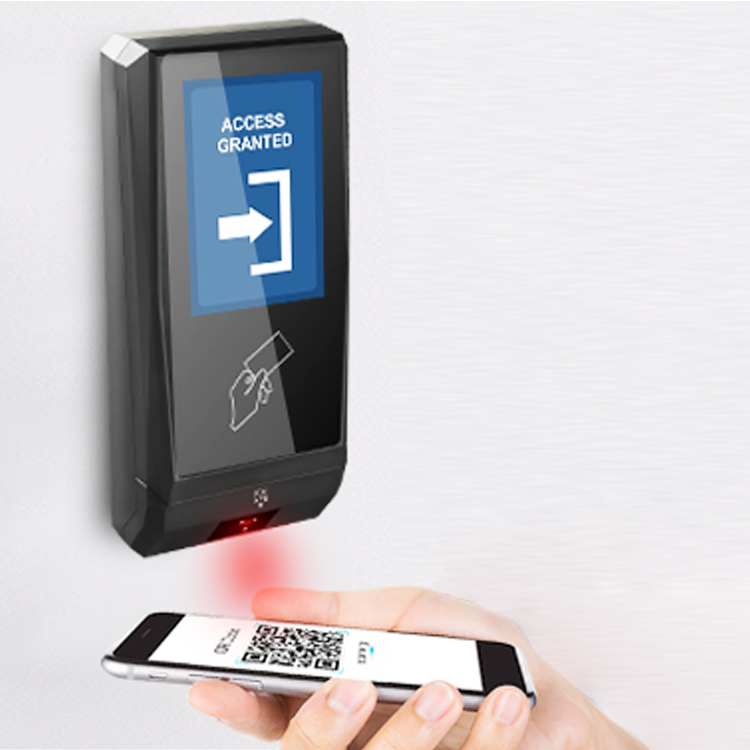

Manage visitor access easily using RFID, BLE, NFC, or QR codes via smartphones.

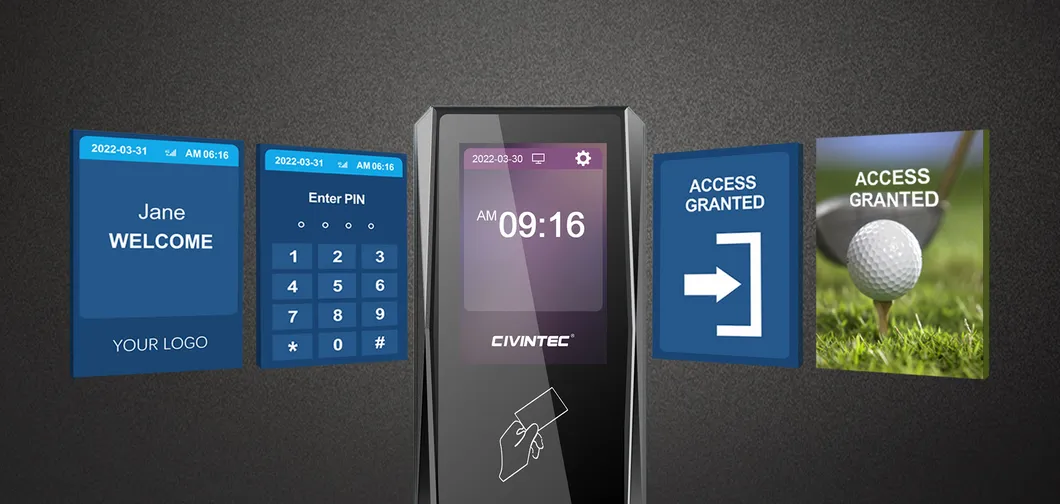

The 3.5" colorful touch screen allows for customized UI, branding logos, and intuitive text feedback via HTTP commands.

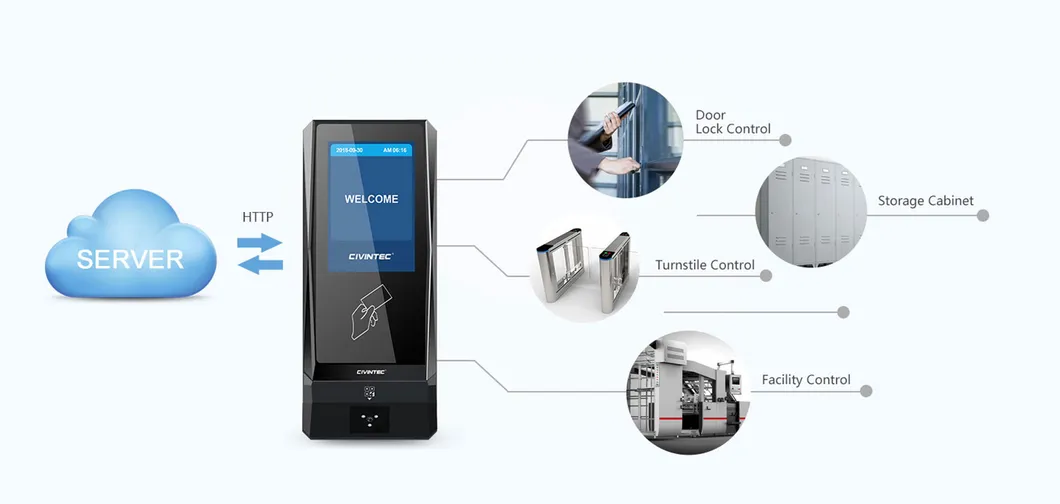

Bi-directional communication via standard HTTP/HTTPS for remote door lock and IoT facility management.
IP65 rated to withstand rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We provide ODM customization on hardware, housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen. OEM logo printing on the reader body is also available.
