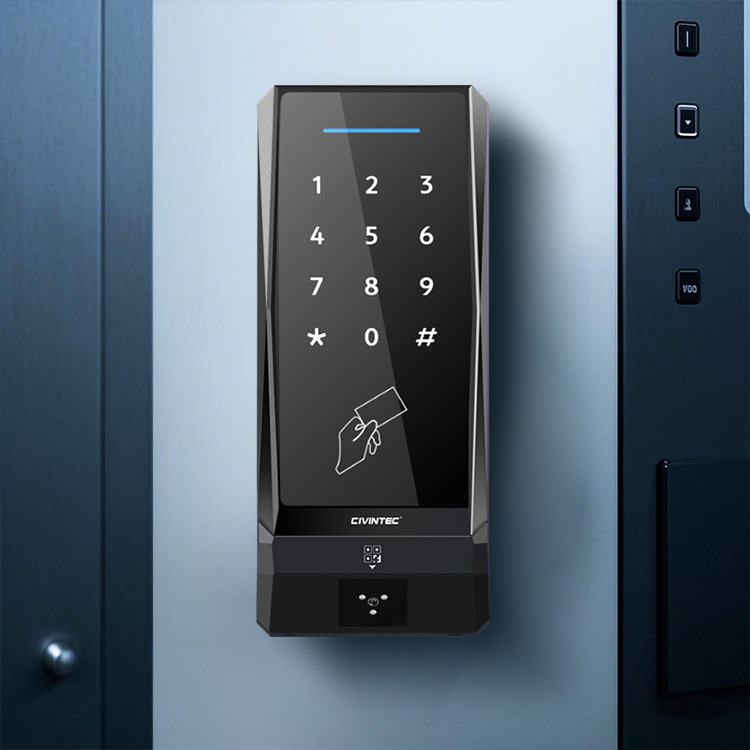

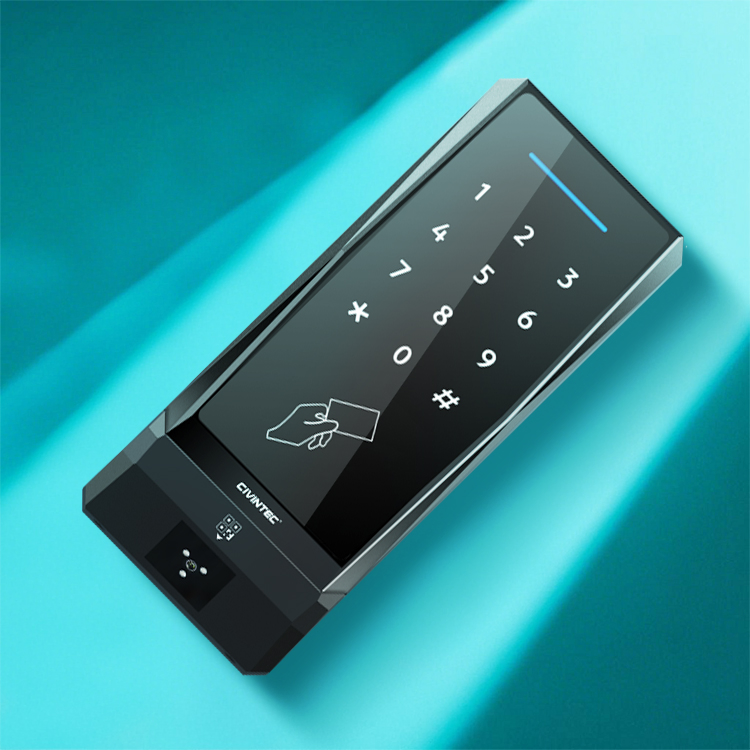

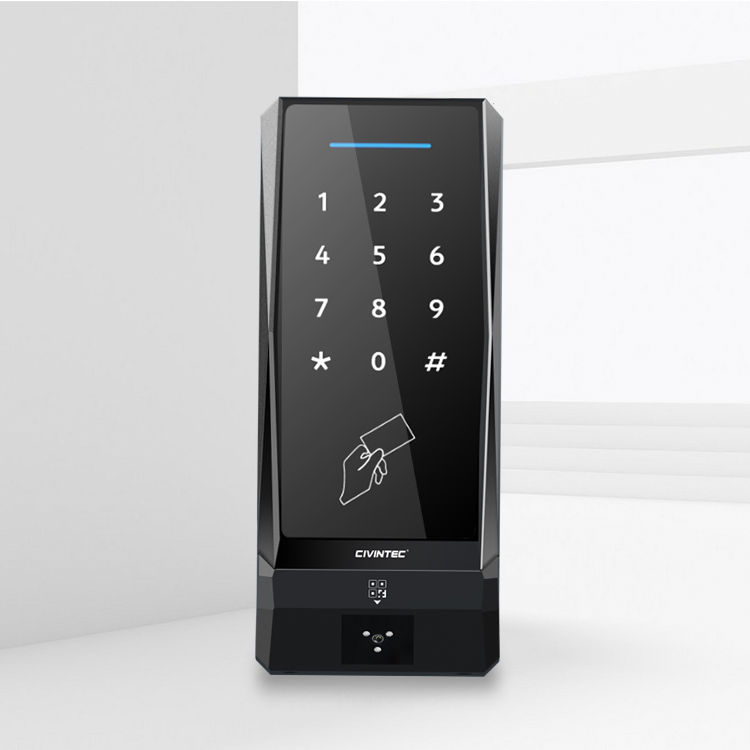

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal equipped with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions.
It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Category | Specifications (CT9 E) |
|---|---|
| IDENTIFICATION TECHNOLOGIES | |
| RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare® Classic, Ultralight®, Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and mainstream barcodes |
| INTERFACE | |
| Communication | TCP/IP(RJ45), 4G, WiFi 2.4GHz IEEE802.11b/g/n, RS485, Wiegand input |

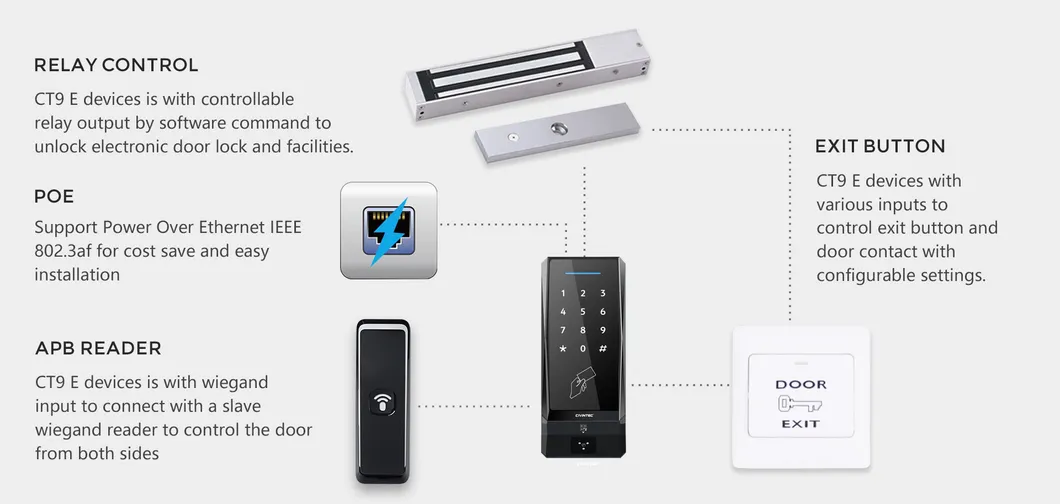

| I/O Port | Door contact, Door exit, Buzzer control, Fire alarm, Tamper alarm, 1~2 relay outputs |
| GENERAL | |
| Operating System | LINUX |
| Keypad | 12-digit Touch keypad with backlit |
| Event Logs | Online: Unlimited / Offline: 10,000 users & 50,000 logs |
| Protection Class | IP65 electric epoxy potted, Resistant to UV ray |
| Power Supply | 12~24V DC, PoE IEEE 802.3af |

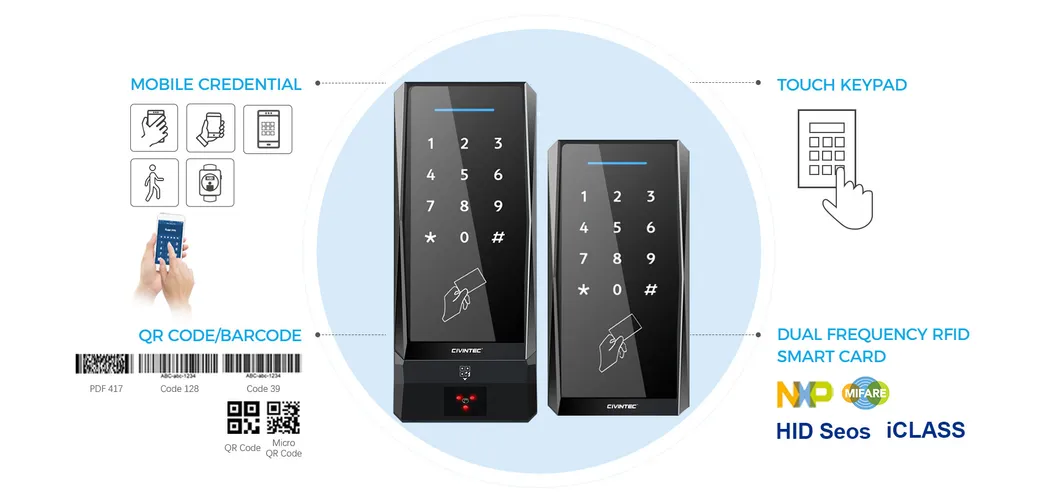

Incorporates 5-in-1 technology including touch keypad, dual-frequency RFID, BLE/NFC mobile access, and QR Code scanning for comprehensive visitor management.

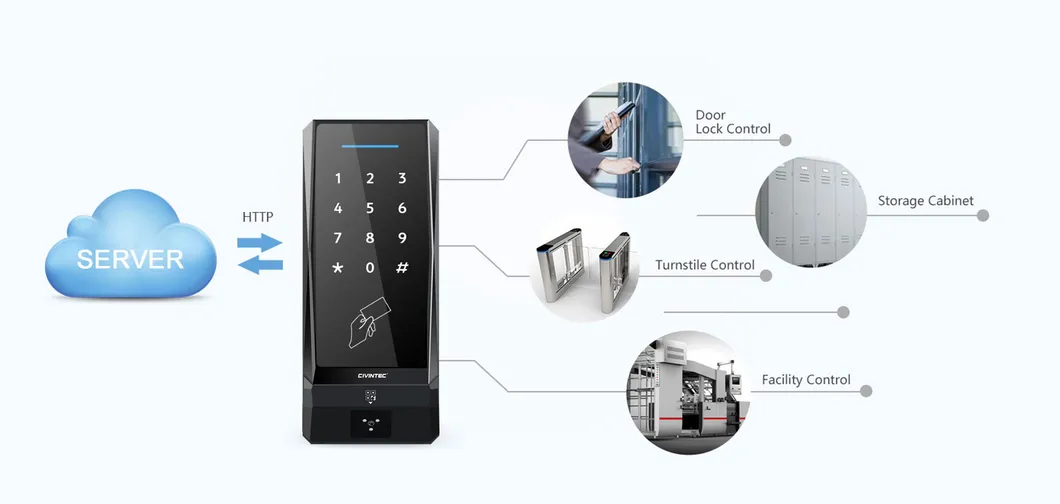

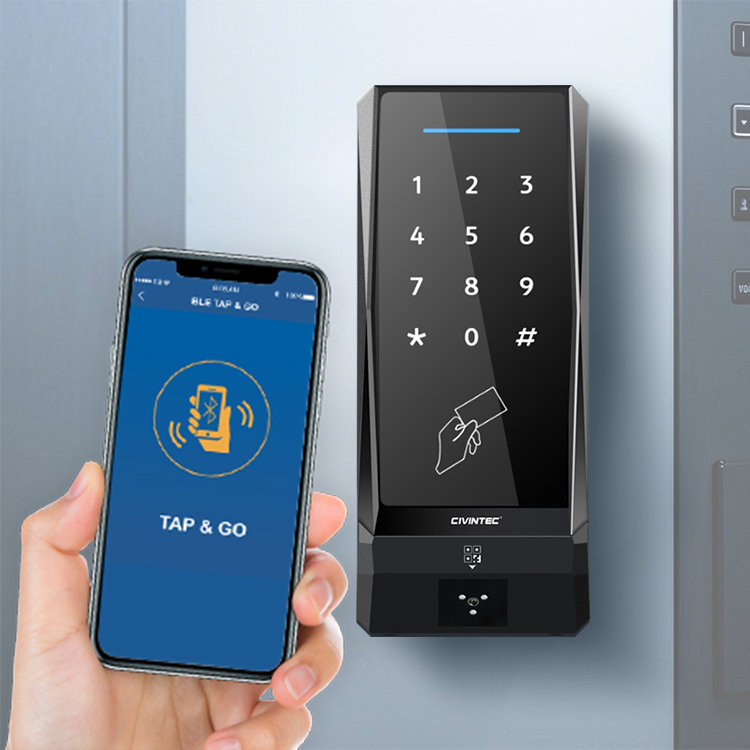

Bi-directional communication via standard HTTP & HTTPs for remote control of door locks and IoT facility management.
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.
We offer specialized ODM customization services covering hardware, reader housing, firmware, and software design. Users can program and display custom logos on the 3.5" touch screen and request OEM logo printing on the reader body.
